| Parameter | Value |
|---|---|
| Model | BA30-6000X |
| Rated Output Power | 6kW |
| DC Output Voltage Range | DC 10V ~ 30V |
| Rated Output Current | 190A |
| Efficiency | ≥ 94% |
| AC Input | Three-phase AC380V / AC480V, 45~65Hz AC325V~AC520V full power · AC260V~AC325V reduced output |
| Input Current / Power Factor | < 16A · PF ≥ 0.99 |
| Control / Communication | Fully digital control · CAN bus |
| Cooling | Forced-air cooling (built-in FAN) |
| Working Ambient Temperature | -40°C ~ +50°C (50°C ~ 75°C with reduced output) |
| Storage / Humidity / Altitude | -40°C ~ +70°C · 5~95% RH · ≤2000m (>2000m reduced output) |
| MTBF | > 120,000 hours |
| Protection Level | IP20 |
| Dimensions | L427 × W130 × H84 mm (half-width 19-inch rack module) |
| Net Weight | 7 kg |
| Warranty | 1 year |

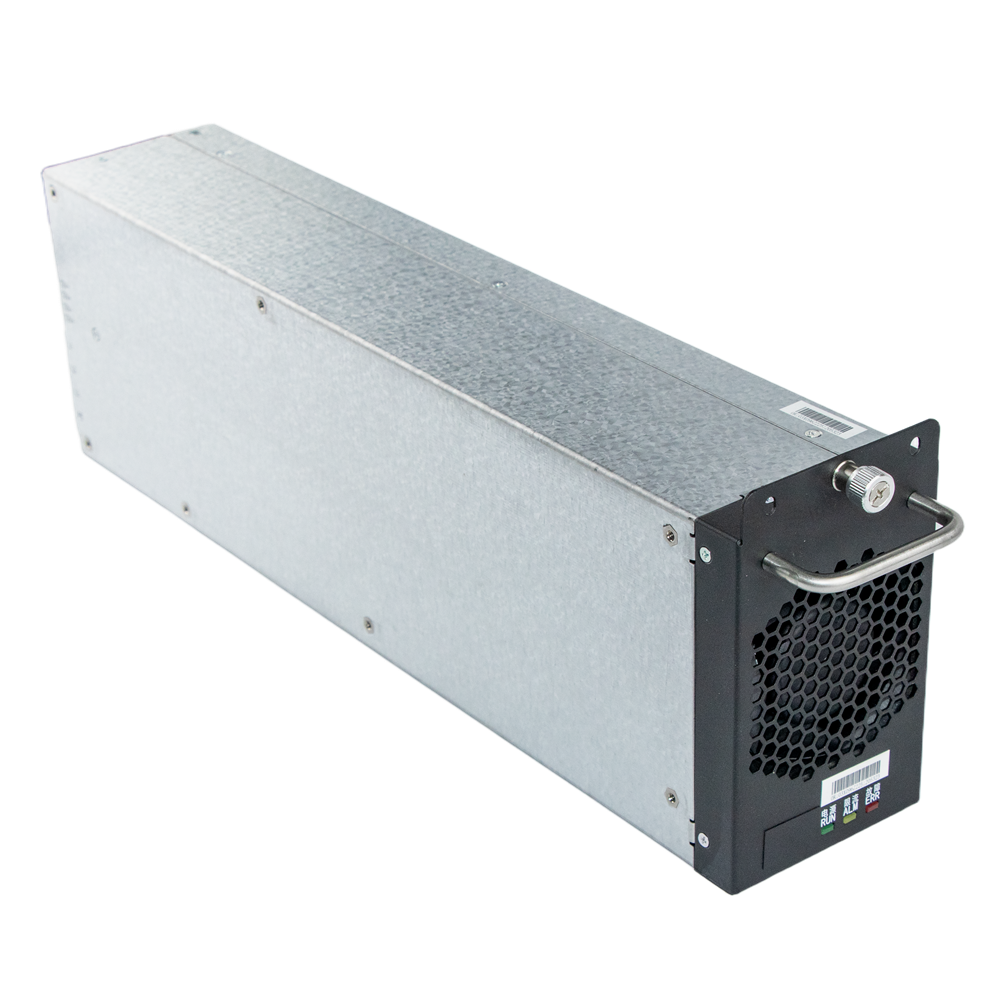

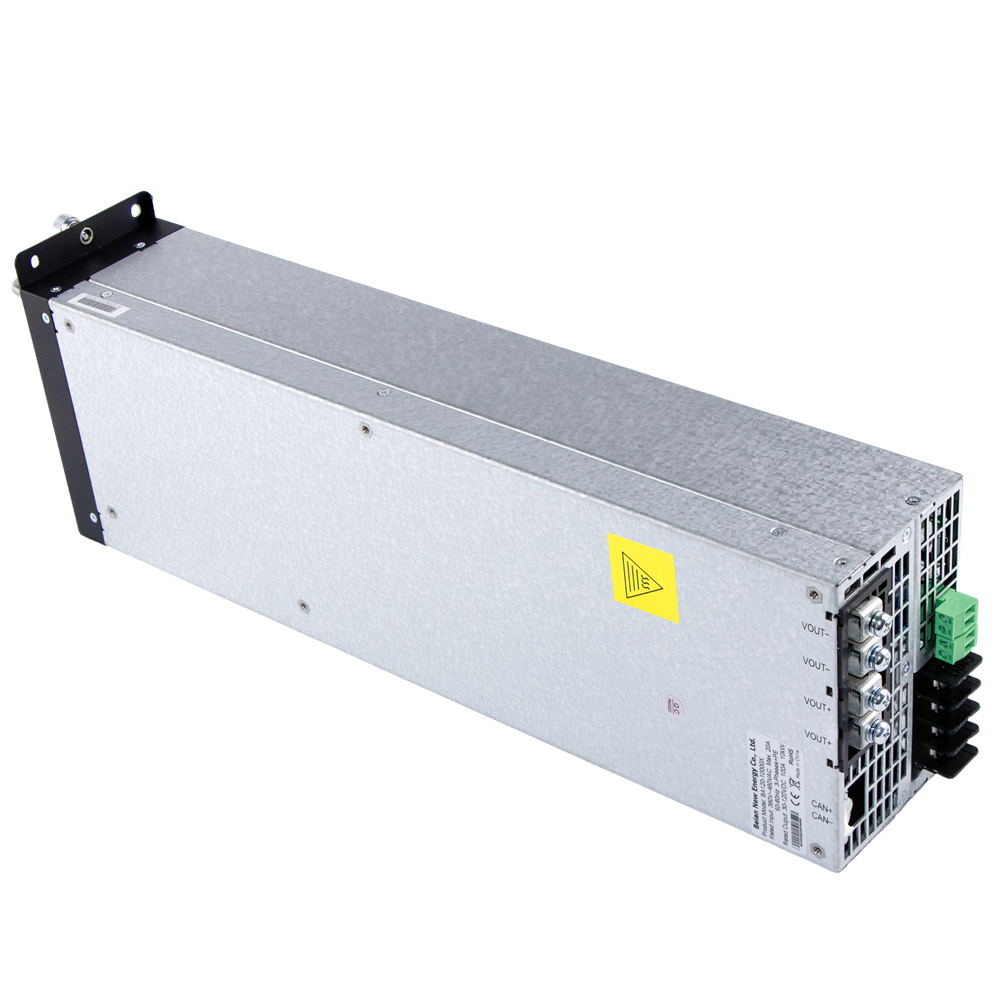

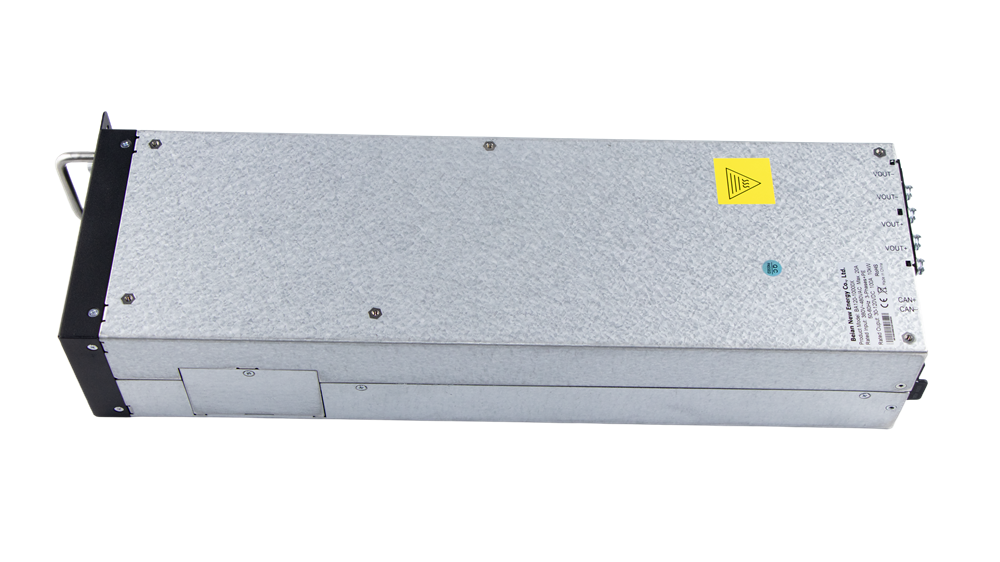

 Fan-cooled front panel with rack handle |  Wiring side - AC input and DC output terminals with CAN connectors |
Hardware test tools and PC software are provided for second development and fast project integration - fully digital control over CAN.

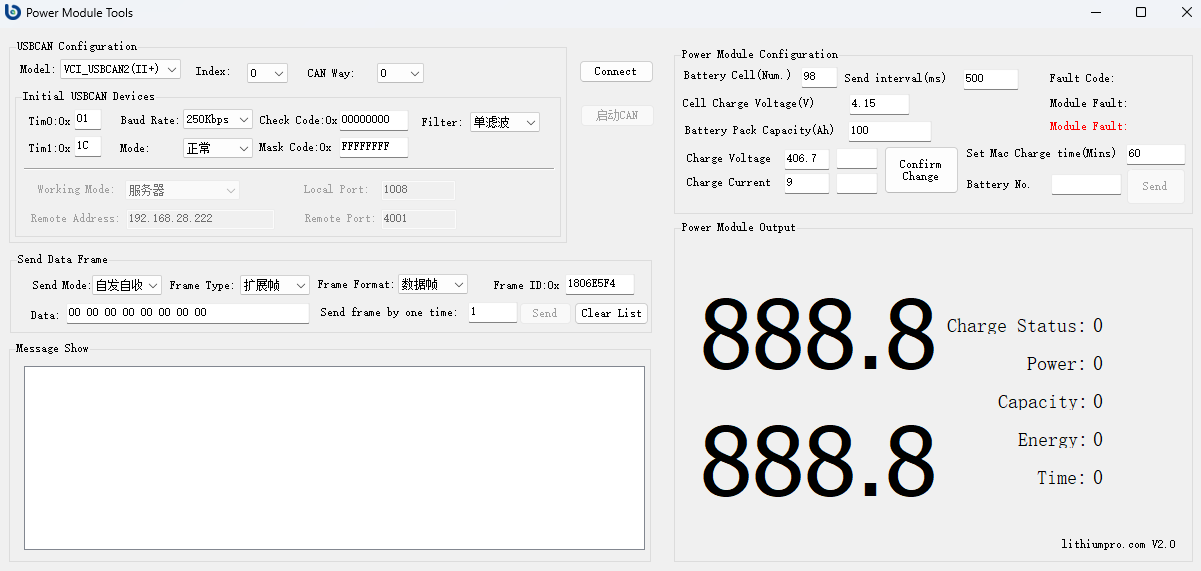

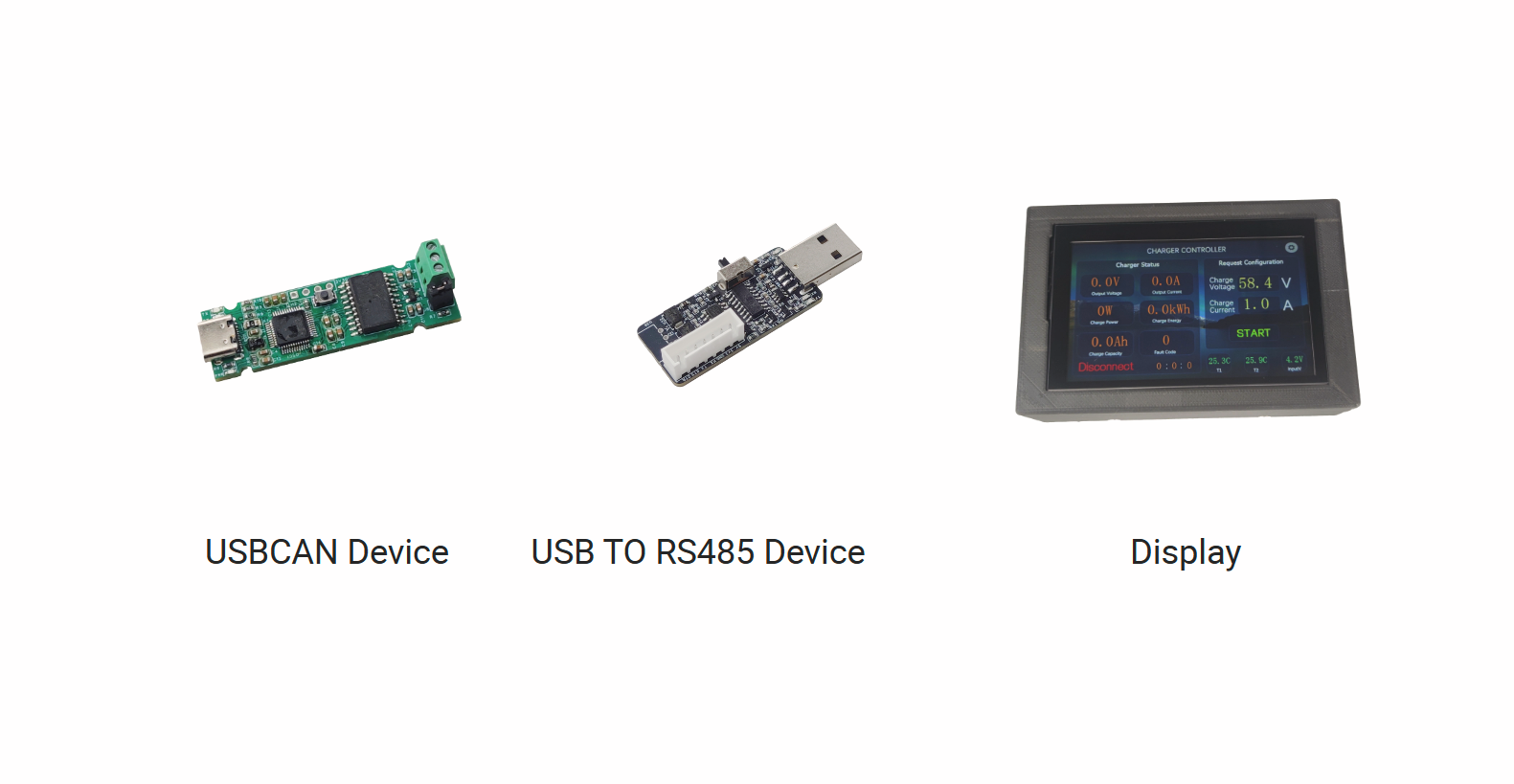

 USBCAN adapter · USB-RS485 adapter · touchscreen display |  PC software for module configuration, CAN debugging and real-time output monitoring |
| Advantage | Benefit for Your Application |
|---|---|
| ✅ DC10~30V Ultra-Low-Voltage Output | Adjustable DC10~30V - covers 12V / 24V battery systems and low-voltage DC buses that standard 200V~1000V charging modules cannot serve. |
| ✅ 190A High Current Output | Rated 190A continuous from a single module - the highest-current model of the BEIAN family, ideal for high-current charging curves and electrochemical / plating-type DC loads. |
| ✅ Half-Width High-Density Rack | 6kW in only 427 × 130 × 84 mm at 7 kg - stack modules in parallel to build 12kW / 24kW and higher-power low-voltage systems in one cabinet. |
| ✅ High Efficiency & PF ≥ 0.99 | ≥94% efficiency with power factor correction ≥0.99 and <16A input current - lower energy cost and gentler on your facility's power supply. |
| ✅ CAN Fully-Digital Control | Fully digital control via CAN bus; USBCAN / USB-RS485 adapters, touchscreen display and PC software are provided to accelerate second development and integration. |
| ✅ Wide Temperature & Proven Reliability | Full output from -40°C to +50°C with derating up to 75°C; MTBF > 120,000 hours, IP20 half-width rack format. |
CE marked (per product label) - full certification documents and test reports available on request.
| EV Fast Charge Station Parallel modules build low-voltage fast chargers for cars, buses and fleets | Lithium Battery Charger 12V / 24V LiFePO4 / lead-acid pack charging, up to 190A per module | Motor & Industrial Power Motors · pumps · compressors · blowers · DC bus supply |
| Item | Detail |
|---|---|
| Brand / Origin | BEIAN (Jiangsu Beian New Energy Co., Ltd.) · Jiangsu, China |
| Ordering Model | BA30-6000X - DC10~30V / 190A, 6kW, three-phase AC380V/AC480V input Companion models: BA100-10000 (DC30~100V / 100A, 10kW) · BA180-20000A (DC60~180V / 140A) · BA400-20000A (DC200~400V / 60A), 20kW |
| MOQ | Flexible - contact sales for sample & volume pricing |
| Lead Time | Typically 7-15 days (confirm with sales) |
| Payment | T/T, Trade Assurance, etc. (confirm with sales) |
| Support & Customization | Hardware test tool (USBCAN / USB-RS485 / display) and PC software provided for second development; other output voltage ranges per project on request |
| Warranty | 1 year |
Q1. What can the BA30-6000X power?
A: Any load that needs an adjustable DC10~30V bus - 12V / 24V lithium (LiFePO4) or lead-acid battery charging, low-voltage EV fast-charge cabinets, and industrial DC supplies for motors, pumps, compressors and blowers.
Q2. What input power does it need?
A: Three-phase AC380V or AC480V. Full power is available from AC325V to AC520V; between AC260V and AC325V the module operates with reduced output. Input current is below 16A with power factor ≥0.99.
Q3. How do I control the module?
A: Fully digital control via CAN bus. We provide USBCAN and USB-RS485 adapters, an optional touchscreen display, and PC software for configuration, CAN debugging and real-time monitoring - hardware test tools are supplied to speed up second development.
Q4. Can I parallel modules for higher power or current?
A: Yes. Modules work in parallel - stack them in one cabinet to build 12kW / 24kW and larger low-voltage charging systems, or combine different voltage ranges in one rack.
Q5. I need a higher-voltage output - is there an option?
A: Yes. The same family includes BA100-10000 (DC30~100V / 100A, 10kW), BA180-20000A (DC60~180V / 140A) and BA400-20000A (DC200~400V / 60A), all sharing the same CAN protocol and control scheme.
Q6. How reliable is it?
A: MTBF is greater than 120,000 hours. Cooling is forced-air with a built-in fan; full output is available from -40°C to +50°C with derating up to 75°C ambient.
