| Parameter |
Value |
| Model |

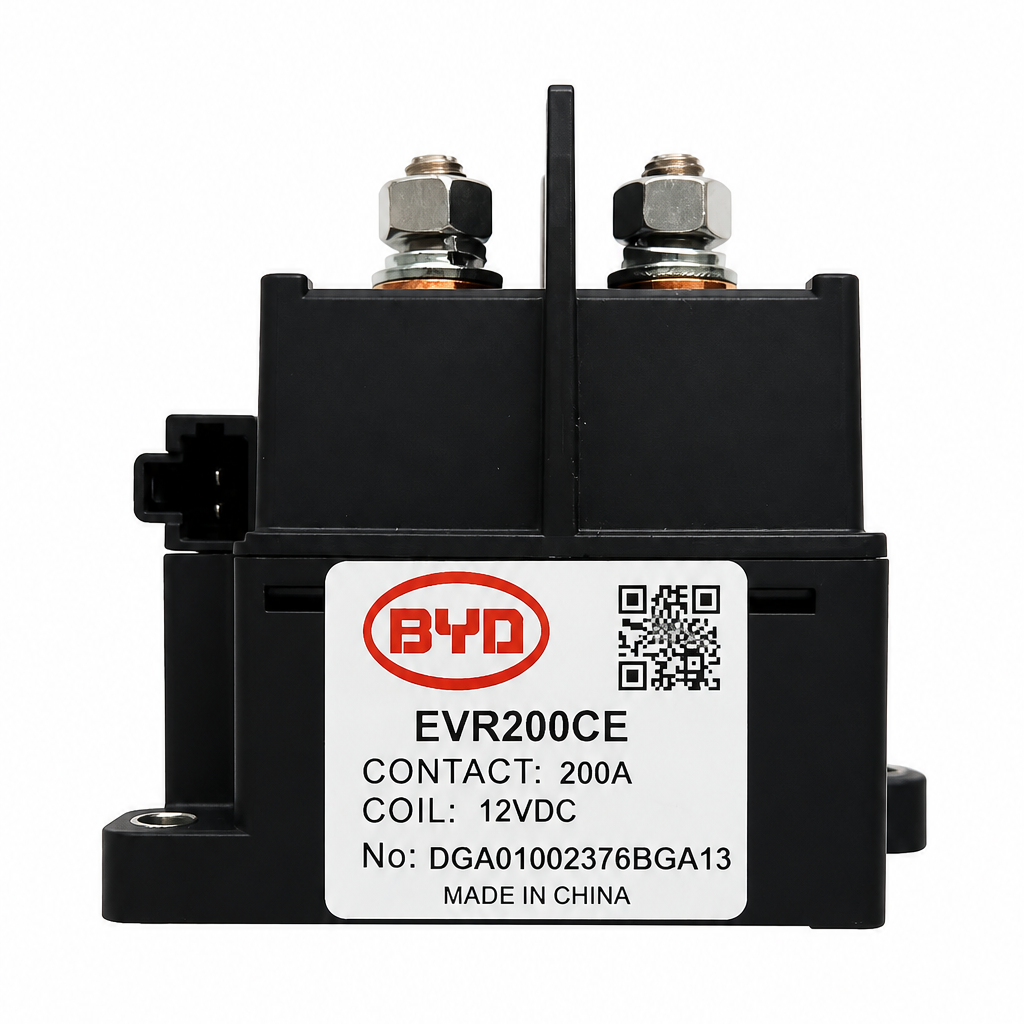

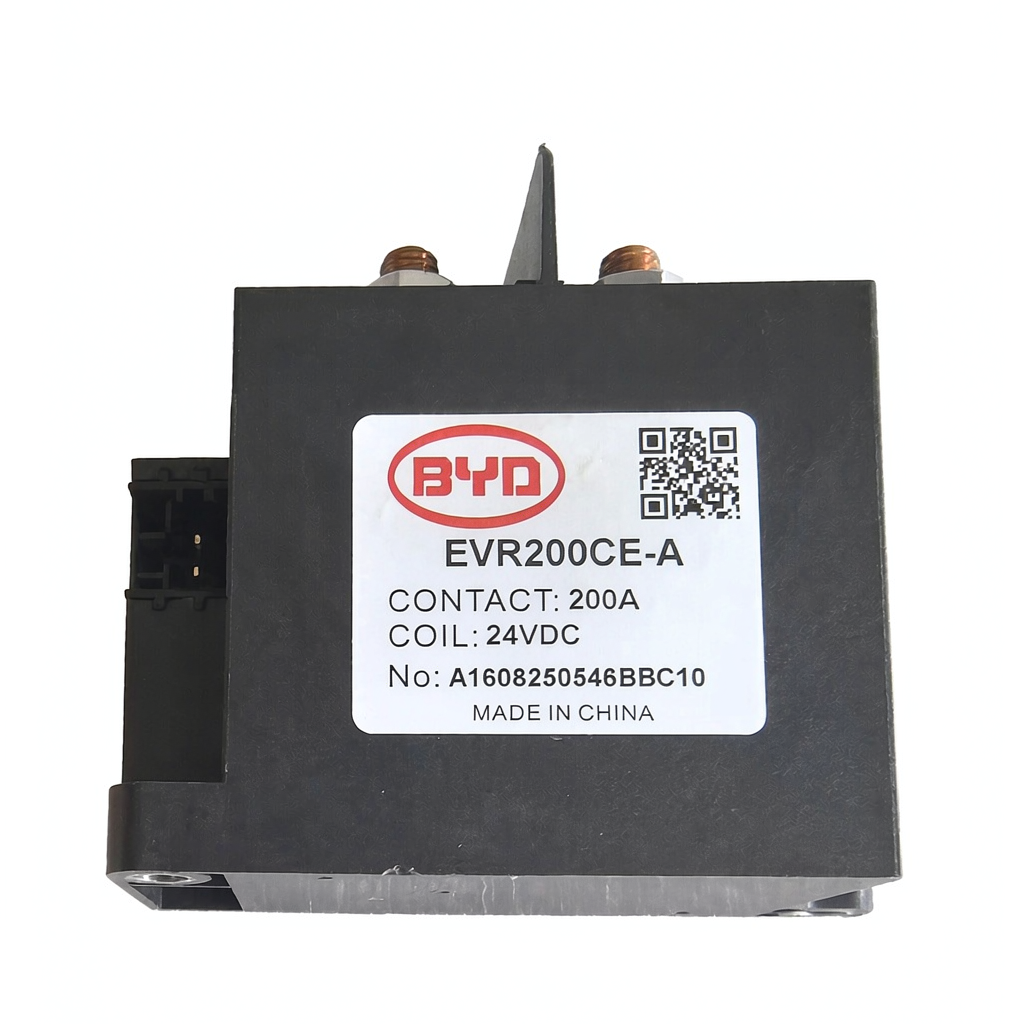

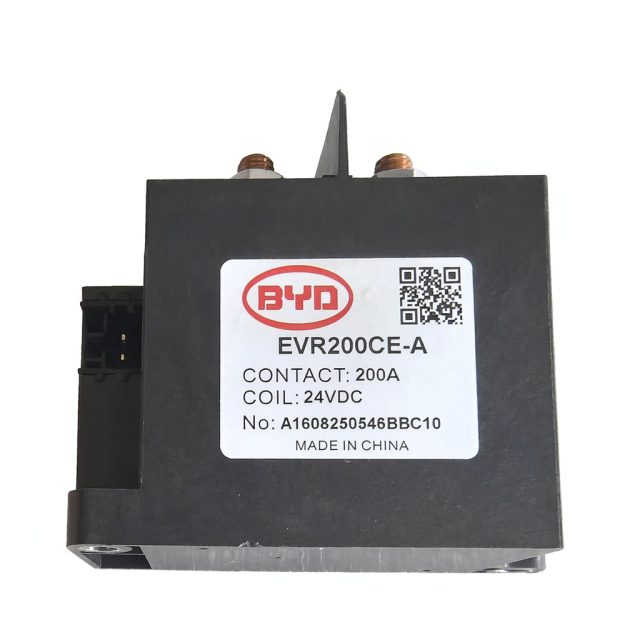

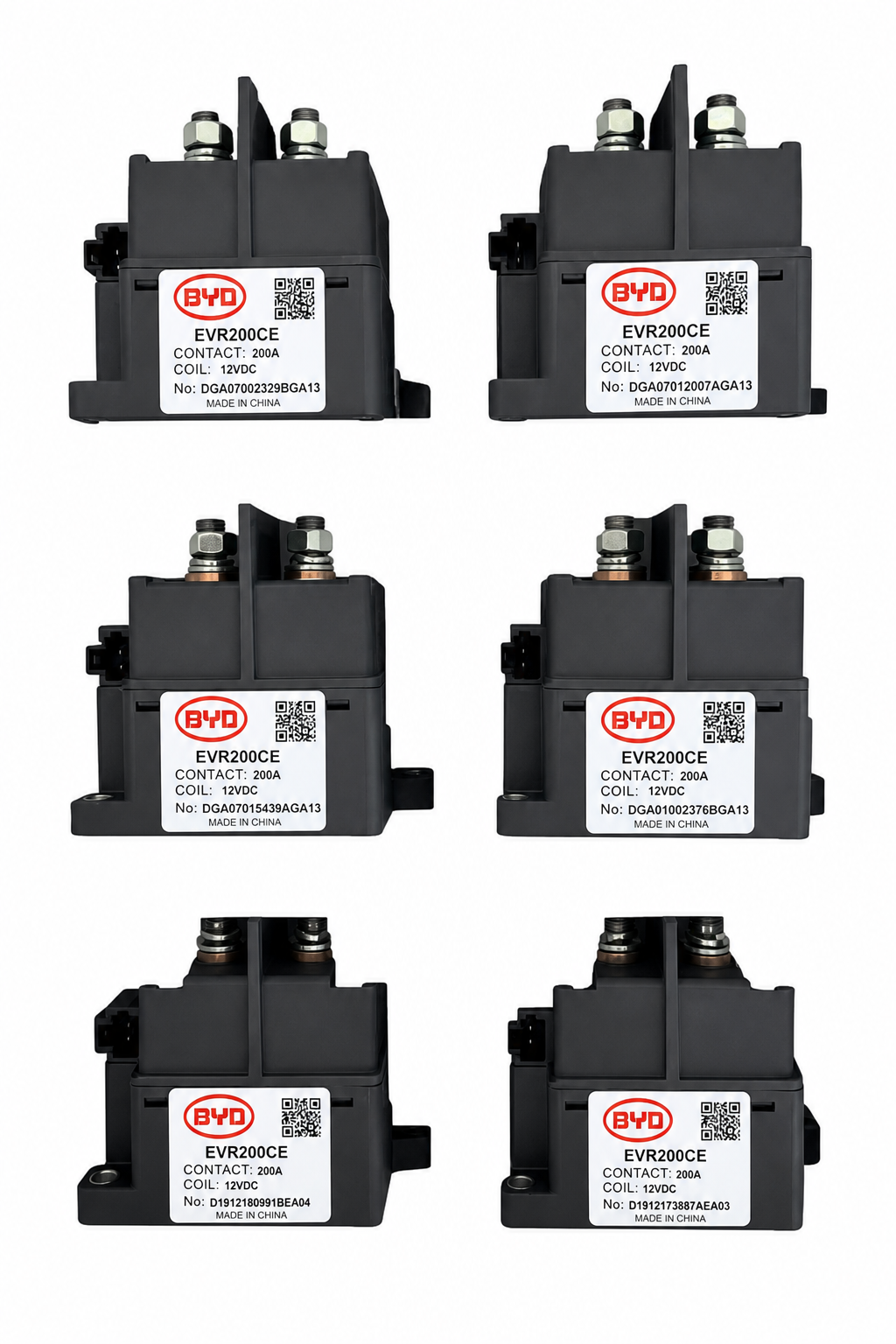

EVR200CE (200A type) |
| Contact Arrangement |
1 Form A (SPST-NO), one set of normally open contacts |
| Contact Rating |
200A continuous · 300A / 15 min short-time · min. applicable load 1A 12VDC (resistive) |
| Load Voltage |
DC 12V – 1000V operating range |
| Max. Switching Voltage |
1000 VDC |
| Endurance (Elec., resistive) |
DC400V 200A ≥3,000 ops · DC800V 200A ≥1,000 ops · reverse cut-off DC400V −200A ≥1,000 ops / DC800V −200A ≥500 ops |
| Contact Resistance |
≤0.5 mΩ (initial) · ≤0.1 V voltage drop at 200A |
| Coil Voltage |
DC 12V (pick-up ≤9V · drop-out 1–4.8V · rated current 0.73A · 8.76W · max. allowable DC16V, at 23°C) |
| Operate / Release Time |
≤30ms / ≤15ms (at 23°C, rated coil voltage; release without diode) |
| Endurance (Mech.) |
≥200,000 operations |
| Dielectric / Insulation |
AC 3,000V 1min between contacts & contact–coil (leakage ≤3mA) · ≥1,000MΩ (DC1,000V megger, initial) |
| Ambient (Operating / Storage) |
−40°C ~ +85°C / −40°C ~ +95°C · 5%~85% RH (no icing or condensation) |
| Vibration / Mechanical Shock |
27.4 m/s², 5–2000Hz broadband random, 15h per axis (3 axes) · half-sine 11ms, 50g, 20 shocks per axis |
| Terminal / Dimensions / Weight |
M8 nut load terminals · outline drawing in gallery · approx. 550 g |
| Mounting Torque |
M8 load-terminal nut 8–10.1 N·m · M5 case fixing feet 3–4 N·m |
| Certification |
TÜV |
