High Voltage DC Contactor HV500AF-130 1000VDC 500A
Product Detail Reference
Modle Paramenter name | HV500AF-130 | |
Rated Contact Voltage | 12V-1000V D.C. | |
Continuous Operating Current | 250A (50mm? or 1-1/0 AWG cables) | |
Continuous Operating Current (Max) | 500A (190mmor350 MCM busbars) | |
Coil Voltage Range | 12V D.C.-96V D.C | |
Contact Arrangement: | Main | SPST-NO |
Auxiliary: |
| |
Voltage Drop | Typically <30mV at 100A | |
Insulation Resistance | >200MQ | |
Dielectric Withstand Test (at SeaLevel): | 4000V D.C.Leakage <1mA | |
Maximum Altitude | 3000m | |
Environmental Seal | Contacts, Auxiliary and PWM CircuitHemetically Sealed -Exceeds lP67 | |
Weight: | Switch:400 gms | |
Bracket:20 gms | ||
Connection Wire Length: | Coil:250mm | |
Auxiliary:280mm | ||
Shock, 1/2 Sine, 11ms (G): | Closed:20G Peak | |
Open:20G Peak | ||
Vibration, Sinusoidal | 80-2000Hz Peak 20G | |
Temperature -Operating | (-45°C to + 85°C) | |
Temperature - Storage | (-45°C to + 120°C) | |
Humidity | 5-85% | |

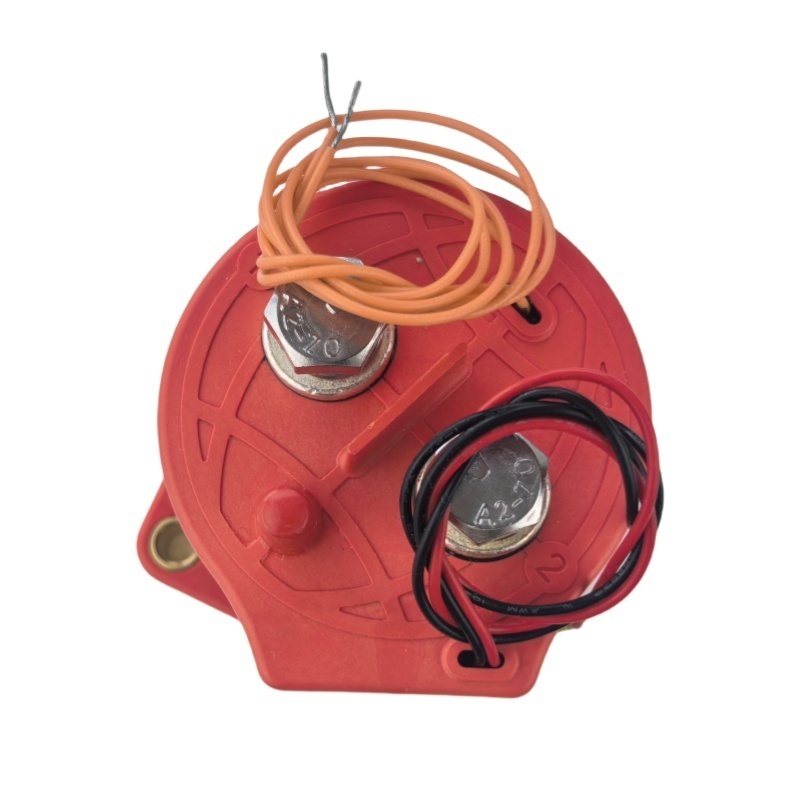

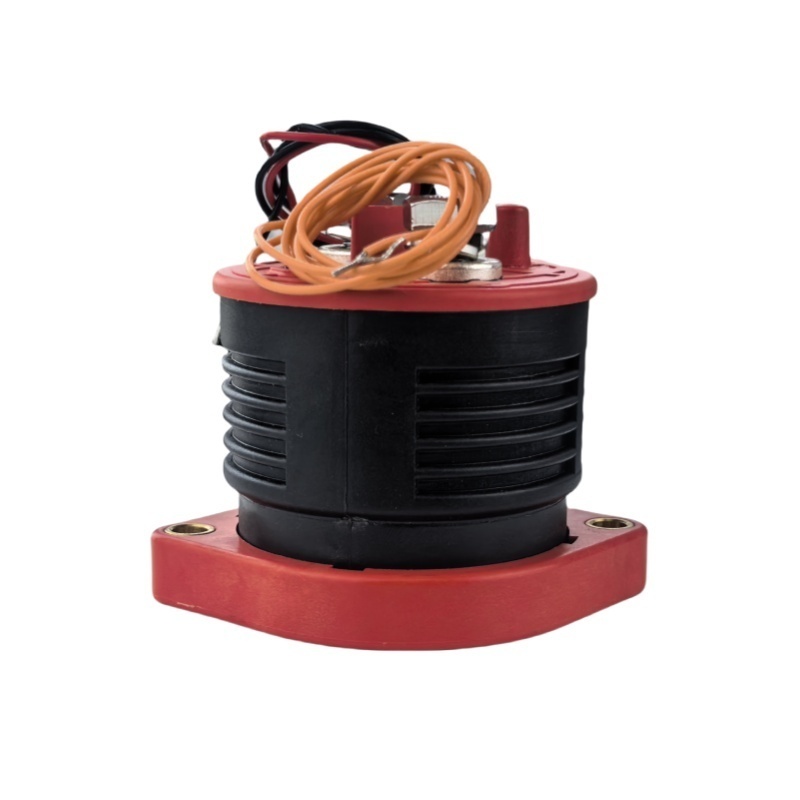

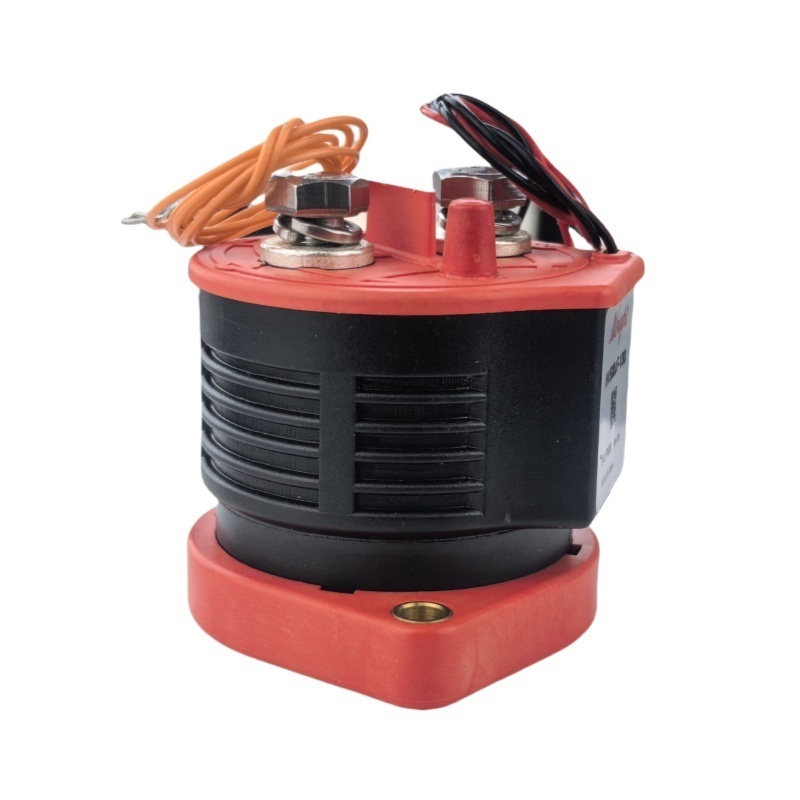

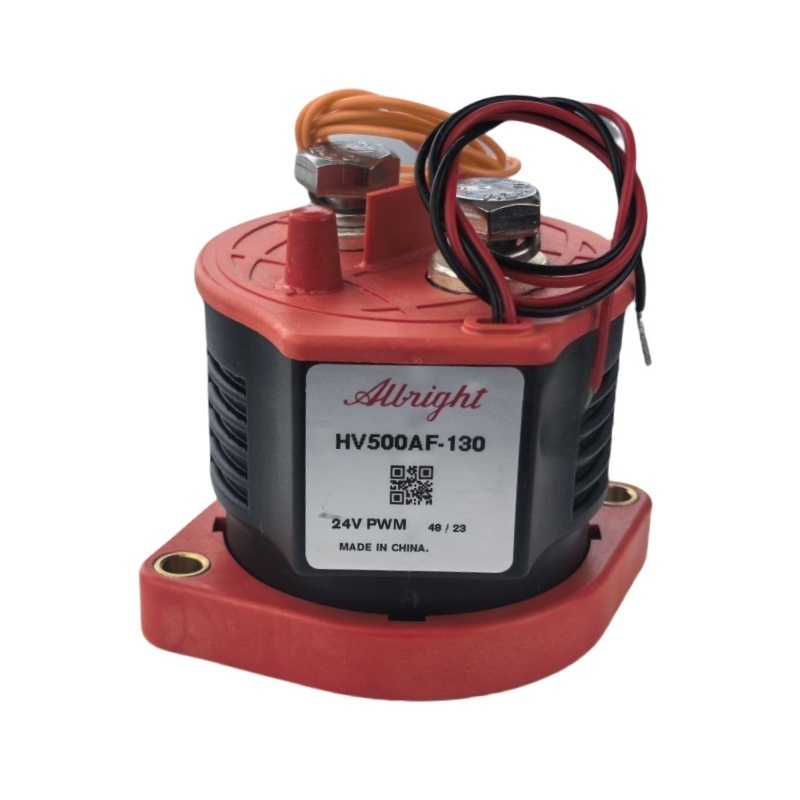

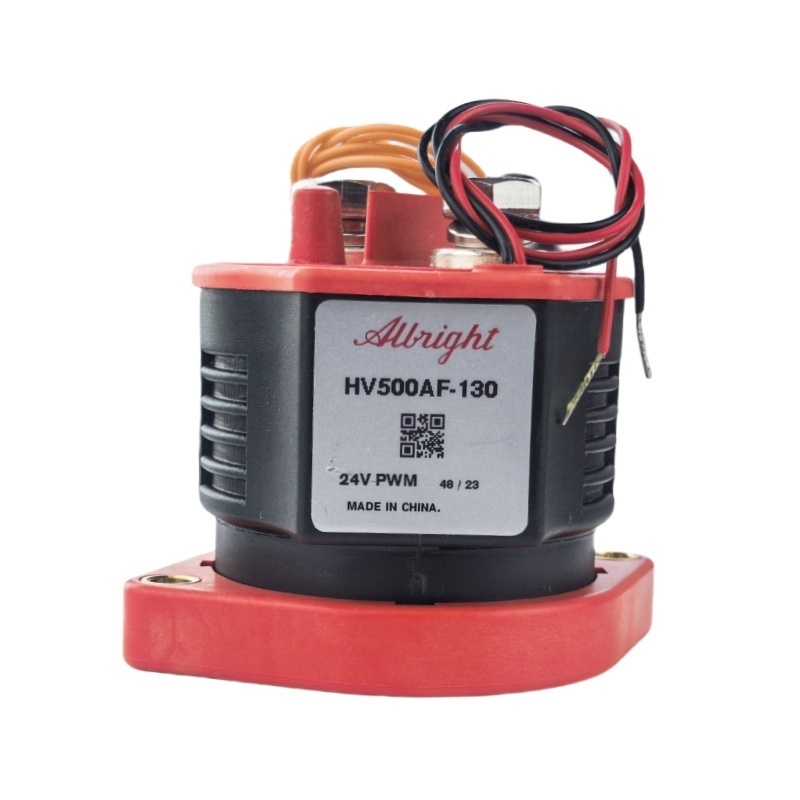

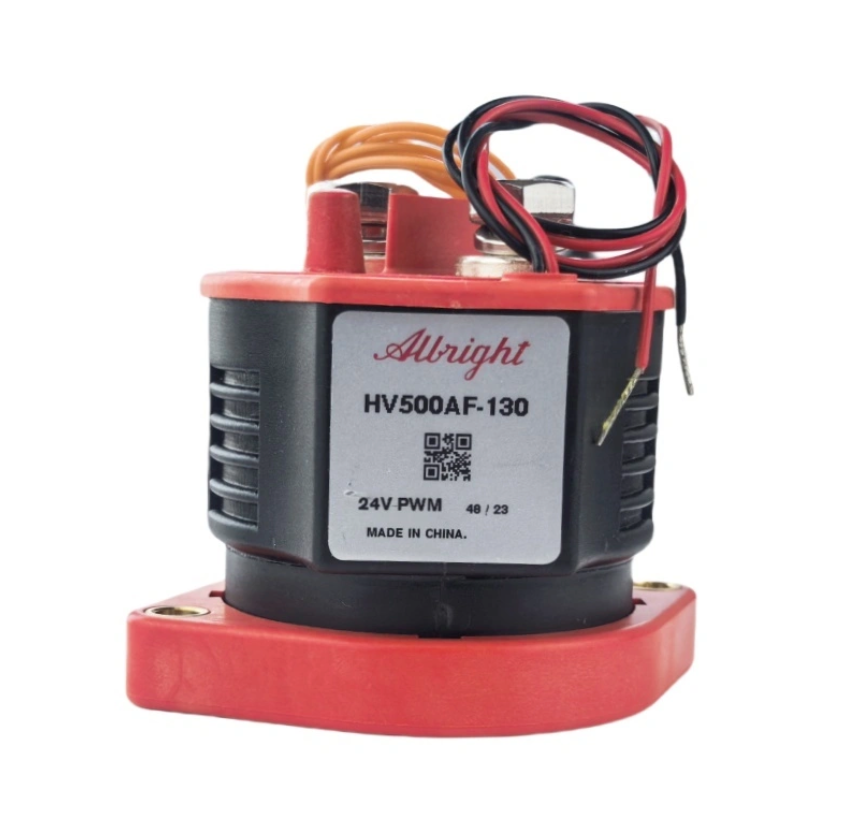

Product Picture

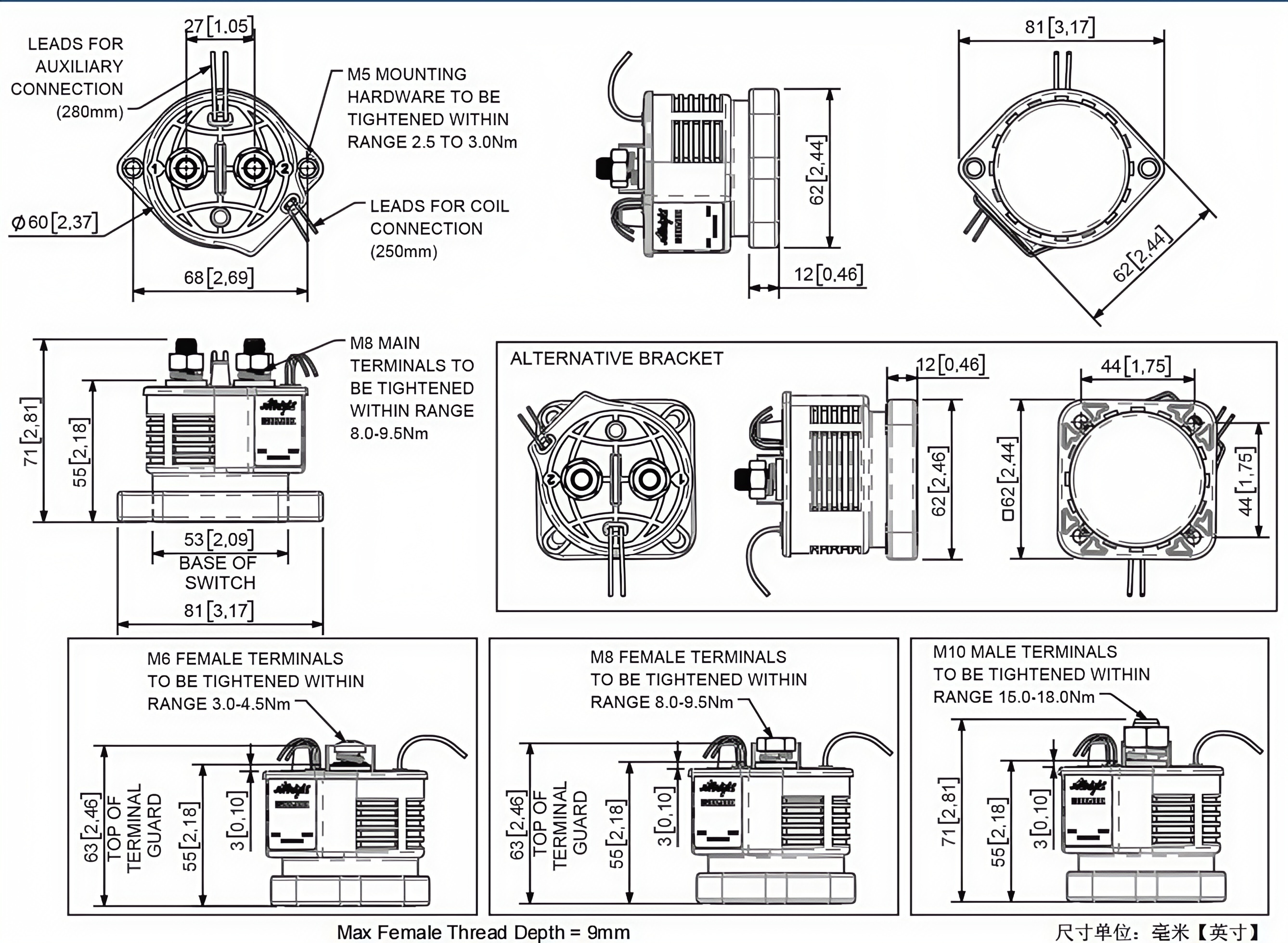

Product Dimension Drawing

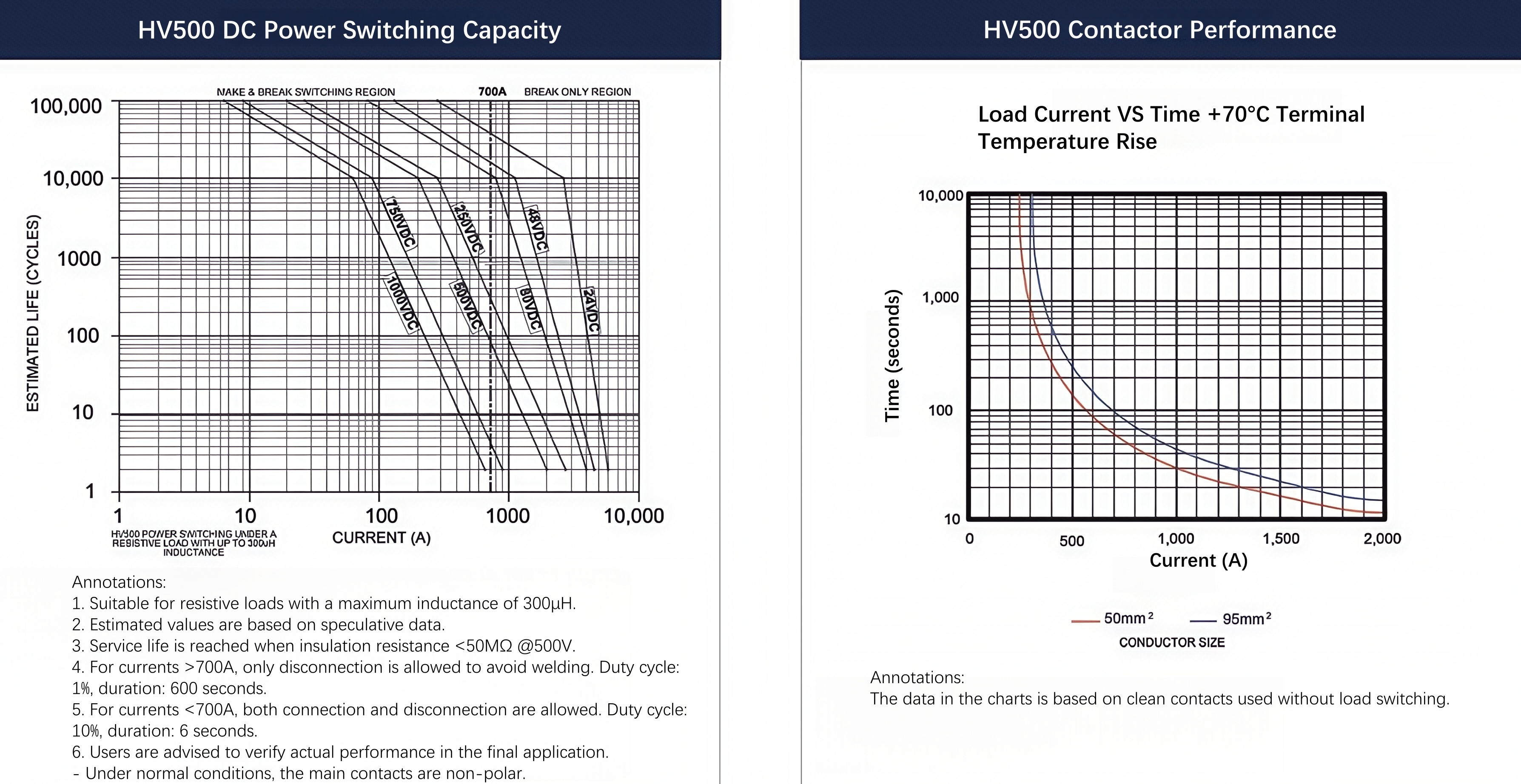

Electrical Life Line Chart &Current Time Line Chart
