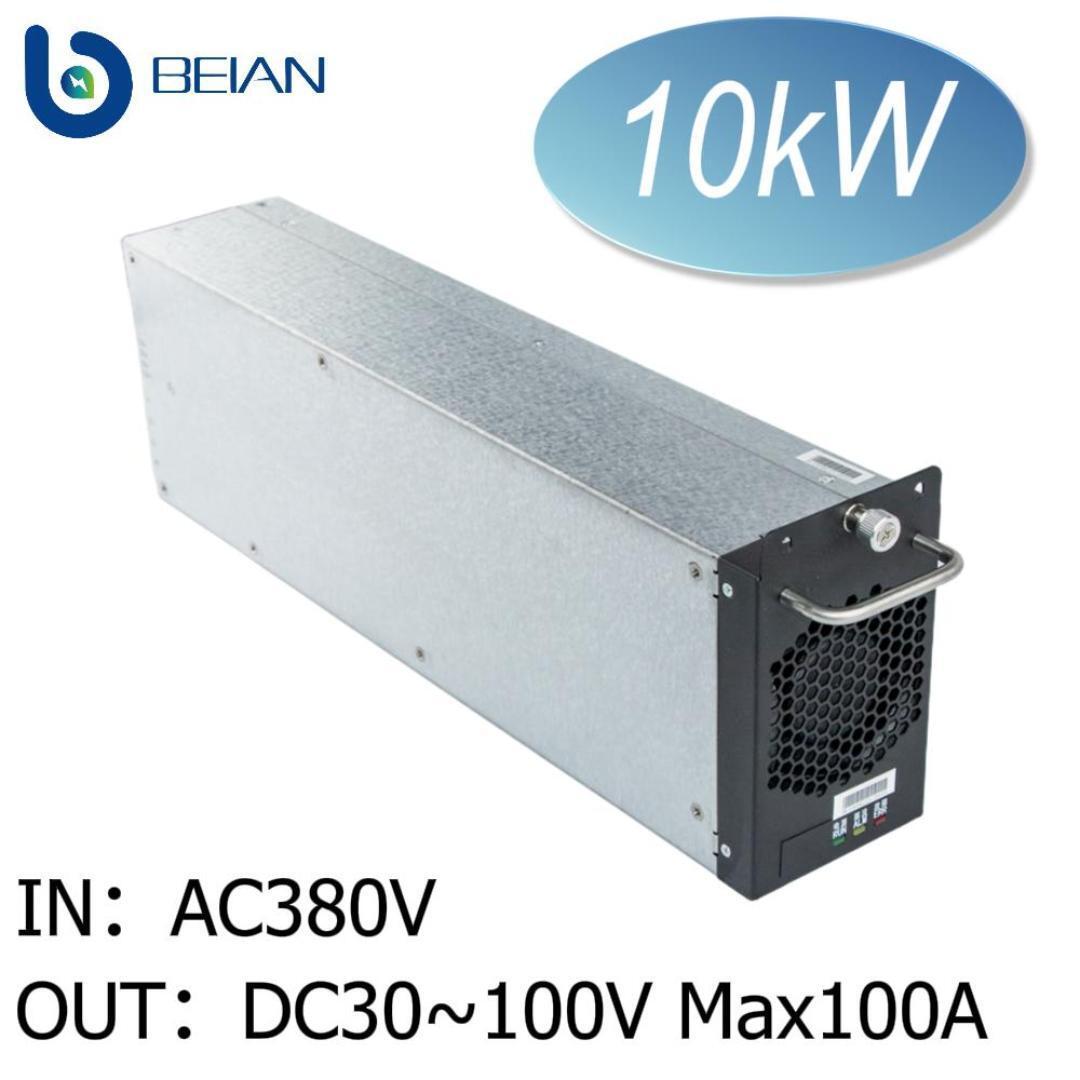

| Parameter | Value |
|---|---|
| Model | BA100-10000 |
| Rated Output Power | 10kW |
| DC Output Voltage Range | DC 30V ~ 100V |
| Rated Output Current | 100A |
| Efficiency | ≥ 95% |
| AC Input | Three-phase AC380V / AC480V, 45~65Hz AC325V~AC520V full power · AC260V~AC325V reduced output |
| Input Current / Power Factor | < 20A · PF ≥ 0.99 |
| Control / Communication | Fully digital control · CAN bus |
| Cooling | Forced-air cooling (built-in FAN) |
| Working Ambient Temperature | -40°C ~ +50°C (50°C ~ 75°C with reduced output) |
| Storage / Humidity / Altitude | -40°C ~ +70°C · 5~95% RH · ≤2000m (>2000m reduced output) |
| MTBF | > 120,000 hours |
| Protection Level | IP20 |
| Dimensions | L396 × W130 × H84 mm (half-width 19-inch rack module) |
| Net Weight | 7 kg |
| Warranty | 1 year |

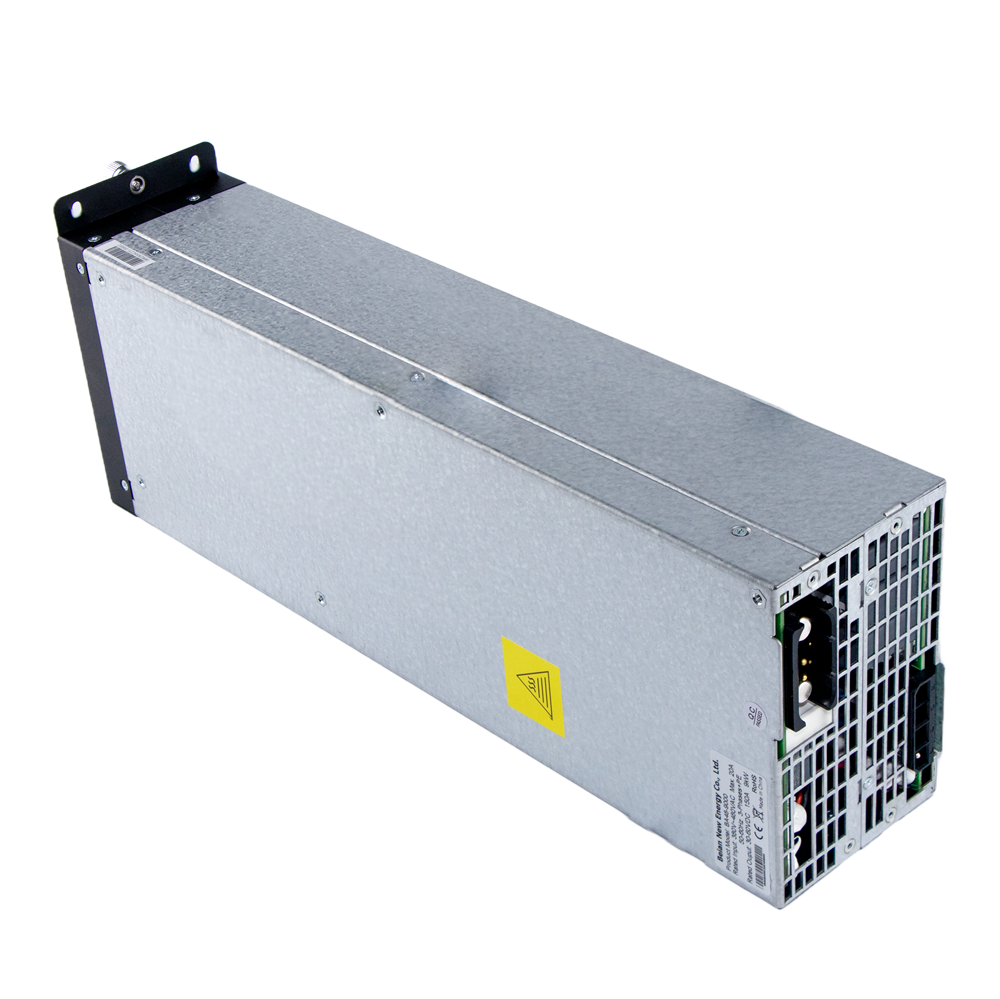

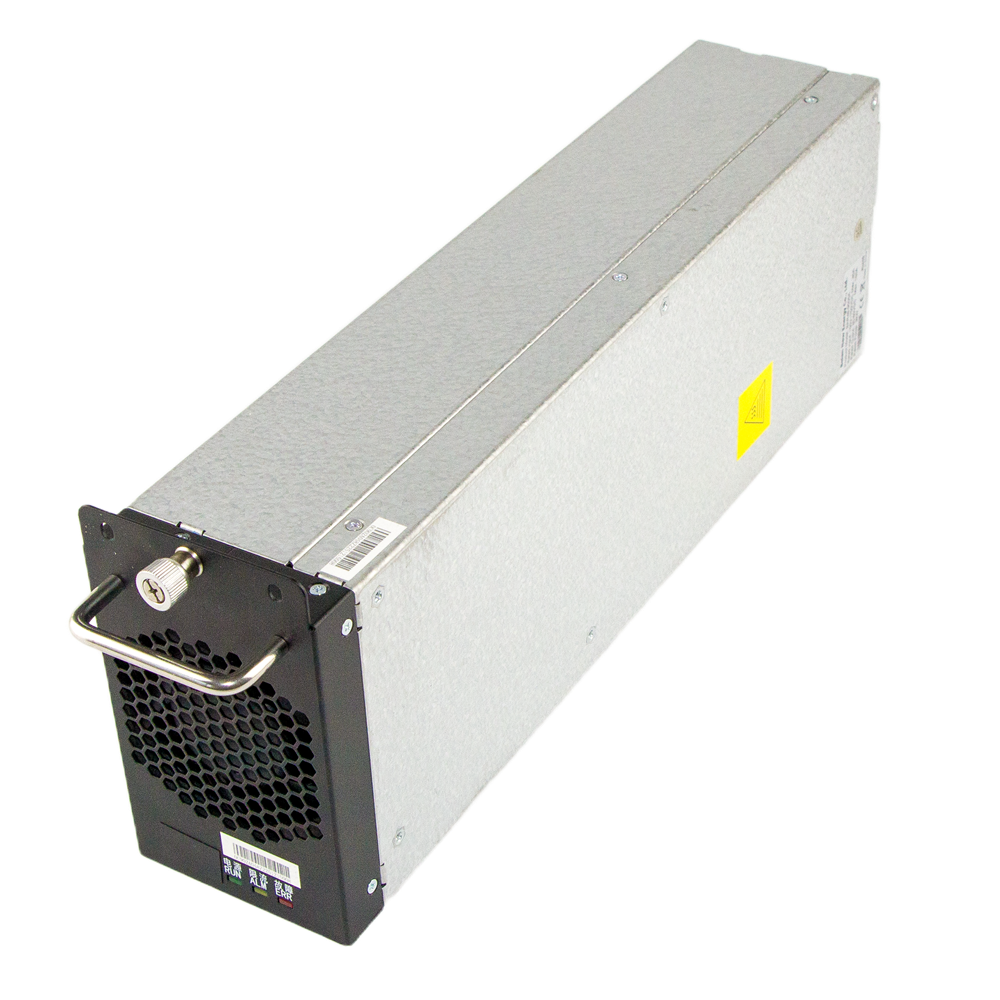

 Fan-cooled front panel with RUN / ALM / ERR indicators and rack handle |  Rear wiring side - AC input (L1/L2/L3, PE), DC output terminals and CAN connectors |
Hardware test tools and PC software are provided for second development and fast project integration - fully digital control over CAN.
 USBCAN adapter · USB-RS485 adapter · touchscreen display |  PC software for module configuration, CAN debugging and real-time output monitoring |
| Advantage | Benefit for Your Application |
|---|---|
| ✅ 30~100V Wide Low-Voltage Output | Adjustable DC30~100V at up to 100A - one module covers 24V~96V battery systems, hydrogen fuel-cell DC buses and low-voltage fast chargers without changing hardware. |
| ✅ 100A High Current Output | Rated 100A continuous from a single half-width module - ideal for high-current charging curves and low-voltage industrial DC bus supplies. |
| ✅ Half-Width High-Density Rack | 10kW in only 396 × 130 × 84 mm at 7 kg - double the modules per cabinet compared with full-width designs, easy parallel stacking to 40kW / 60kW / 120kW systems. |
| ✅ High Efficiency & PF ≥ 0.99 | ≥95% efficiency with power factor correction ≥0.99 and <20A input current - lower energy cost and gentler on your facility's power supply. |
| ✅ CAN Fully-Digital Control | Fully digital control via CAN bus; USBCAN / USB-RS485 adapters, touchscreen display and PC software are provided to accelerate second development and integration. |
| ✅ Wide Temperature & Proven Reliability | Full output from -40°C to +50°C with derating up to 75°C; MTBF > 120,000 hours with RUN / ALM / ERR front-panel status indication. |

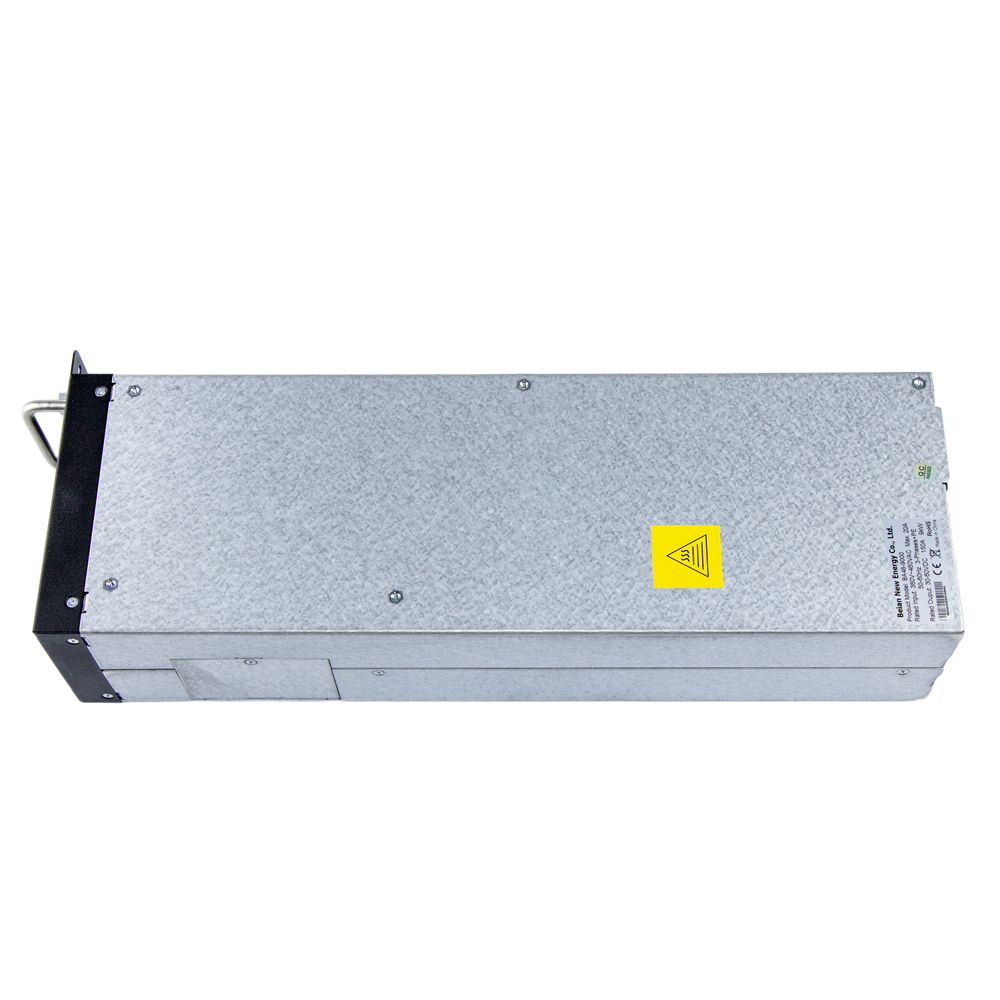

CE marked (per product label) - full certification documents and test reports available on request.
| EV Fast Charge Station Parallel modules build low-voltage fast chargers for cars, buses and fleets | Lithium Battery Charger 24V~96V LiFePO4 / NMC pack charging, up to 100A per module | Motor & Industrial Power Motors · pumps · compressors · blowers · DC bus supply |
| Item | Detail |
|---|---|
| Brand / Origin | BEIAN (Jiangsu Beian New Energy Co., Ltd.) · Jiangsu, China |

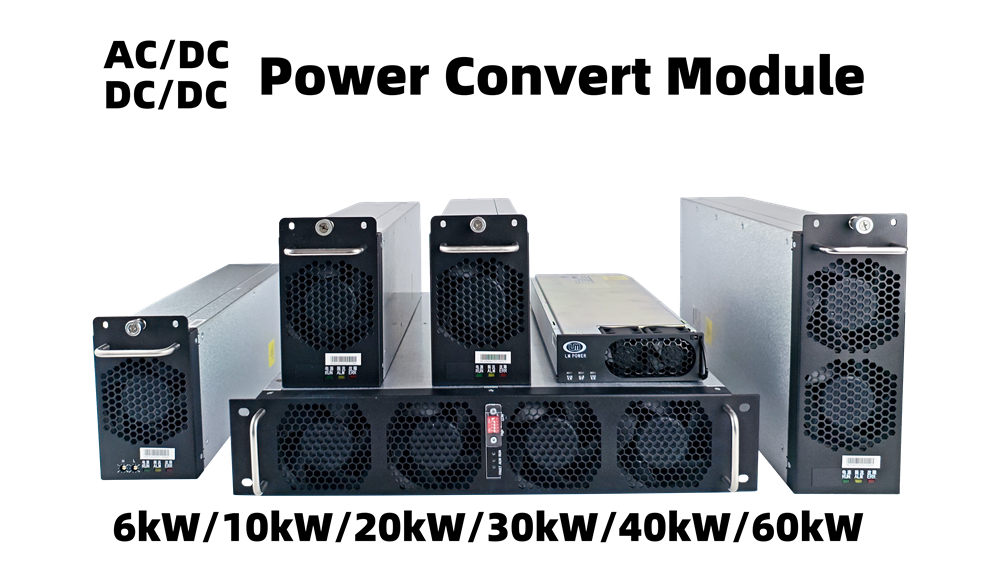

| Ordering Model | BA100-10000 - DC30~100V / 100A, 10kW, three-phase AC380V/AC480V input Companion models: BA180-20000A (DC60~180V / 140A) · BA400-20000A (DC200~400V / 60A), 20kW full-width |
| MOQ | Flexible - contact sales for sample & volume pricing |
| Lead Time | Typically 7-15 days (confirm with sales) |
| Payment | T/T, Trade Assurance, etc. (confirm with sales) |
| Support & Customization | Hardware test tool (USBCAN / USB-RS485 / display) and PC software provided for second development; other output voltage ranges per project on request |
| Warranty | 1 year |
Q1. What can the BA100-10000 power?
A: Any load that needs an adjustable DC30~100V bus - 24V~96V lithium battery charging (LiFePO4 / NMC), EV fast-charge cabinets for low-voltage vehicles, hydrogen fuel-cell DC buses, and industrial DC supplies for motors, pumps, compressors and blowers.
Q2. What input power does it need?
A: Three-phase AC380V or AC480V. Full power is available from AC325V to AC520V; between AC260V and AC325V the module operates with reduced output. Input current is below 20A with power factor ≥0.99.
Q3. How do I control the module?
A: Fully digital control via CAN bus. We provide USBCAN and USB-RS485 adapters, an optional touchscreen display, and PC software for configuration, CAN debugging and real-time monitoring - hardware test tools are supplied to speed up second development.
Q4. Can I parallel modules for higher power or current?
A: Yes. Modules work in parallel - for example, stacking modules in one cabinet to reach 40kW / 60kW / 120kW charging systems, or paralleling two modules for 200A output at the same voltage.
Q5. I need a higher-voltage output - is there an option?
A: Yes. The same family includes BA180-20000A (DC60~180V / 140A) and BA400-20000A (DC200~400V / 60A), both 20kW full-width modules sharing the same CAN protocol and control scheme.
Q6. How reliable is it?
A: MTBF is greater than 120,000 hours. Cooling is forced-air with built-in fans; the front panel provides RUN / ALM / ERR status indicators for quick field diagnosis.
