| Parameter | Value |
|---|---|
| Model | HFE82V-150F (F series, 750V DC type) |
| Brand | HONGFA (Xiamen, Fujian, China) |
| Contact Arrangement | 1 Form A (SPST-NO), single pole |
| Contact Rating | 150A continuous (at 85°C) |
| Load Voltage (series) | 750V DC type (F series: 500V / 750V DC types) |
| Max Switching Voltage | 750V DC |
| Max Breaking Current | 1300A (400V DC) 1 op — approx. 8.7× rated overcurrent breaking |
| Max Switching Power | 150kW |
| Contact Resistance | ≤0.5 mΩ (at 150A) |
| Coil Voltage | 12V / 24V DC |
| Coil Power | 6W (single coil) |
| Pick-Up / Drop-Out Voltage | ≤75% Un (pick-up ≤9V / ≤18V) / ≥1V · ≥2V (drop-out) |

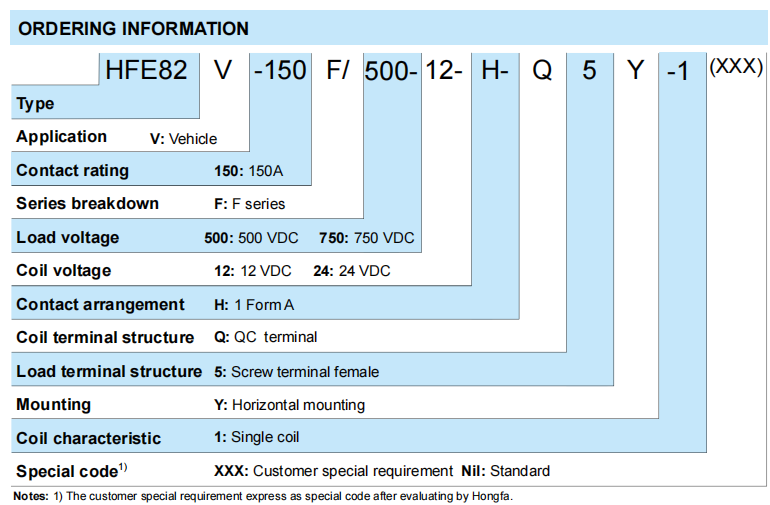

| Coil Type / Termination | Single coil, QC (quick-connect) terminal type Q5Y; connector C5Y variant per ordering code |
| Load Terminal | Screw terminal female, M5-class studs |
| Polarity | No polarity on load or coil side |
| Operate / Release Time | ≤30ms / ≤10ms |
| Mechanical Endurance | 2×105 operations |

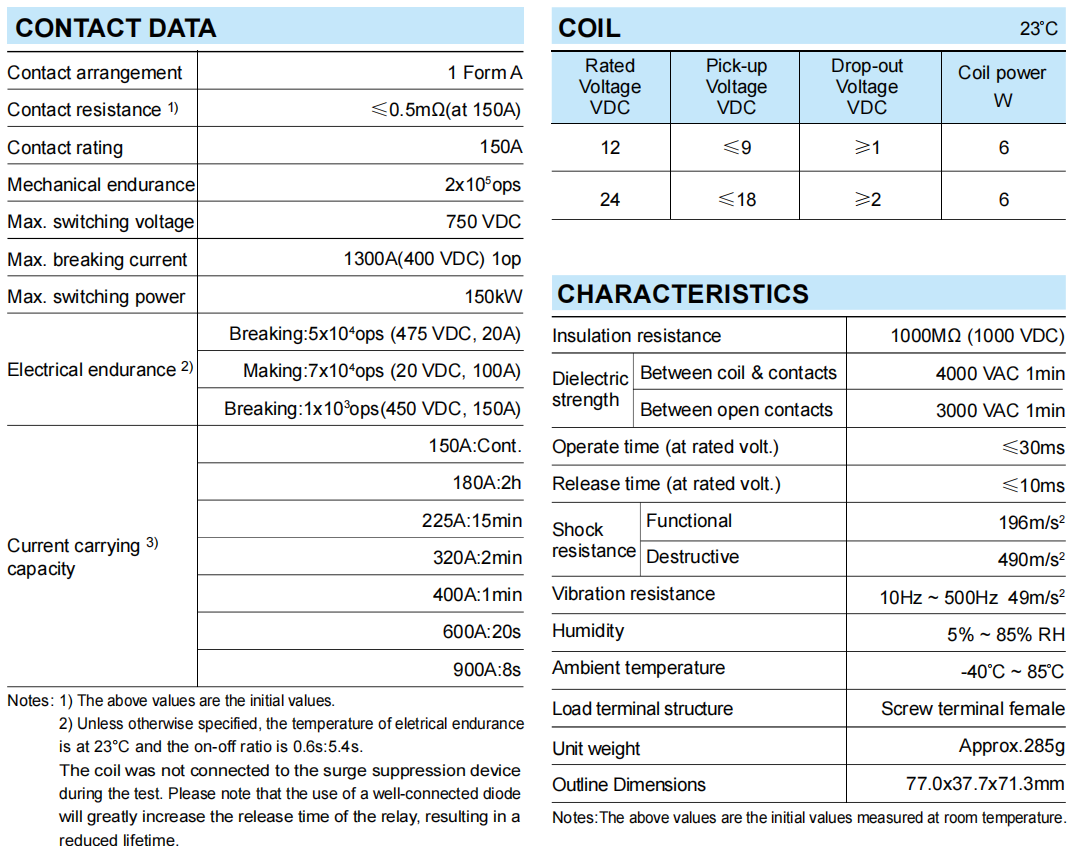

| Electrical Endurance | Breaking 5×104 ops (475V DC, 20A); making 7×104 ops (20V DC, 100A); breaking 1×103 ops (450V DC, 150A); 500 ops (750V DC, 150A) |
| Current Carrying (85°C) | 150A continuous; 180A 2h; 225A 15min; 320A 2min; 400A 1min; 600A 20s; 900A 8s |
| Short-Circuit Withstand | 8kA / 2ms, 1 op, no fire, no explosion |
| Dielectric Strength | 4000VAC 1min (coil–contacts) / 3000VAC 1min (open contacts) |
| Insulation Resistance | 1000MΩ (1000V DC); IEC 60664-1 |
| Shock / Vibration | Functional 196m/s² / Destructive 490m/s²; 10–500Hz 49m/s² |
| Ambient Temperature | -40°C ~ +85°C |
| Sealing | Hermetic ceramic brazing, hydrogen-filled, IP67 |

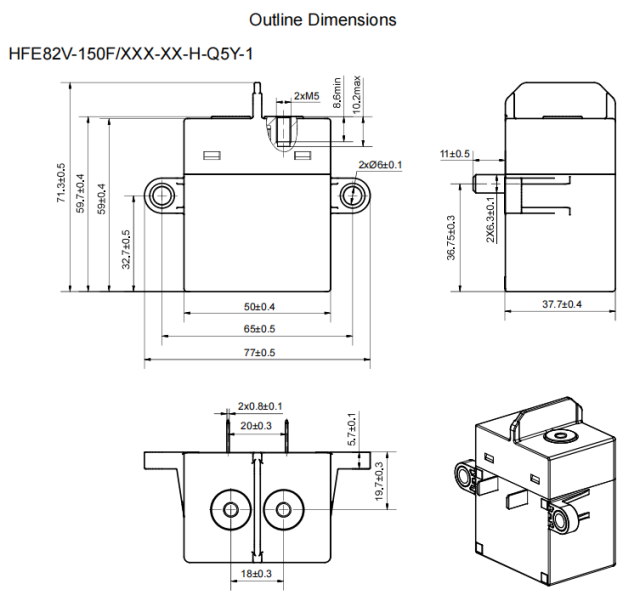

| Outline Dimensions (W / H / D) | 77.0 × 37.7 × 71.3 mm (Q5Y type; C5Y connector housing 82.5 × 39.5 × 69.6 mm) |
| Unit Weight | Approx. 300 g (Q5Y datasheet) |
| Place of Origin | Fujian, China |
Verified against the official HONGFA HFE82V-150F datasheets (2021 & 2024 Rev. 1.00) and the HONGFA mall product page.

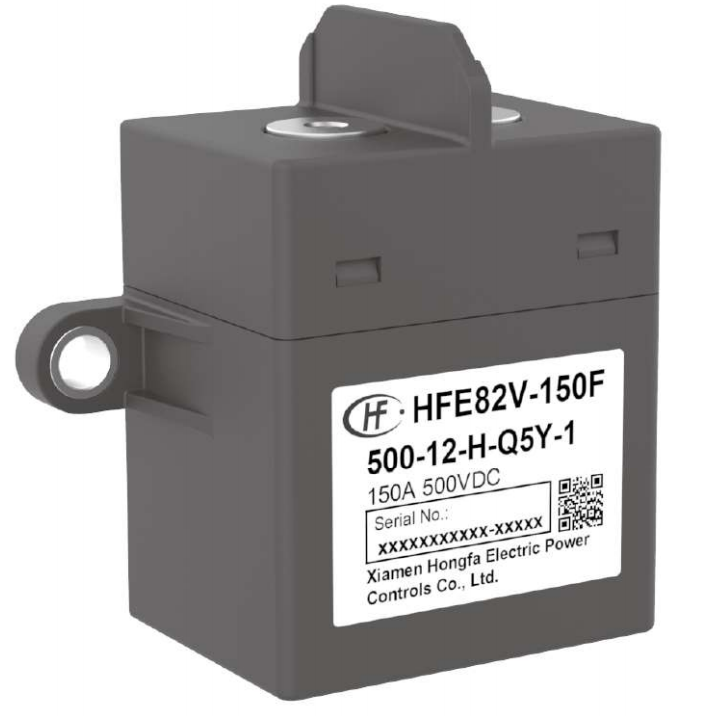

HONGFA HFE82V-150F is a hermetically sealed high-voltage DC contactor rated for 150A continuous current at 750V DC with 150kW maximum switching power and 1300A (400V DC) overcurrent breaking. The single-pole 1 Form A (SPST-NO) contact, ceramic brazing seal and hydrogen-filled arc chamber meet IP67 protection and IEC 60664-1 insulation requirements, and there is no polarity requirement on the load or coil side. This Q5Y type brings the coil out to QC (quick-connect) terminals for fast harness assembly, while load connections use female-thread M5-class studs. The HFE82V-150F is listed in HONGFA’s vehicle-series application table for EV/PHEV main, precharge and fast-charge relays and is equally at home in industrial DC switching duties.
Carries 150A continuously at 85°C and breaks up to 1300A at 400V DC (1 operation) for overcurrent faults, with an 8kA/2ms short-circuit withstand — no fire, no explosion.
Rated for 750V DC load systems with 150kW maximum switching power — the 750V type of the HFE82V-150F series (500V and 750V types available).
The Q5Y variant terminates the 6W single coil with QC (quick-connect) tabs for simple, tool-friendly harness assembly; a connector (C5Y) variant is available per the ordering code.
No polarity requirement on either the load or coil side simplifies wiring and reduces assembly errors — a practical benefit of the HFE82V ceramic-sealed platform.
Ceramic brazing prevents arc leakage; hydrogen filling protects contacts from oxidation and burnout, keeping contact resistance low (≤0.5mΩ at 150A) and stable.
Manufactured by Xiamen Hongfa under ISO 9001 / IATF 16949 / ISO 14001 / ISO 45001 / IECQ QC 080000 / ISO/IEC 27001 quality systems. Factory test reports and RoHS compliance are available for OEM qualification.
HONGFA HFE82V-150F is designed and manufactured under international quality and environmental standards. Available certifications and reports include:
RoHS — Restricted hazardous substances compliance.
ISO 9001 / IATF 16949 — Quality management systems aligned with automotive component production (factory level).
ISO 14001 / ISO 45001 / IECQ QC 080000 / ISO/IEC 27001 — Factory environmental, occupational health, hazardous-process and information-security management.
IEC 60664-1 — Insulation coordination for equipment within low-voltage supply systems.
Factory Test Reports — Contact resistance, dielectric strength and switching-life test data available on request.
Main relay, precharge, fast-charge, normal-change and auxiliary relay duty in passenger EV and PHEV battery systems — the official HONGFA family table lists HFE82V-150F in these roles.
High-voltage DC switching in industrial automation, motor controllers and DC bus controls where a sealed, polarity-free single-pole contactor is required.
Charge/discharge path and battery disconnect control in Li-ion storage cabinets and battery disconnect units.
DC-side switching in chargers and 750V-class DC distribution for commercial and industrial systems.
It carries 150A continuously at 85°C ambient. Graded overload capability: 180A for 2h, 225A for 15min, 320A for 2min, 400A for 1min, 600A for 20s and 900A for 8s (wire cross-section ≥50mm²).
No. Official HONGFA data defines HFE82V-150F as a single-pole 1 Form A (SPST-NO) DC relay. Marketplace "phase / 50Hz" wording is AC-contactor template residue and does not apply to this DC product.
The F series covers 500V and 750V DC load types (ordering code positions for 500 / 750 VDC). This listing is the 750V type rated at 150kW maximum switching power. Confirm the load-voltage type when ordering.
12V and 24V DC coils are standard, both 6W with pick-up at ≤75% of rated voltage. The Q5Y type uses QC (quick-connect) coil terminals; a connector-coil C5Y housing variant is also produced.
Mechanical endurance is 2×105 operations. Electrical endurance includes 5×104 breaking ops at 475V DC / 20A, 7×104 making ops at 20V DC / 100A, 1×103 breaking ops at 450V DC / 150A and 500 ops at 750V DC / 150A.
Both are 150A-class HFE82V members. HFE82V-150F (this page) is the F series with 1300A breaking at 400V DC, 150kW, 6W QC quick-connect coil and a 77.0 × 37.7 × 71.3 mm body; HFE82V-150D has 1200A breaking at 300V DC, 225kW (750V type), a 5.5W wire-lead coil and a 76.0 × 36.0 mm body. Ask us for a variant comparison for your application.
