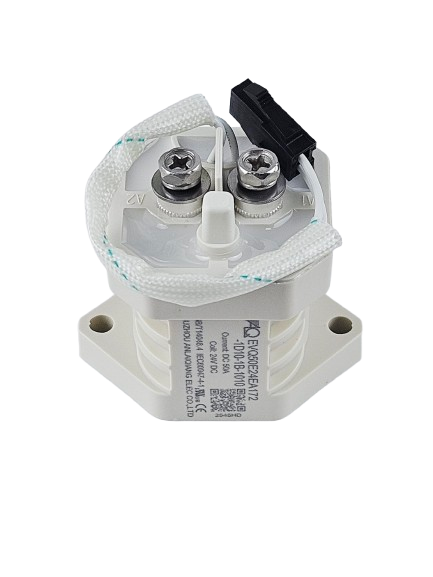

ALQ EVQ50 2P 2-Phase 50A High Voltage DC Contactors
Product Detail Reference
| EVQ50 | |
Rated current | 50A | |
Rated voltage | DC450V、DC750V | |
Insulation voltage | ≥100MΩ DC1000V | |
Number of poles | Single pole | |
Type of circuit | DC | |
Mechanical life | 200,000 times | |
Electrical life(Switching Rating ,ON : OFF=1s:9s) | DV750V | 5A,1200times |
DV1000V | 20A,400times | |
Maximum breaking current | 300A 320Vdc | |
Shot-circuit withstand current | 150A 10sec | |
Insulation resistance | 100MΩ DC1000V | |
Withstand voltage | AC 3500 Vrms/10mA 60s | |
Rated control voltage Uc | Rated control voltage：DC12V/DC24V | |
Contact Arrangement | （SPST-NO-DM） | |
Media type when cutting-of | Inactive gas | |
Auxiliary contact type | Without | |
Workplace Temperature | （-40℃～+85℃） | |
Dielectric Strength | Between open contact | AC 3500 Vrms/10mA/1min |
| ||
Product Dimension Drawing
Electrical Life Line Chart
Current Time Line Chart
