| Parameter | Value |
|---|

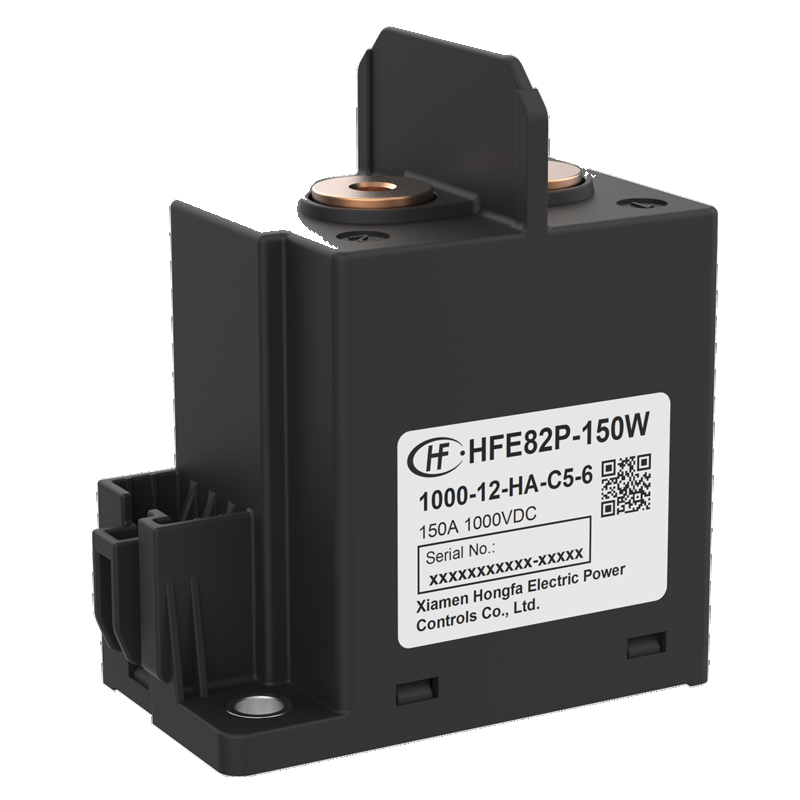

| Model | HFE82P-150W |
| Contact Arrangement | 1 Form A (SPST-NO) + 1 Form A auxiliary |
| Contact Rating | 150A continuous carry at 85°C |
| Load Voltage | 1000VDC / 1500VDC |
| Max. Switching Voltage | 1500 VDC |
| Max. Breaking Current | 1500A (1000VDC, 0.6s on) 1 op |
| Max. Switching Power | 180kW |
| Contact Resistance | ≤0.15mΩ (at 150A) |
| Coil Voltage | DC12V / DC24V |
| Operate / Release Time | ≤30ms / ≤10ms (at rated voltage) |
| Endurance (Mech. / Elec.) | 2×105 ops (0.5s on : 0.5s off) / Breaking 1 op (1500A 1000VDC 0.6s); Breaking 6000 ops (150A 1000VDC) |
| Dielectric / Insulation | 1000MΩ (1500VDC) · 4000VAC 1min contact–coil / open contacts / main–aux |
| Sealing / Ambient | IP67 ceramic hermetic seal, H2-filled · -40°C to +85°C · 5%–85% RH |
| Terminal / Dimensions / Weight | M6 internal thread · 88.8 × 43.0 × 83.3mm · Approx. 370g |
| Certification | UL File No. E133481 · TÜV N8A0532860064 · RoHS · IEC 60664-1 |
