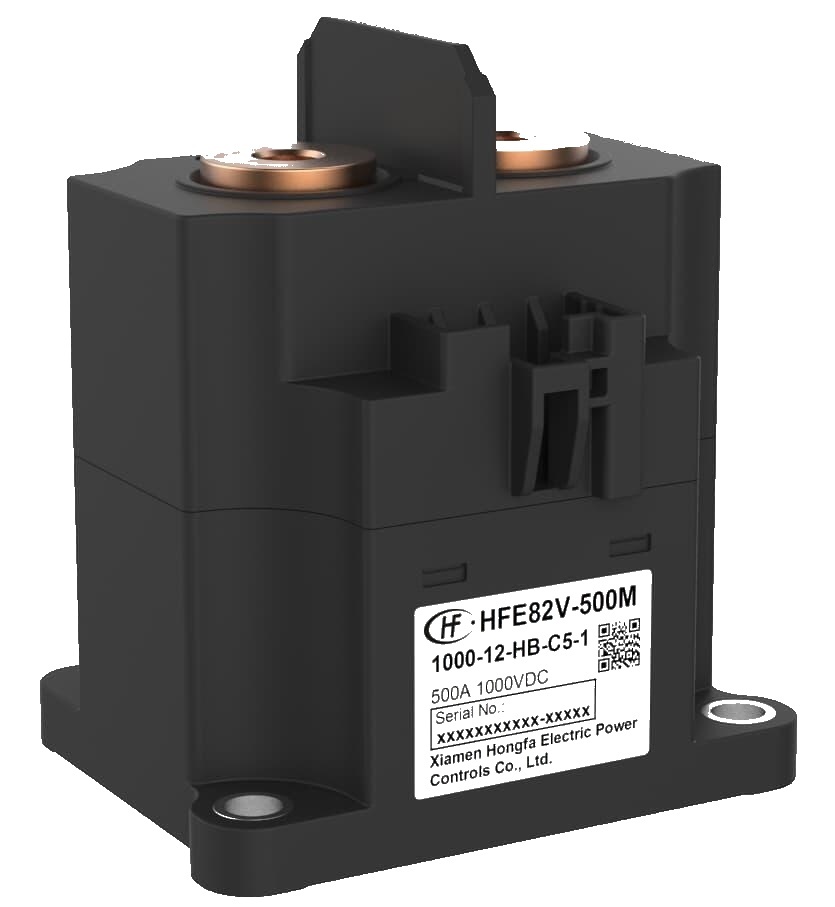

HFE82V-500M HONGFA High Voltage DC Contactor 1000V 500A

No.HFE82V-500M

HFE82V-500M HONGFA high voltage DC contactor, 1000VDC, 500A, 1 Form A, coil dc12v. Suitable for EV, energy storage and DC charging. Datasheet on request.

Variations

Edit selections

Coil Voltage: DC12V

DC12V

Select variations and quantity

Coil Voltage: DC12V

The min. inquiry quantity is 0. Add 0 more to continue.

DC12V

Subtotal

GET A QUOTE

Add to Quote List View Quote List

Download

View all downloads

Description

HFE82V-500M — 1000 VDC / 500A High Voltage DC Contactor

✅ 1000 VDC · 500A | ✅ 1500A 1 op Breaking | ✅ DC12V / DC24V Coil

Technical Specifications

Parameter	Value
Model	HFE82V-500M
Contact Arrangement	1 Form A (SPST-NO) + 1 Form B auxiliary
Contact Rating	500A continuous carry
Load Voltage	≤1000VDC
Max. Switching Voltage	1000 VDC
Max. Breaking Current	1500A (1000VDC) 1 op
Max. Switching Power	1000kW
Contact Resistance	≤0.15mΩ (at 200A)
Coil Voltage	DC12V / DC24V
Operate / Release Time	≤50ms / ≤10ms (at rated voltage)
Endurance (Mech. / Elec.)	2×10⁵ ops / Breaking 500 ops (1000VDC 200A); Breaking 1 op (1000VDC 1500A)
Dielectric / Insulation	1000MΩ (1000VDC) · 4000VAC 1min contact–coil / open contacts / main–aux
Sealing / Ambient	IP67 ceramic hermetic seal, H₂-filled · -40°C to +85°C · 5%–85% RH
Terminal / Dimensions / Weight	M8 screw terminal (female) · 74.0 × 64.2 × 83.5mm · Approx. 600g
Certification	RoHS · IEC 60664-1

Values verified against the official HONGFA HFE82V-500M datasheet (2024 Rev.1.00).

Ordering & Factory Info

Item	Detail
Brand / Origin	HONGFA · Xiamen, China
MOQ & Lead Time	1 pc for sample · typically 7–15 days (confirm with sales)
Payment & Warranty	T/T, PayPal, Trade Assurance · 1 year warranty

Need more than a quote? Ask us for full data or a cross-reference for HFE82V-500M.
