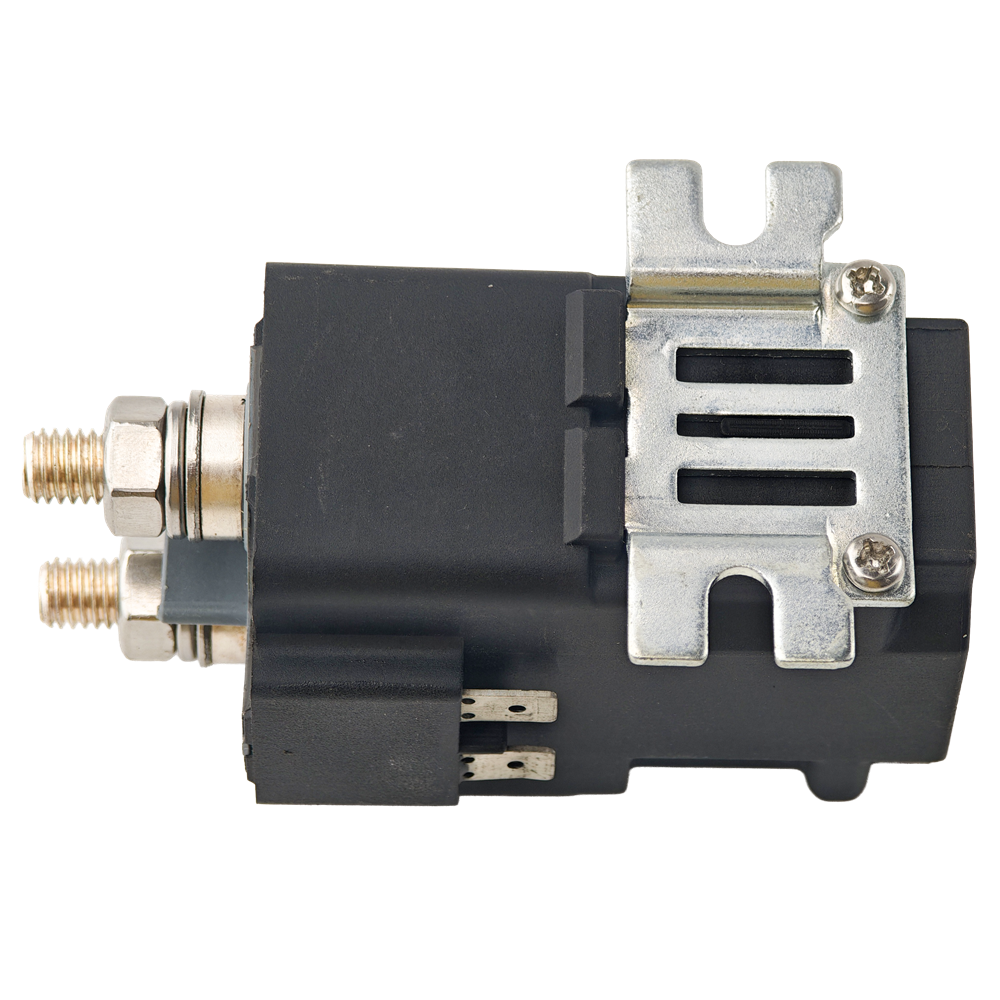

| Parameter | Value |
|---|---|

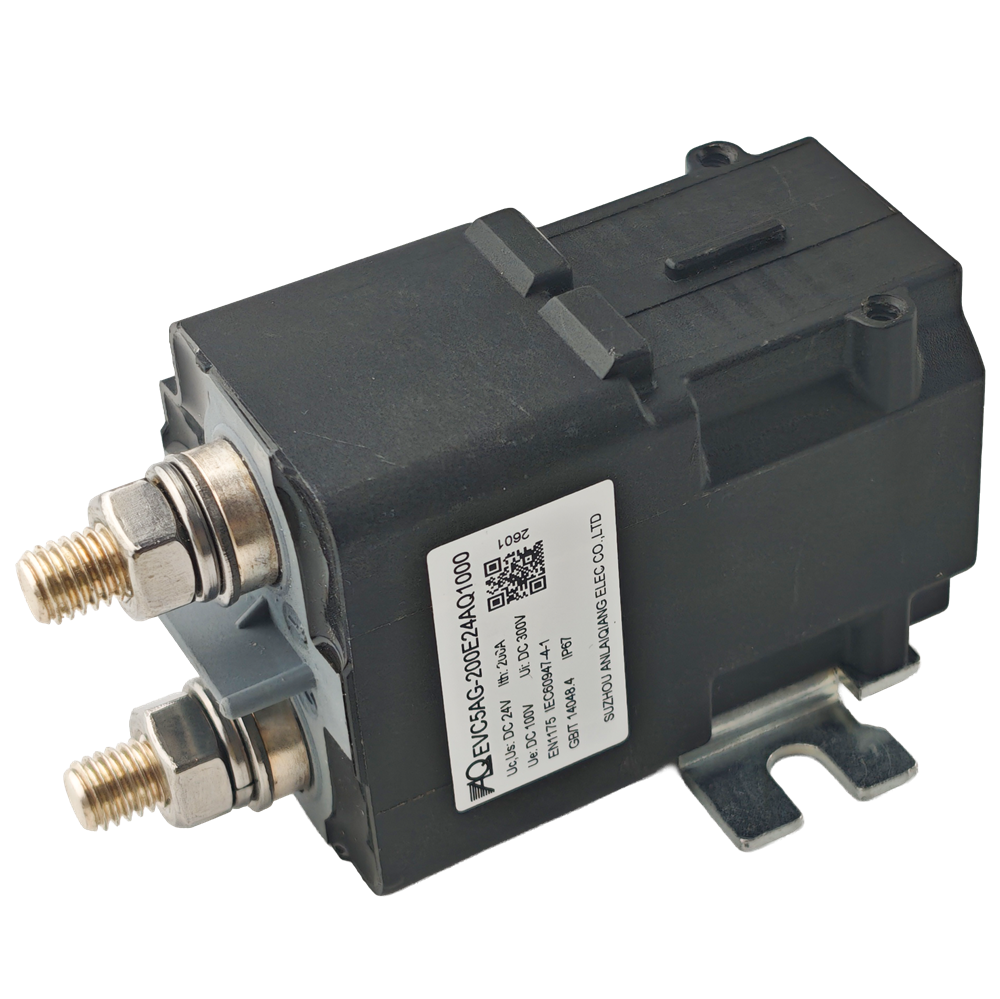

| Model | EVC5AG-200E |
| Brand | ALQ |
| Rated Current | 200 A |
| Max. Switching Voltage | 500 V DC |
| Rated Load Voltage (Ue) | 12 - 500 V DC |
| Power Contact Arrangement | SPST-NO-DM (Single Pole Single Throw, Normally Open, Dual Make) |
| Auxiliary Contact | SPST-NO / SPST-NC / None (optional) |
| Coil Voltage (Us) | 12 V DC / 24 V DC (optional) |
| Coil Type | Single coil |

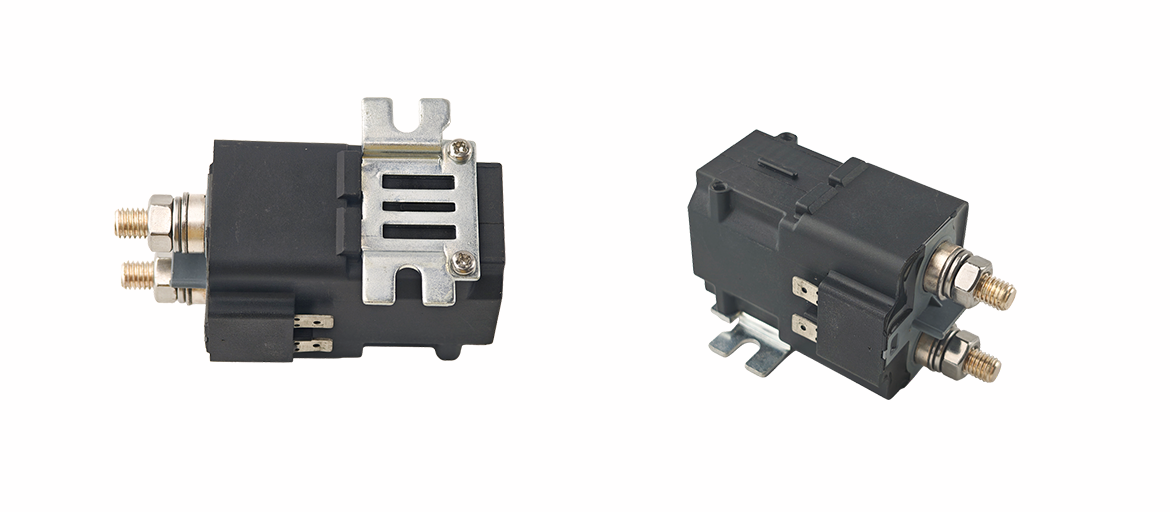

| Dimensions (L x W x H) | 56.0 x 45.0 x 93.0 mm |
| Mounting Type | Modular |
| Origin | Jiangsu, China |
| Warranty | 1 year |
| Typical Applications | Solar energy systems, energy storage systems (ESS), DC charging equipment, industrial vehicles, frequency conversion equipment |
High-performance epoxy encapsulation with high-purity nitrogen protection shields the contacts from dust, moisture, and oxidation, ensuring more reliable switching than conventional air-type DC contactors.
Engineered to IP69K standards, the EVC5AG-200E resists high-pressure, high-temperature washdowns, making it suitable for demanding industrial, outdoor, and vehicle-mounted environments.
Both moving and static contacts use silver alloy with excellent capacitive-load surge tolerance, effectively preventing main-contact welding during inrush-current events common in battery and charger systems.
No frost formation on the contact surface at -40°C, with reliable operation at altitudes up to 4,000 m in cold, humid, and dusty conditions.
Handles load currents up to 200 A and load voltages from 12 V to 500 V DC within a compact 56.0 x 45.0 x 93.0 mm footprint, delivering flexible DC control across solar inverters, ESS, chargers, and industrial drives.

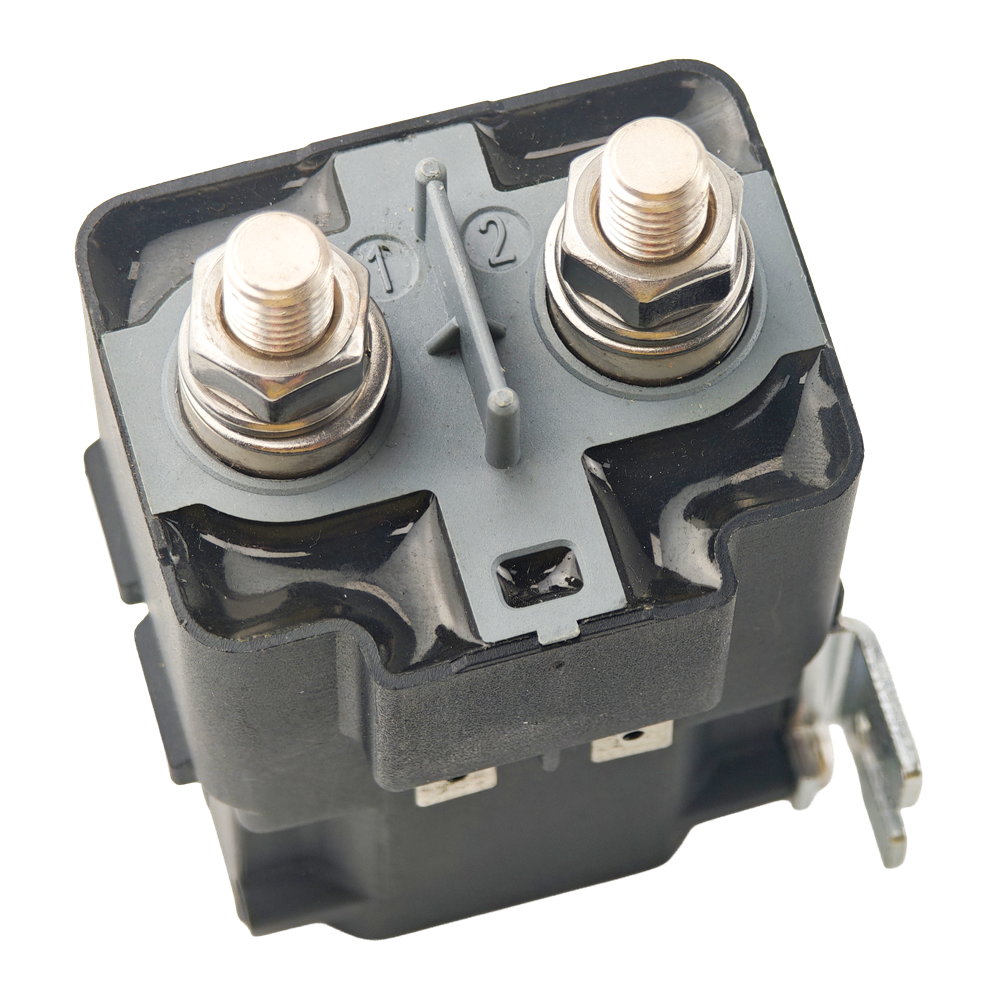

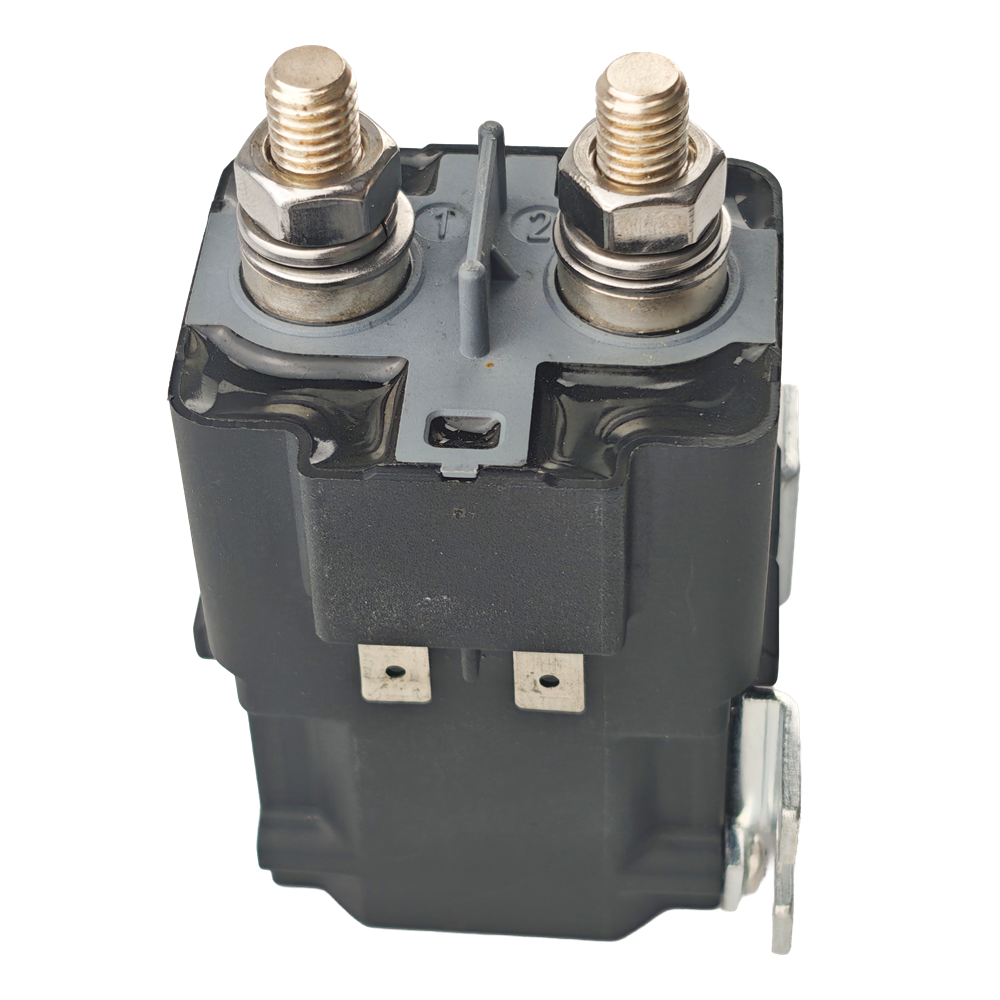

Main contact terminals use integrated copper construction for lower temperature rise and lower contact resistance, supporting continuous high-current operation in compact electrical cabinets.

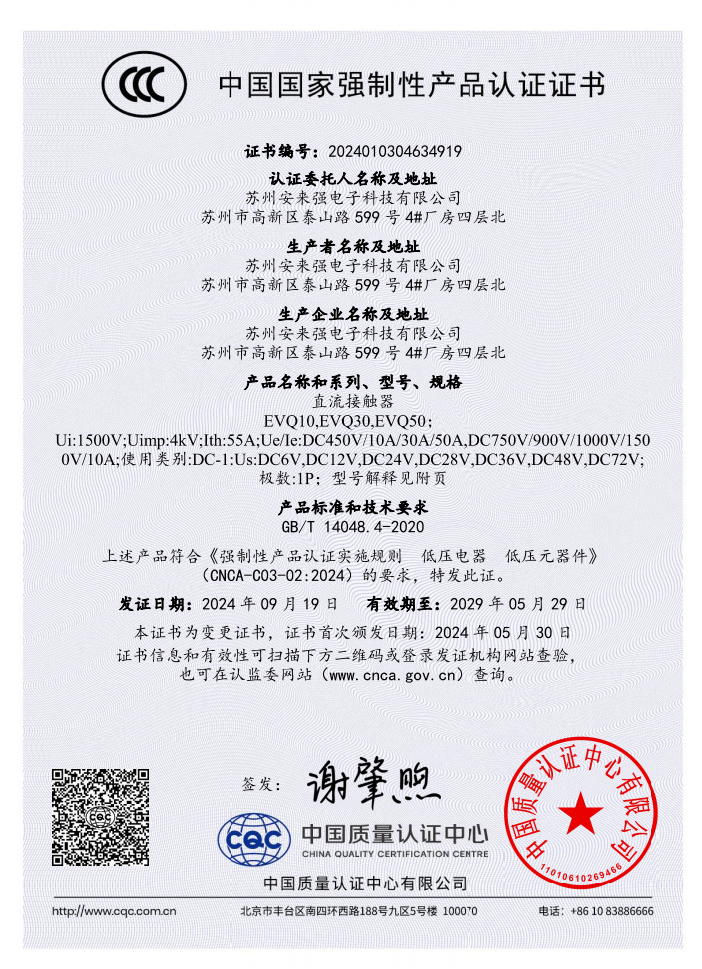

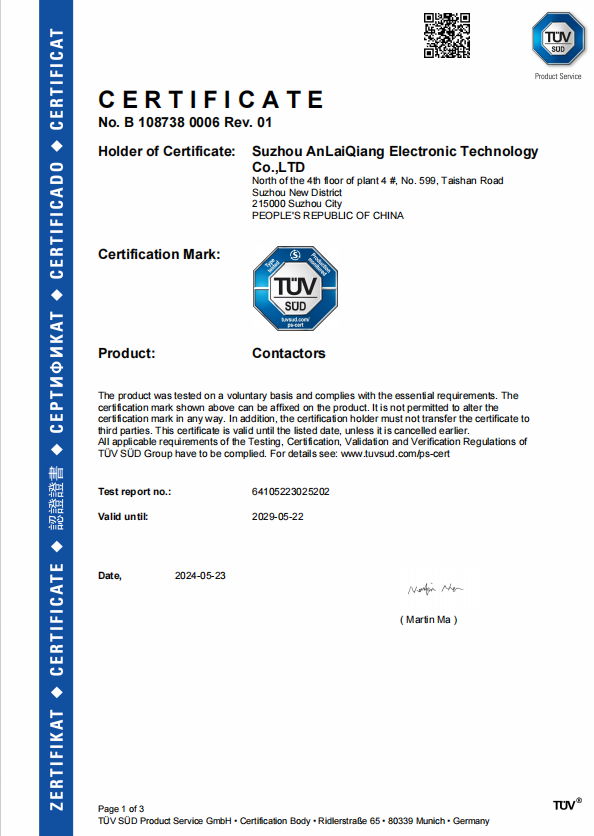

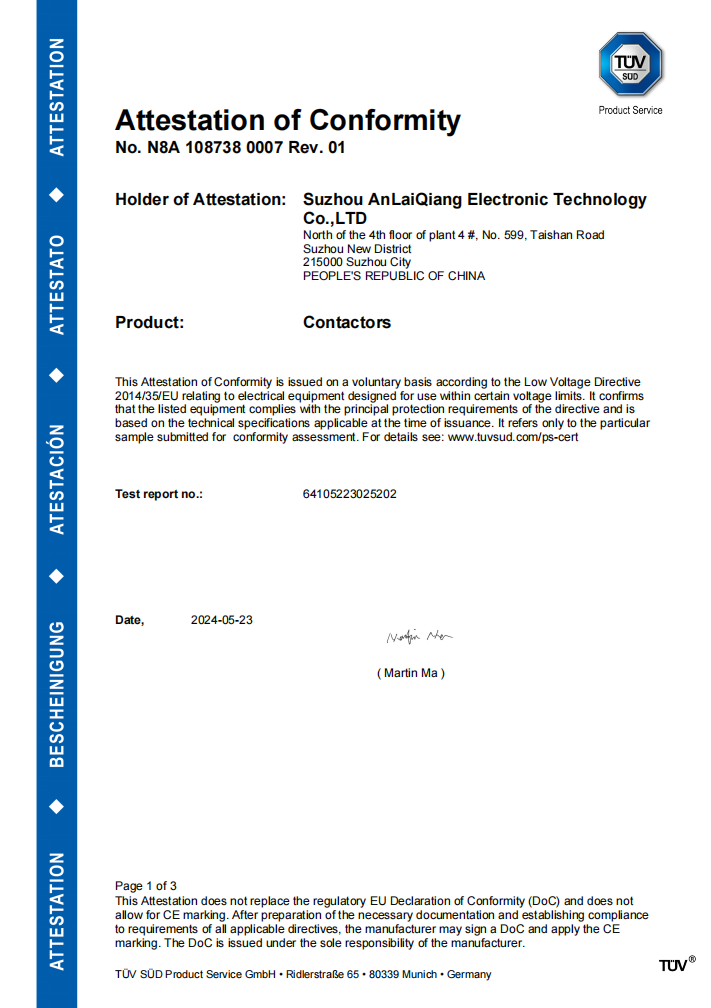

CCC, TUV SUD, and CE (LVD) certified. Quality management system conforms to GB/T19001-2016 / ISO9001:2015.
Industrial Vehicles Electric forklifts, electric pallet trucks, electric aerial work platforms, intelligent logistics systems, automated guided vehicles (AGV), cold chain logistics equipment, industrial robots, electric tools, and electric golf carts. | DC Charging Equipment Chargers, small DC charging piles, monoblock DC charging piles, split-type DC charging piles (group charging), ultra-fast DC charging piles, and integrated DC charging piles for heavy-duty trucks. |
Energy Storage System Large-scale energy storage (generation-side, grid-side), medium-scale energy storage (industrial & commercial), small-scale energy storage (residential), and photovoltaic solar energy systems. | Frequency Conversion Equipment High-voltage frequency converters, power conversion systems (PCS), industrial rectifier power supplies, motor drives, and UPS systems. |
A: The EVC5AG-200E supports a maximum switching voltage of 500 V DC, suitable for solar inverters, battery energy storage systems, DC chargers, and industrial DC control circuits.
A: The contactor is available with 12 V DC or 24 V DC coil voltage. Choose the option that matches your control-system voltage when ordering.
A: Yes. The EVC5AG-200E is designed for solar energy systems, energy storage systems (ESS), and other DC power applications. Its 200 A current rating and 500 V DC switching capability make it ideal for battery banks, solar inverters, and PCS.
A: The power contact uses an SPST-NO-DM (Single Pole Single Throw, Normally Open, Dual Make) configuration. An optional auxiliary contact is available in SPST-NO, SPST-NC, or none.
A: The EVC5AG-200E features an epoxy-sealed, nitrogen-protected construction with IP69K-rated protection, making it resistant to dust, moisture, and high-pressure washdown in harsh industrial environments.
A: Submit your required specifications (current, coil voltage, auxiliary contact type, and quantity) through the inquiry form or contact us via WhatsApp. Our engineers will respond within 24 hours. Sample lead time is [to verify with factory].
