| Parameter | Value |
|---|---|
| Model | HFE88P-250 |
| Brand | HONGFA |
| Contact Arrangement | 2 Form A (SPST-NO), 2-pole |
| Rated Load Current | 250A continuous |
| Load Voltage | 1500V DC |
| Max Breaking Current | 1500A |
| Max Switching Power | 500kW |
| Coil Voltage | 12V / 24V DC |
| Coil Power | 50W |
| Contact Resistance | 0.3mΩ |
| Outline Dimensions (W / H / D) | 104.0 × 70.0 × 107.9 mm |
| Weight | Approx. 860g |
| Place of Origin | China |

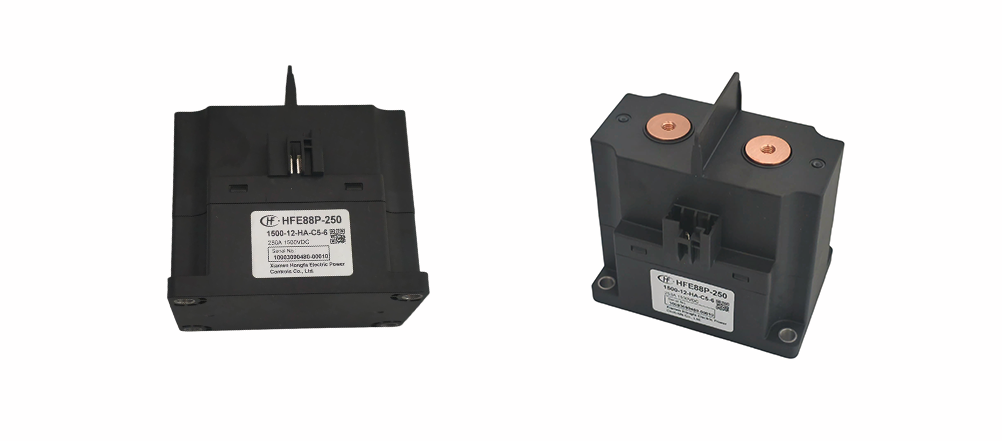

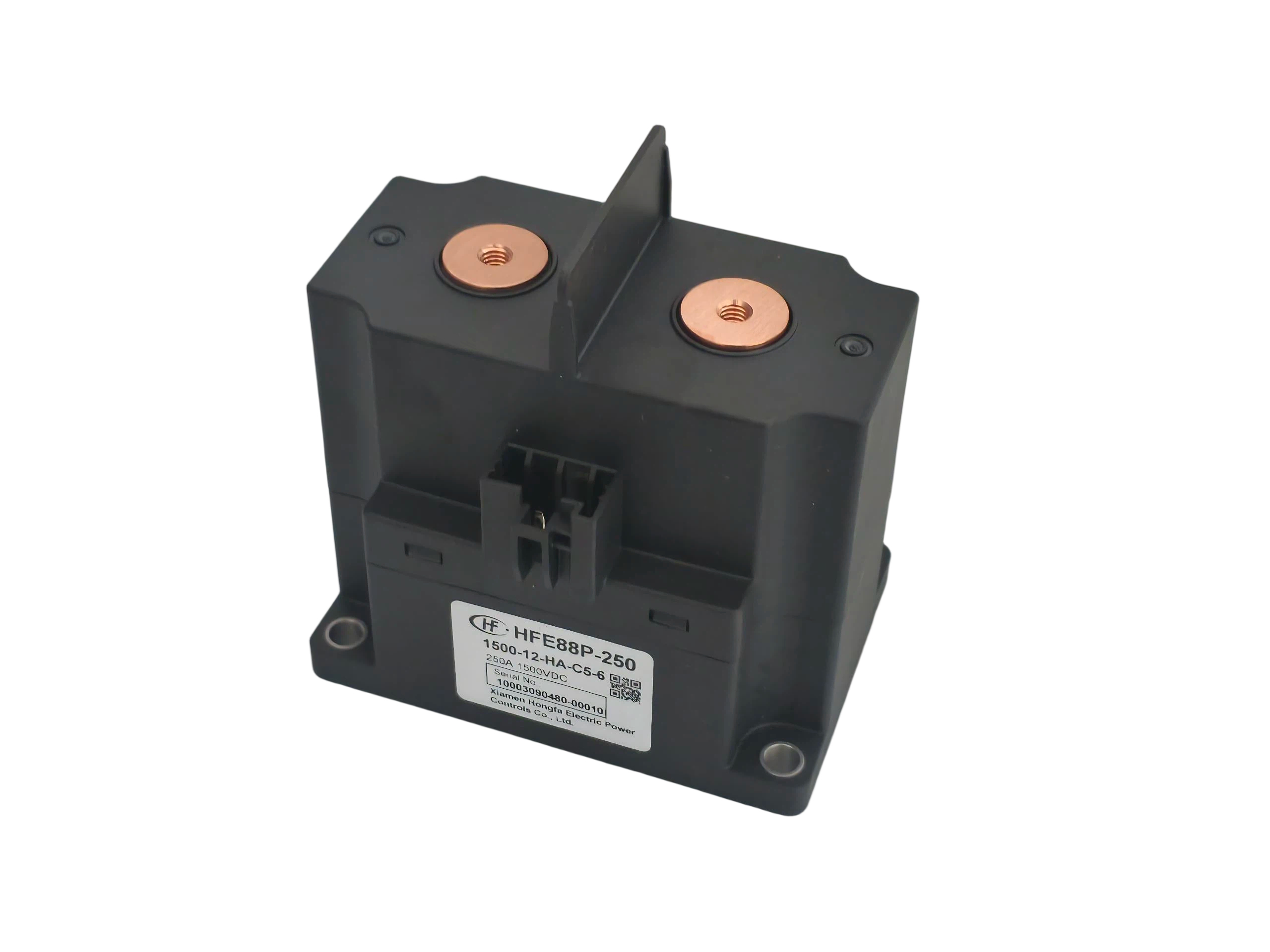

Compact high-current DC contactor body with two M6 power terminals, auxiliary contact pins and four mounting holes. Outline dimensions 104.0 × 70.0 × 107.9 mm make it suitable for battery boxes, PDU assemblies and high-voltage distribution units in EVs and energy storage systems.
Handles 1500V DC load voltage and 250A continuous current with 1500A breaking capacity, supporting systems up to 500kW switching power.
Dual-pole SPST-NO configuration lets designers switch both positive and negative rails with one compact contactor, saving space and wiring in battery packs.
Standard 12V and 24V DC coils cover common EV auxiliary power rails and BMS control voltages, with 50W coil power for reliable high-force operation.
0.3mΩ contact resistance minimizes heat generation and voltage drop at 250A, improving system efficiency and reducing cooling requirements.
At 104 × 70 × 107.9 mm, the HFE88P-250 packs 500kW switching capability into a housing suitable for space-constrained EV and ESS installations.
Manufactured by Xiamen Hongfa, a leading relay and contactor supplier. Certificate images and factory test reports can be supplied on request for OEM qualification.
HONGFA HFE88P-250 series is designed and manufactured under international quality standards for high-voltage DC switching components. Available certifications and reports include:
CE — European conformity for DC power switching components.
RoHS — Restriction of hazardous substances for global environmental compliance.
ISO 9001 — HONGFA quality management system certification.
Factory Test Reports — Contact resistance, dielectric strength and endurance test data available on request.
Certificate images and test reports can be supplied on request for OEM/ODM qualification processes.
Electric Vehicle Battery SystemsMain contactor, pre-charge and discharge relay for passenger EVs, electric buses, electric trucks and hybrid vehicles with 1500V battery packs. | Energy Storage Systems (ESS)Pack-level and rack-level DC switching in commercial and industrial battery energy storage, solar-storage hybrids and microgrid power distribution. |
DC Charging InfrastructurePower control and protection inside high-power DC fast chargers, charging piles and power distribution units for fleet and public charging. | Industrial High-Voltage DC ControlMotor drives, DC power distribution, test equipment, UPS systems, telecom rectifiers and renewable energy systems requiring reliable 1500V DC switching. |
A: HFE88P-250 is rated for 250A continuous load current, 1500V DC load voltage and 1500A max breaking current, with up to 500kW switching power.
A: Standard coil voltages are 12V and 24V DC. Other coil voltages can be discussed with our engineers for volume orders.
A: "88P" denotes HONGFA's high-voltage DC contactor platform optimized for 1500V photovoltaic, energy storage and EV applications with high current switching.

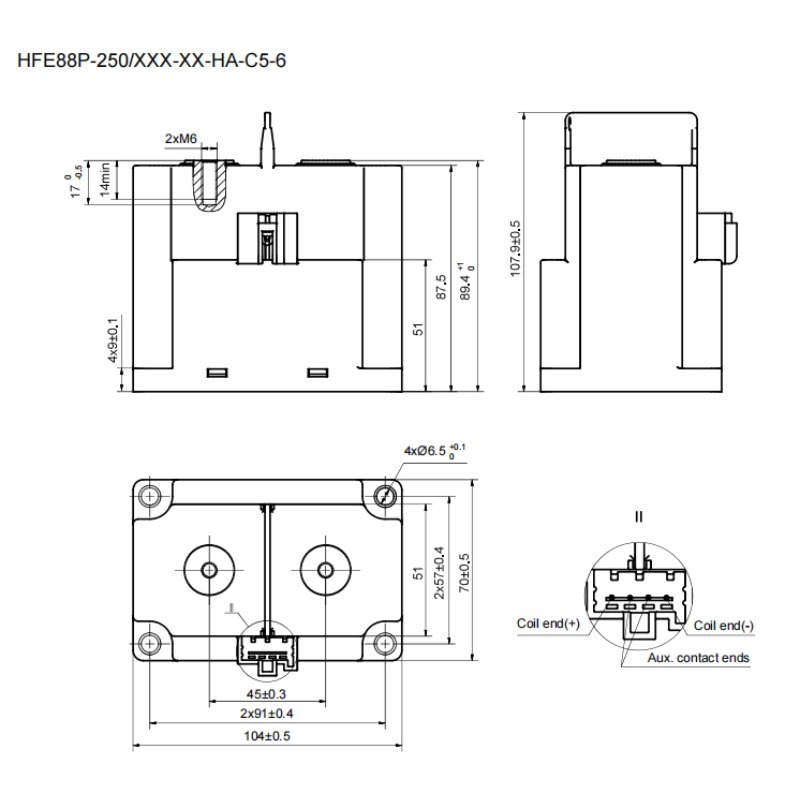

A: Outline dimensions are 104.0 × 70.0 × 107.9 mm. The dimension drawing in this page shows M6 power terminals, coil pins and mounting hole layout.
A: Yes. Its 1500V DC rating and 500kW switching power make it a good fit for high-voltage battery energy storage, solar inverters and DC fast charging systems.
A: Please send us your target coil voltage, quantity and application. We will confirm stock availability, sample lead time and best pricing within 24 hours.
