| Parameter |
Value |
| Model |

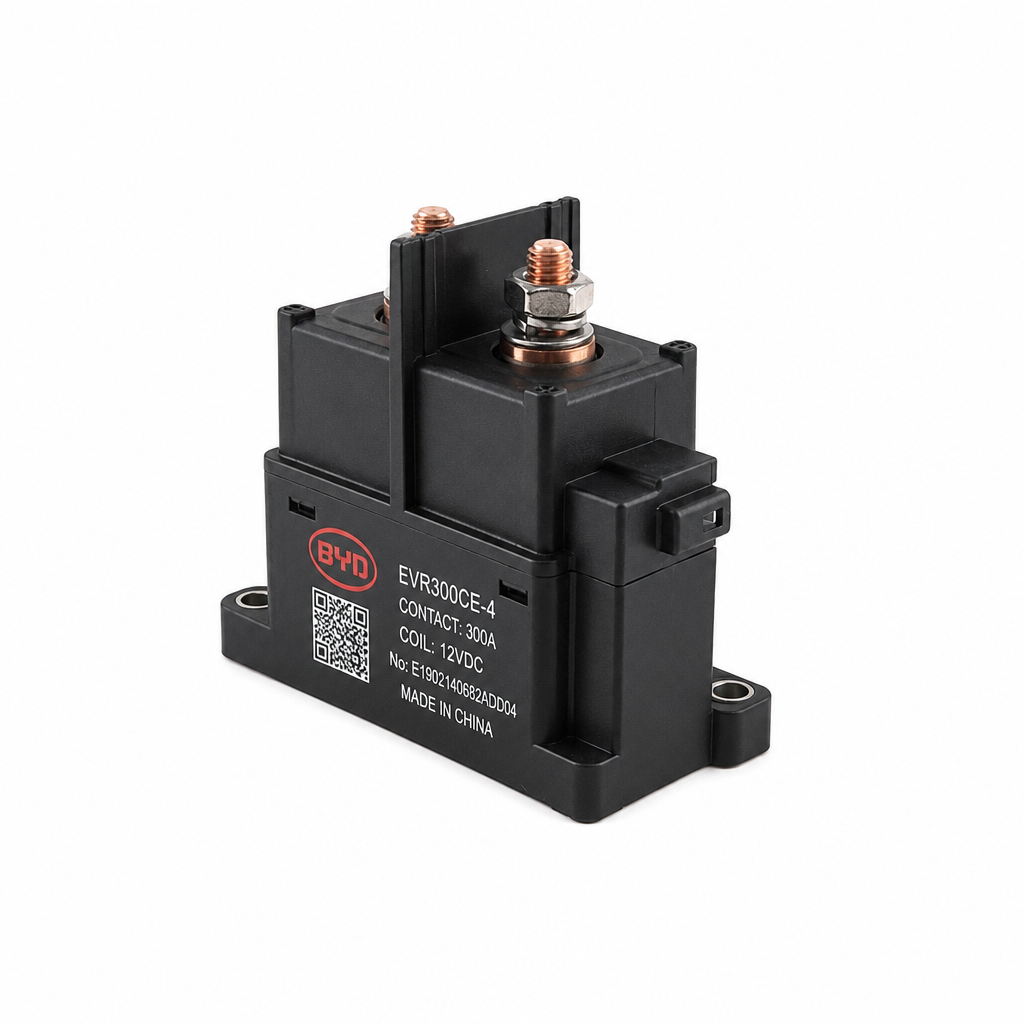

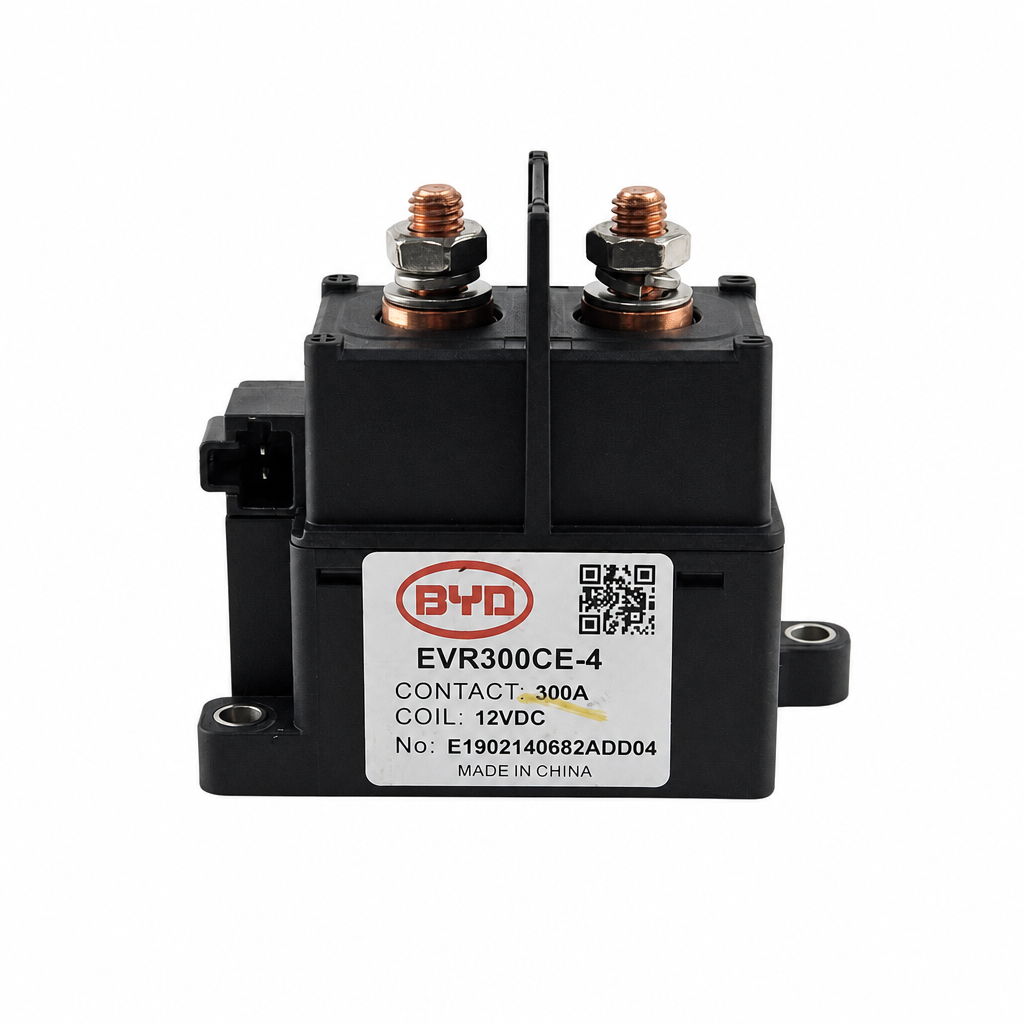

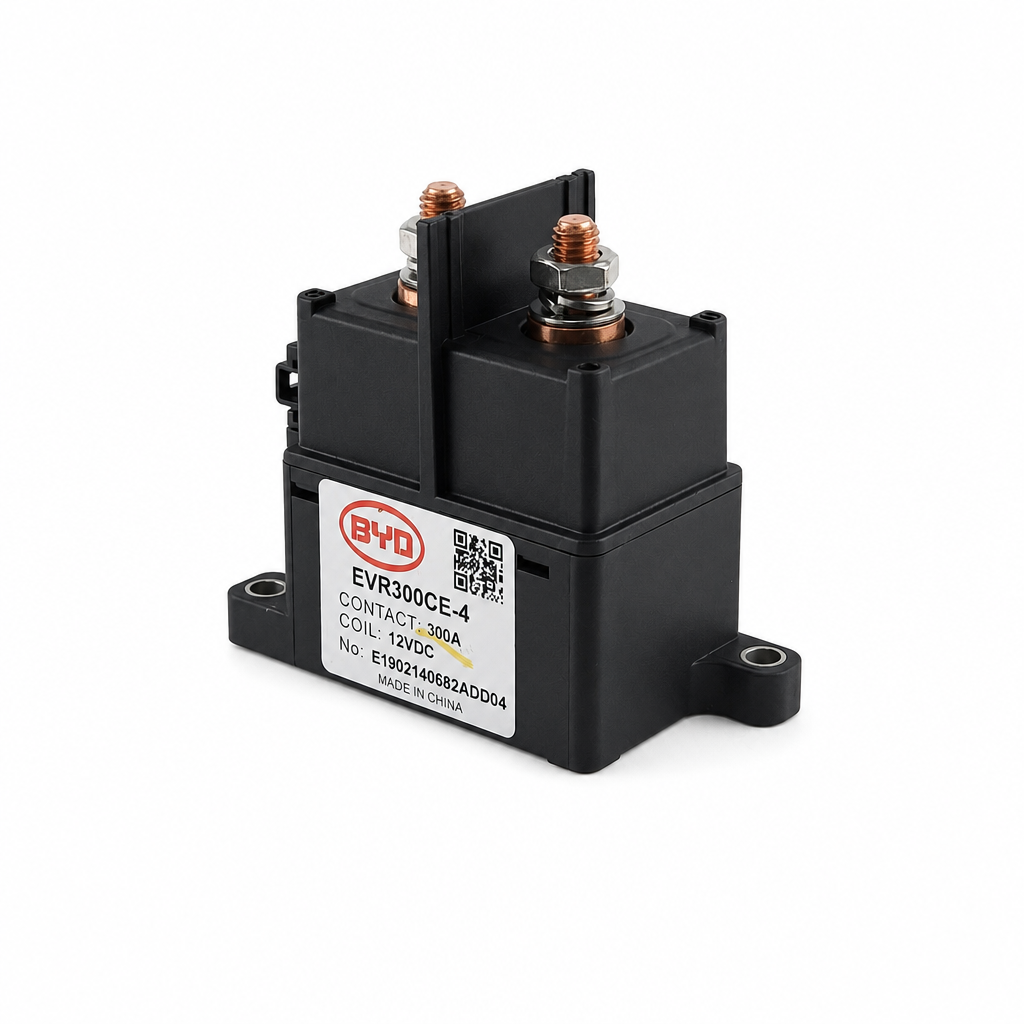

EVR300CE-4 |
| Contact Arrangement |
1 Form A (SPST-NO), single pole |
| Contact Rating |
300A continuous · 400A / 10 min · 600A / 1 min |
| Load Voltage |
0–1000 VDC |
| Max. Switching Voltage |
1000 VDC |
| Max. Breaking Current |
300A (rated) · reverse cut-off −300A @400VDC (≥1,000 ops) |
| Contact Resistance |
≤0.15 V voltage drop at 300A (≈0.5 mΩ) |
| Coil Voltage |
DC 12V / DC 24V |
| Operate / Release Time |
≤50ms / ≤15ms |
| Endurance (Mech. / Elec.) |
≥200,000 cycles / ≥3,000 cycles (400VDC, 300A resistive load) |
| Dielectric / Insulation |
AC 3,000V 1min between contacts (leakage ≤3mA) · ≥100MΩ (500VDC megger) |
| Sealing / Ambient |
Hermetic ceramic chamber · −40°C ~ +85°C (no icing / condensation) · 5%~85% RH |
| Vibration / Mechanical Shock |
30.8 m/s², 5–2000Hz random, 8h per axis (3 axes) · half-sine 11ms, 50g, 10 shocks per direction |
| Terminal / Dimensions / Weight |
Terminal & mounting per outline drawing (gallery) · approx. 0.6 kg |
| Certification |
TÜV |
