| Parameter | Value |
|---|

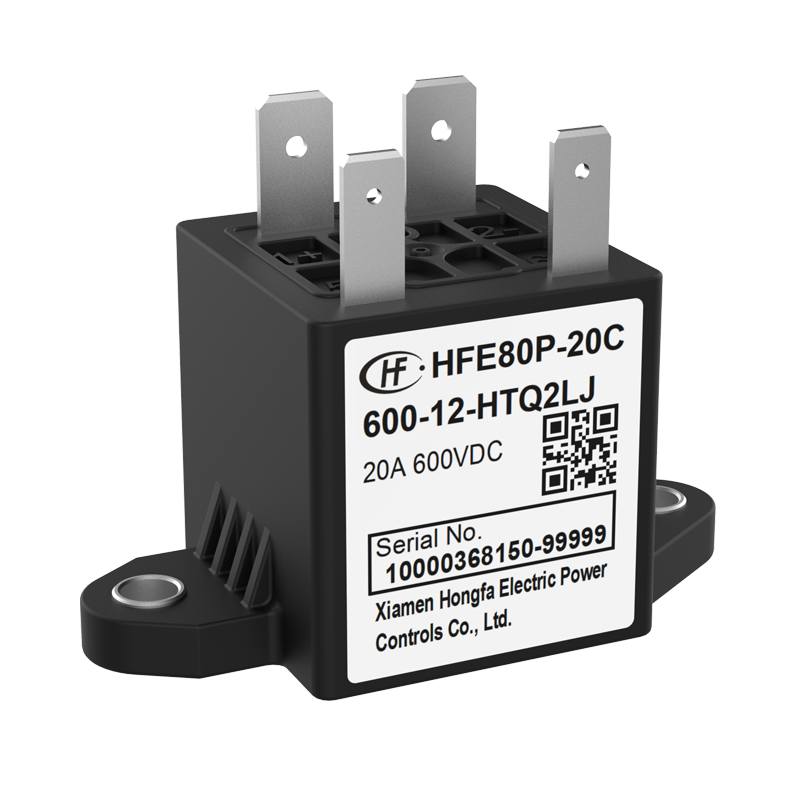

| Model | HFE80P-20C |
| Contact Arrangement | 1 Form A (SPST-NO) |
| Contact Rating | 20A continuous (at 85°C, 4 mm² cable) |
| Load Voltage | 600VDC |
| Max. Switching Voltage | 750VDC |
| Max. Breaking Current | 30A (450VDC, ≥5 ops) |
| Contact Resistance | ≤5 mΩ (at 20A, initial value) |
| Coil Voltage | 12VDC / 24VDC / 48VDC |
| Operate / Release Time | ≤30ms / ≤10ms (at rated voltage) |
| Endurance (Mech. / Elec.) | 2×10⁵ ops / Making 7.5×10⁴ ops (450VDC, 20A) · Switching 1×10⁴ ops (450VDC, 10A) · Switching 6×10³ ops (600VDC, 2A) |
| Dielectric / Insulation | 3000VAC 1min (coil–contacts) · 2000VAC 1min (open contacts) · 1000MΩ (1000VDC) |
| Sealing / Ambient | AgSnO2 contact material · -40°C ~ +85°C |
| Terminal / Dimensions / Weight | QC terminal or PCB terminal · 55.8 × 30.0 × 41.3 mm · Approx. 55 g |
| Certification | RoHS |
