| Parameter | Value |
|---|---|
| Model | BA-5.4V10F |
| Brand / Origin | Beian · Jiangsu, China |
| Technology | EDLC ultracapacitor (farad capacitor) module on balance PCB |
| Rated Capacitance | 10F (rated-voltage discharge; per-cell ΔV = 2.4V-1.5V window) |
| Capacitance Tolerance (25°C) | -10% ~ +30% |
| Rated Voltage | 5.4V DC (2 cells × 2.7V in series) |
| Internal Cell | 2 × 20F / 2.7V cylindrical cells |
| Max. Stored Energy (at VR) | 146 J (0.04 Wh) / 15 mAh (1⁄2CV2) |
| Reference Internal Resistance (ESR) | 90 mΩ |
| Rated Current (25°C) | 4.6A |
| Max. Current (25°C) | 14.2A |
| Operating Temperature (Top) | -40 ~ +70°C |
| Storage Temperature (at 0V) | -40 ~ +70°C |
| Cycle Life (25°C) | 500,000 charge-discharge cycles |
| Size / Volume | 12.5 × 25 × 33.5mm · approx. 9.3ml (without terminals) |
| Application | Energy storage · Backup power (RTC / SRAM / meter) · High-current pulse operation |
| Certificate | UN38.3 · MSDS · CE |

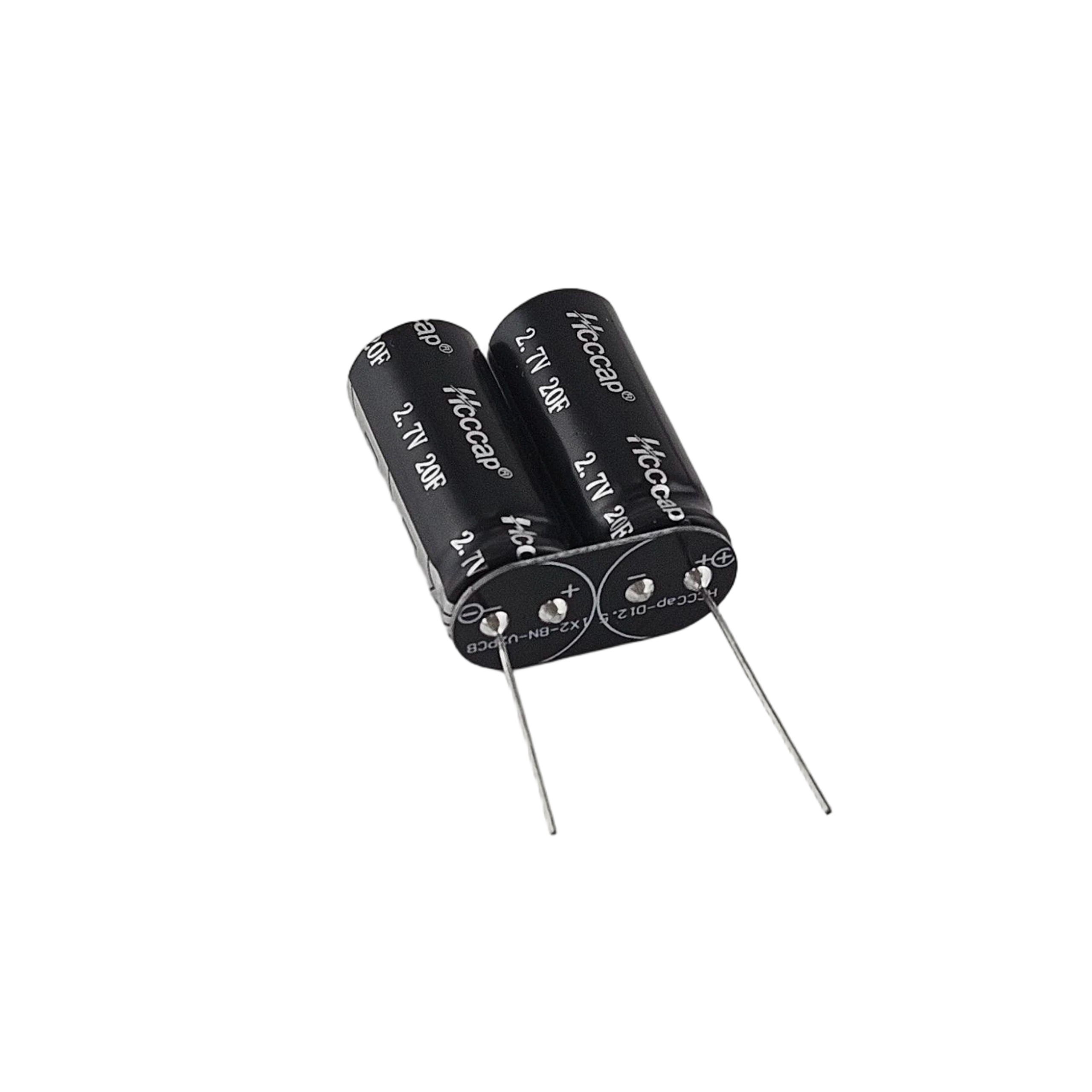

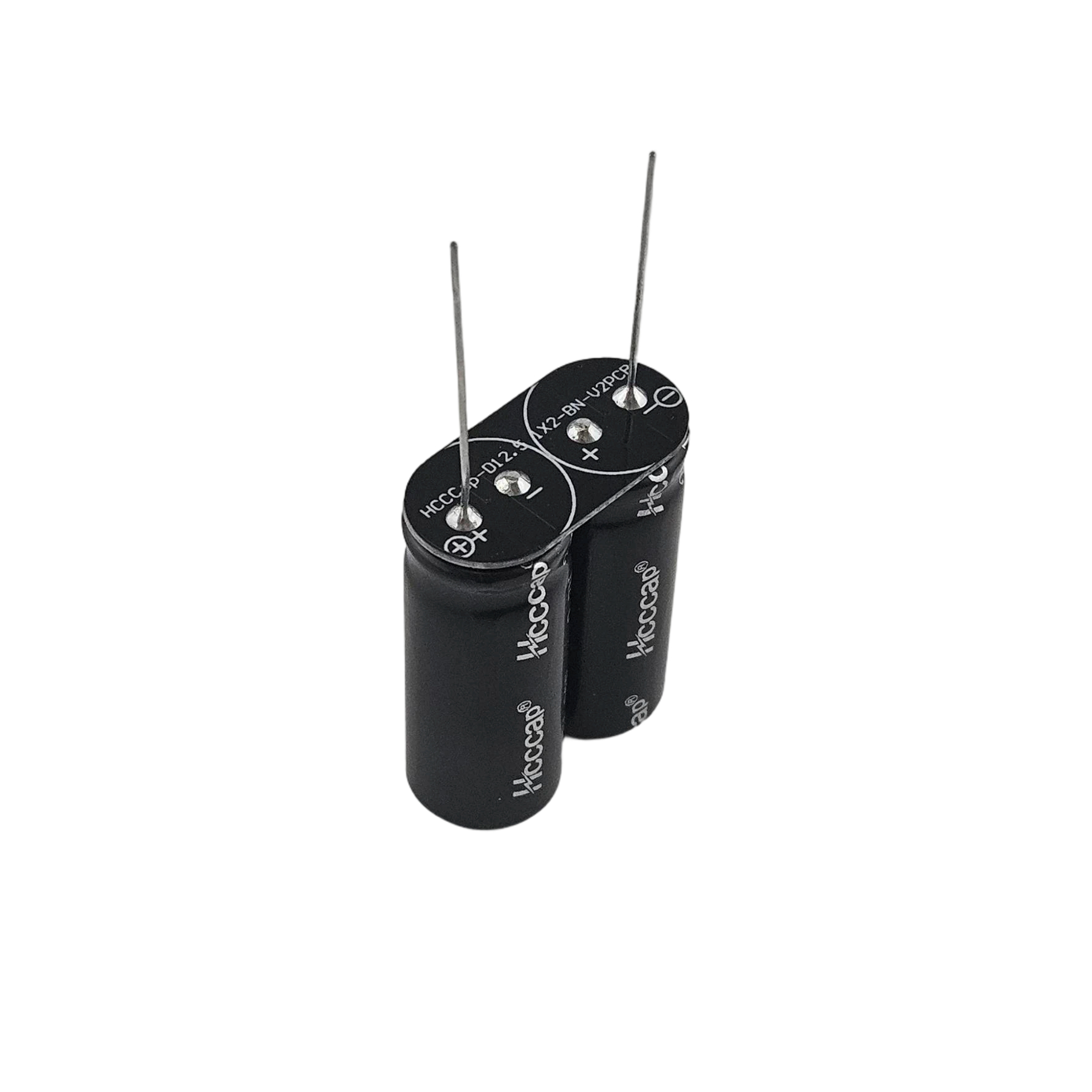

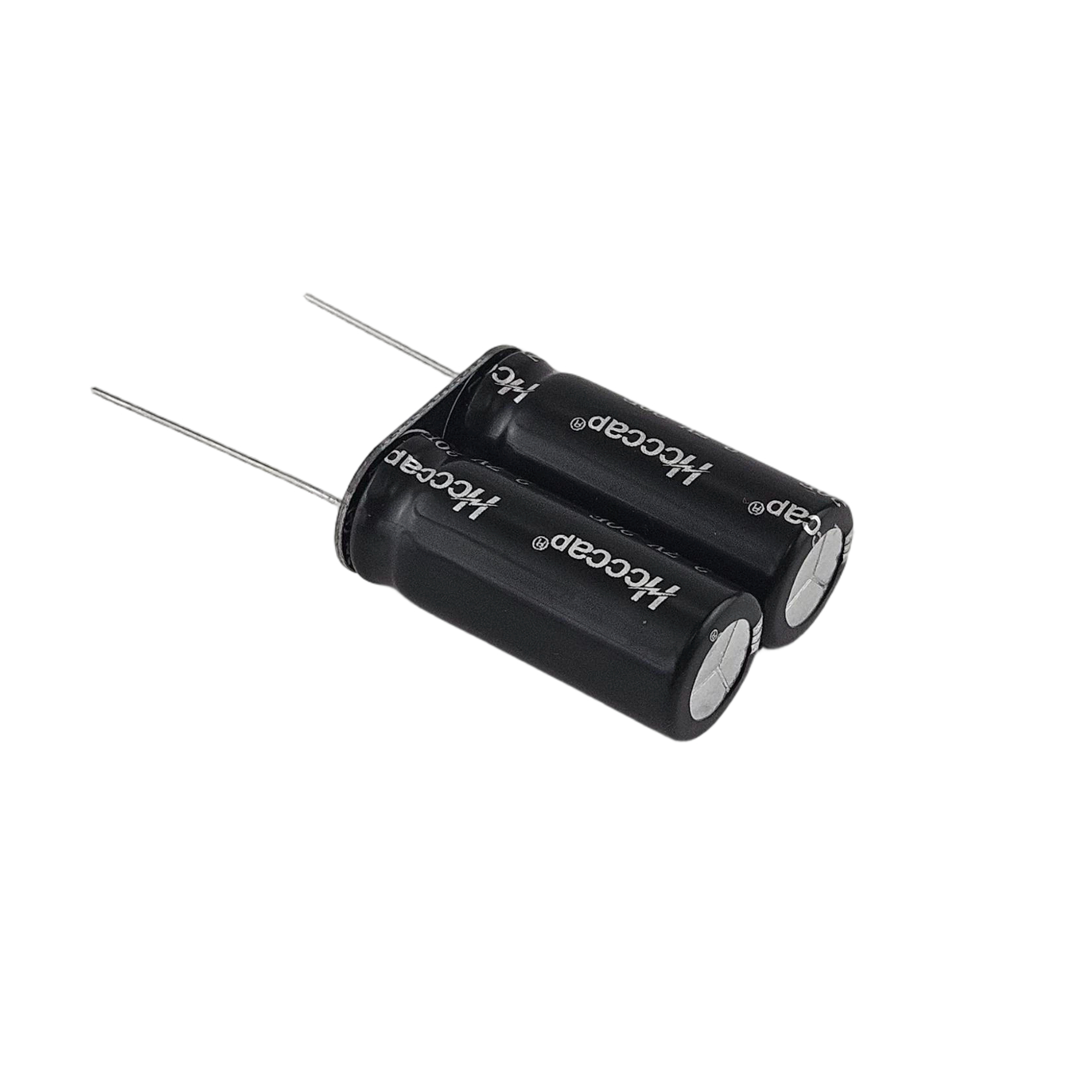

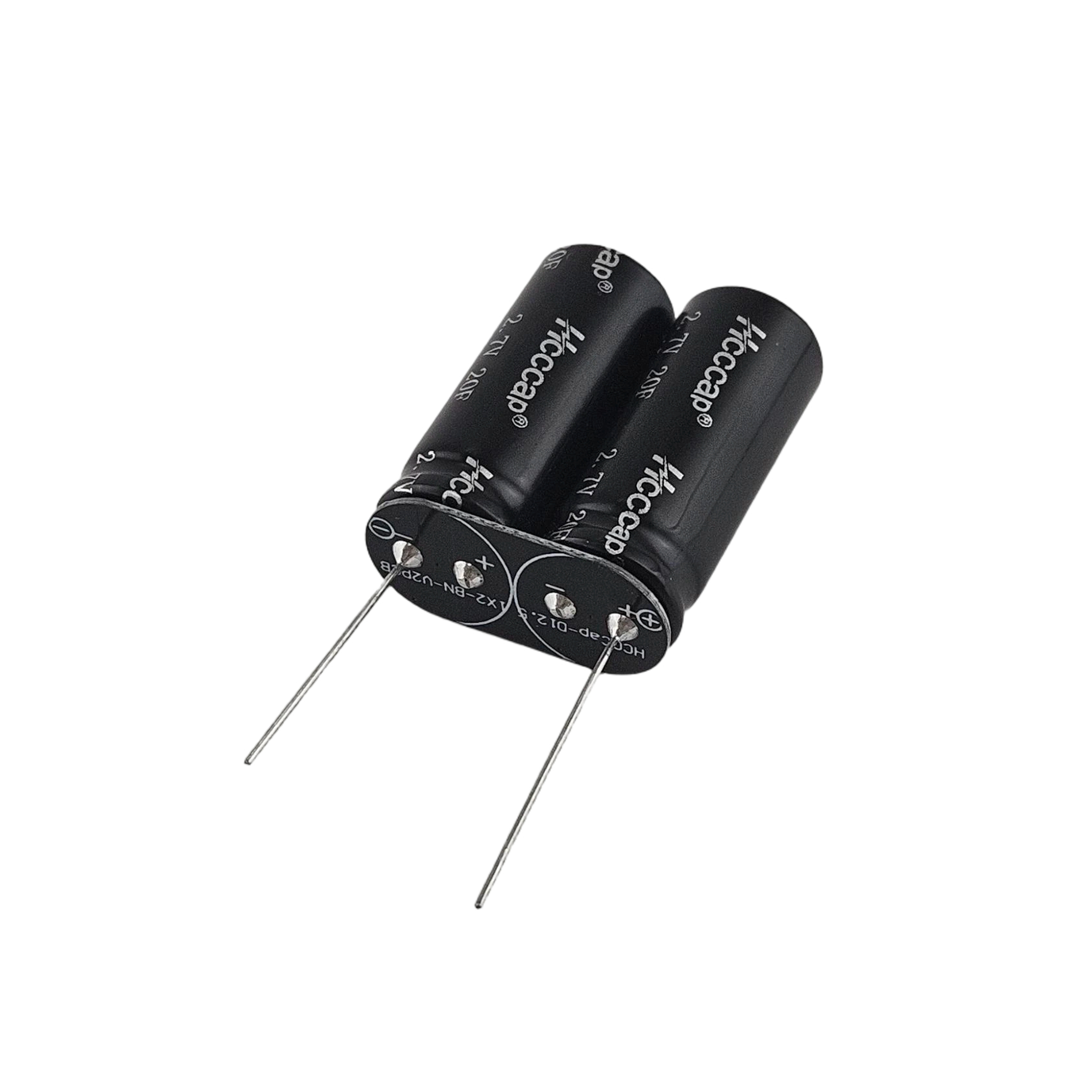

 Top view - +/− terminals and cell polarity marked on the PCB for error-free wiring |  Side view - two-cell series stack with radial leads, approx. 9.3ml volume (without terminals) |
| Advantage | Benefit for Your Application |
|---|---|
| ✅ 5.4V Ready-Made Series Module | Two matched 20F/2.7V cells pre-assembled in series on one PCB - no cell sorting, soldering or series string building needed; drop-in 5.4V energy buffer for 5V-rail electronics. |
| ✅ 500,000 Charge-Discharge Cycles | With 20 cycles per day that is over 60 years of service - eliminates battery replacement in meters, RTC backup and embedded devices sealed for life. |
| ✅ -40~+70°C Wide Temperature | Maintains normal operation where lithium coin cells fade - outdoor meters, cold-chain sensors, automotive modules and unheated cabinets. |
| ✅ High-Rate Pulse Delivery | 4.6A continuous / 14.2A max with 90mΩ ESR covers GSM/GPRS transmit bursts, motor kicks, relay/valve actuation and energy-harvesting charge dumps. |
| ✅ Safe, Green Chemistry | No heavy metals, no thermal-runaway chemistry - simple current-limited charging, no memory effect, and UN38.3 / MSDS / CE keep worldwide shipping smooth. |
| ✅ Compact & Easy to Integrate | 12.5 × 25 × 33.5mm footprint with clear +/− silkscreen - fits handheld meters, GPS trackers, data loggers and PCB-mounted backup modules. |

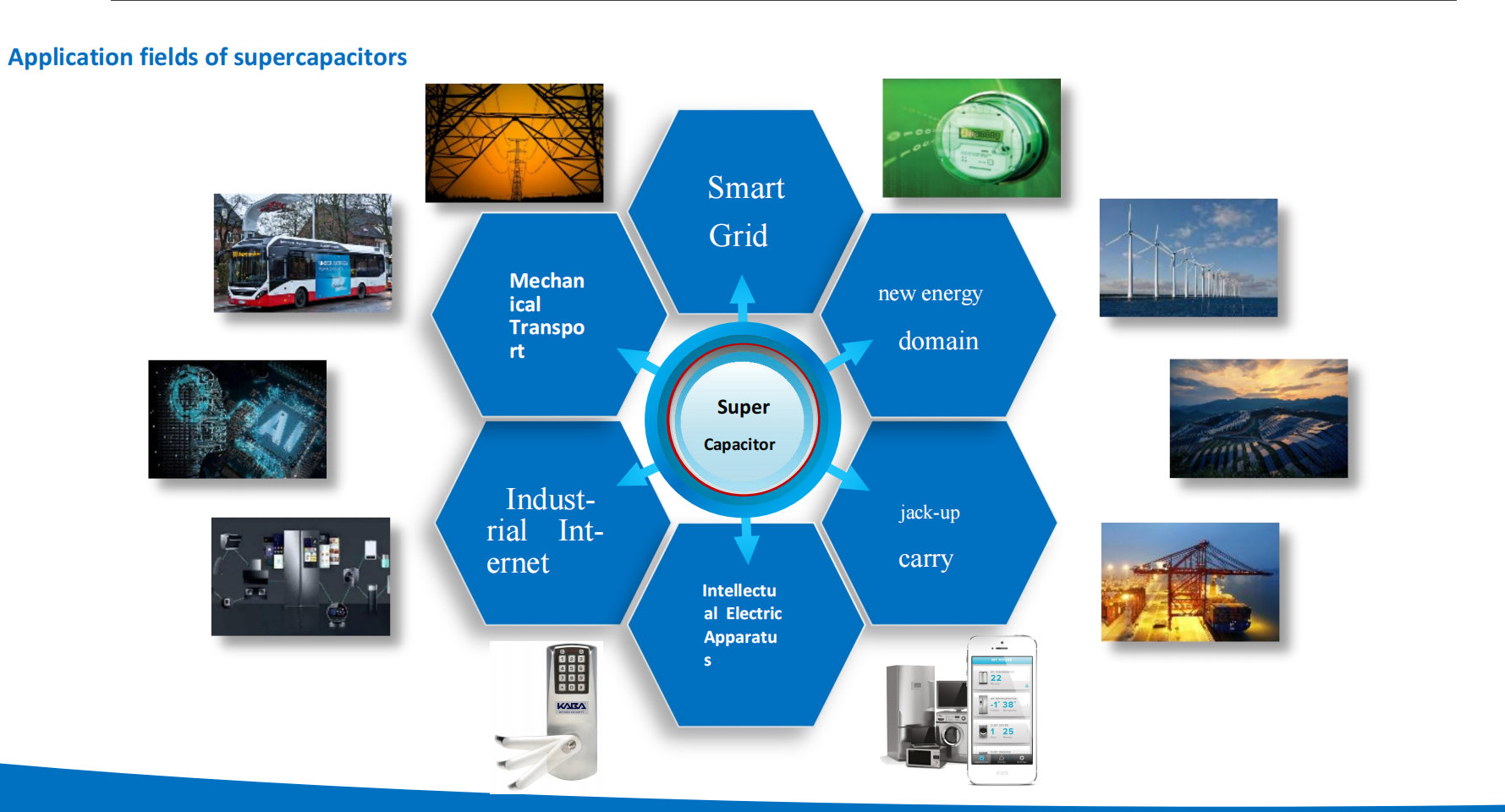

Energy storage, backup power and high-current pulse operation - smart meters, RTC/SRAM backup, energy harvesting and pulse-load electronics.
 New Energy Power Generation & Smart Grid Metering and sensing nodes for wind/PV plants, micro-grid monitoring, smart-meter last-gasp power and energy-harvesting storage |  Transport & On-board Electronics GPS tracker burst transmission, on-board data retention, cold-start assist electronics and low-temperature telemetry at -40°C |
 Backup Power & Industrial RTC / SRAM backup, industrial data protection, wireless readout of meters, valve/relay actuation and pulse-load IoT devices |
| Item | Detail |
|---|---|
| Brand / Origin | Beian · Jiangsu, China |
| Ordering Model | BA-5.4V10F - 10F / 5.4V (2 × 20F/2.7V series), ESR 90mΩ, 12.5 × 25 × 33.5mm, 146J (0.04Wh) |
| Series Family | Beian EDLC/farad capacitor series - single cells 20F~3000F (2.7V / 3.0V) and ready-made 5.4V series modules; same platform for module building |
| Series Extensions | High-temperature (HT) series option: -40 ~ +85°C · 3V cells for higher-voltage strings - ask sales for availability |
| Certificate | UN38.3 · MSDS · CE |
| MOQ | 20 pcs (samples negotiable - contact sales) |
| Lead Time | Typically 7-15 days (confirm with sales) |
| Payment / Warranty | T/T, Trade Assurance, etc. (confirm with sales) |
Q1. What is the 5.4V 10F module used for?
A: It is a ready-made two-cell series EDLC module for energy storage, backup power and pulse loads - typical uses include RTC/SRAM backup, smart-meter last-gasp power, GPS tracker transmit bursts, energy-harvesting storage and relay/motor pulse actuation.
Q2. Can I connect modules in series or parallel?
A: Yes. Connect in parallel to add capacitance and current capability directly; connect in series for higher voltage but add external balancing so no cell exceeds its 2.7V rating (module terminal voltage must stay ≤ 5.4V).
Q3. How long does it last?
A: The module is rated for 500,000 charge-discharge cycles at 25°C. At 20 cycles per day that is over 60 years - cycle count, not calendar aging, dominates the service life, far longer than batteries.
Q4. What temperatures can it handle?
A: -40°C to +70°C for both operation (top of cell) and 0V storage, with normal performance at -40°C where lithium batteries cannot work. A high-temperature (HT) series rated to +85°C is available on request.
Q5. How do I charge it?
A: Charge with a simple current-limited DC source up to 5.4V - no memory effect and no complex charge algorithm. Keep continuous current within 4.6A (14.2A maximum at 25°C) and never exceed 5.4V across the module terminals.
Q6. How is it shipped and certified?

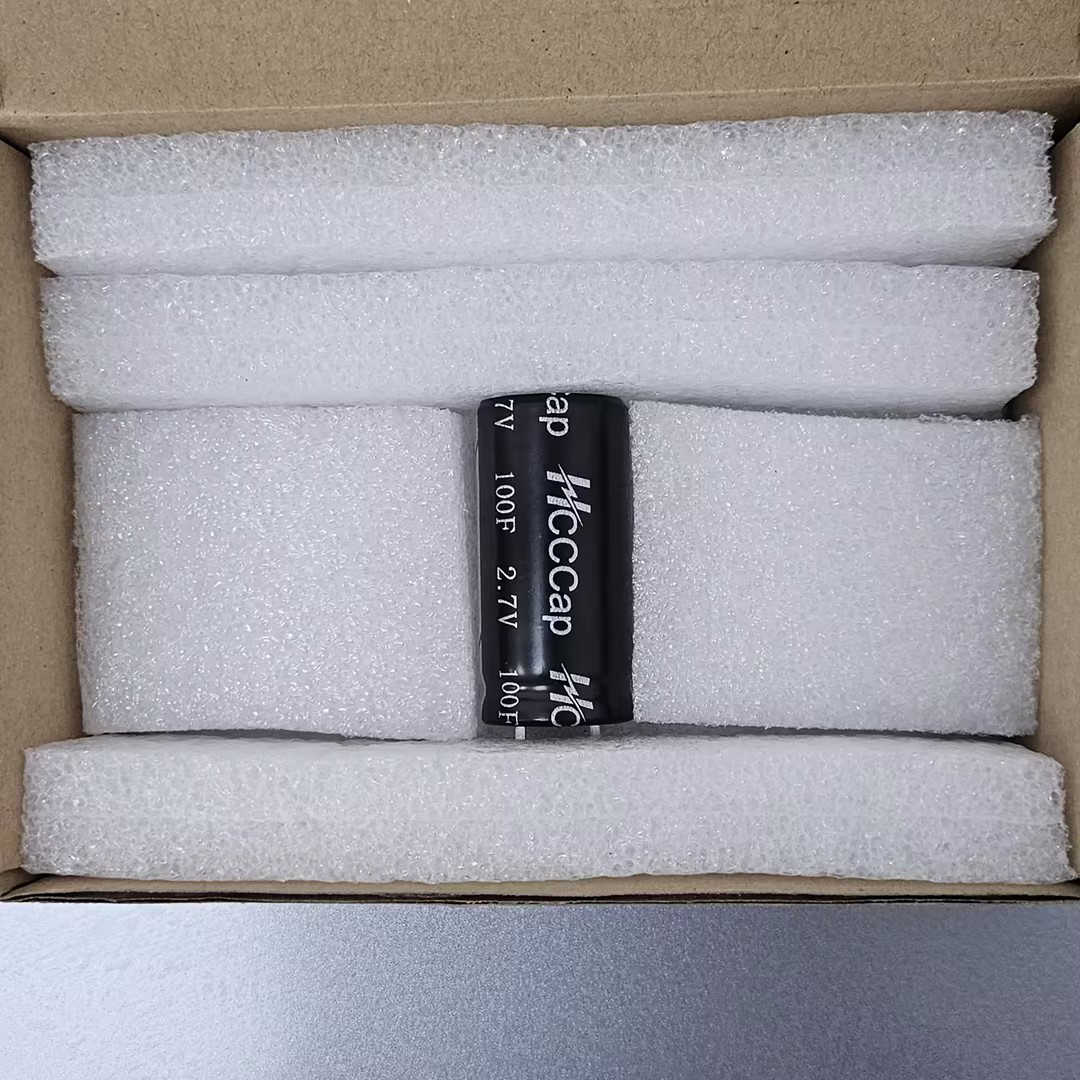

A: Modules ship with leads protected against shorting, pearl-foam cushioned in cartons, certified to UN38.3 for worldwide air/sea transport; MSDS and CE documents are available on request. MOQ is 20 pcs, samples negotiable.
