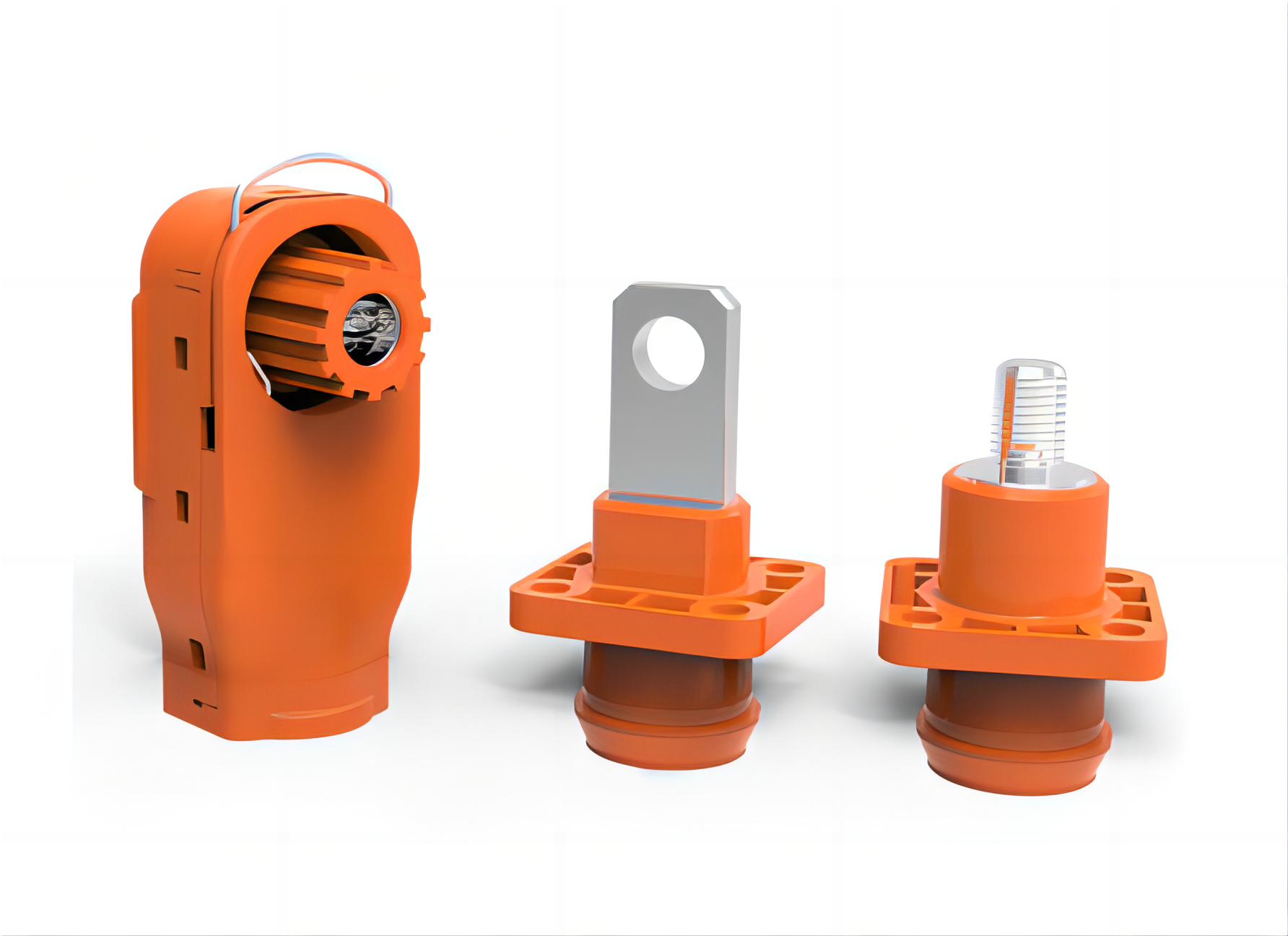

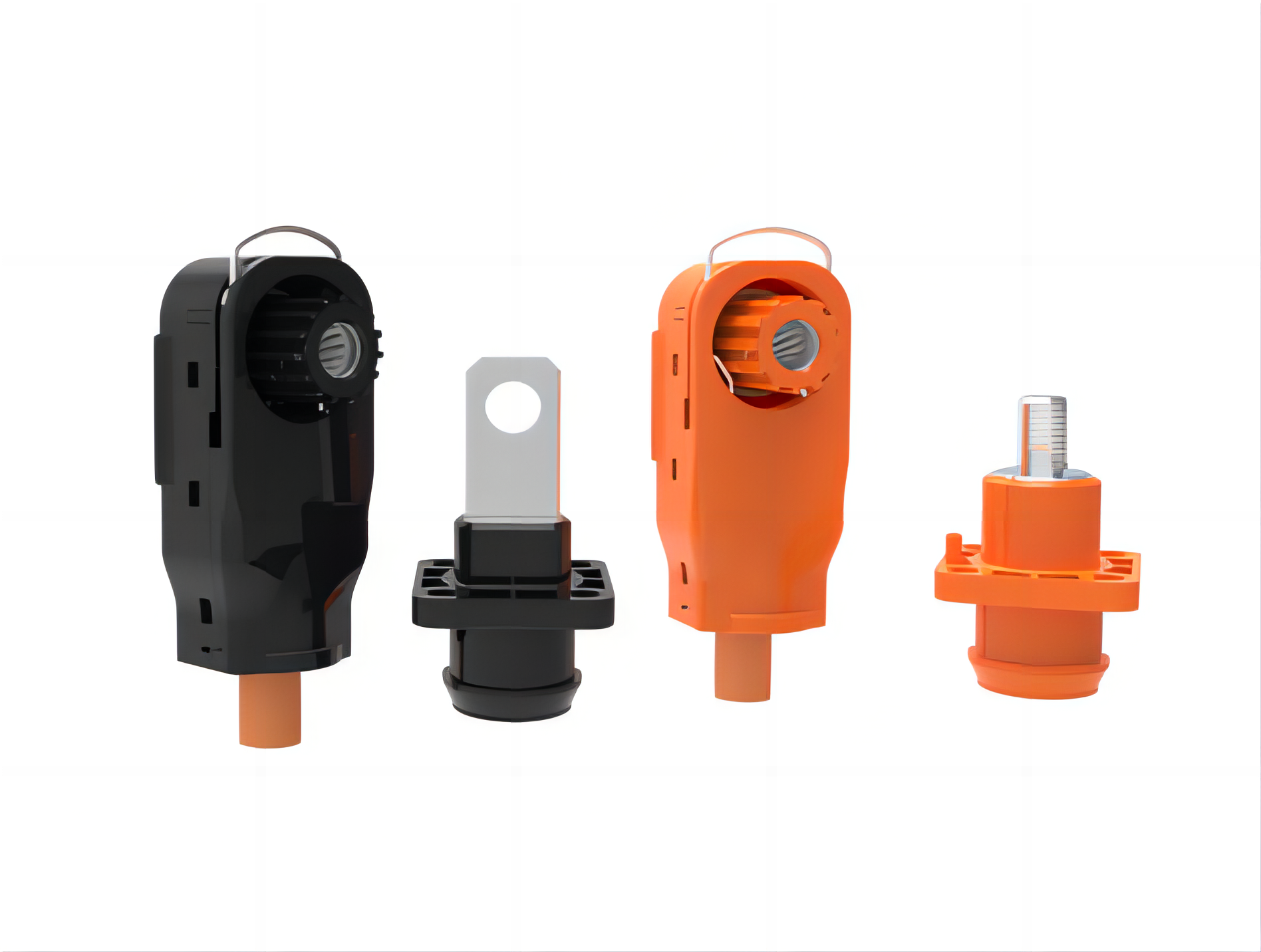

Product Detail Reference
Modle Paramenter name | PEC300 Series |
| |
Workplace Temperature | （-40℃～+85℃） | ||
Ingress protection | IPXXB ；IPXXD | ||
Housing | High-strength flame retardant plastic | ||
Rated voltage | 1500VDC | ||
Contact | Copper alloy, silver-plated | ||
Rated current | 300A Max. | ||
Terminal connection resistor | ≤ 0.6 mΩ | ||
Test voltage | 6000VDC ; 4000VAC | ||
Minimum number of mating and unplugging cycles | After more than 100 cycles of engagement and disengagement, there are no electrical or mechanical defects. | ||
Salt spray resistance | 48 hours, 96 hours | ||
Shield | Without | ||
High-voltage interlocks | Without | ||
Dielectric strength | Leakage current (DC) ≤ 1 mA ; Leakage current (AC) ≤ 5 mA | ||
Vibration resistant | In each of the three mutually perpendicular planes, after a sinusoidal vibration level with a frequency of 10 to 1000 Hz and an acceleration of 10G, there is no unlocking,and exhibited no mechanical or physical damage. The connection resistance varies continuously by more than 7Ω's for less than 1 ms. | ||
Thermal shock | After 20 test cycles from -40° C to +125° C, there were no cracks, chips, or leaks. | ||
RoHS | Satisfy | ||
Product Specification Reference

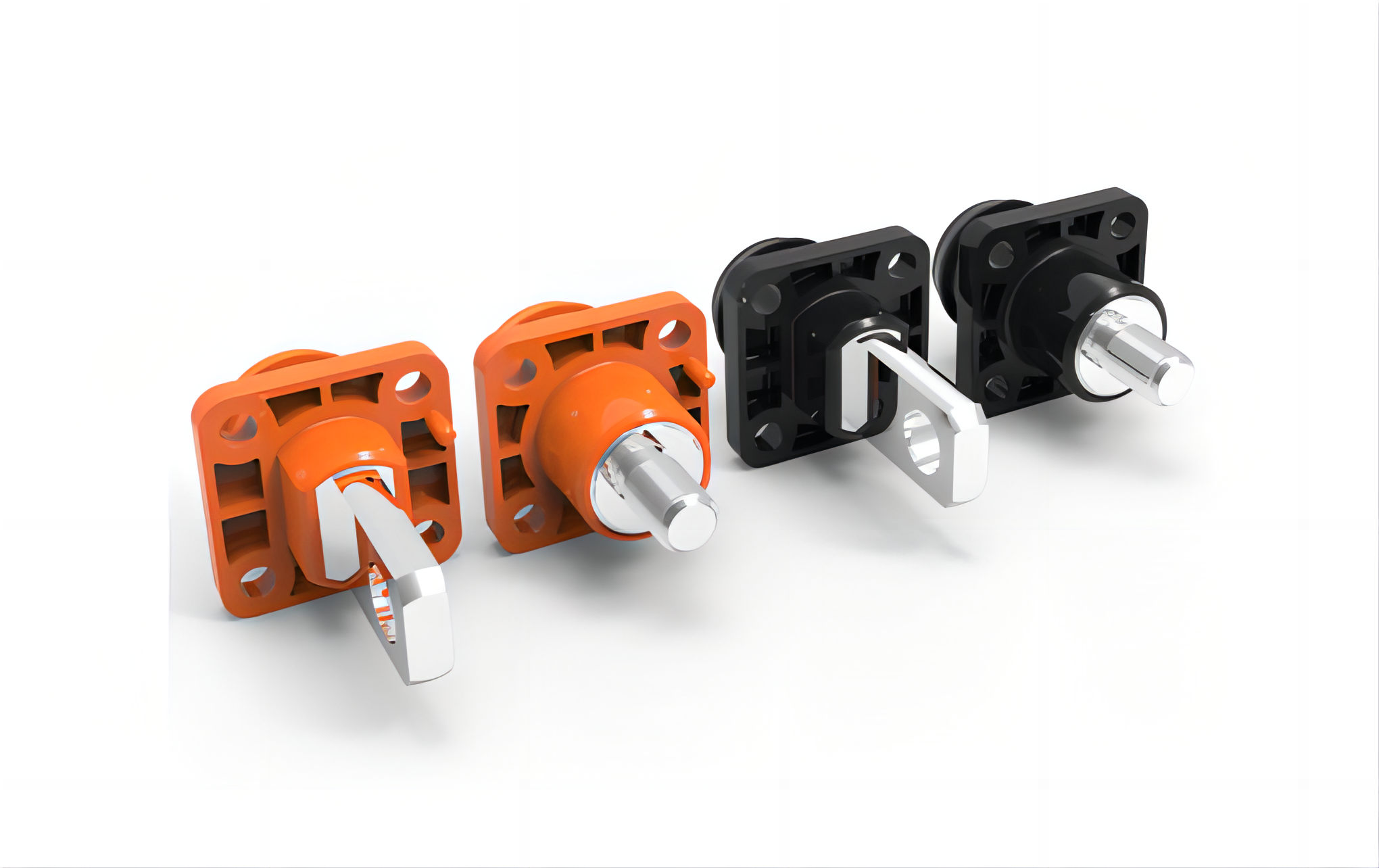

plug：

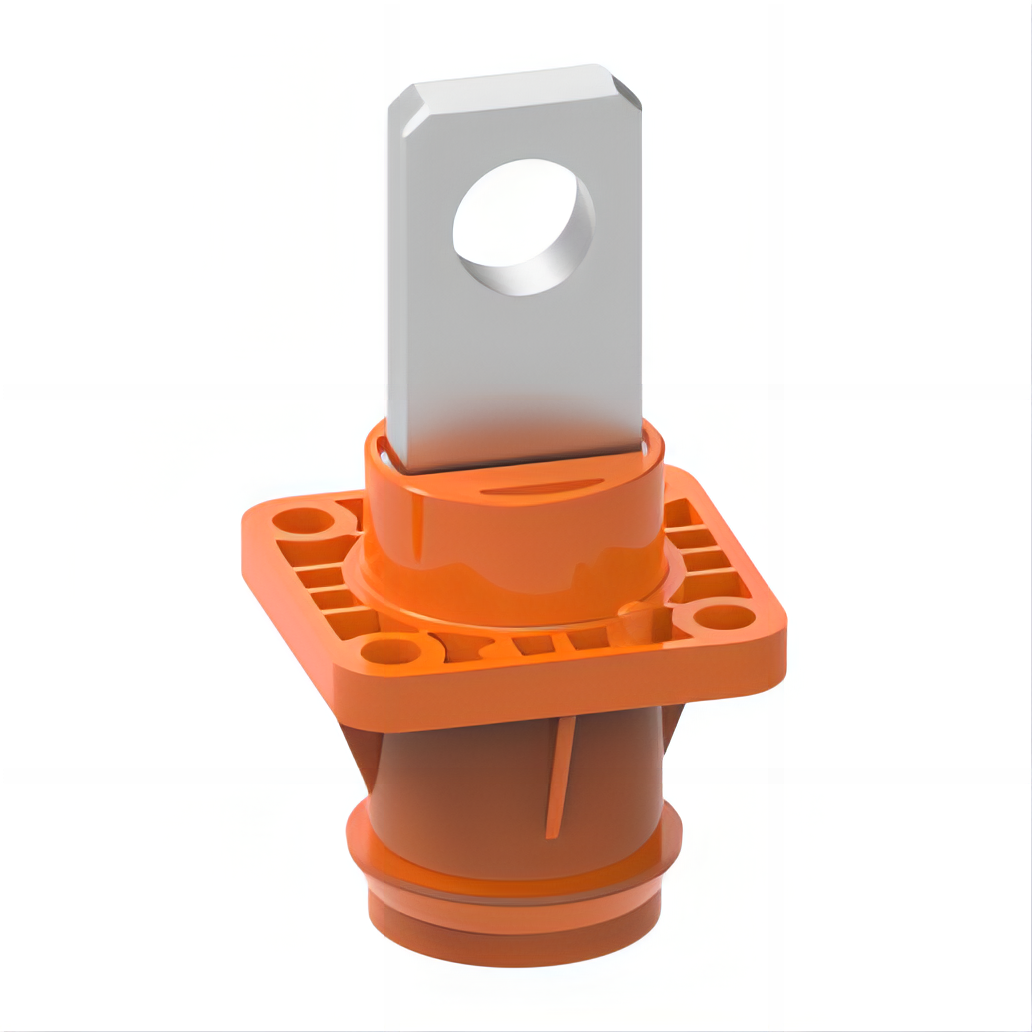

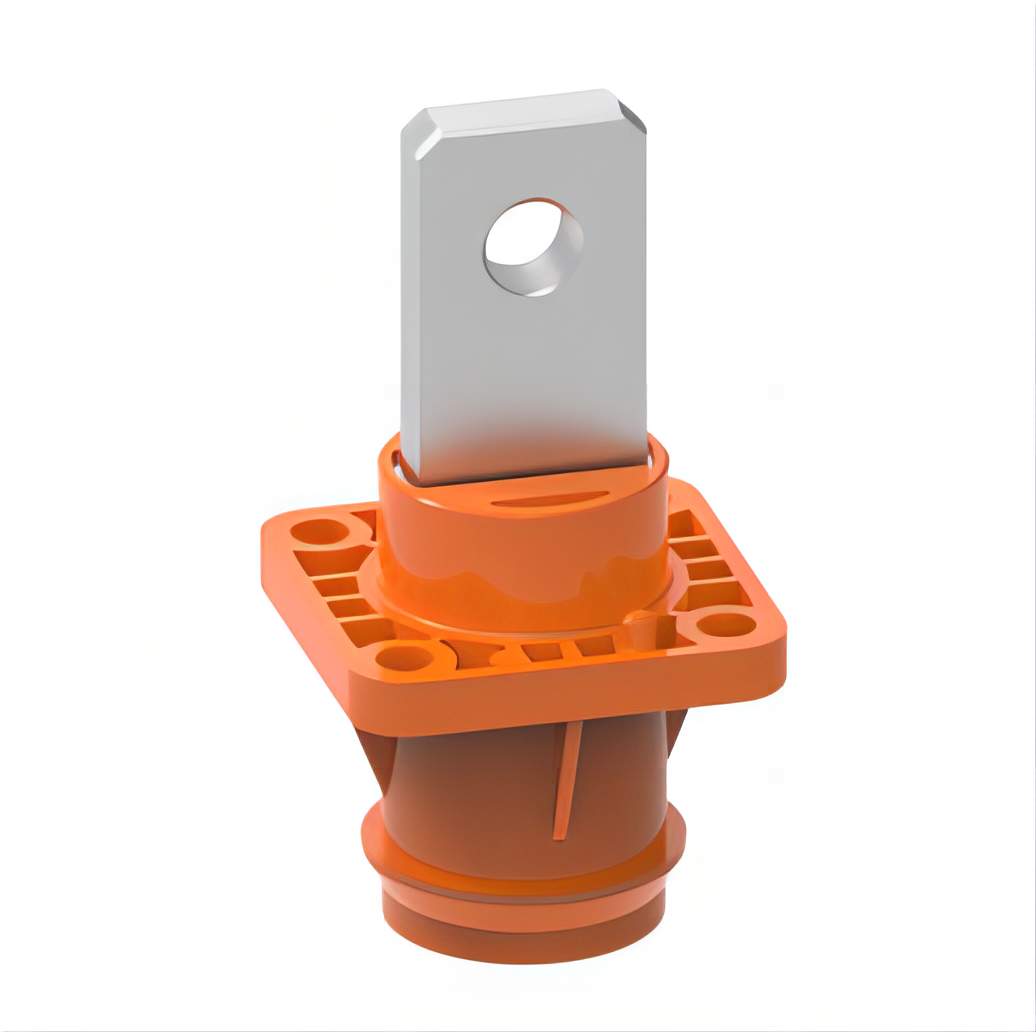

Project | Copper bar type (threaded hole) | Project | Copper bar type (through hole） |
| |||
Image |
| Image |
| ||||

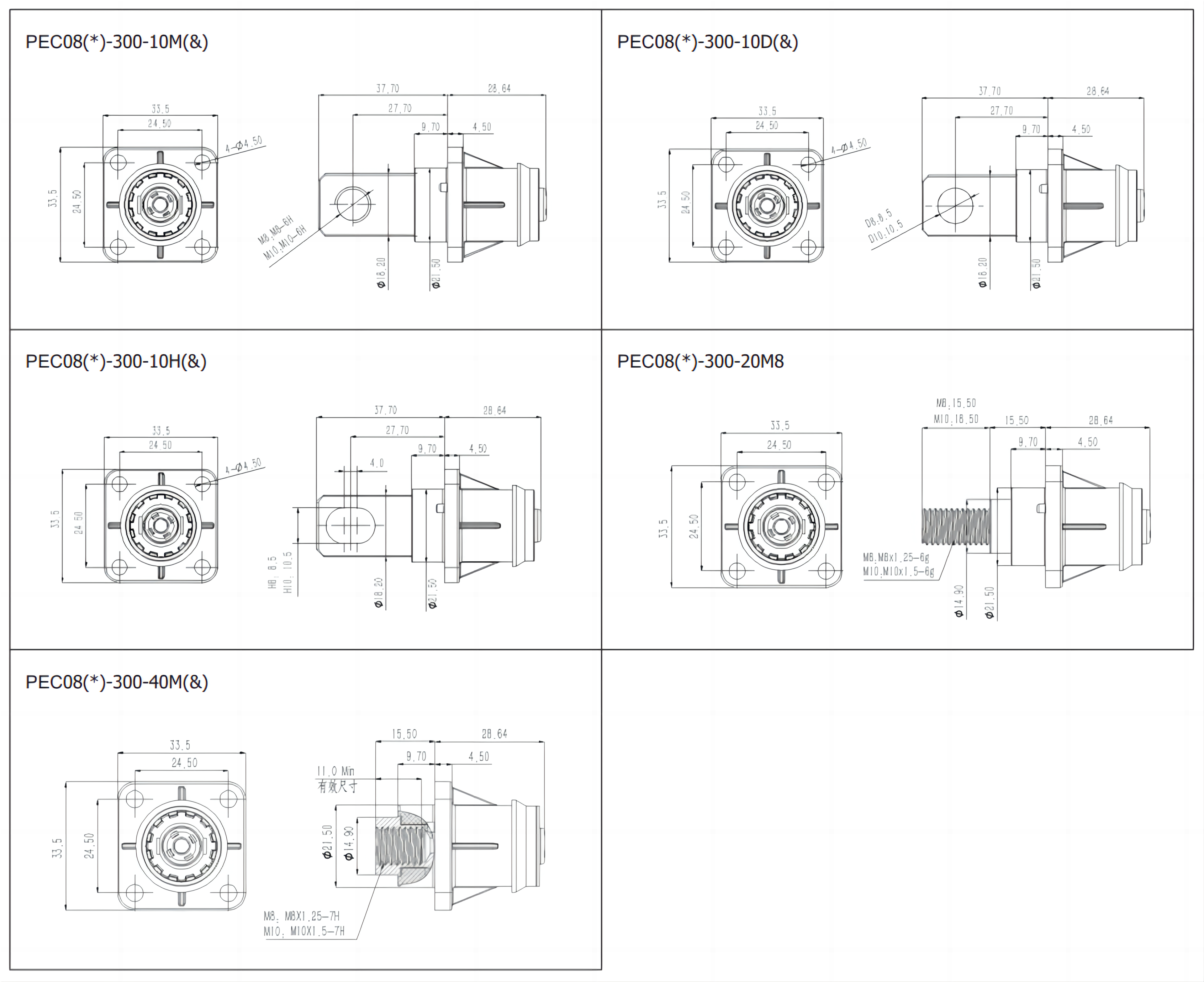

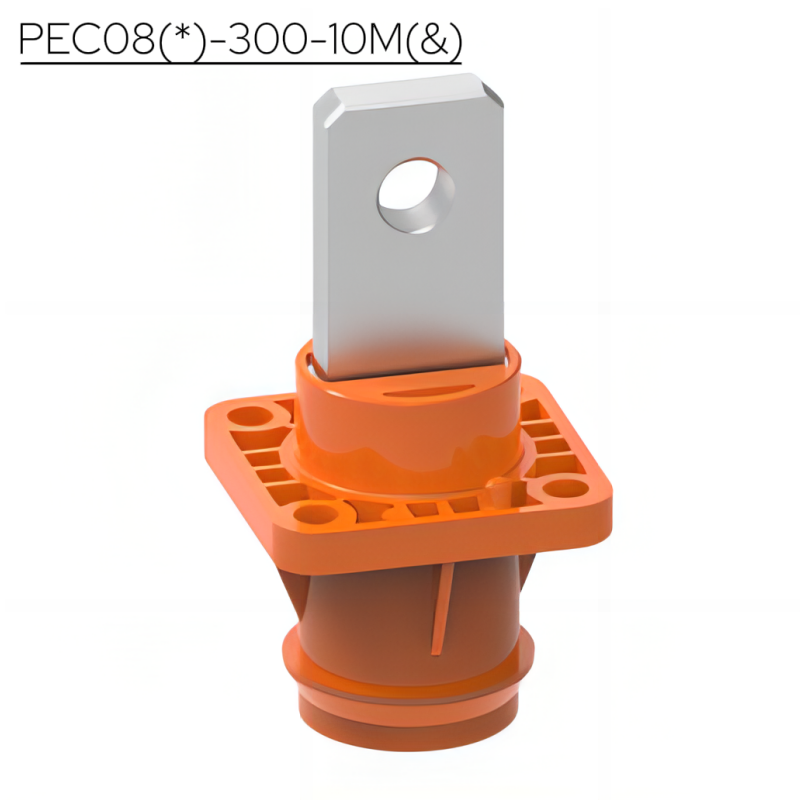

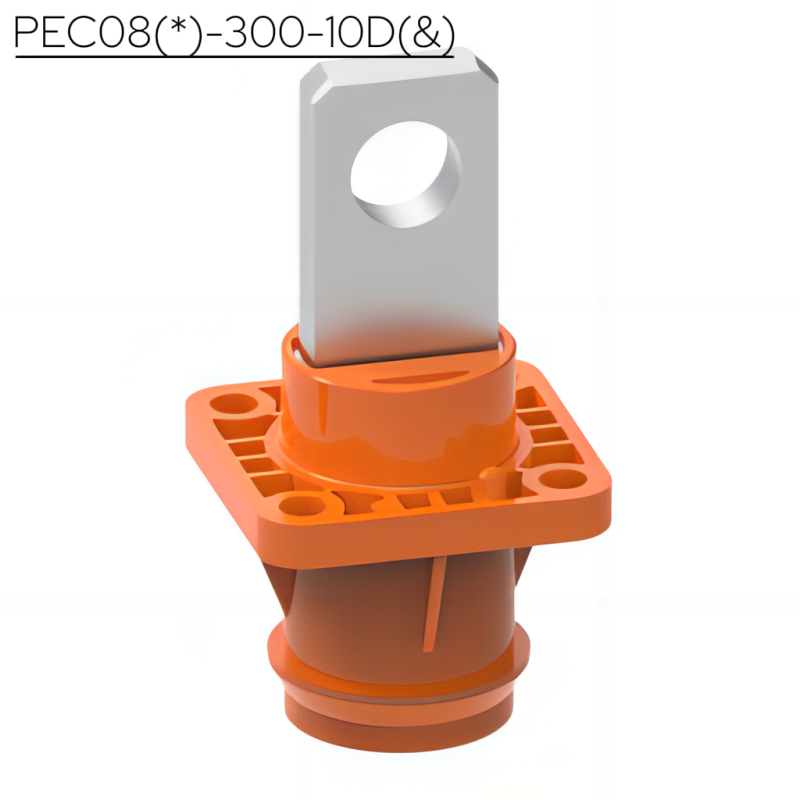

Product Code | PEC08(*)-300-10M(&) | Product Code | PEC08(*)-300-10D(&) | ||||

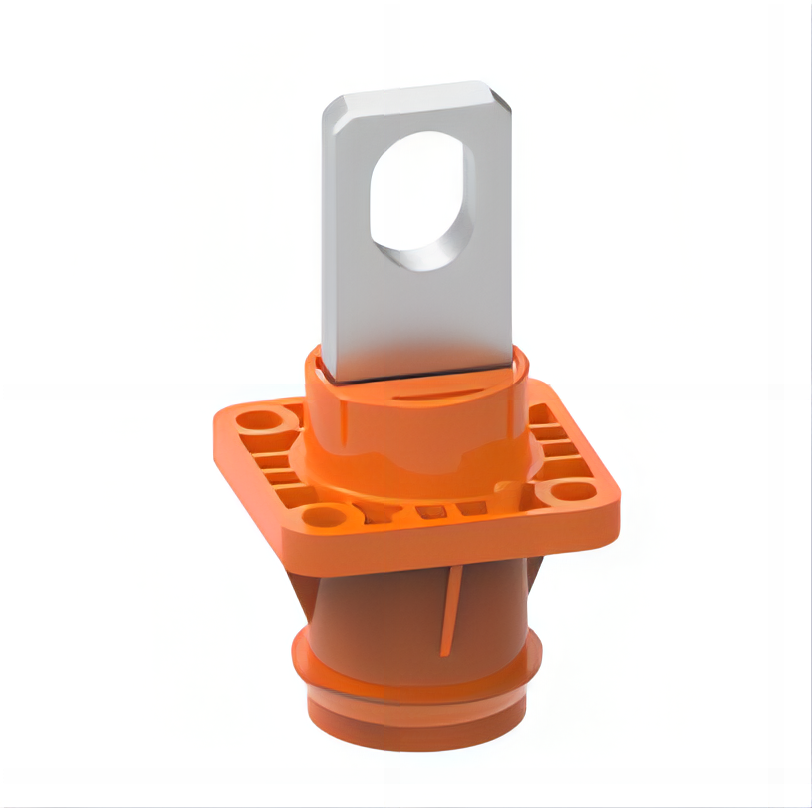

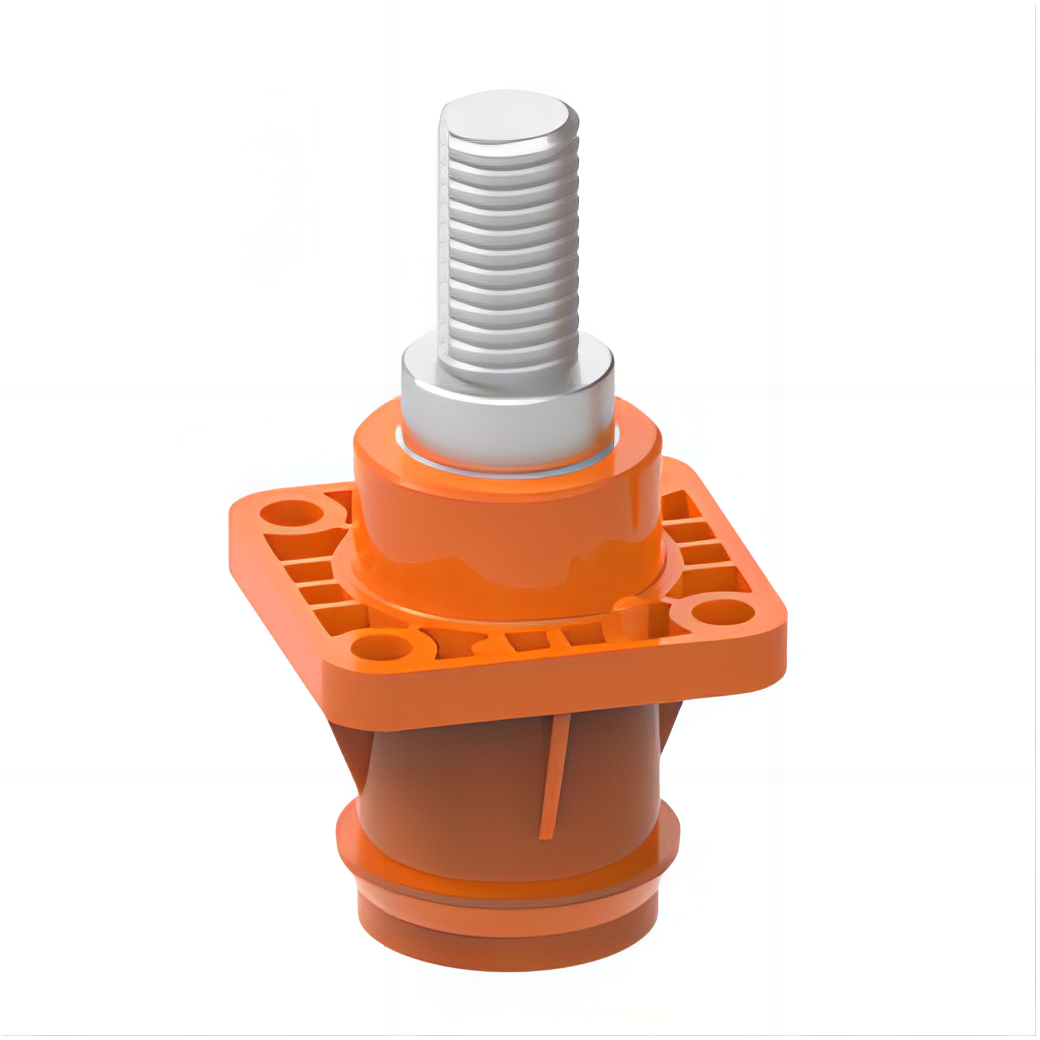

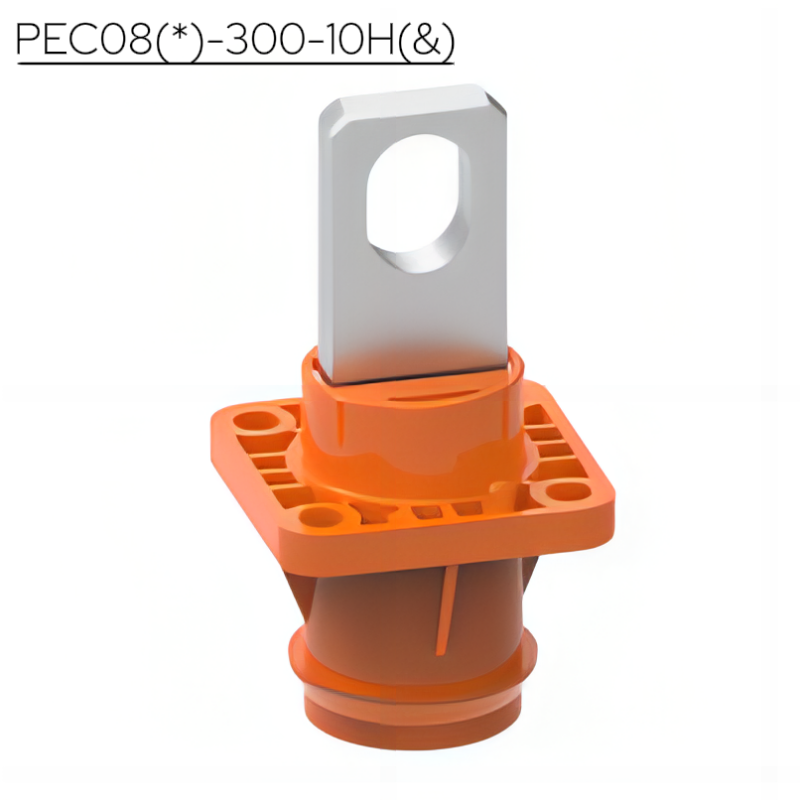

Project | Copper bar type (waist hole) | Project | Stud type | ||||
Image |
| Image |
| ||||

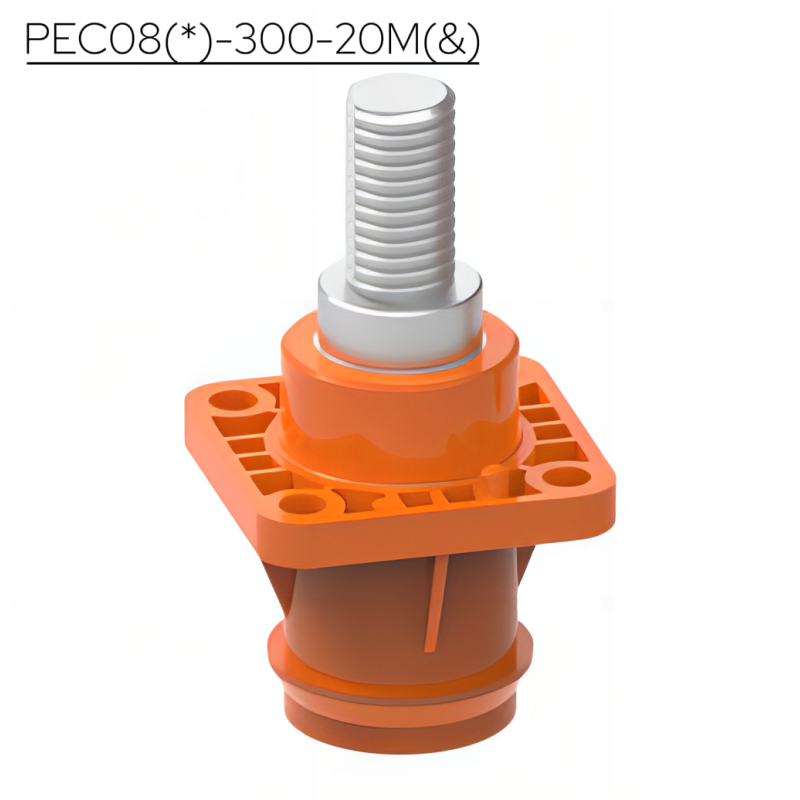

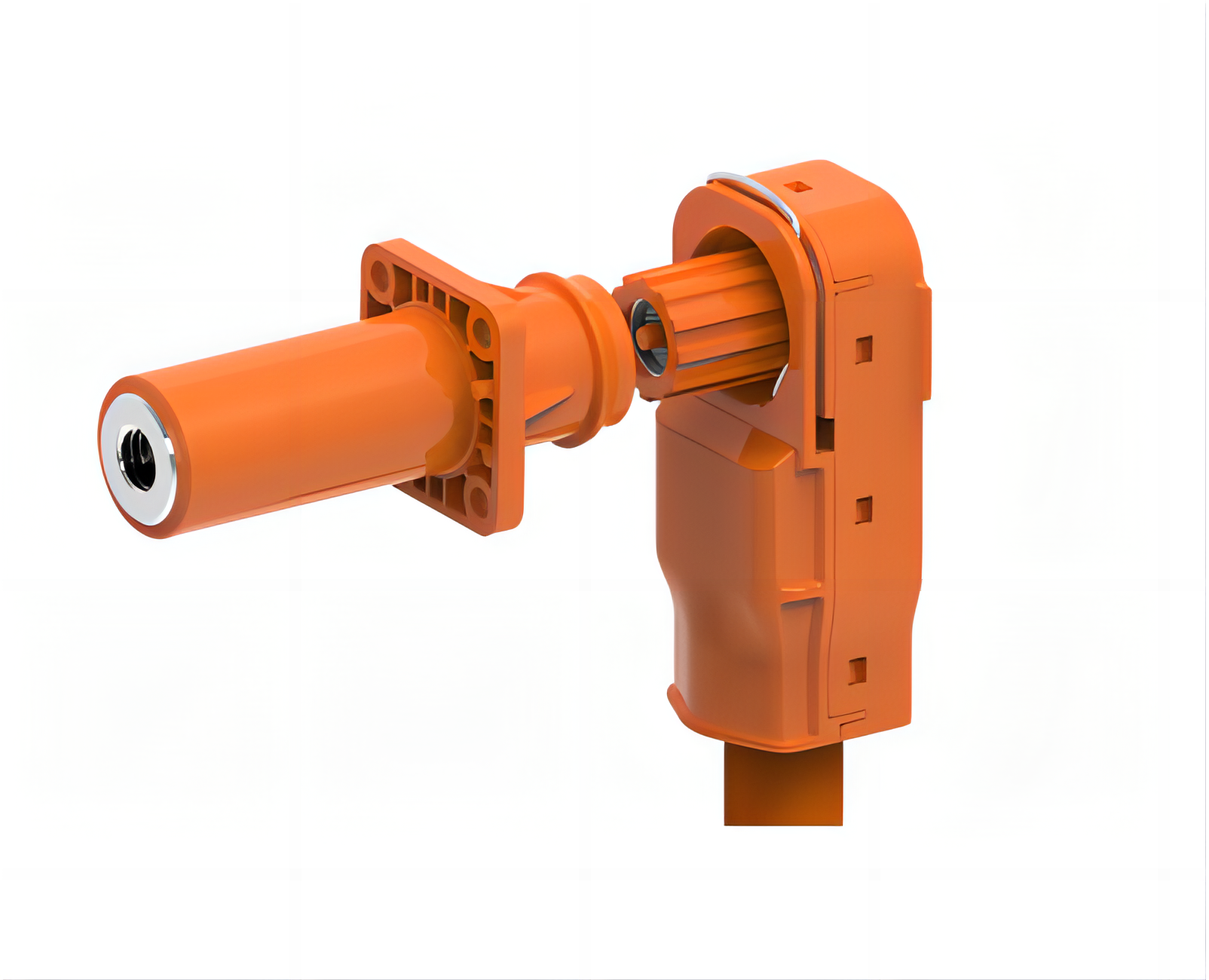

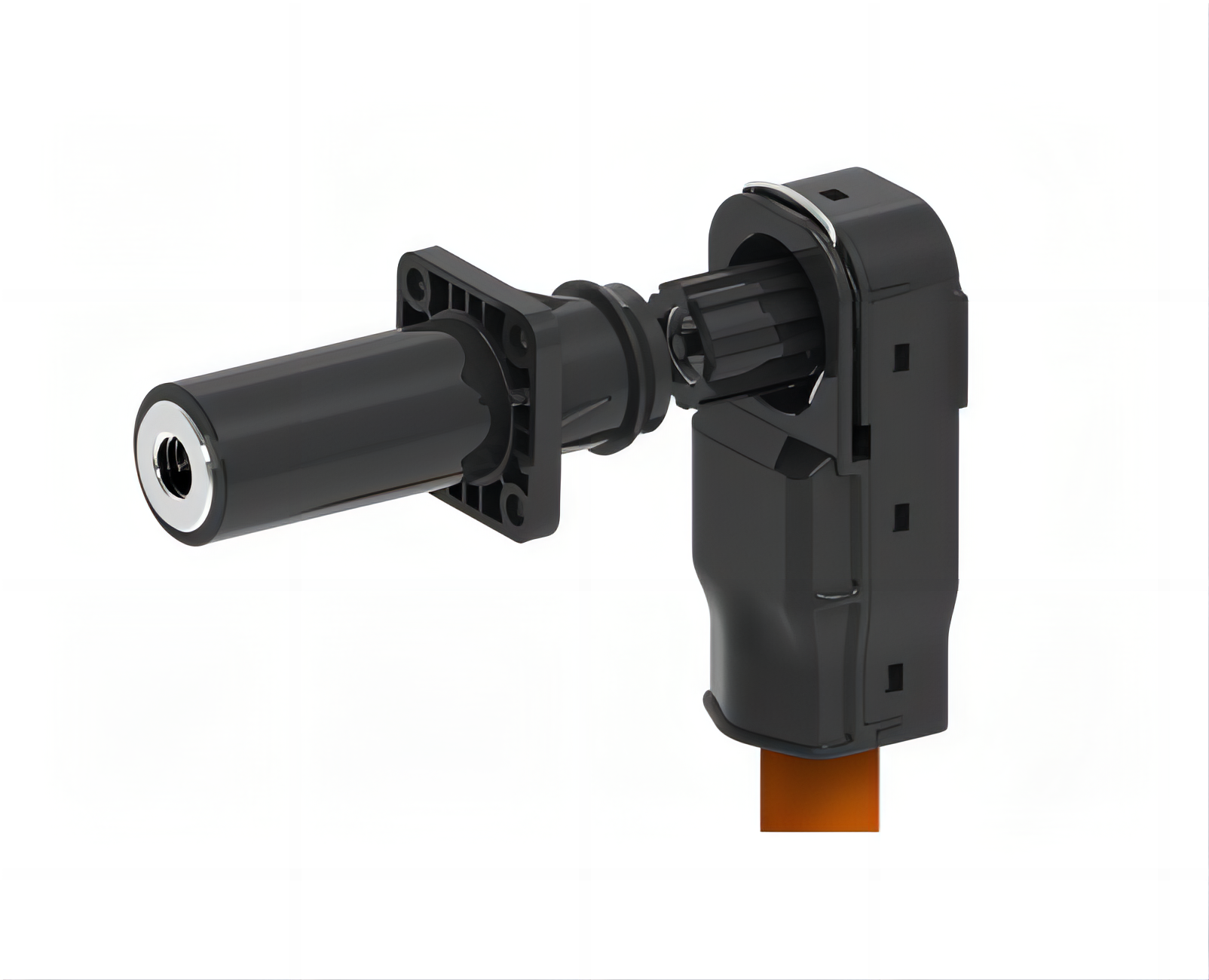

Product Code | PEC08(*)-300-10H(&) | Product Code | PEC08(*)-300-20M(&) | ||||
Project | nner screw hole type | ||||||
Image |
| ||||||

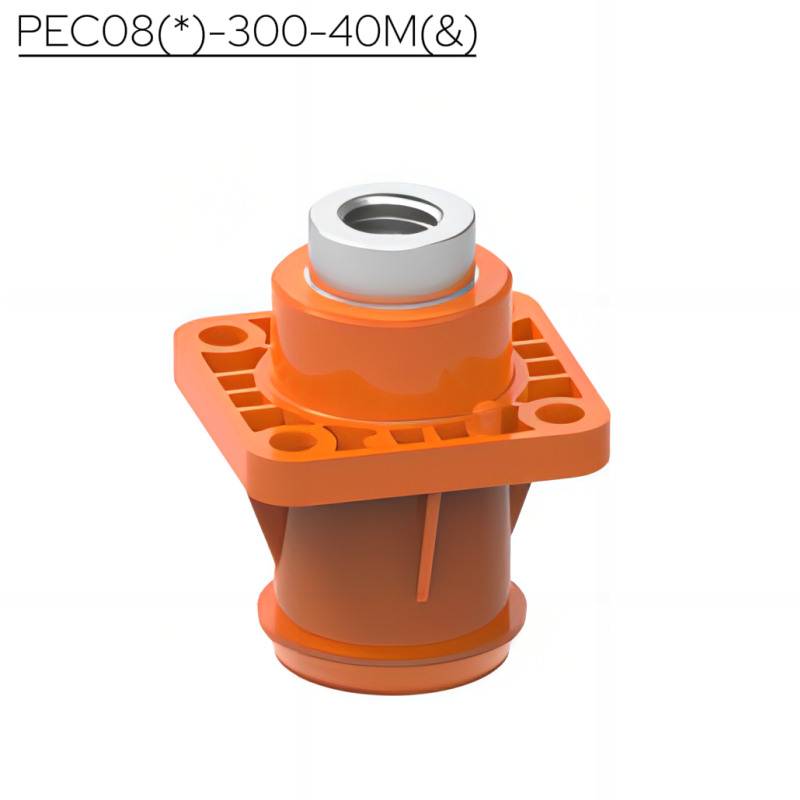

Product Code | PEC08(*)-300-40M(&) | ||||||

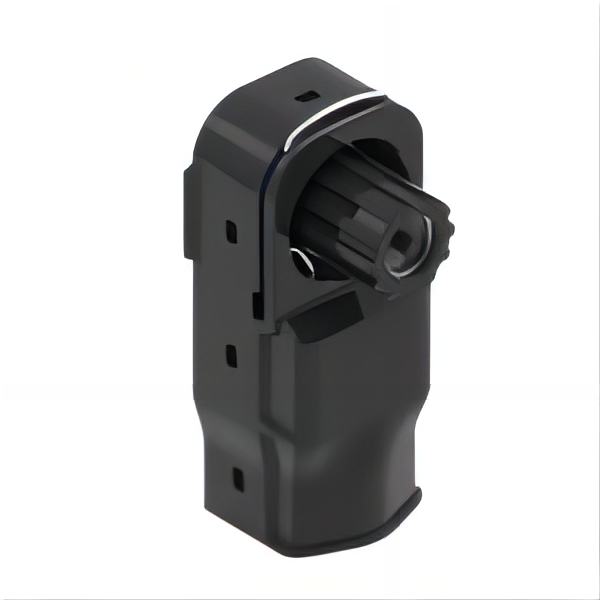

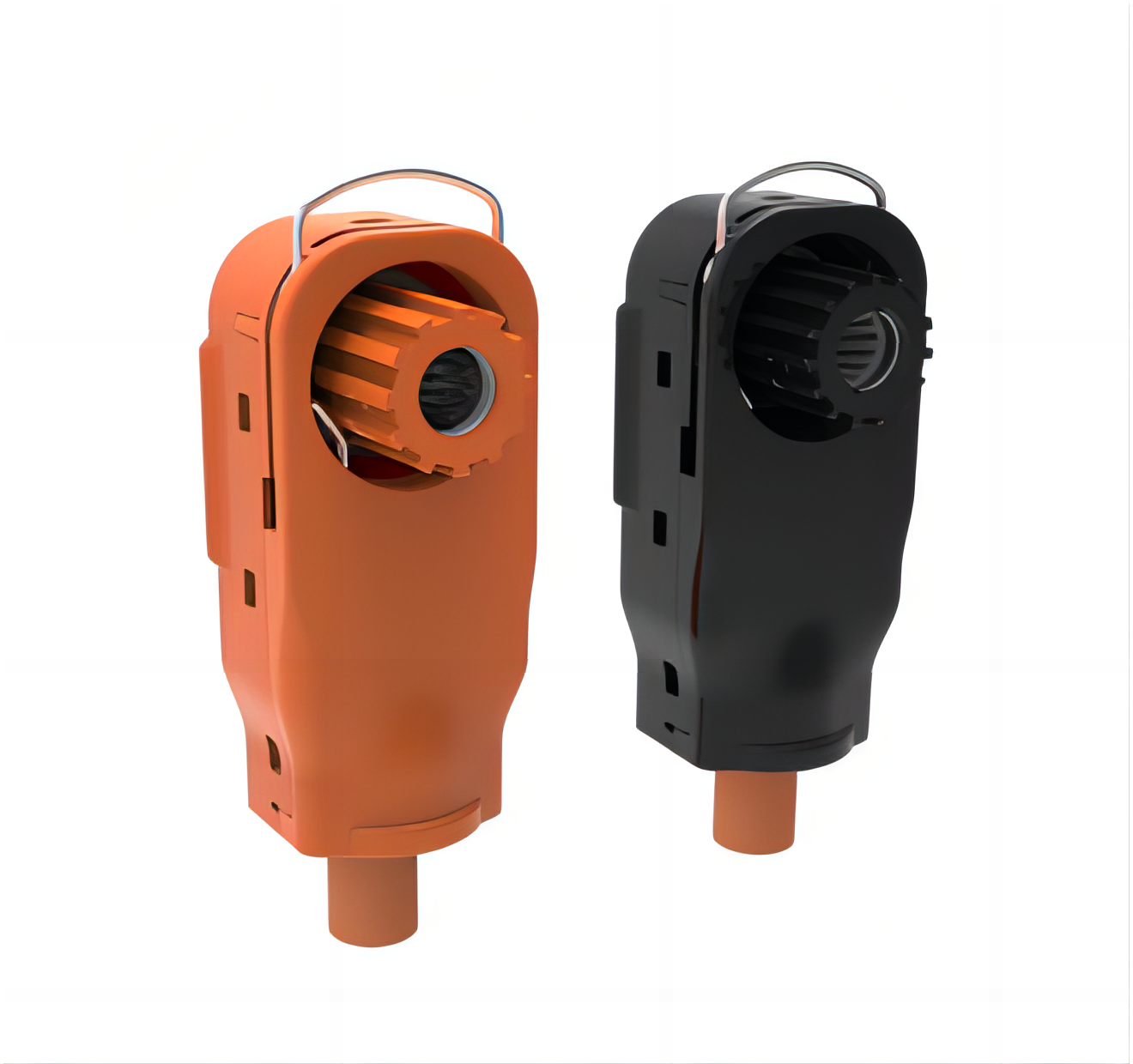

Receptacle：

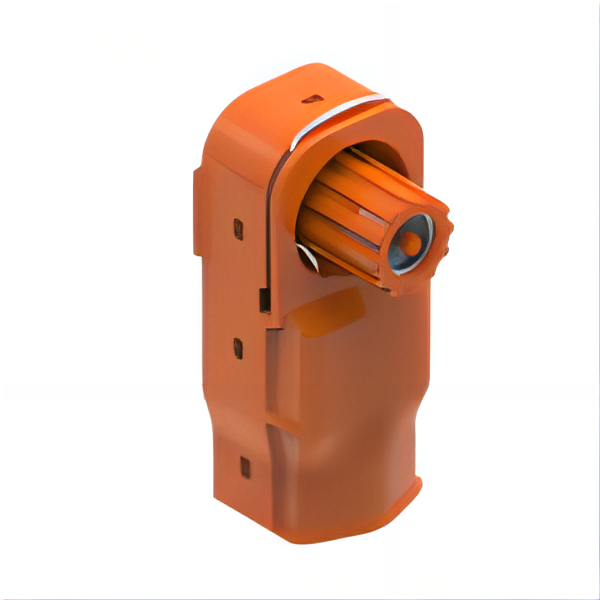

Series | Applicable cable specifications | Rated voltage | Current rating | Product number | Image |
| |
300 Series (X-key) | 70mm2 | 1500V | 250A | PEC58X-300-70 |
| ||
95mm2 | 1500V | 300A | PEC58X-300-95 | ||||
300 Series (Y-key) | 70mm2 | 1500V | 250A | PEC58Y-300-70 |
| ||
95mm2 | 1500V | 300A | PEC58Y-300-95 | ||||
Socket size:

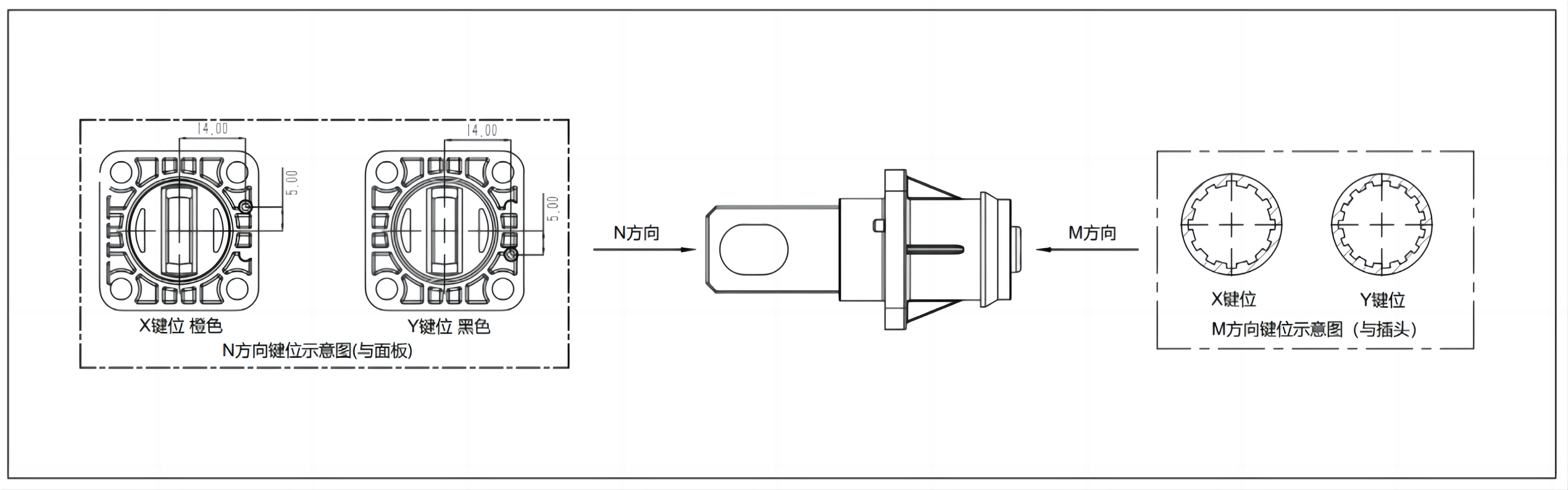

Socket keys：

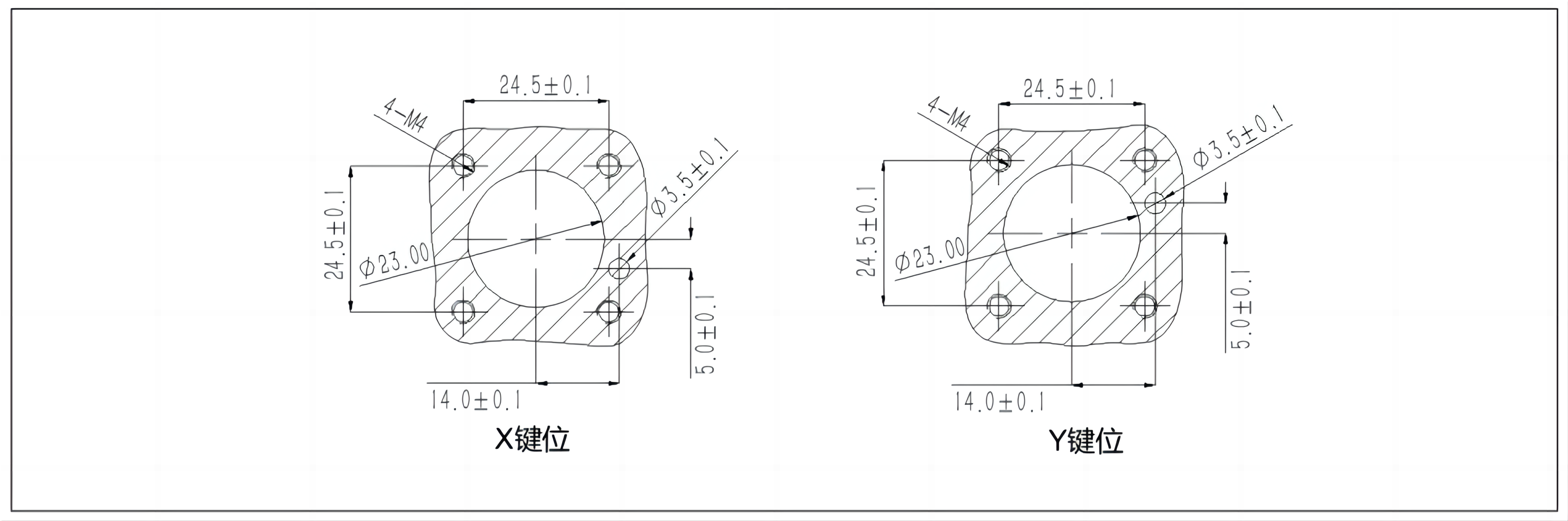

Socket installation dimensions：
