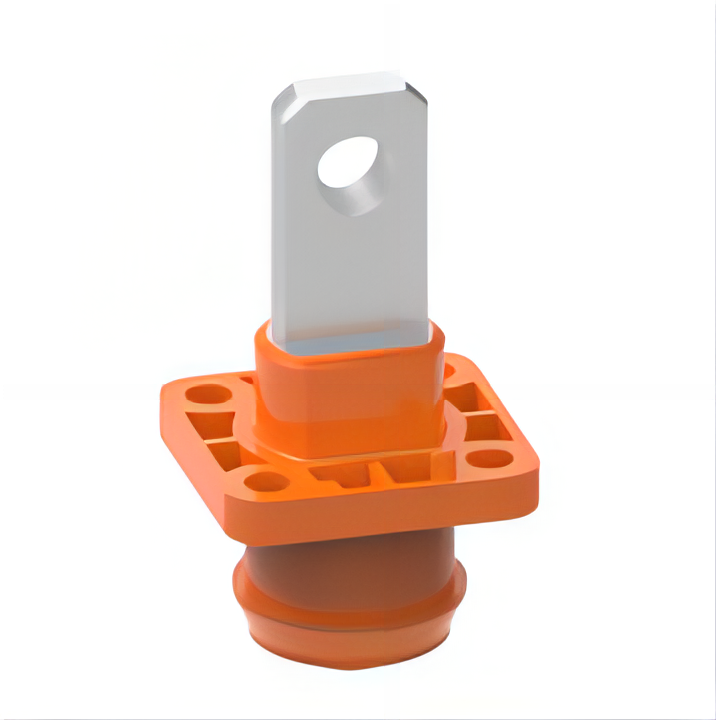

PEC200 1500V200A Energy Storage Battery System Connector
Product Detail Reference
Modle Paramenter name | PEC200 Series |
Workplace Temperature | （-40℃～+85℃） |
Ingress protection | IPXXB；IPXXD |
Housing | High-strength flame retardant plastic |
Rated voltage | 1500VDC |
Contact | Copper alloy, silver-plated |
Rated current | 200A Max. |
Terminal connection resistor | ≤ 0.6 mΩ |
Test voltage | 6000VDC ; 4000VAC |
Minimum number of mating and unplugging cycles | After more than 100 cycles of engagement and disengagement, there are no electrical or mechanical defects. |
Salt spray resistance | 48 hours, 96 hours |
Shield | Without |
High-voltage interlocks | Without |
Dielectric strength | Leakage current (DC) ≤ 1 mA ; Leakage current (AC) ≤ 5 mA |
Vibration resistant | In each of the three mutually perpendicular planes, after a sinusoidal vibration level with a frequency of 10 to 1000 Hz and an acceleration of 10G, there is no unlocking,and exhibited no mechanical or physical damage. The connection resistance varies continuously by more than 7Ω's for less than 1 ms. |
Thermal shock | After 20 test cycles from -40° C to +125° C, there were no cracks, chips, or leaks. |
RoHS | Satisfy |
Product Specification Reference
plug：
Project | Copper bar type (threaded hole) | Project | Copper bar type (through hole） |

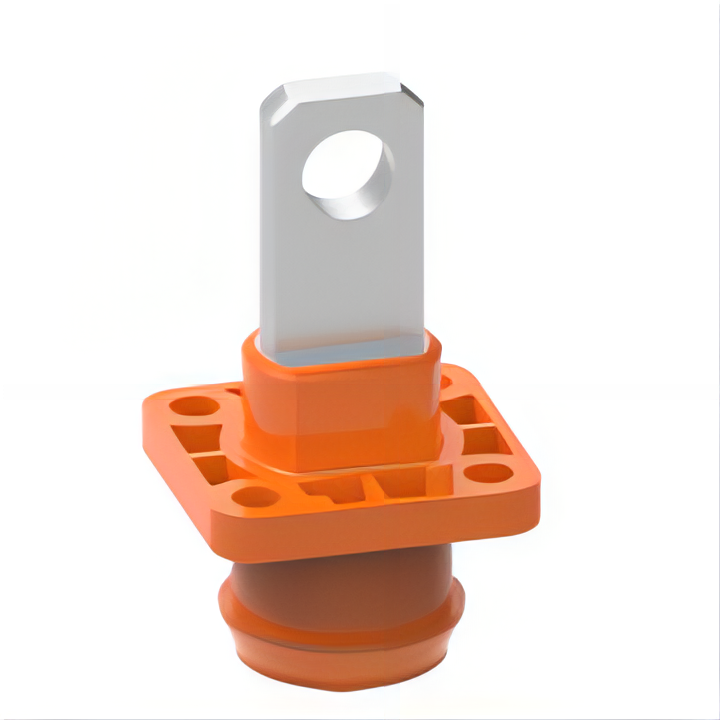

Image |
| Image |
|

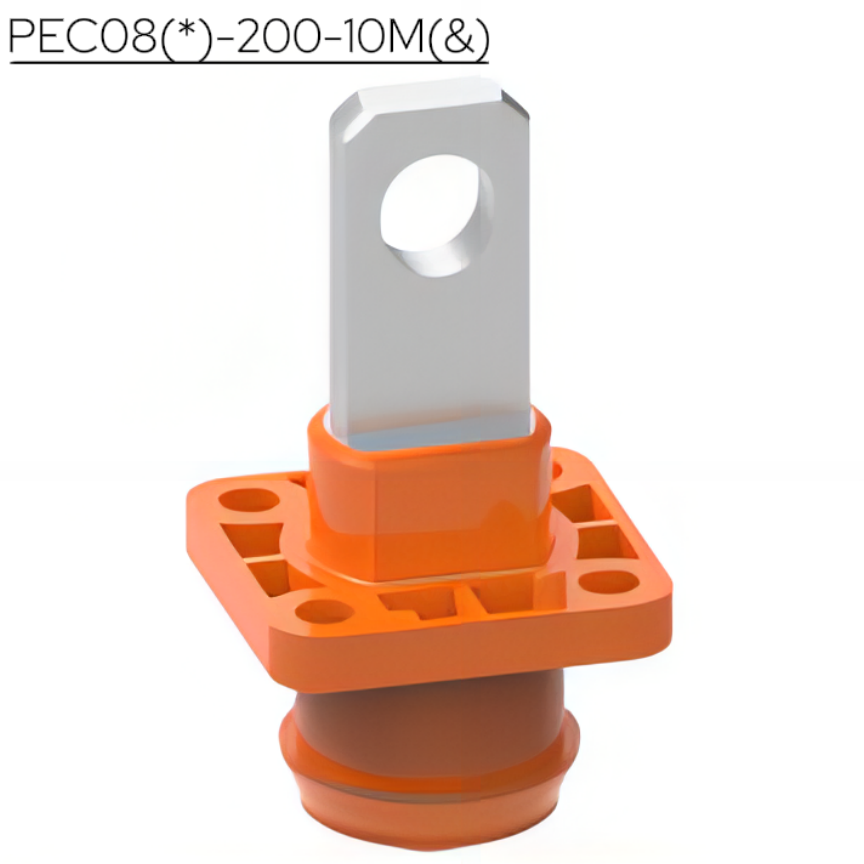

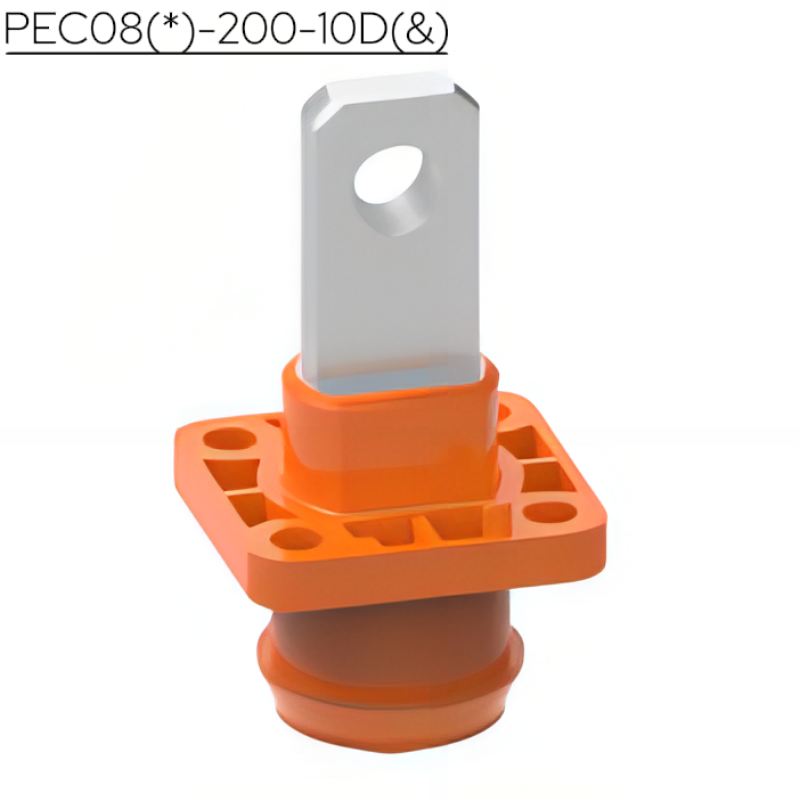

Product Code | PEC08(*)-200-10M(&) | Product Code | PEC08(*)-200-10D(&) |
Project | Copper bar type (waist hole) | Project | Stud type |

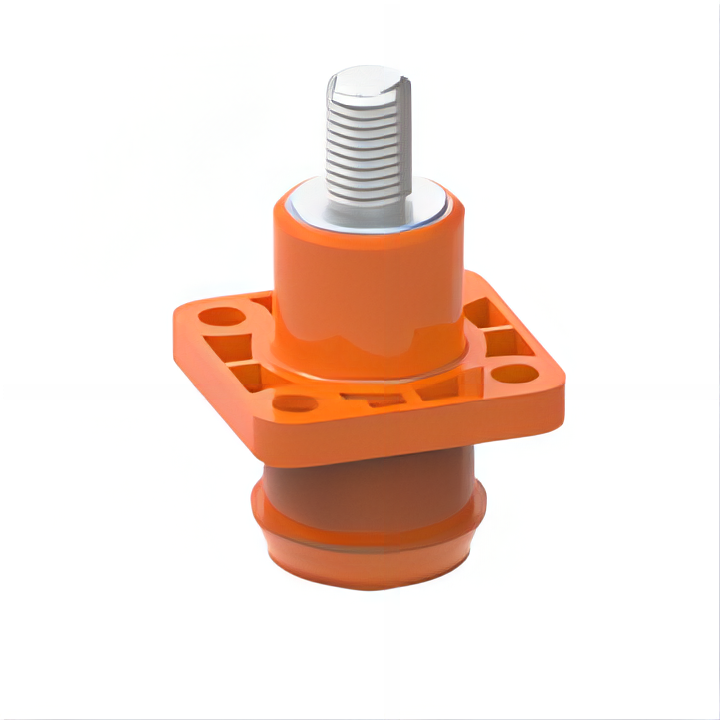

Image |
| Image |
|

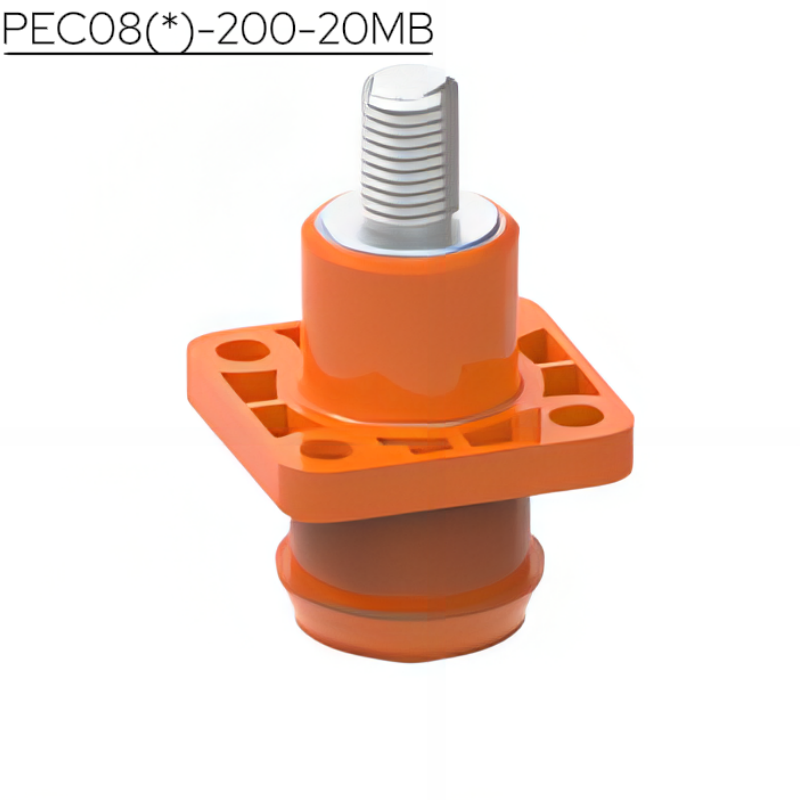

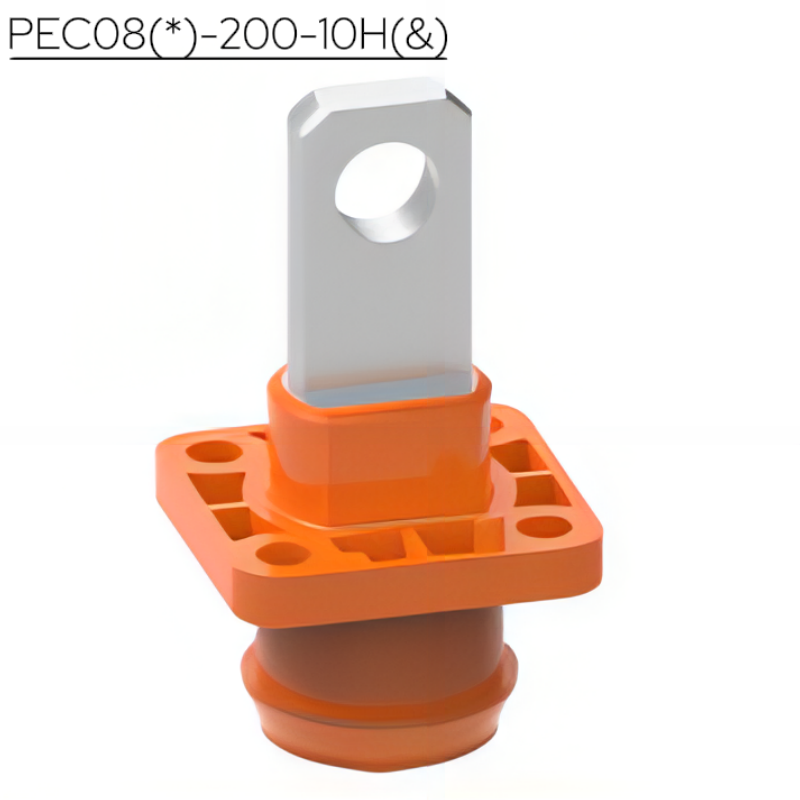

Product Code | PEC08(*)-200-10H(&) | Product Code | PEC08(*)-200-20M8 |

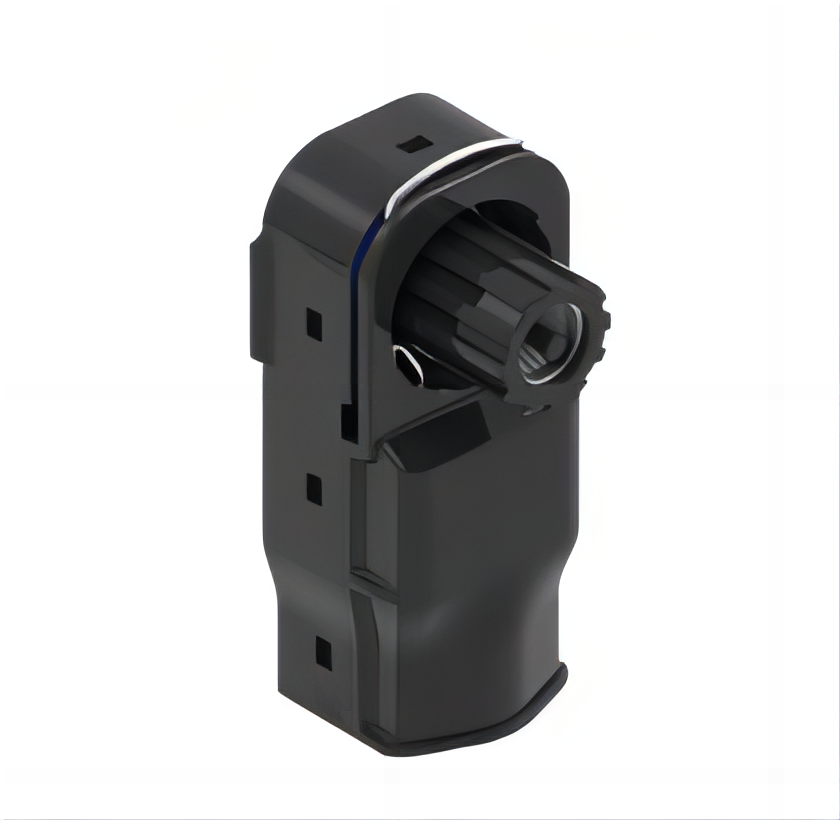

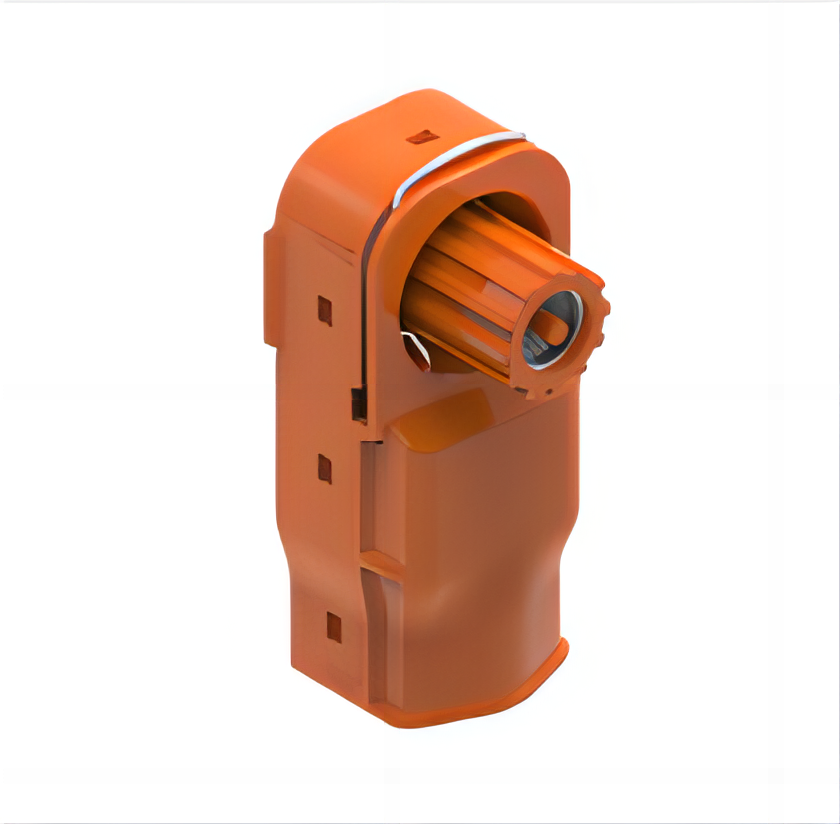

Receptacle：
Series | Applicable cable specifications | Rated voltage | Current rating | Product number | Image |
200 Series (X-key) | 25mm2 | 1500V | 120A | PEC58X-200-25 |
|
35mm2 | 1500V | 150A | PEC58X-200-35 | ||
50mm2 | 1500V | 200A | PEC58X-200-50 | ||
200 Series (Y-key) | 25mm2 | 1500V | 120A | PEC58Y-200-25 |
|
35mm2 | 1500V | 150A | PEC58Y-200-35 | ||
50mm2 | 1500V | 200A | PEC58Y-200-50 | ||
