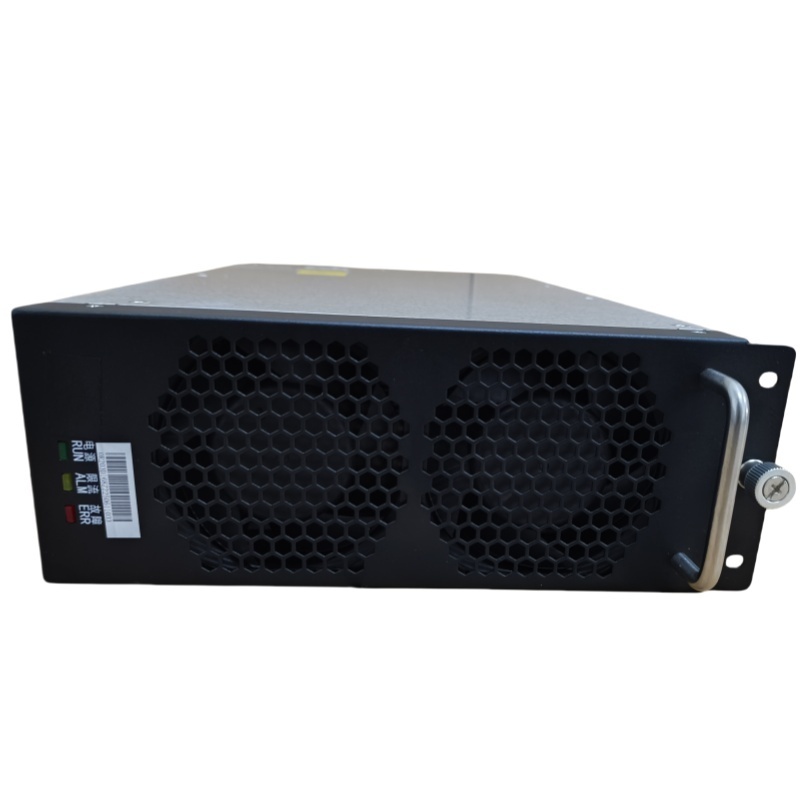

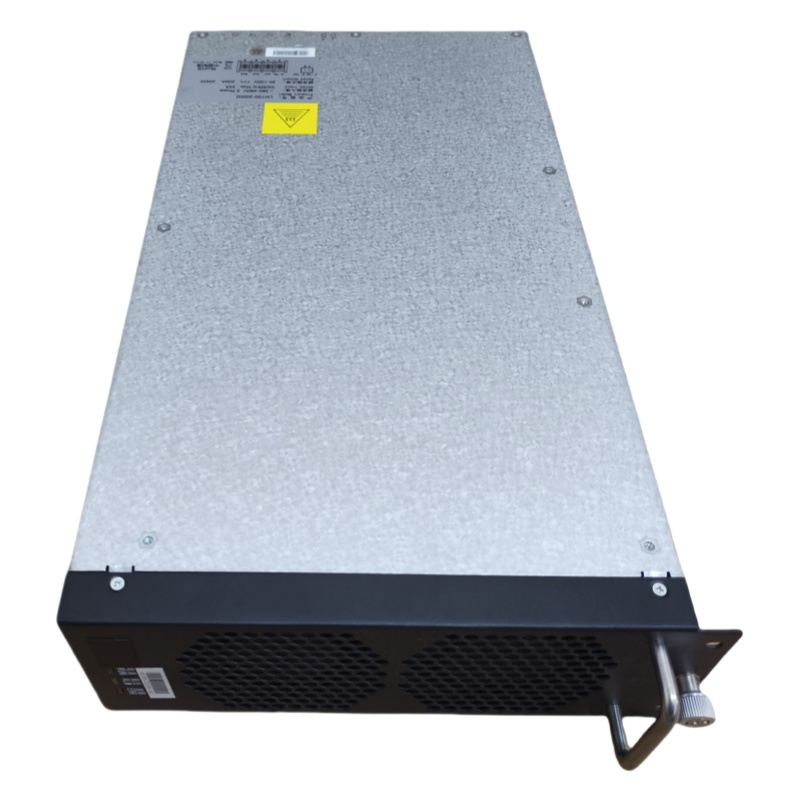

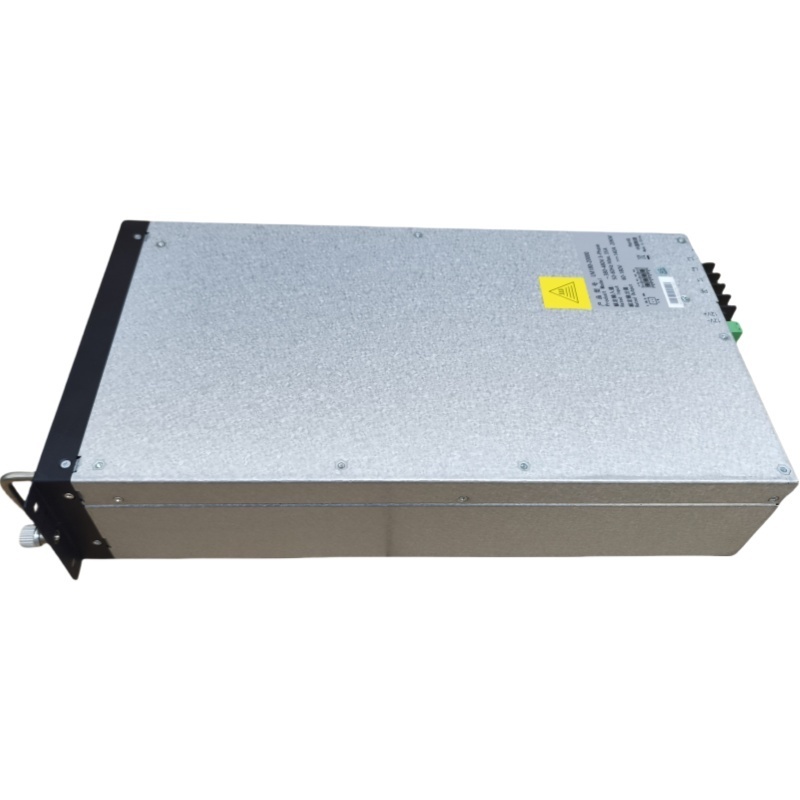

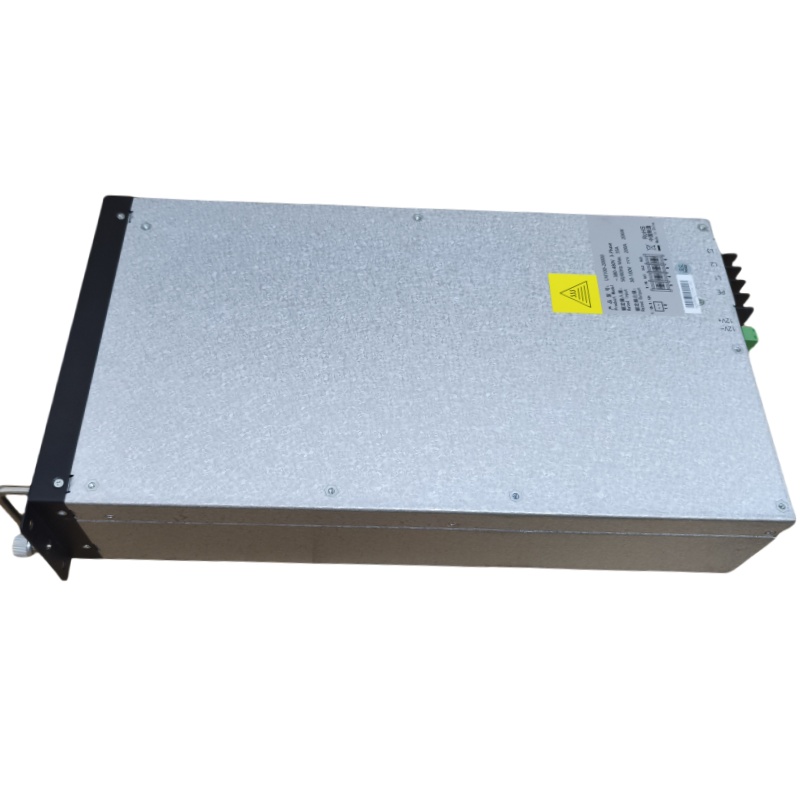

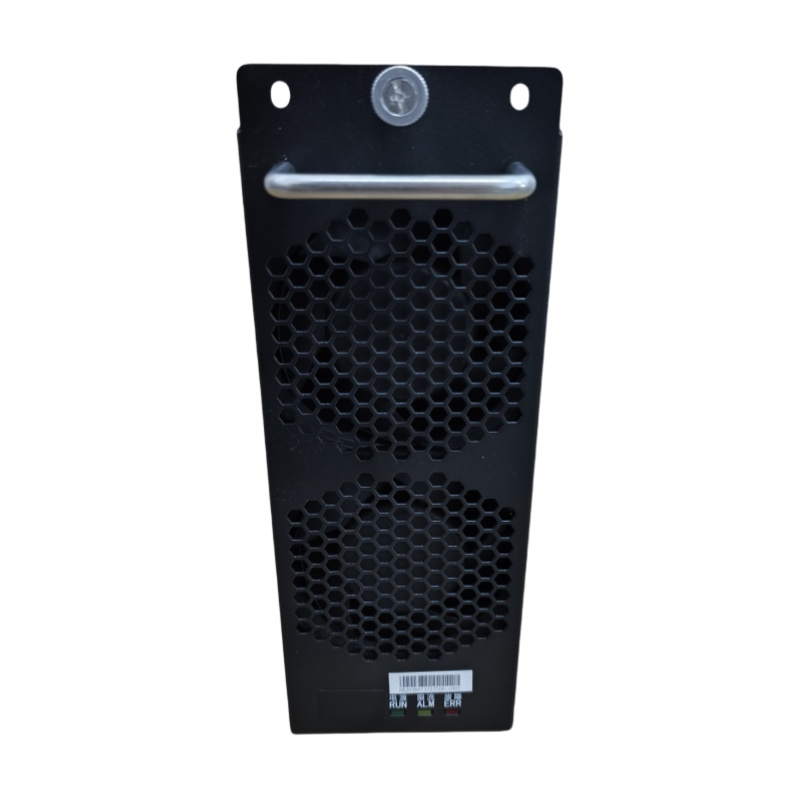

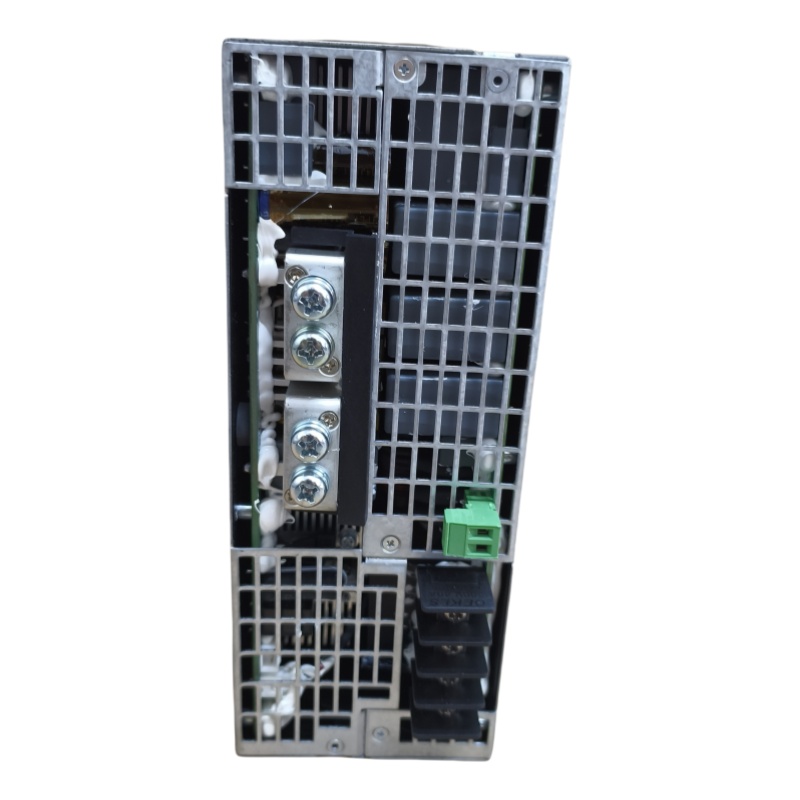

20000A Series BA400-750 Three -Phase 750Vac 20KW
Product Parameters
| Product Name | BA400-750 |
| DC bus side |
| Rated output power | 20KW |
| Rated output current | 30-60A |
| Output voltage range | 200-750Vdc |
Efficiency
| ≥95%
|
| Battery-side |
| Voltage range | 30~100Vdc |
| Rated voltage | 60Vdc |
| Max Current | 105Amax |
| Power rating | 5kW |
| Steady-current accuracy | ≤±5% |
Current ripple
| <5% |
Voltage ripple
| <2% |
Standby consumption
| <30W (Vbat=100Vdc, module dormant) |
| Rated input voltage | Three-phase380Vac/480Vac |
| input Input voltage range | 23Vac~520Vac(Full load), 323Vac~260Vac |
| input Frequency | 45Hz~65Hz |
| Size | 220*82*440mm |
| Weight | 6KG |
