| Parameter | Value |
|---|---|

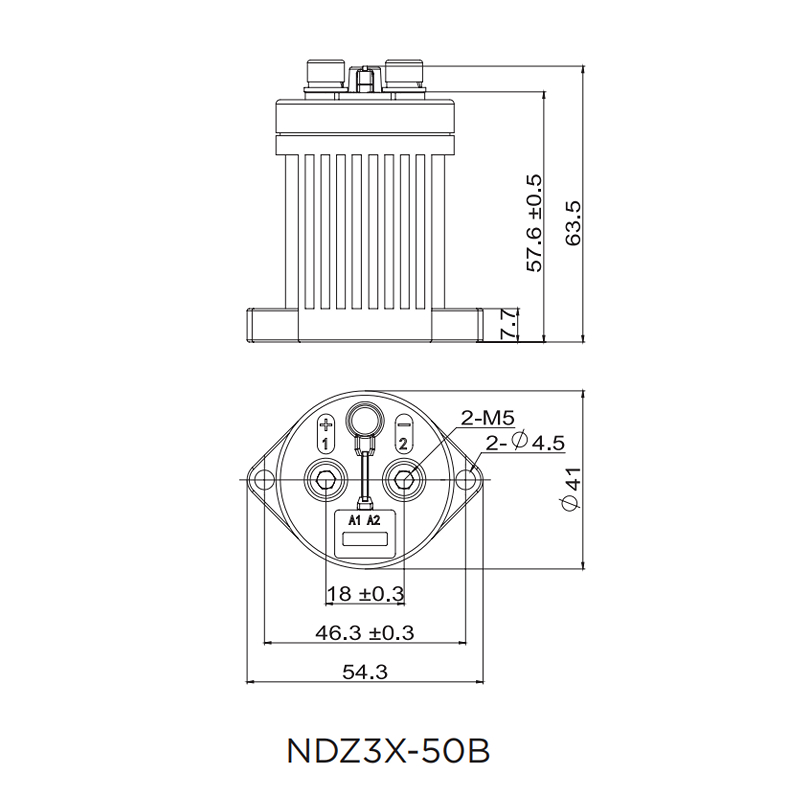

| Model | NDZ3X-50B |
| Contact Arrangement | Single pole · auxiliary contact options: 1NO / 1NC (2A / DC30V) |
| Contact Rating | 50A continuous · 150A continuous · 750A / 30ms short-time withstand |
| Load Voltage | DC450V/DC500V/DC750V/DC1000V |
| Max. Breaking Current | DC320V 1000A 1/once |
| Coil Voltage | DC12V / DC24V / DC48V |
| Operate / Release Time | ≤35ms/15ms |
| Dielectric / Insulation | ≥1000 MΩ DC1000V · ≥100MƱ,DC500V · AC2500V 60s |
| Sealing / Ambient | DC |
| Item | Detail |
|---|---|
| Brand / Origin | LAZZEN (Nader) · Shanghai, China |
| MOQ & Lead Time | 1 pc for sample · typically 7–15 days (confirm with sales) |
| Payment & Warranty | T/T, PayPal, Trade Assurance · 1 year warranty |
