NDZ3W-100 High voltage DC Contactor Coil voltage DC12V DC24V 48V

Product Detail Reference

Modle Paramenter name		NDZ3W-100




Rated current		100A

Rated voltage		DC500V/DV750V/DC1000V

Insulation voltage		≥1000MΩ DC1000V

Number of poles		Single pole

Type of circuit		DC

Mechanical life		1,000,000 times

Coil valtage		DC12V、DC24V、DC48V

Electrical life	DC 500V L/R≤1MS	100A 6000times




	DC 750V L/R≤1MS	100A 1000times




Maximum breaking current		DC320V 1000A 1/once


Shot-circuit withstand current		1500A 30ms


Insulation resistance		100MΩ DC500V

Withstand voltage		AC2500V 60s

Rated control voltage Uc		Rated control voltage：DC12V/24V/48V Pick-up voltage：DC12V:≤9V,DC24V:≤18V,DC48V:≤36V Drop-out voltage：DC12V:≥1.2V,DC24V:≥2.4V,DC48V:≥4.8V



Retention power consumption(20℃,Rated voltage control)		6W




Auxiliary contact type		Without Auxiliary contact，1NO，1NC，1NC＋1NO

Workplace Temperature		(-40°C～+85°C)


Power frequency withstand voltage		AC2500V 60s, Leakage current ≤ 1mA

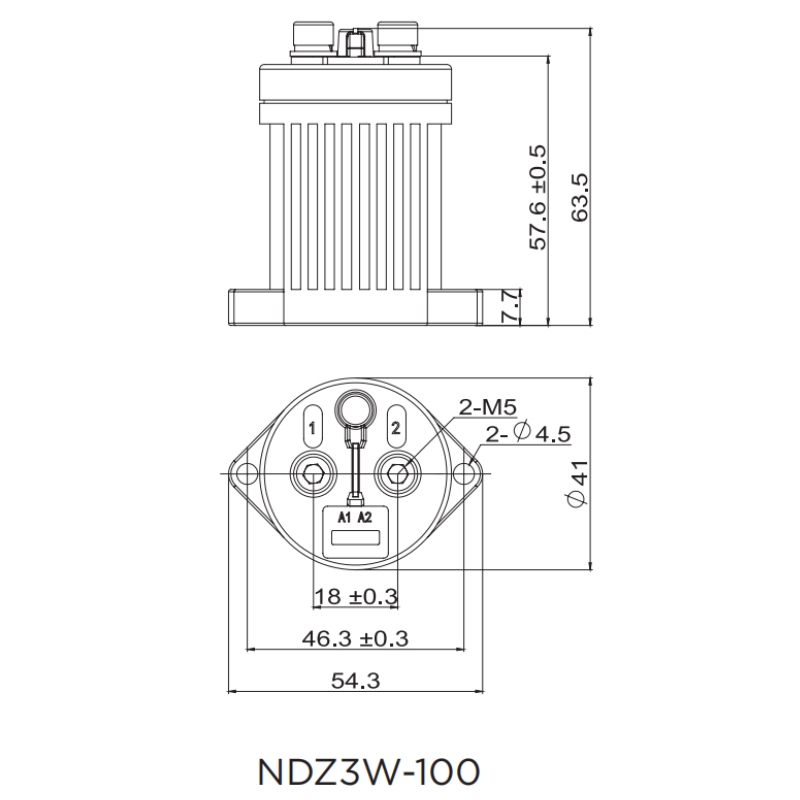

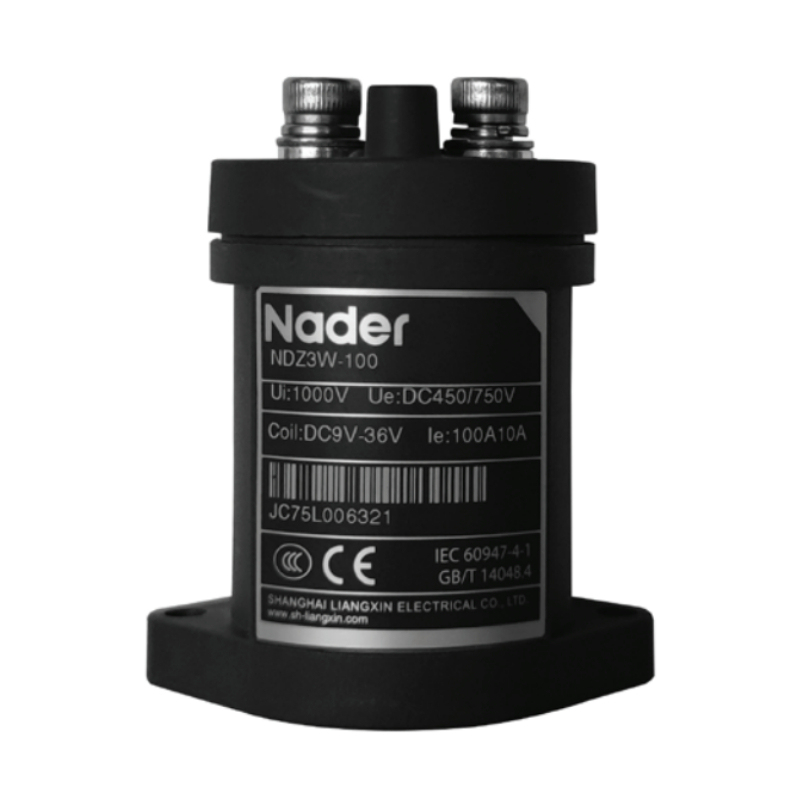

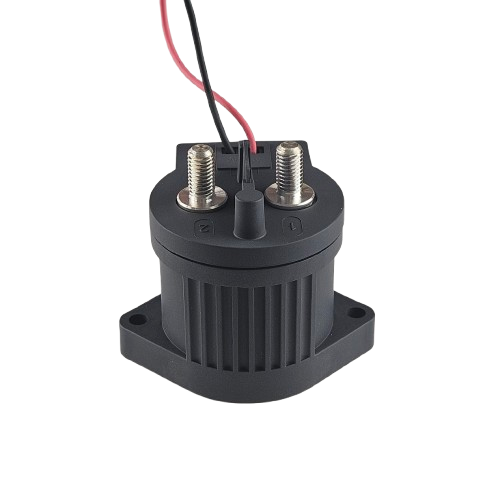

Product Picture
