Description

NDZ3W-150 High voltage DC Contactor Coil voltage DC12V DC24V 48V

Product Detail Reference

Modle Paramenter name		NDZ3W-50	NDZ3W-100	NDZ3W-150	NDZ3W-200	NDZ3W-250	NDZ3W-300




Rated current		50A	100A	150A	200A	250A	300A

Rated voltage		DC500V/DV750V/DC1000V

Insulation voltage		≥1000MΩ DC1000V

Number of poles		Single pole

Type of circuit		DC

Mechanical life		1,000,000 times

Coil valtage

Electrical life	DC 500V L/R≤1MS	50A 6000times	100A 6000times	150A 6000times	200A 6000times	250A 6000times	300A 6000times




	DC 750V L/R≤1MS	50A 2000times	100A 1000times	150A 1000times	200A 1000times	250A 1000times	300A 1000times




	DC 1000V L/R≤1MS	50A 1000times	50A 1000times 100A 5times	150A 300times	150A 300times 200A 100times	150A 300times 250A 50times	150A 300times 300A 10times




Maximum breaking current		DC320V 1000A 1/once		DC320V 2000A 1/once


Shot-circuit withstand current		750A 30ms	1500A 30ms	2250A 30ms	3000A 30ms	3750A 30ms	3750A 30ms


Insulation resistance		11

Withstand voltage		AC2500V 60s		AC3500V 60s

Rated control voltage Uc		Rated control voltage：DC12V/24V/48V Pick-up voltage：DC12V:≤9V,DC24V:≤18V,DC48V:≤36V Drop-out voltage：DC12V:≥1.2V,DC24V:≥2.4V,DC48V:≥4.8V



Retention power consumption(20℃,Rated voltage control)		6W		3.6W/3.6VA




Auxiliary contact type		Without Auxiliary contact，1NO，1NC，1NC＋1NO

Workplace Temperature		(-40°C～+85°C)


Power frequency withstand voltage		AC2500V 60s, Leakage current ≤ 1mA		AC3500V 60s, Leakage current ≤ 1mA

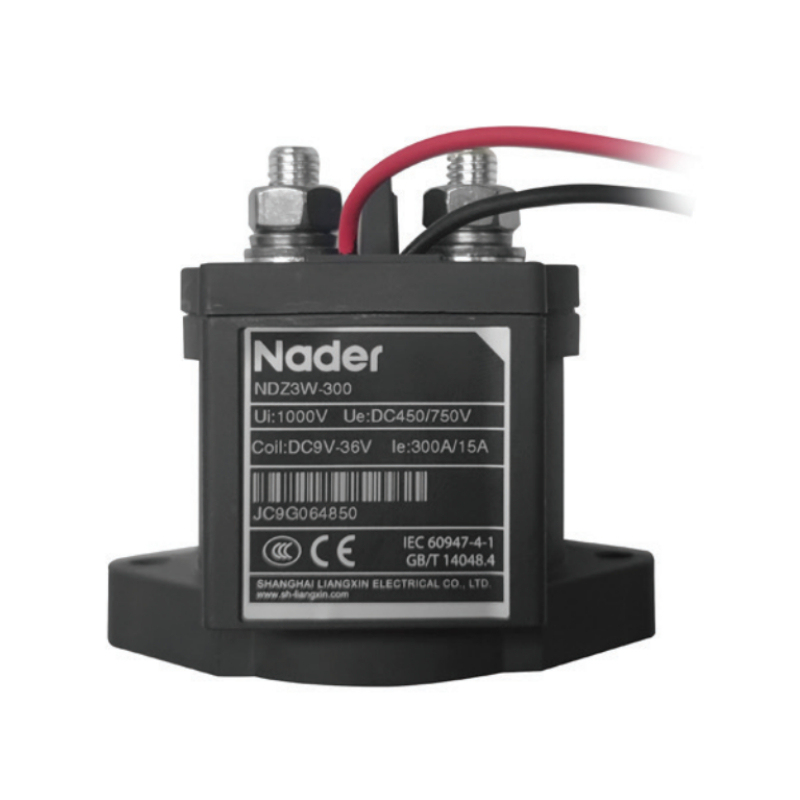

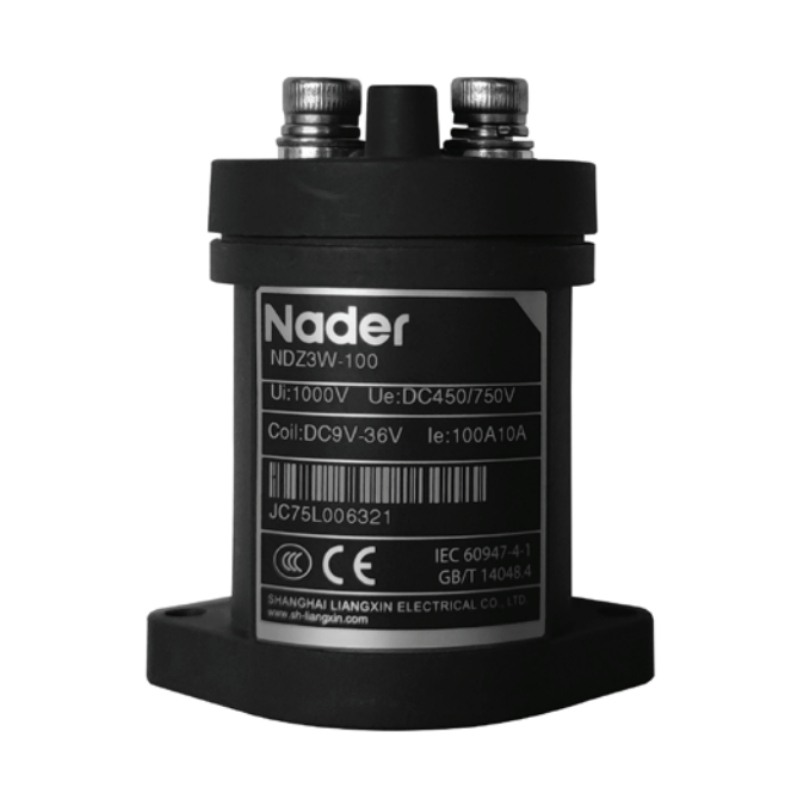

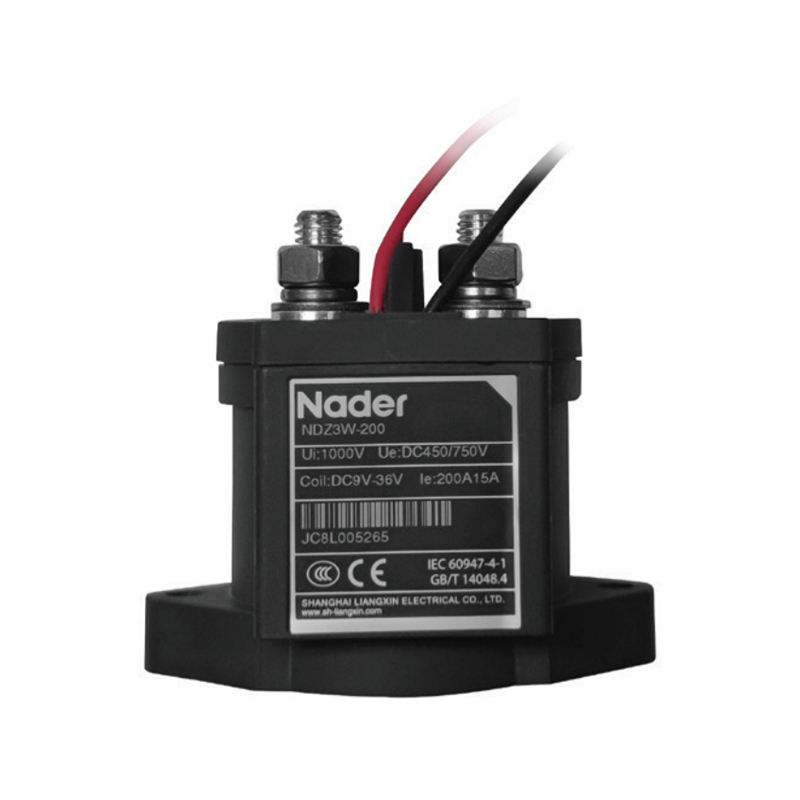

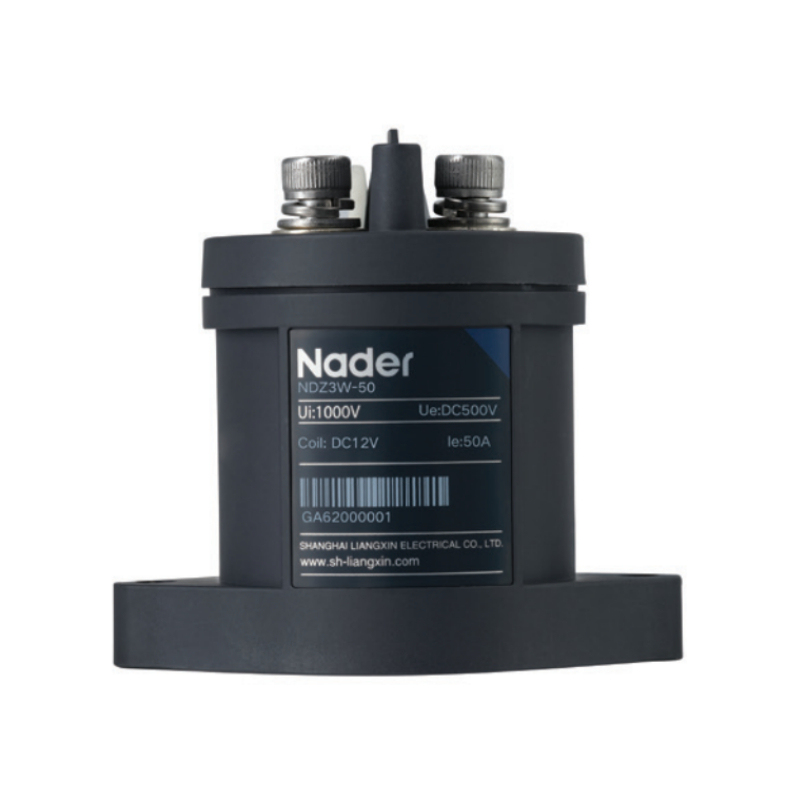

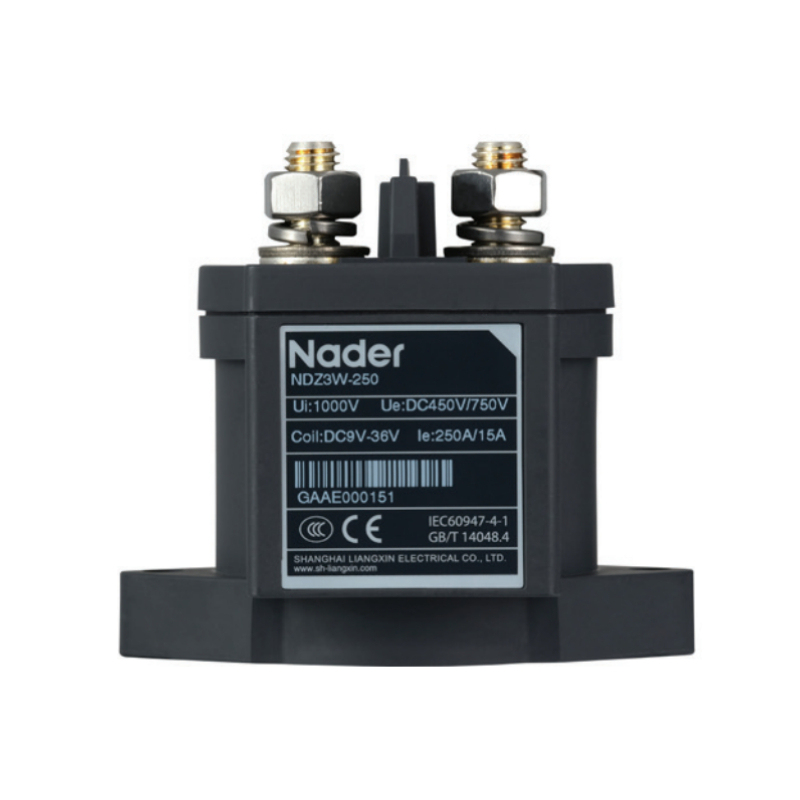

Product Picture

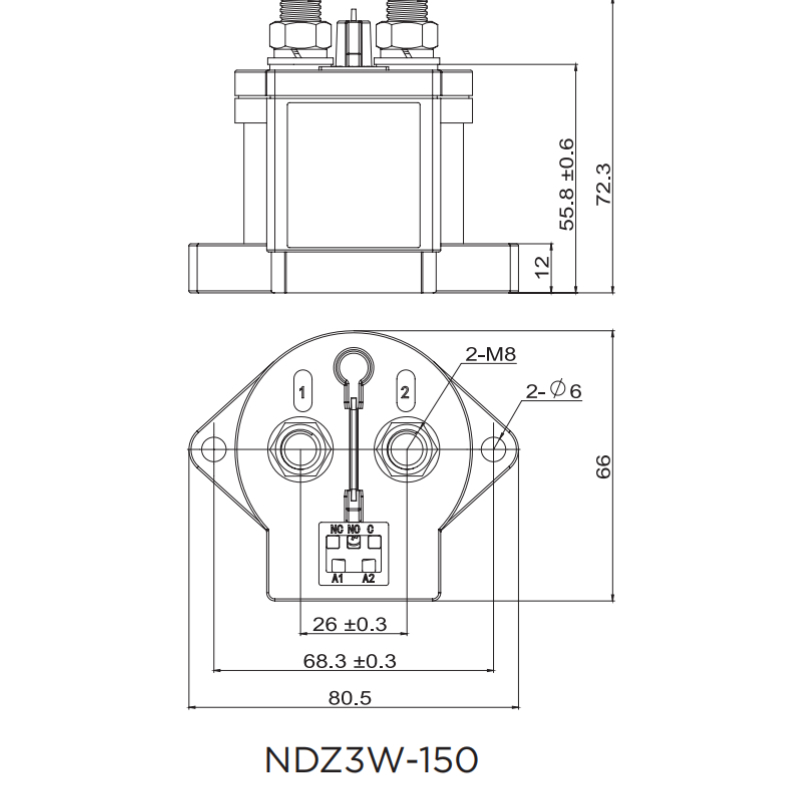

NDZ3W-150 High voltage DC Contactor Coil voltage DC12V DC24V 48V
