NDB1L-32 Dc Circuit Breaker AC230/240V 6-32A

No.6942498

Variations

Edit selections

Rated Current: 6-32A

6-32A

Select variations and quantity

Rated Current: 6-32A

The min. inquiry quantity is 0. Add 0 more to continue.

6-32A

Subtotal

GET A QUOTE

Add to Quote List View Quote List

Download

View all downloads

Dc Circuit Breaker AC230/240V 6-32A
Product Parameters

Model	NDB1L-32
Rated voltage (V)	AC230/240V
Rated current (A)	6,10,16,20,25,32
Type of residual current release	AC type, electronic type
Rated residual operating current Ain (mA)	1P 2P 3P 4P
Rated insulation voltage Ui (V)	AC440
Rated impulse withstand voltage Uimp (kV)	4
Rated short - circuit breaking capacity (GB/T16917.1) lcn (kA)	4.5/6
Rated ultimate short -circuit breaking capacity (GB/T14048.2) lcu (kA)	4.5/6
Rated residual making and breaking capacity Δlm (A)	500
Rated operating frequency (Hz)	50/60
Mechanical and electrical life (times)	Mechanical life 10000times/ Electrical life6000times
Wiring method	Tunnel - type
Wiring capacity (mm)	1-10
Terminal screw / torque N·m	1.2

Product Features

The NDB1L(E) series residual current operated circuit breakers are applicable to low - voltage terminal power distribution systems
in industries, civil buildings, energy, telecommunications, and infrastructure construction. They feature short - circuit,
overload, leakage protection, and isolation functions. They provide personal protection against indirect contact, supplementary
personal protection against direct contact, and protection against insulation faults of electrical equipment.

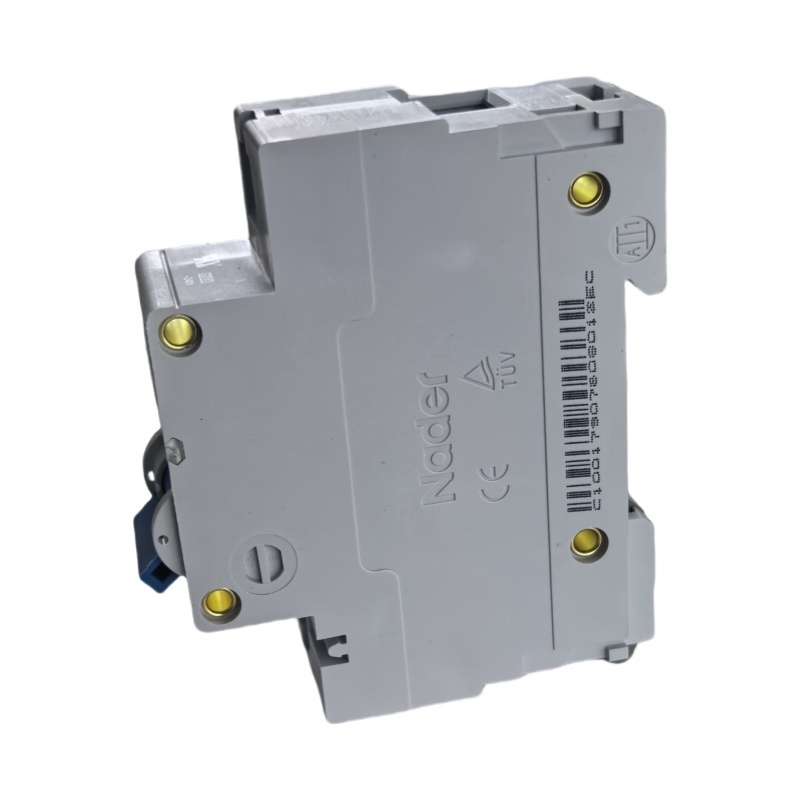

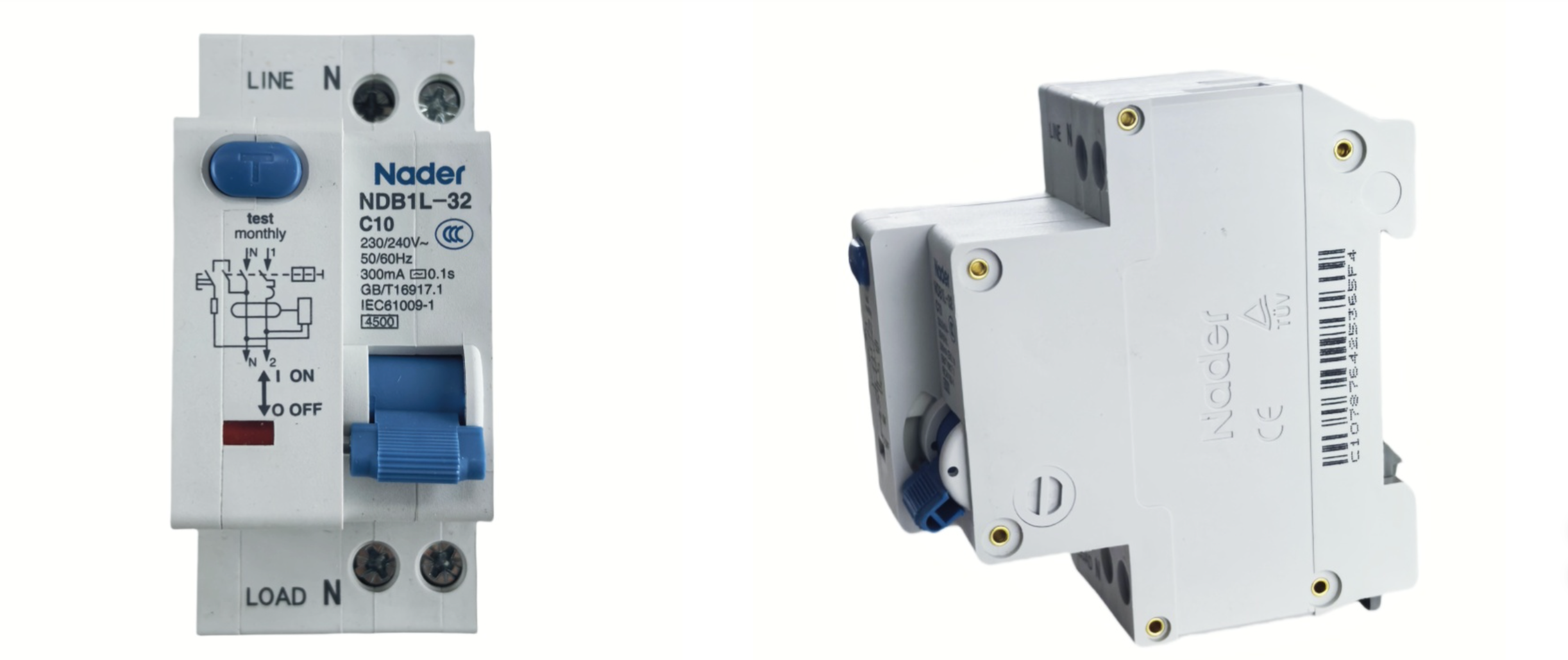

Product Picture

Dc Circuit Breaker AC230/240V 6-32A
