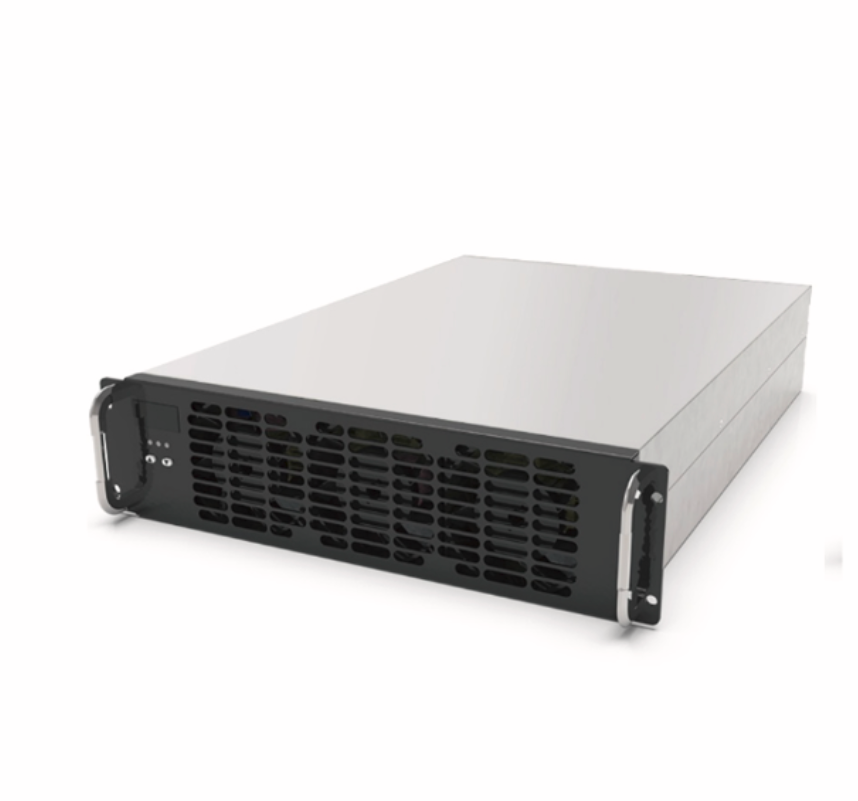

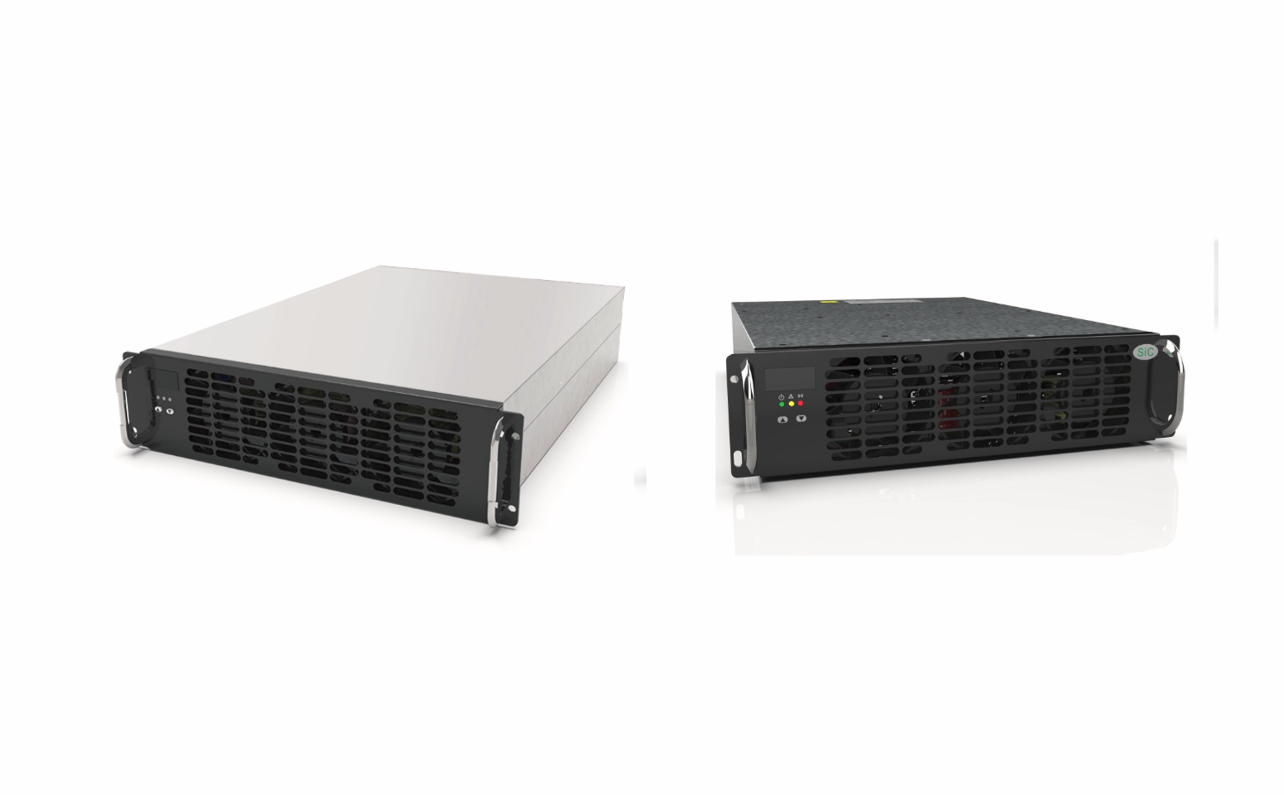

Product Name | BA100040SW-SiC(EU) |
Constant power range | 40kW(300VDC ~ 1000VDC) |
Output voltage | 150VDC ~ 1000VDC |
Output current | Efficiency |
Efficiency | Peak efficiency>97%, rated efficiency>96% Peak efficiency>97.5%, rated efficiency>97% |
Input Parameters | |
Input voltage | 260VAC~530VAC |
Input frequency | 55±10Hz, rated input frequency 50/60Hz |
THDi | ≤ 5% |
Power factor | Rated output load PF ≥ 0.99 |
Standby power | 10W |
Communication | |
Communication | CAN |
Number of working modules | Max. 60 |
HMI | LED operating display |
Physical Characteristics | |
Noise | <65dB |
Cooling | Air |
Dimension | 300*84*437.5 (W*H*D/mm) |
Weight | 16kg |

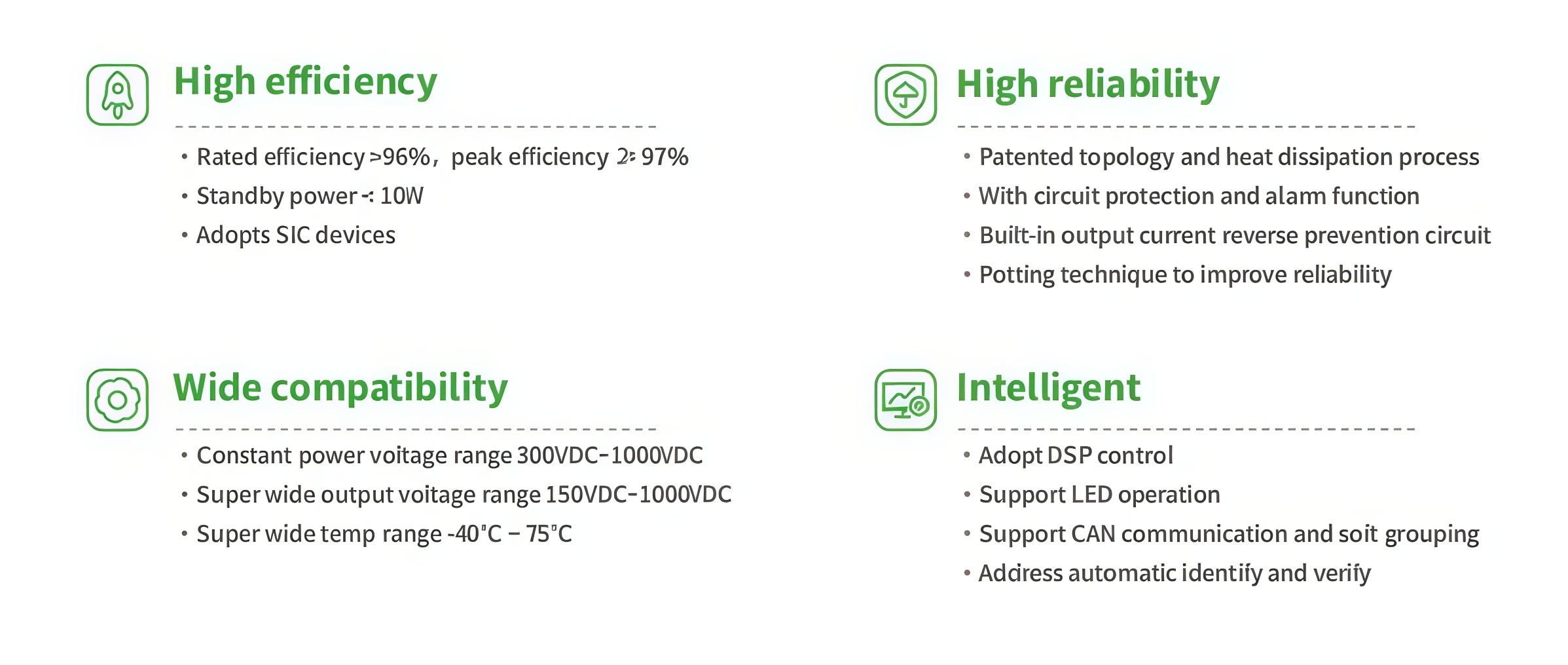

Product Features
