| Parameter | Value |
|---|
| Model | CAB 500-C/SP5-001 |
| Sensor Technology | Open loop fluxgate (CAB series) |
| Nominal Current / Measuring Range | 500 A · ±500 A (DC) |
| Output Signal | Instantaneous CAN bus (CAN.c), 1 channel |
| Supply Voltage | 8–16 V DC, unipolar, external supply |
| Accuracy | ±0.1 % at 25 °C · ±0.5 % over −40 °C … +85 °C |
| Operating Temperature | −40 °C … +85 °C |
| Mounting / Housing | Panel mounting with metal insert ears, max load 70 N · PBT-GF30 plastic |

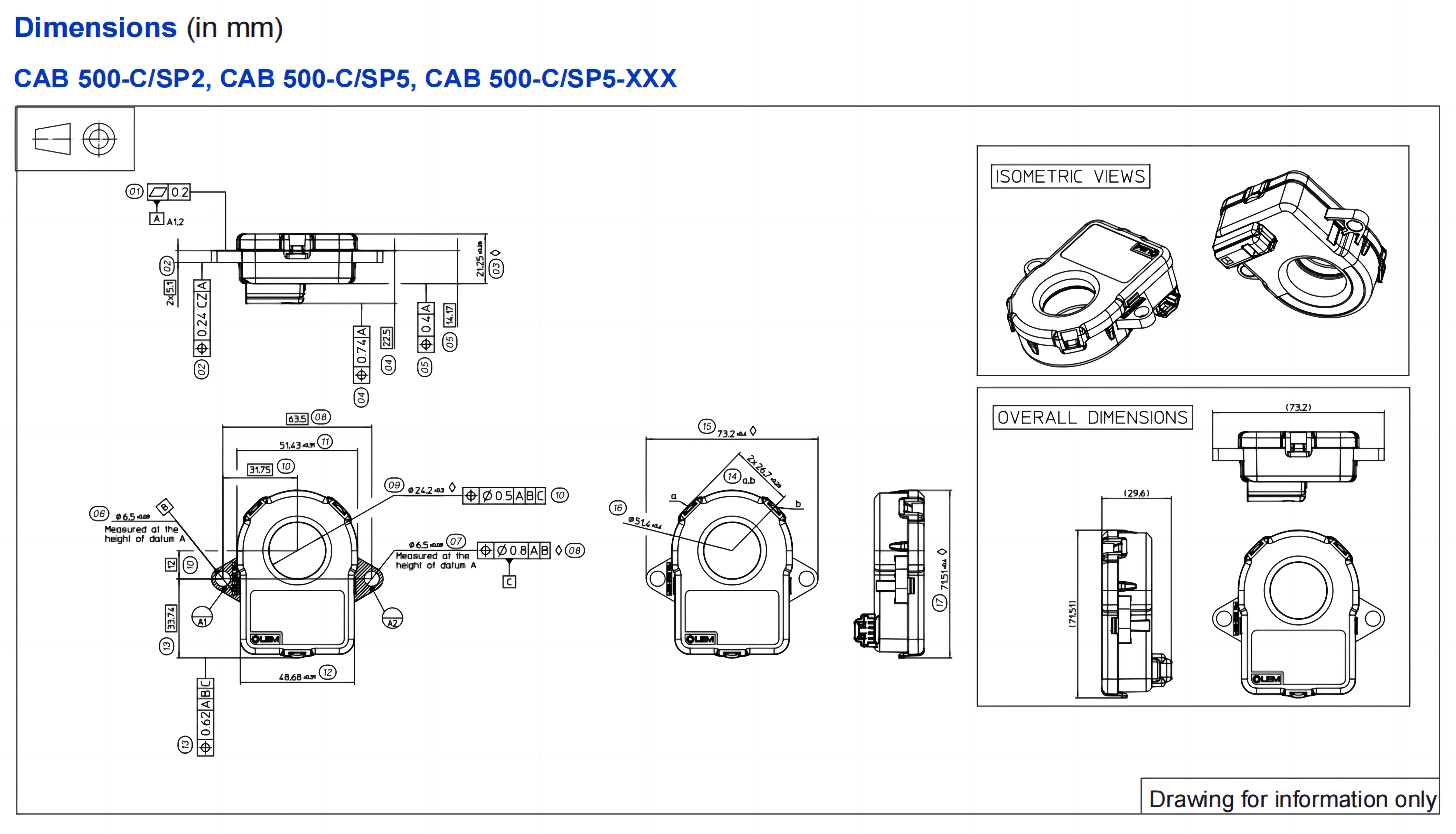

| Dimensions / Weight | 67 g (see outline drawing for dimensions) |
| Application | Automotive battery management — SOC / SOH / SOF, HV battery pack monitoring |
