| Parameter | Value |
|---|---|
| Model | BA-2R7-J308UMJ70 |
| Brand / Origin | Beian · Jiangsu, China |
| Technology | Hybrid supercapacitor family (listed as LIC / Lithium Capacitor; 2.7V EDLC-class cell) |
| Rated Capacitance | 3000F (ΔV = 2.4V-1.5V discharge) |
| Capacitance Tolerance (25°C) | 0% ~ +20% |
| Rated Voltage | 2.7V DC (surge voltage 2.85V) |

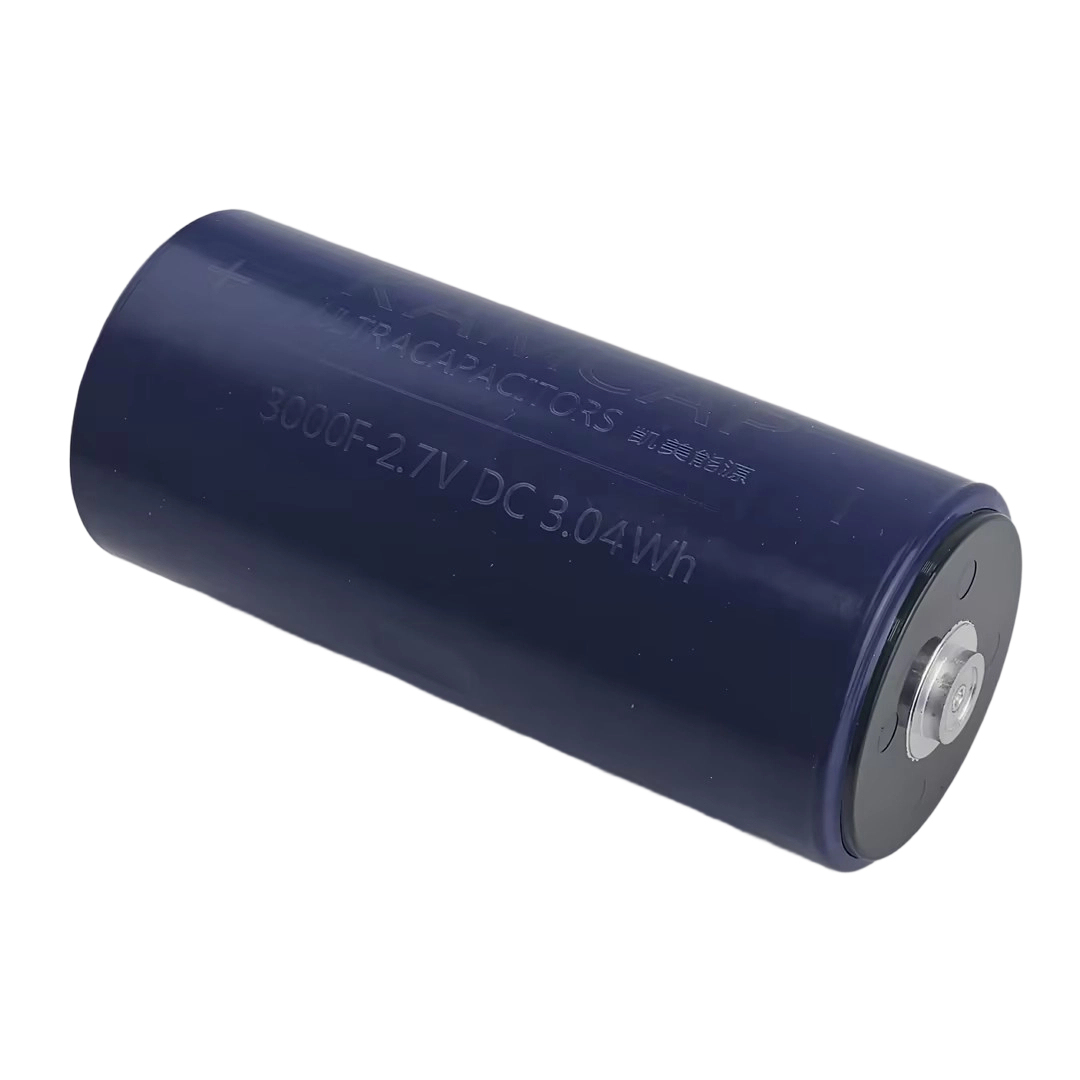

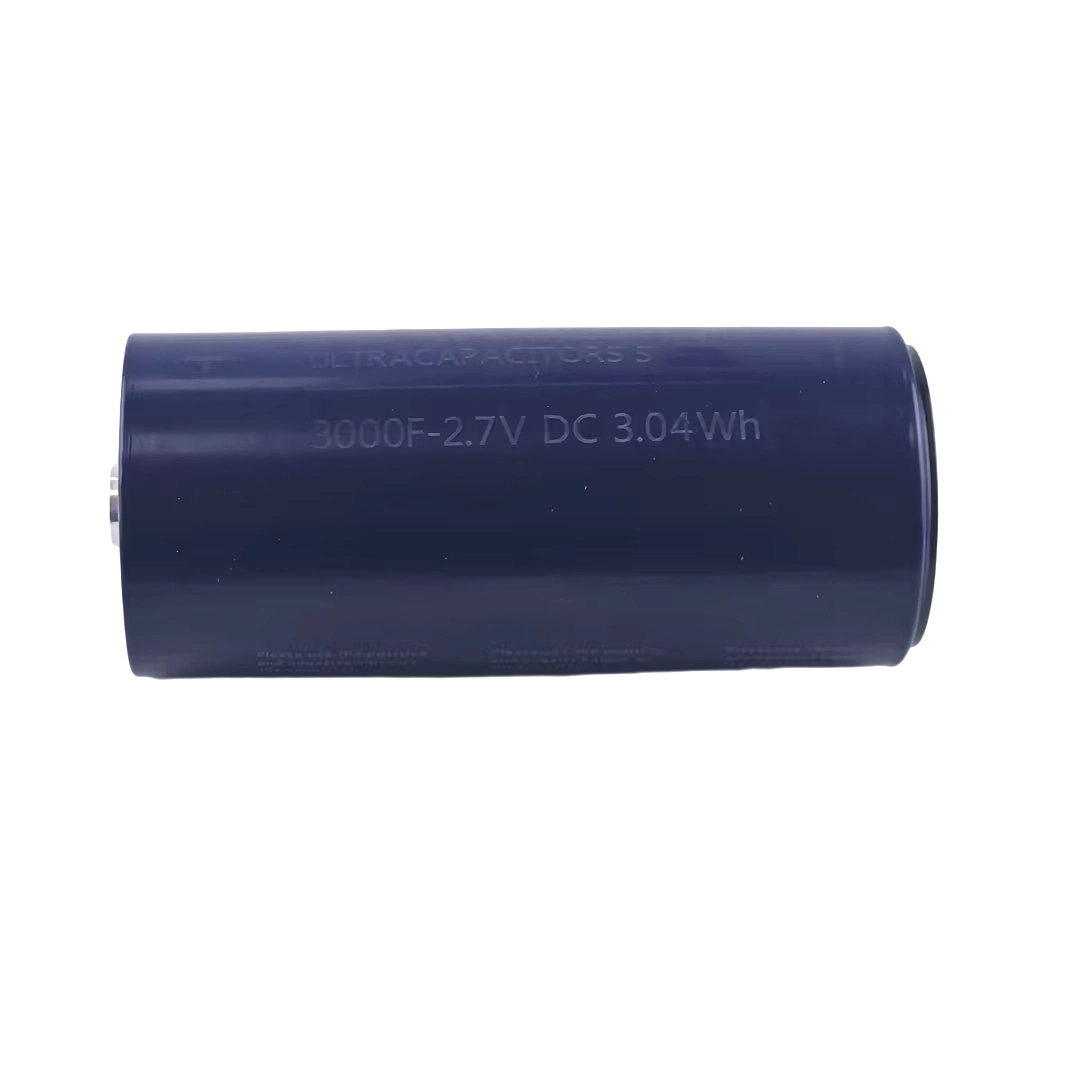

| Stored Energy per Cell | 3.04 Wh (1⁄2CV2, marked on the sleeve) |
| Internal Resistance ESR-DC | 0.20 mΩ |
| Max Continuous Current | 130A (ΔT = 15°C) |
| Maximum Current | 2400A (1 second, 25°C) |
| Leakage Current (72h, 25°C) | 4.5 mA |
| Energy Density (at U0) | 5.6 Wh/kg |
| Power Density (at U0) | 16.8 kW/kg |
| Operating Temperature | -40 ~ +65°C (top of cell; HT series option to +85°C) |
| Storage Temperature (at 0V) | -40 ~ +70°C |
| Cycle Life | > 500,000 charge-discharge cycles (hybrid LIC types: 250,000) |
| Size / Weight | Ø60 × 138mm (cylindrical) · approx. 542g |
| Application | New energy power generation · Backup power · Energy storage · High current operation |
| Certificate | UN38.3 · MSDS · CE |

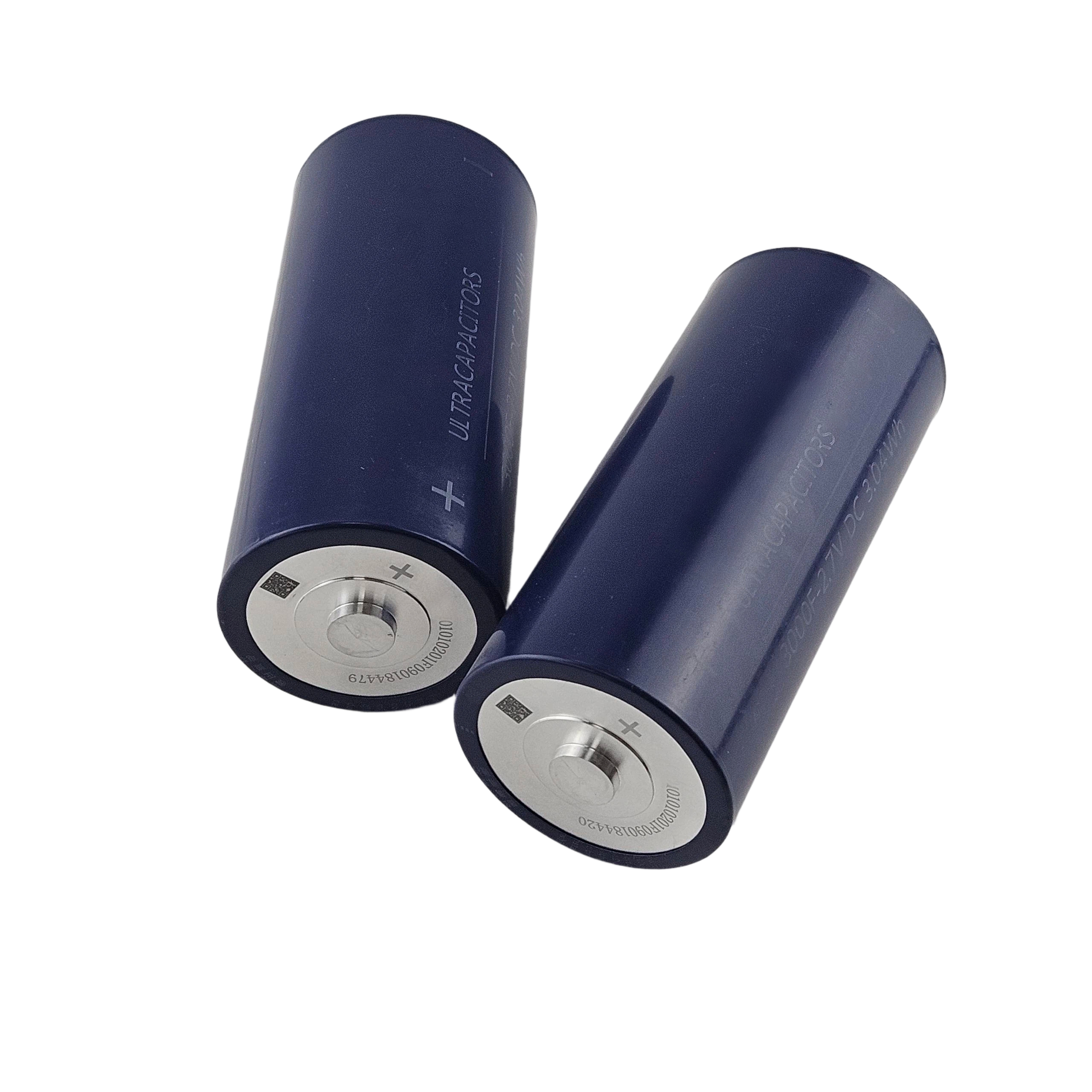

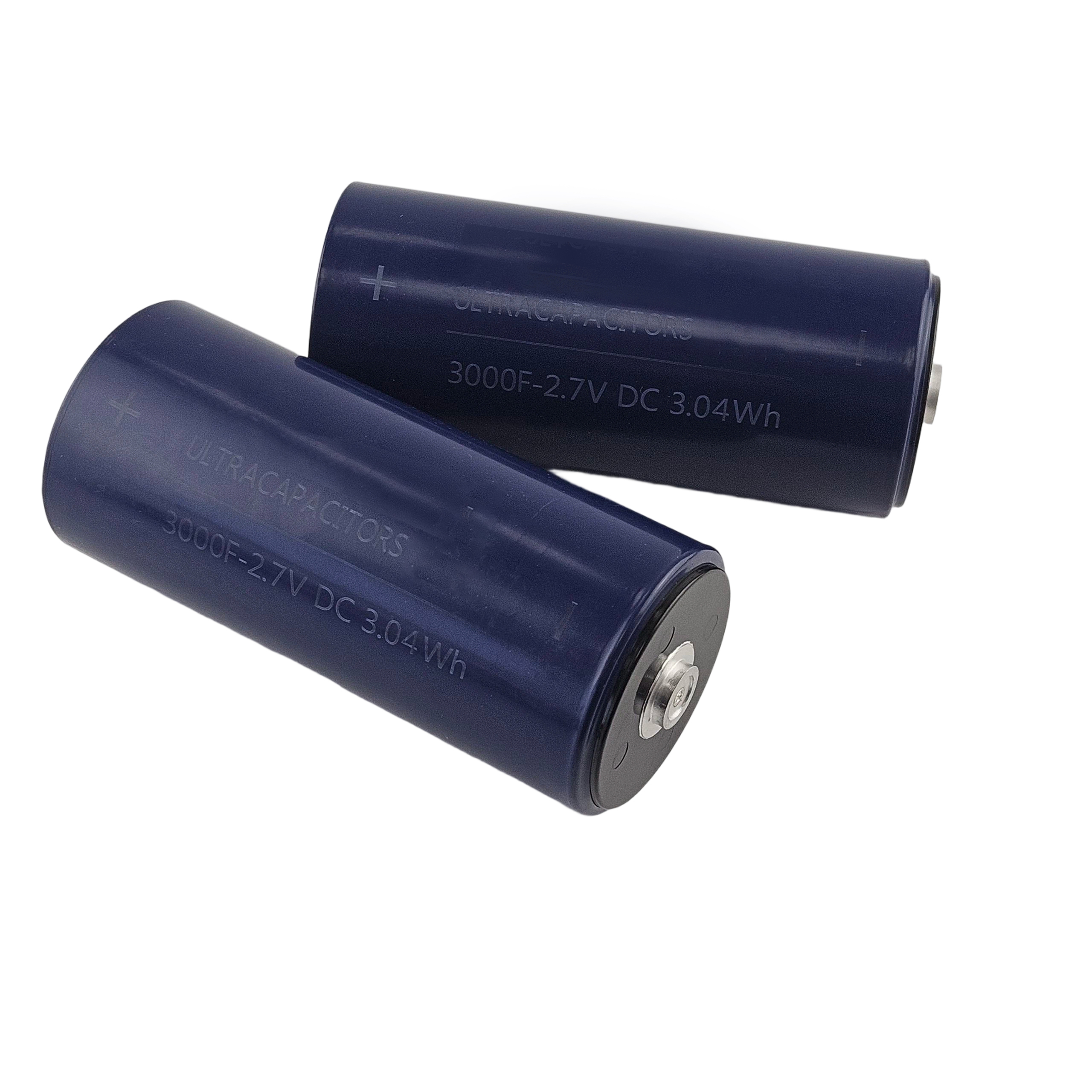

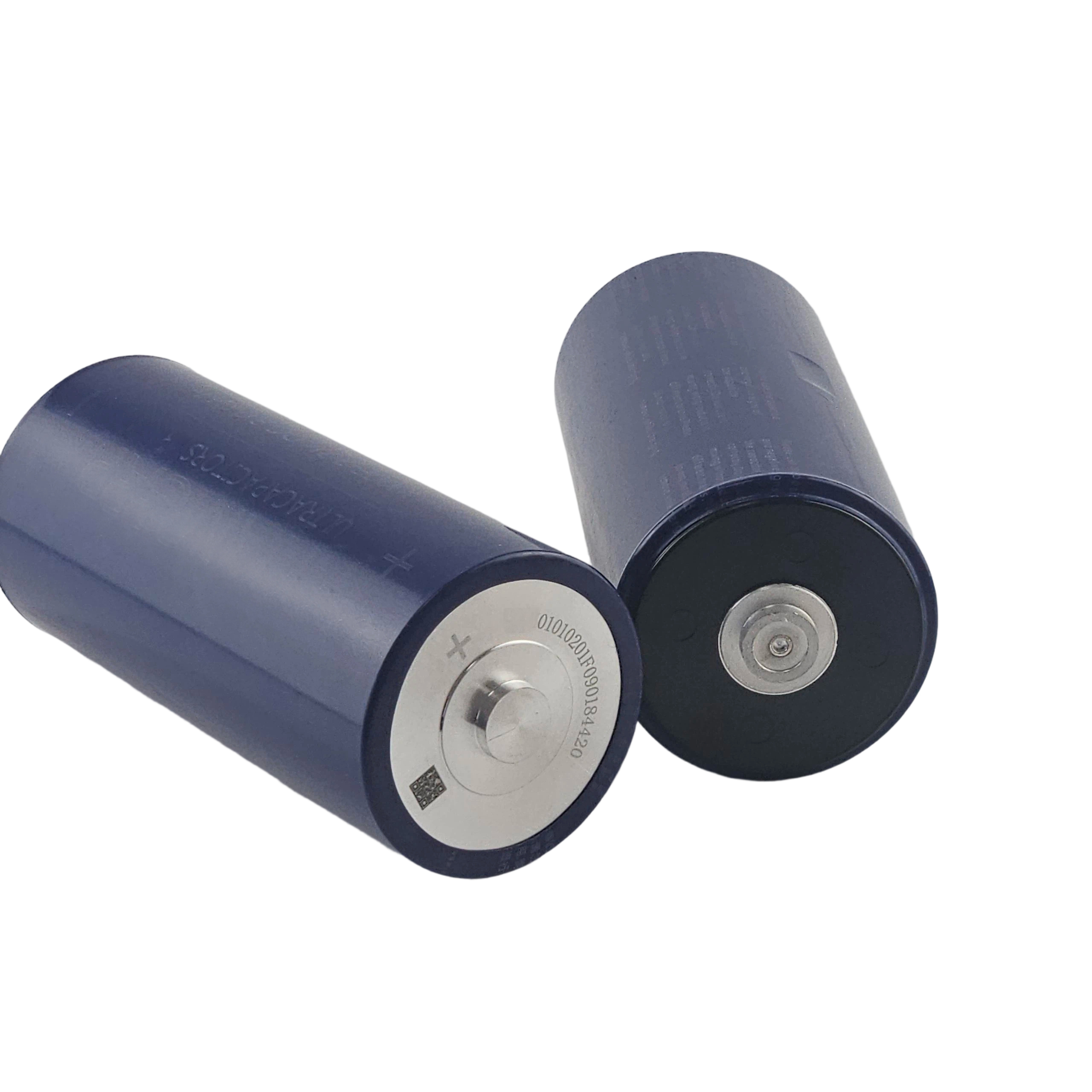

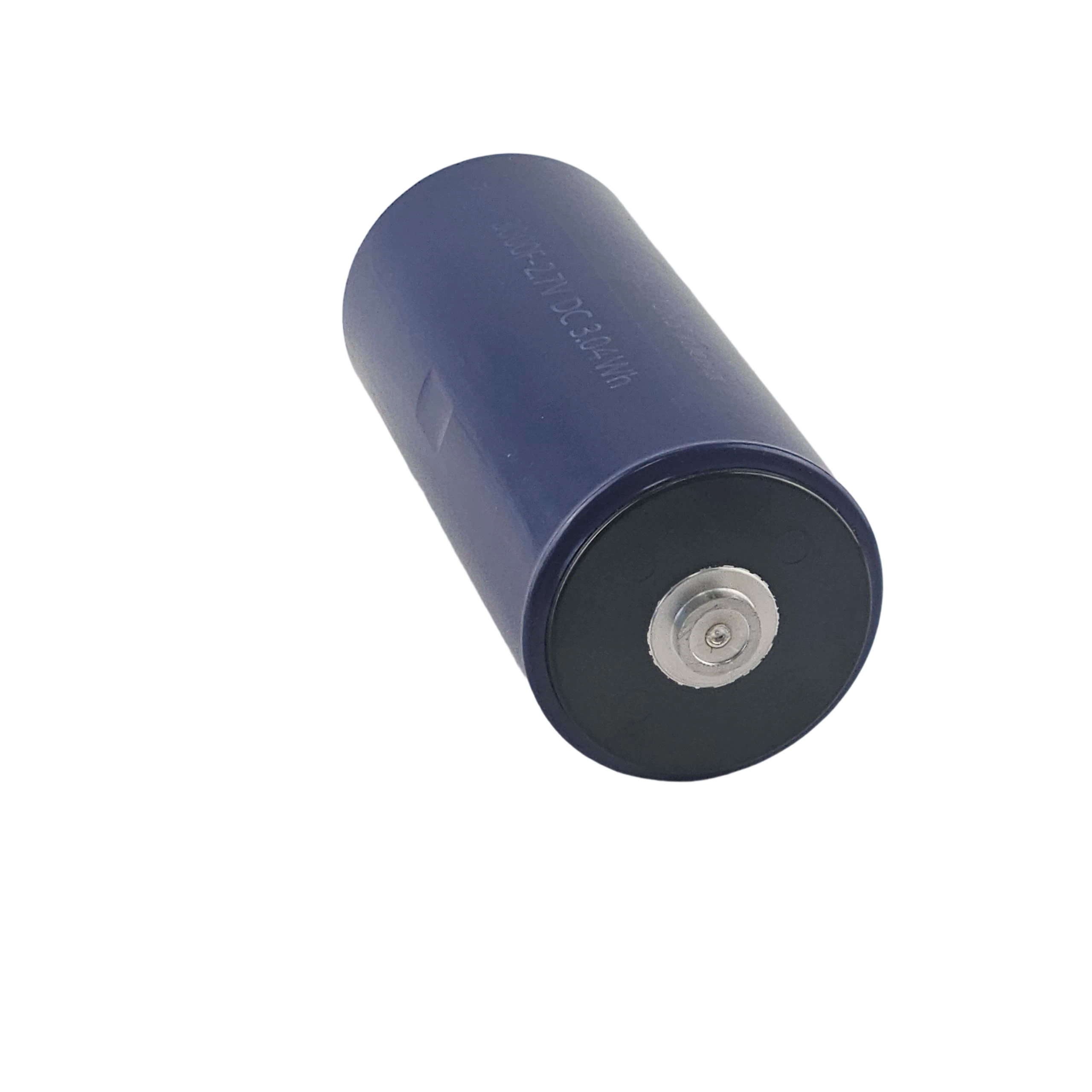

 Pair of cells - Ø60 × 138mm large-format can, approx. 542g each |  Terminal detail - M-thread stud on the positive end for low-resistance busbar connection, laser traceability code on the plate |
| Advantage | Benefit for Your Application |
|---|---|
| ✅ 3000F in One Ø60×138mm Cell | 3.04Wh of instantly available energy in a single large-format can - fewer cells per module, simpler series strings for 48V-800V new-energy and backup systems. |
| ✅ 130A Continuous / 2400A Pulse | 0.20mΩ ESR-DC supports instantaneous high-current charge and discharge - ride-through for wind/PV generation dips, kurzing-time buffering and engine/motor starting. |
| ✅ -40~+65°C Wide Temperature | Maintains normal operation where lithium batteries fade - Arctic, high-altitude and unheated outdoor cabinets; HT series option extends to +85°C. |
| ✅ >500,000 Charge-Discharge Cycles | With 20 cycles per day that is 60+ years of service - far longer than traditional batteries, eliminating periodic replacement in remote power stations and embedded equipment. |
| ✅ Stable Electrical Performance | Low 4.5mA leakage (72h) holds charge for long standby - ideal for backup power, data protection and long-term low-current discharge scenarios. |
| ✅ Simple Charging, No Memory Effect | Fast charging with simple circuit requirements - no complex BMS for single-cell use, and UN38.3 / MSDS / CE keep worldwide shipping smooth. |
New energy power generation, backup power, energy storage and high-current operation.
 New Energy Power Generation & Smart Grid Wind/PV generation ride-through, smart grid buffering, micro-grid frequency regulation and energy storage systems |  Industrial EV & Transport Low-temperature engine start at -40°C, on-board electronics backup, hybrid-power braking energy recovery and electric-bus fast charge |
 Backup Power & Industrial Frequency converters, UPS / renewable energy storage, data protection and backup, smart warehousing, port cranes, lifts and mining equipment |
| Item | Detail |
|---|---|
| Brand / Origin | Beian · Jiangsu, China |
| Ordering Model | BA-2R7-J308UMJ70 - 3000F / 2.7V, ESR-DC 0.20mΩ, Ø60 × 138mm, approx. 542g, 3.04Wh per cell |
| Series Family | Beian 2R7 cylindrical series - 100F (Ø22×45mm), 2000F, 3000F (this listing), 5000F (Ø60×138mm) plus 3V 3600F; same platform for module building |
| Series Extensions | High-temperature (HT) series option: -40 ~ +85°C · 3V series for higher-voltage operation - ask sales for availability |
| Certificate | UN38.3 · MSDS · CE |
| MOQ | 20 pcs (samples negotiable - contact sales) |
| Lead Time | Typically 7-15 days (confirm with sales) |
| Payment / Warranty | T/T, Trade Assurance, etc. (confirm with sales) |
Q1. What is the 3000F hybrid super capacitor used for?
A: It is a 3000F / 2.7V large-format cylindrical cell for new energy power generation, backup power, energy storage and high-current operation - typical uses include wind/PV ride-through, smart-grid buffering, engine/motor starting, UPS data protection and pulse-load electronics.
Q2. The cell is 2.7V - how do I reach higher voltages?
A: It is a single 2.7V element. Connect cells in series for higher voltage (e.g. 6 in series ≈ 16.2V) and use an active or passive balancing board so no cell exceeds the 2.85V surge limit; connect in parallel to add capacitance and current capability.
Q3. How long does it last?
A: Conventional supercapacitors of this family are rated for more than 500,000 charge-discharge cycles (hybrid LIC types: 250,000). At 20 cycles per day that is over 60 years of operation - cycle count, not calendar aging, dominates the service life.
Q4. What temperatures can it handle?
A: -40°C to +65°C for operation (top of cell) and -40°C to +70°C for 0V storage, with normal performance at -40°C where lithium batteries cannot work. A high-temperature (HT) series rated to +85°C is available on request.
Q5. How do I charge it?
A: Charge with a simple current-limited DC source - no memory effect and no complex charge algorithm. Keep continuous current within 130A (2400A for 1-second pulses at 25°C) and never exceed 2.7V continuous / 2.85V surge per cell.
Q6. How is it shipped and certified?

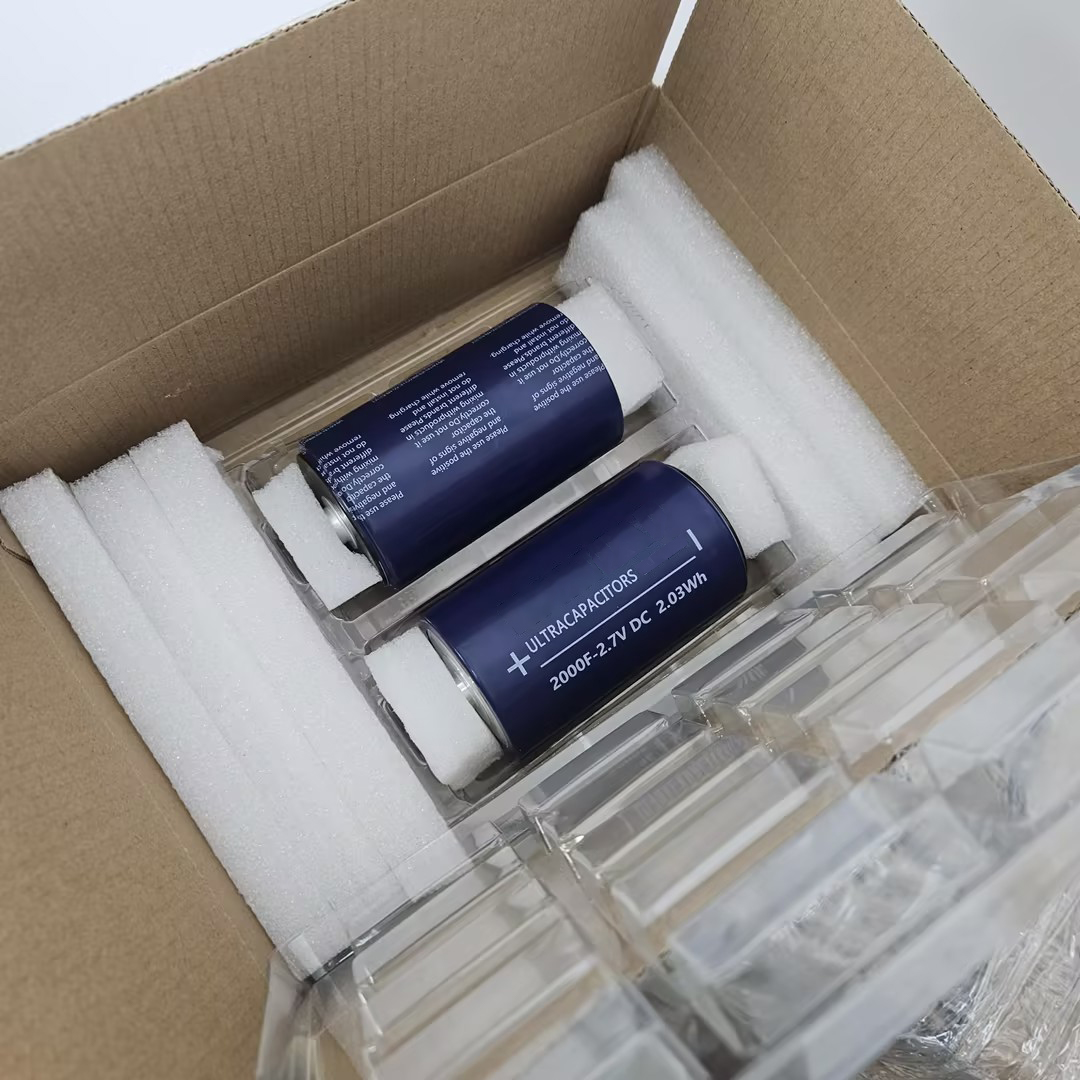

A: Cells ship shorted with pearl-foam protection, certified to UN38.3 for worldwide air/sea transport; MSDS and CE documents are available on request. MOQ is 20 pcs, samples negotiable.
