| Parameter | Value |
|---|---|
| Model | NDZ3AT-150B |
| Brand | LAZZEN — Shanghai Liangxin Electrical |
| Main Contact Form | 1 pole (single phase, single-pole DC circuit) |
| Contact Polarity | Polarized (observe polarity markings on main terminals) |
| Rated Operating Current | 150A |
| Rated Working Voltage | DC450V / DC750V |
| Rated Insulation Voltage (Ui) | DC1000V |
| Max. Breaking Current | DC450V 1500A, 1 time |
| Electrical Life | DC450V 150A × 1500 cycles; DC750V 120A × 500 cycles |
| Short-Time Withstand Current | 900A 8s; 600A 20s; 400A 60s; 320A 2min; 225A 15min; 180A 2h |
| Contact Resistance | ≤ 0.5 mΩ (at rated 150A) |
| Insulation Resistance | 1000 MΩ at DC1000V |
| Withstand Voltage | Between open contacts: AC3000V 1min; between contacts and coil: AC3000V 1min |
| Mechanical Endurance | 300,000 cycles (3600 cycles/hour) |
| Vibration | 10–500 Hz, 5g |
| Shock | Stable: 20g (half-sine 11 ms); Disruptive: 50g (half-sine 6 ms) |
| Package Type | Epoxy encapsulation (sealed) |
| Weight | Approximately 350g |
| Auxiliary Contact | Without |
| Certification | CCC, CB, CE, TUV, UL |
| Place of Origin | Jiangsu, China |
| Item | Value |
|---|---|
| Coil Control Rated Voltage (Uc) | DC12V / DC24V |
| Coil Operating Voltage Range | 75% – 110% Uc |
| Coil Drop-out Voltage | 10% – 60% Uc |
| Coil Power Consumption (20°C) | 6W |
| Making Time (rated voltage, 20°C) | ≤ 30 ms |
| Breaking Time (20°C) | ≤ 10 ms |

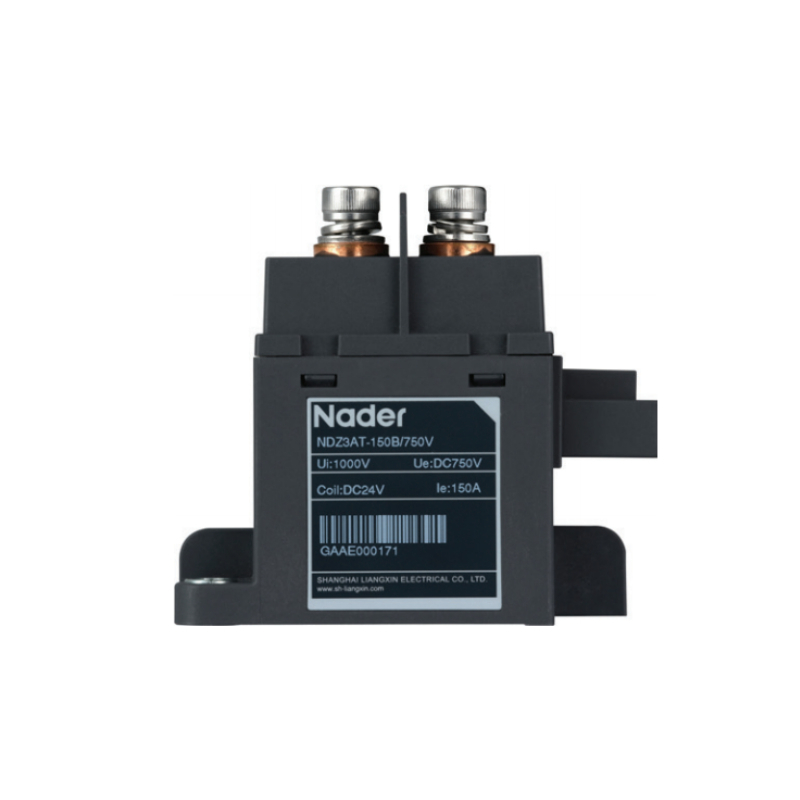

The LAZZEN NDZ3AT-150B is a 150A single-pole high-voltage DC contactor with epoxy-encapsulated sealed construction, designed for the main contactor position in electric vehicles and other single-phase high-load DC circuits. Polarized main contacts are rated DC450V / DC750V working voltage with DC1000V insulation (Ui), delivering up to 1500A one-time breaking at DC450V and a graded short-time withstand from 900A (8 s) down to 180A (2 h). The 6W control coil accepts DC12V or DC24V rated voltage over a 75%–110% Uc window, closes in ≤30 ms and drops out in ≤10 ms. With 300,000 mechanical cycles at 3600 cycles/hour, ≤0.5 mΩ contact resistance, 20g/50g shock stability and 10–500 Hz 5g vibration endurance, the NDZ3AT-150B is built for the vibration, temperature and safety demands of road vehicles. CCC, CB, CE, TUV and UL certificates are available.
The NDZ3AT series covers polarized, epoxy-sealed high-voltage DC contactors from 120A to 600A for EV main and heating circuits. For non-polarized DC750V energy-storage and charging-pile applications choose the NDZ3W series; for DC1000V ultra-fast charging choose the NDZ3X series. Contact us for the full datasheet and cross-reference table.
Rated 150A continuous at DC450V/DC750V working voltage with DC1000V insulation — sized for EV main contactor and single-phase high-load DC circuits.
Clears up to 1500A at DC450V in a single operation, providing a last line of defense against short-circuit and battery-fault events.
900A for 8 s, 600A for 20 s, 400A for 60 s, 320A for 2 min, 225A for 15 min and 180A for 2 h — rides through inrush and overload profiles from inverters and chargers.
DC12V or DC24V coil with 75%–110% Uc operating window and 10%–60% Uc drop-out; ≤30 ms making and ≤10 ms breaking time support fast fault clearing.
Epoxy-sealed construction delivers 300,000 mechanical operations at 3600 cycles/hour, with 20g stable / 50g disruptive shock and 10–500 Hz 5g vibration endurance for vehicle environments.
CCC, CB, CE, TUV and UL certificates from Shanghai Liangxin Electrical (LAZZEN) streamline approval for global EV and energy-storage projects.
The NDZ3AT-150B is certified CCC, CB, CE, TUV and UL. TUV SUD attestations of conformity (Low Voltage Directive 2014/35/EU) for the DC contactor product family are held by Shanghai Liangxin Electrical Co., Ltd (LAZZEN). Copies of certificates and test reports are available on request.
Single-phase main contactor position between the battery pack and motor controller in passenger and commercial EVs — 20g/50g shock and 5g vibration stability for road use.
DC output switching in on-board chargers and charging interfaces, with graded short-time withstand for inrush-rich charging profiles.
Battery-pack disconnection in home and commercial ESS up to DC750V, with 1500A one-time breaking as fault protection.
BDU cabinets, telecom DC plants, UPS strings and forklift/AGV battery disconnects requiring sealed, low-consumption DC switching.
The NDZ3AT series uses polarized main contacts in an epoxy-sealed package and targets EV main circuits, while the NDZ3W series is non-polarized and optimized for DC750V energy storage and charging piles. Contact us for the selection cross-reference table.
Yes. The NDZ3AT-150B is a polarized (heteropolarity) contactor: connect the positive and negative sides according to the polarity markings on the terminals. Reversed polarity will degrade breaking performance.
Rated electrical life is DC450V 150A × 1500 cycles and DC750V 120A × 500 cycles, with a maximum one-time breaking current of DC450V 1500A. Actual life depends on load profile; send us your switching curve for an engineering review.
The control coil is offered in DC12V and DC24V rated versions with a 75%–110% Uc operating window and 6W consumption. The NDZ3AT-150B is supplied without an auxiliary contact; ask about NDZ3AT variants if you need status feedback.
Yes. We supply genuine LAZZEN products with certificates (CCC, CB, CE, TUV, UL). Send quantity and destination country for price, lead time and shipping options within 24 hours.
Send us your target quantity and destination country. We will reply with price, lead time and shipping options within 24 hours.
