HFE85P-350 HONGFA High voltage DC Contactor 1000V 150A 4v dc 12V DC
Product Detail Reference
Modle Paramenter name | HFE85P-350 | |
Rated current | 350A | |
Rated voltage | DC12～1000V | |
Insulation voltage | 1000MΩ DC1000V | |
Number of poles | Single pole | |
Type of circuit | DC | |
Mechanical life | 200,000times | |
Electrical endurance | Breaking | 50ops(450VDC,-300A) |
100ops(1000V,300A) | ||
Max. breaking current | 2000A(320VDC)1op | |
Operate time (at rated volt.) | ≤30ms | |
Release time (at rated volt.) | ≤10ms | |
Insulation resistance | ≥1000MΩ(1000 VDC） | |
Withstand voltage | Between | 3300 VAC 1min |
Between | 3300 VAC 1min | |
Between contacts & | 3300 VAC 1min | |
Rated control voltage Uc | Rated control voltage：DC12V/24V | |
Max. switching power | 450kW | |
Max. switching voltage | 1000VDC | |
Workplace Temperature | （-40ºC ~ 85ºC） | |
Shock | Functional | 196m/s2 |
Destructive | 490m/s2 | |

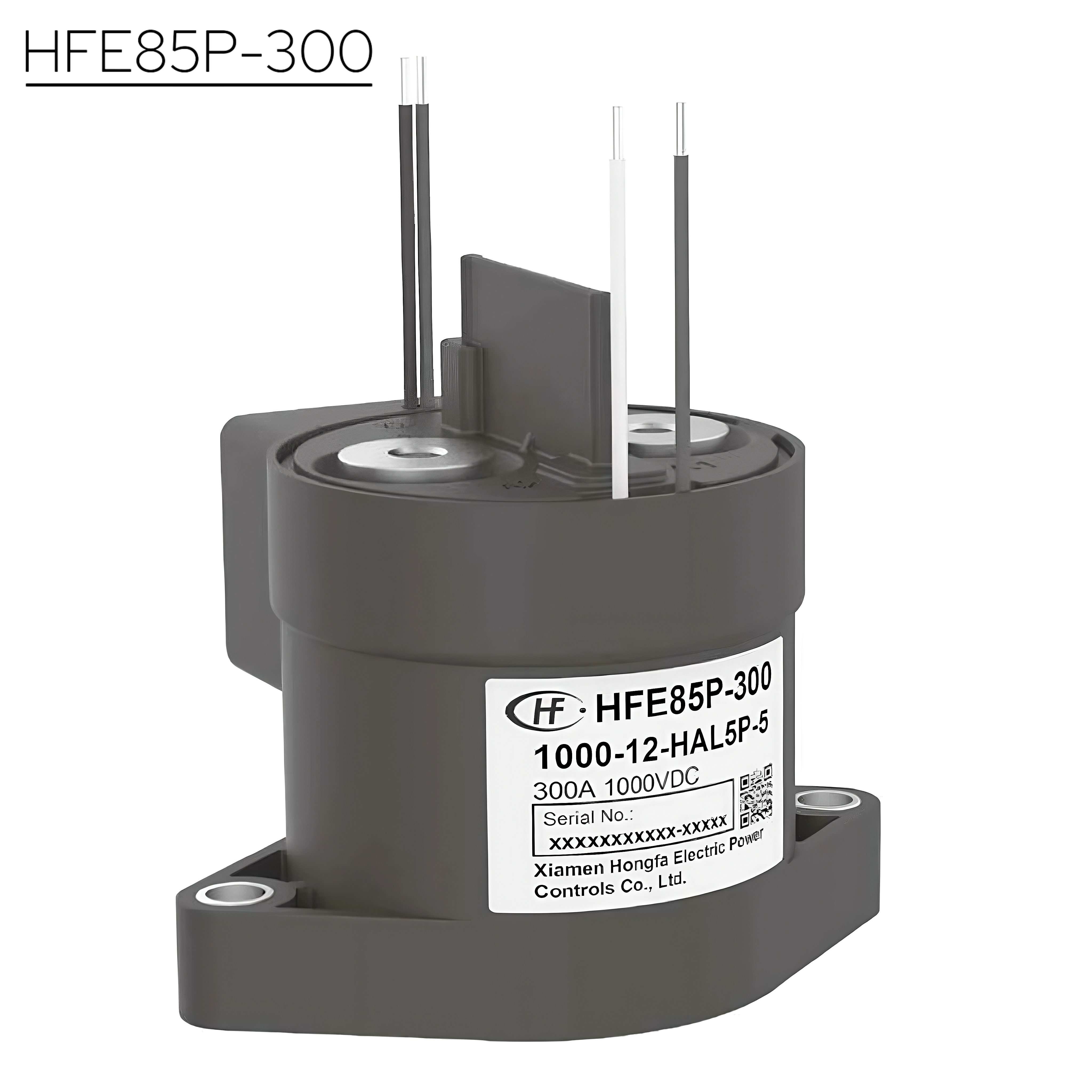

Product Picture
