| Parameter | Value |
|---|---|
| Model | HFE82V-60B |
| Brand | HONGFA |
| Contact Arrangement | 1 Form A (SPST-NO) |
| Rated Load Current | 60A continuous at 85°C |
| Load Voltage | 450V DC / 750V DC (1000V DC type on request) |
| Max Switching Voltage | 1000V DC |
| Max Breaking Current | 600A (450V DC, 1 operation) |
| Max Switching Power | 54kW |
| Current Carrying Capacity | 60A cont / 90A 1h / 120A 10min / 240A 20s / 360A 2s / 600A 0.6s |
| Coil Voltage | 12V / 24V DC |
| Coil Power | 5.2W (pick-up ≤75% Un, drop-out ≥1/2 Un) |
| Contact Resistance | ≤0.6 mΩ (at 60A) |
| Mechanical Endurance | 2×105 operations |
| Operate / Release Time | ≤30ms / ≤10ms |
| Dielectric Strength | 3000VAC 1min (coil to contacts / between open contacts) |
| Insulation Resistance | 1000MΩ min (1000V DC) |
| Sealing | Hermetic ceramic brazing, hydrogen filled, IP67 |
| Load Terminal | M4 screw terminal (female) |

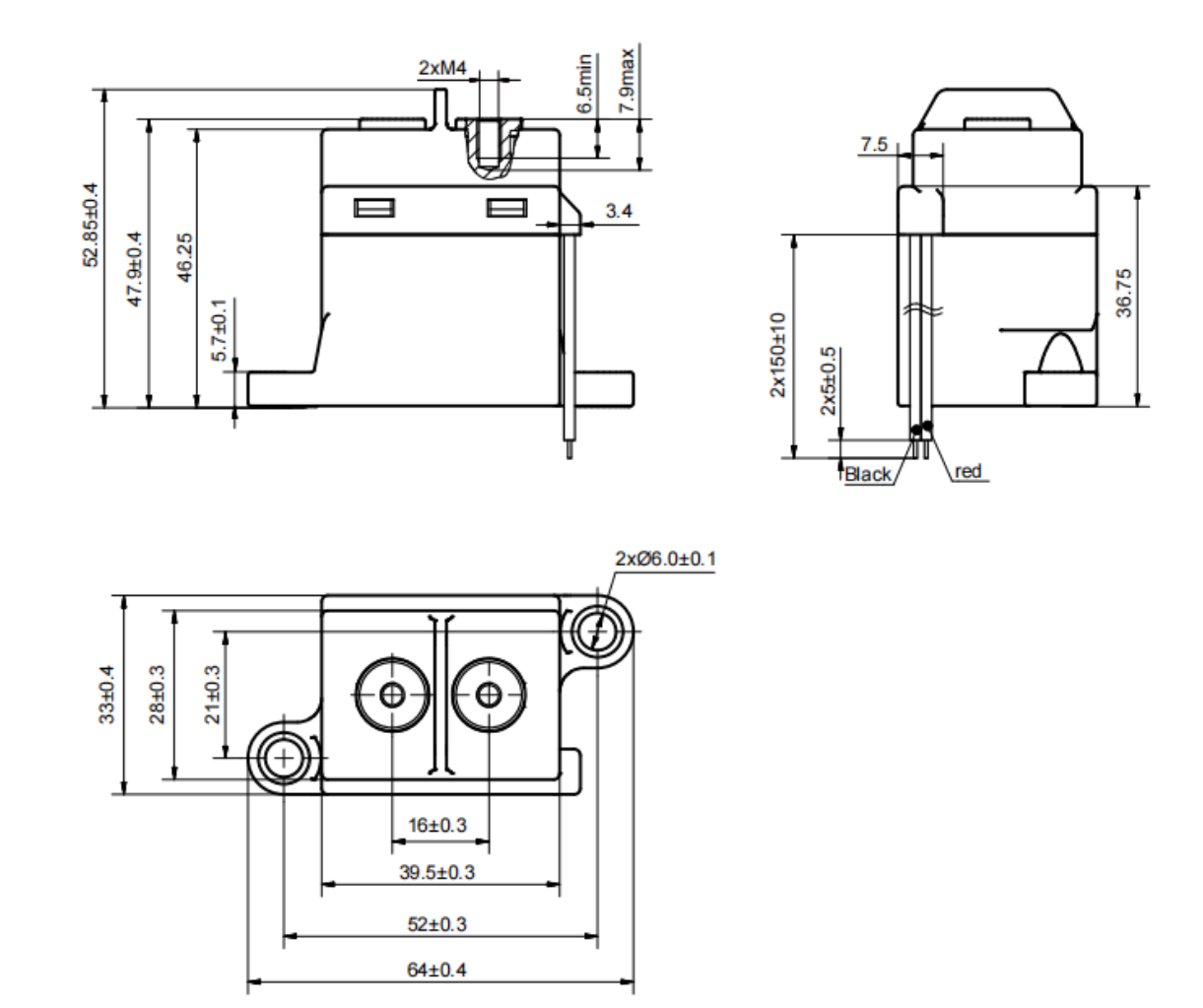

| Outline Dimensions (W / H / D) | 64.0 × 33.0 × 54.45 mm |
| Weight | Approx. 160g |
| Ambient Temperature | -40°C ~ +85°C |
| Polarity | No polarity on load and coil sides |
| Place of Origin | China |

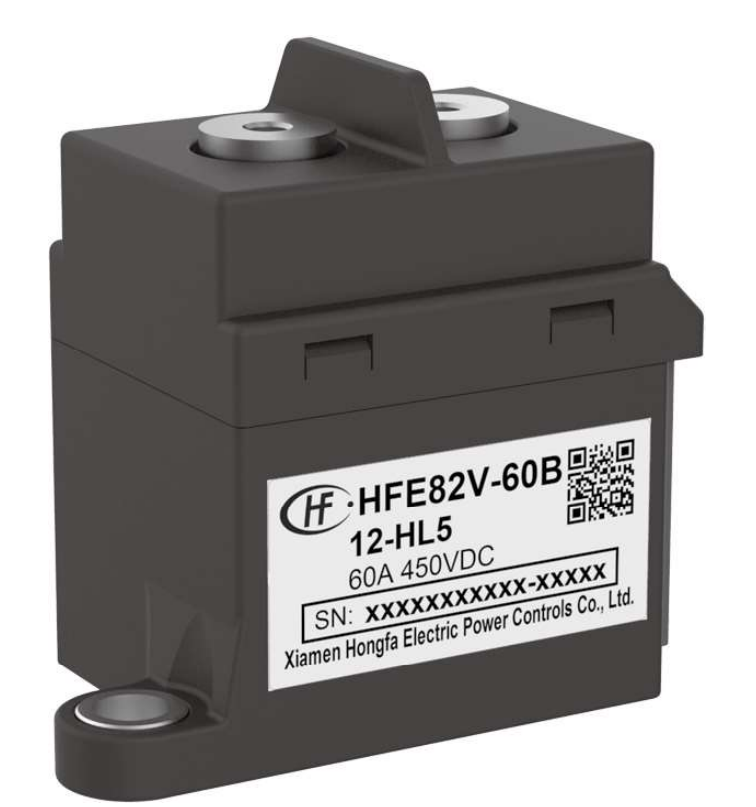

HONGFA HFE82V-60B is a hermetically sealed high-voltage DC contactor rated for 60A continuous current and 450V/750V DC load voltage. Its ceramic brazing seal with hydrogen gas filling prevents arc leakage and contact oxidation, meeting IP67. The single-pole 1 Form A contact, 5.2W coil and M4 screw load terminals make it well suited to EV/PHEV main and pre-charge circuits, low-speed electric vehicles and energy-storage DC switching.
Ceramic brazing technology with hydrogen gas filling prevents arc leaking, oxidation and burnout of contacts – no fire or explosion risk, rated IP67 for harsh automotive environments.
Breaks up to 600A (450V DC, 1 operation) – 10× rated current – giving a wide safety margin for pre-charge, main-relay and fault-isolation duties.
Stable, low contact resistance keeps heat and voltage drop low at 60A continuous (85°C), improving system efficiency and contact life.
Both the load and coil sides have no polarity requirement, simplifying BDU wiring and preventing assembly errors in bidirectional DC circuits.
Light and small enough for battery packs, junction boxes and low-speed EV (LSV) controller cabinets where space is tight.
Manufactured by Xiamen Hongfa with ISO 9001, IATF 16949 and IECQ QC 080000 certified factories. TÜV / UL / CUL safety ratings and IEC 60664-1 insulation coordination supported.
HFE82V-60B is built in HONGFA's automotive-grade relay plants. Confirmed ratings and management-system certificates include:
TÜV / UL / CUL — resistive switching 30A at 600VDC, 6000 ops (85°C); DC-1 10A at 450VDC, 6000 ops (40°C).
IEC 60664-1 — insulation coordination for high-voltage DC equipment.
RoHS — restricted hazardous substances compliant.
ISO 9001 / IATF 16949 / ISO 14001 / ISO 45001 / IECQ QC 080000 — factory-level quality, environmental and automotive management systems.
Main relay, pre-charge relay and normal-charge / fast-charge switching in 400V-class passenger battery packs (per HONGFA family matrix).
Listed for mild electric vehicles (low-speed EV) and logistics vehicles – 60A continuous is a strong fit for LSV controller and BMS main contact duty.
DC-link switching in residential and commercial battery storage cabinets up to 750V DC per module.
Auxiliary relay and normal change-over switching in vehicles, chargers and DC power distribution units.
Both share the same 60A continuous rating, 5.2W coil and 64×33×54.45mm outline. The 450V type is specified for 400V-class DC-link voltages while the 750V type covers higher-voltage systems. A 1000V DC type is available in the ordering scheme. Max switching power is 54kW for the family.
It is a single-pole, 1 Form A (SPST-NO) contactor. The “2-Phase / 2-Pole” wording on some listing pages comes from a template error and is not part of the HONGFA datasheet, which specifies contact arrangement 1 Form A, single contact.
It is the one-time fault-break capability: HFE82V-60B can break 600A at 450V DC for one operation. It is not a continuous rating – continuous carrying is 60A (85°C), with short overloads up to 600A for 0.6s per the current-carrying curve.
12V DC and 24V DC coils are standard, both rated 5.2W. Pick-up voltage is ≤75% of rated voltage, drop-out ≥1/2 rated. Coil and load terminals have no polarity requirement, so wiring direction does not matter.
HONGFA's family matrix places HFE82V-60B in passenger EV/PHEV (main, pre-charge, fast-charge and auxiliary roles) and mild / low-speed electric vehicles. It also suits energy-storage and DC distribution switching up to 750V DC.
HFE82V-60B carries 60A continuous with 600A breaking and 54kW max switching power, versus 40A continuous with 400A breaking on the smaller HFE82V-40. Both share the ceramic hermetic-seal IP67 platform, no-polarity design and 450V/750V load options, but 60B uses a larger 64×33×54.45mm package with 5.2W coil (~160g) against the 40's 67×32.6×47mm / 3W / 160g class.
