| Parameter | Value |
|---|---|
| Model | HFE82V-60 |
| Contact Arrangement | 1 Form A |
| Contact Rating | 60A |
| Contact Resistance | ≤ 1mΩ (at 60A) |
| Load Voltage | 450VDC standard · 750VDC variant |
| Max. Switching Voltage | 1000VDC |
| Max. Breaking Current | 600A (450VDC, 1 op) |
| Max. Switching Power | 54kW |
| Electrical Endurance | 800 ops (450VDC / 60A) · 7.5×104 ops (20VDC / 60A) |
| Mechanical Endurance | 2.5×105 ops |
| Current Carrying Capacity | 60A cont. · 90A / 1h · 120A / 14min · 240A / 20s · 360A / 2s · 600A / 0.6s |
| Coil Voltage / Power | 12VDC or 24VDC · 4.5W (pick-up ≤9V / ≤18V) |
| Dielectric Strength | 4000VAC (coil & contacts) · 3000VAC (open contacts) |
| Insulation Resistance | 1000MΩ (1000VDC) |
| Operate / Release Time | ≤ 30ms / ≤ 15ms (at rated voltage) |
| Ambient Temperature | -40°C ~ +85°C |
| Vibration / Shock Resistance | 10~500Hz 49m/s2 · Functional 196m/s2 / Destructive 490m/s2 |
| Load Terminal Structure | QC terminal (quick-connect) |
| Dimensions / Weight | 55.0 × 39.8 × 37.0 mm · approx. 175g |
| Material | Ceramic · Copper · Silver |
| Certification | UL · CUL · VDE · TÜV · CQC |

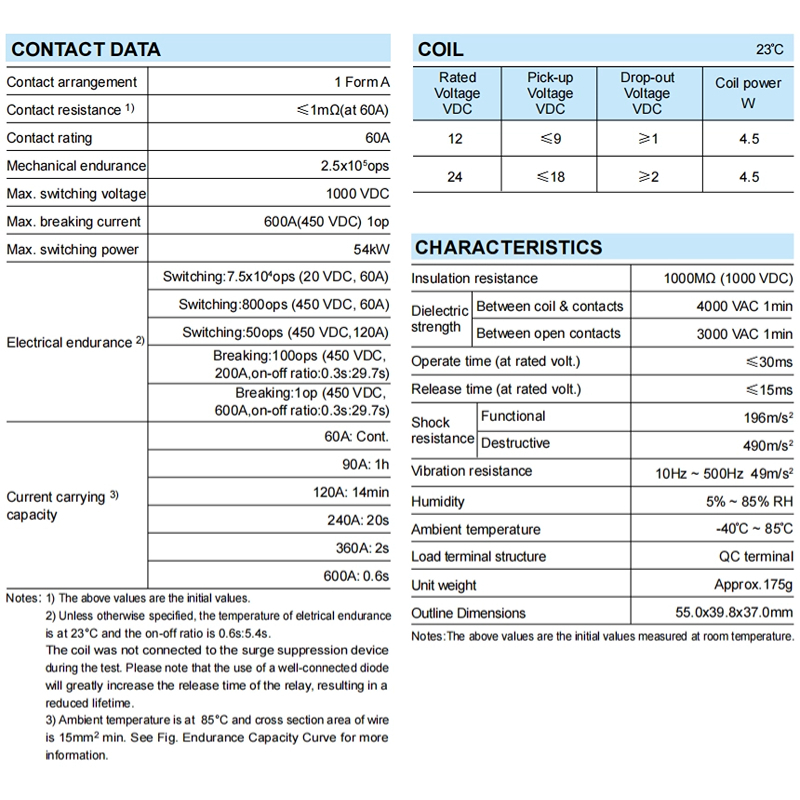

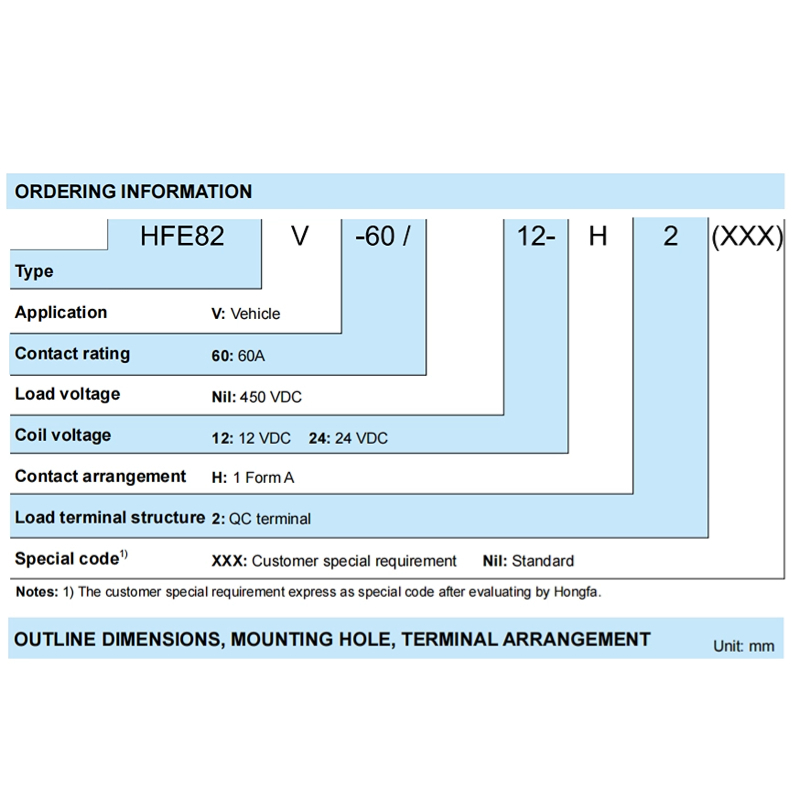

 Ordering information - HFE82V-60/12-H 2 decode (V: vehicle · 60: 60A · 450VDC · 12/24VDC coil · H: 1 Form A · 2: QC terminal) |  Datasheet - contact data, coil data, electrical endurance and characteristics |
| Advantage | Benefit for Your Application |
|---|---|
| ✅ 60A / 450VDC in Compact Size | 54kW switching power from a 55.0 × 39.8 × 37.0 mm, ~175g package - high power density for crowded EV power distribution boxes and PDU designs. |
| ✅ 600A Breaking · 1000VDC Margin | Max breaking current 600A at 450VDC and max switching voltage 1000VDC - generous safety margin against fault currents and voltage transients. |
| ✅ Ceramic Brazed-Seal Construction | Ceramic · copper · silver construction with hermetic ceramic sealing - inert gas inside contacts, no arc-over to the coil, suits harsh automotive environments. |
| ✅ Low Coil Power 4.5W | 12VDC or 24VDC coil at only 4.5W - easy drive from standard automotive ECU high-side/low-side drivers without extra hold circuits. |
| ✅ One Family, All Relay Roles | The HFE82V series covers main relay, precharge relay, fast-charge relay, normal-change relay and auxiliary relay - consolidate the whole EV high-voltage distribution on one platform. |
| ✅ Automotive-Grade Certified | UL · CUL · VDE · TÜV · CQC certified; -40°C~+85°C operation with 49m/s2 vibration and 196m/s2 functional shock resistance for passenger EV / HEV / bus platforms. |
UL · CUL · VDE · TÜV · CQC - full certification documents and test reports available on request.
Typical roles in the HFE82V series application matrix: main relay · precharge relay · fast-charge relay · normal-change relay · auxiliary relay - for passenger EV/PHEV, HEV, bus, low-speed EV and logistics vehicles.
 Electric & Commercial Vehicles Passenger EV/PHEV · HEV · Bus · Low-speed EV · Logistics vehicle - main & precharge switching |  DC Charging Equipment Fast-charge relay in charging piles · OBC · group charging · PDU |
 Energy Storage System Battery cabinets · BMS switching · HV DC distribution |  Frequency Conversion Equipment Inverter DC-link switching · Motor drives · Power electronics |
| Item | Detail |
|---|---|
| Brand / Origin | HONGFA (Xiamen Hongfa Electroacoustic Co., Ltd.) · Xiamen, China |
| Ordering Model | HFE82V-60/12-H 2 (as pictured: 12VDC coil, 1 Form A, QC terminal, 450VDC) Coil options: -12- 12VDC / -24- 24VDC · Load voltage: 450VDC standard, 750VDC variant per project |
| Companion Models | HFE82V series 20A~600A (HFE82V-20 / -40 / -100D / -150D / -200B / -250C / -300C / -400M / -600) - same platform, one supplier for the full HV distribution chain |
| MOQ | Flexible - contact sales for sample & volume pricing |
| Lead Time | Typically 7-15 days (confirm with sales) |
| Payment | T/T, Trade Assurance, etc. (confirm with sales) |
| Support & Customization | Datasheets, endurance curves and special-code (XXX) customization per project on request |
| Warranty | 1 year |
