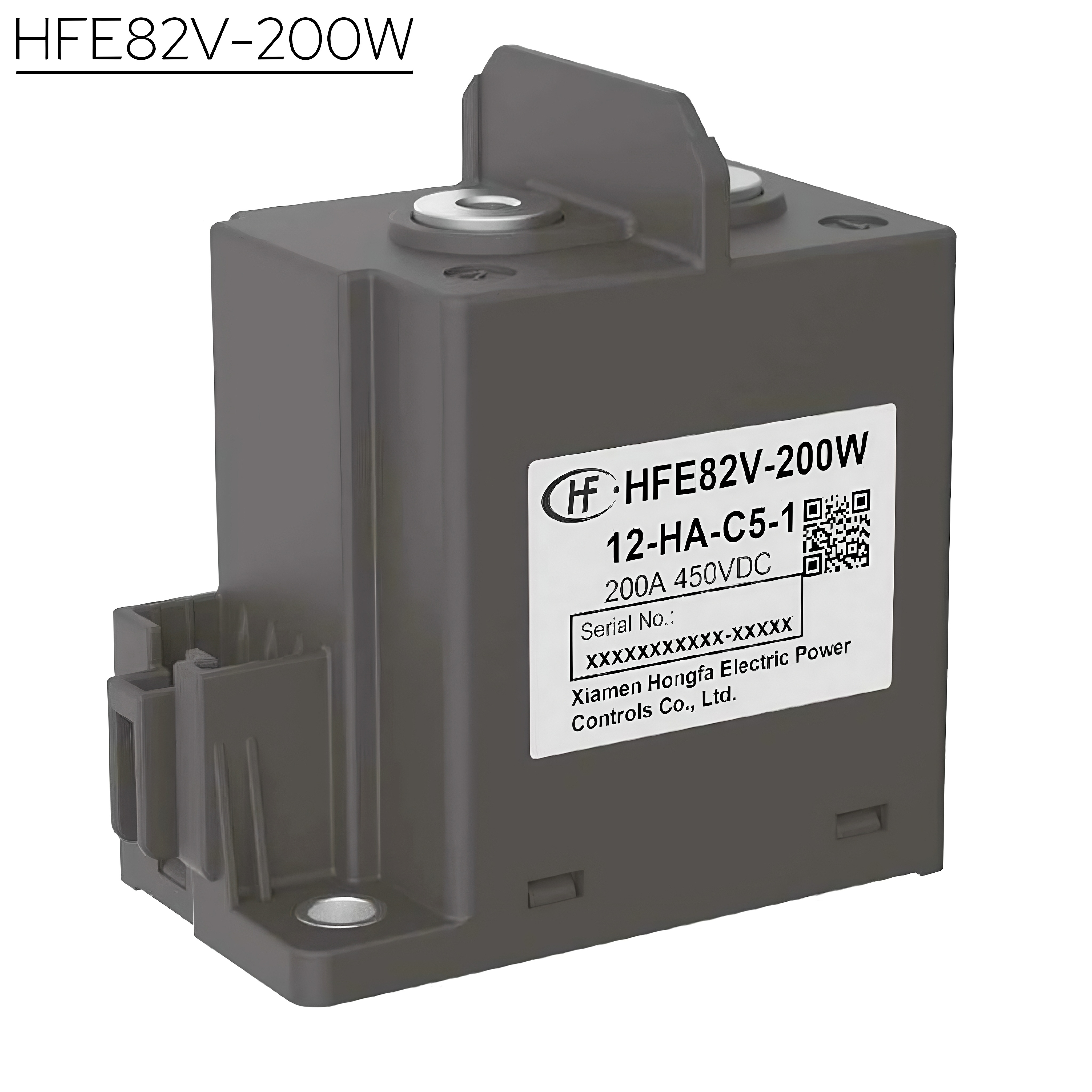

HFE82V-200W HONGFA High Voltage DC Contactor 450V 750V 1000V 200A

                                                         Modle Paramenter name

HFE82V-200W

Rated current

200A

Rated voltage

DC12～1000V

Insulation voltage

1000MΩ DC1000V

Number of poles

Single pole

Type of circuit

DC

Mechanical life

200,000times

Electrical endurance

Making

500000ops(20 VDC
C=1500μF,Inrush150A)

Switching

/

Breaking

500ops
(450 VDC 200A)

Maximum breaking current

1500A(450VDC)1op

Operate time (at rated volt.)

≤30ms

Release time (at rated volt.)

≤10ms

Insulation resistance

≥1000MΩ(1000 VDC）

Withstand voltage

Between coil & contacts

4000 VAC 1min

Between open contacts

3000 VAC 1min

Rated control voltage Uc

Rated control voltage：DC12V/24V
Pick-up voltage：≤75% Un

Max. switching power

180kW

Max. switching voltage

750 VDC

Workplace Temperature

（-40ºC ~ 85ºC）

Shock
resistance

Functional

196m/s2

Destructive

490m/s2
