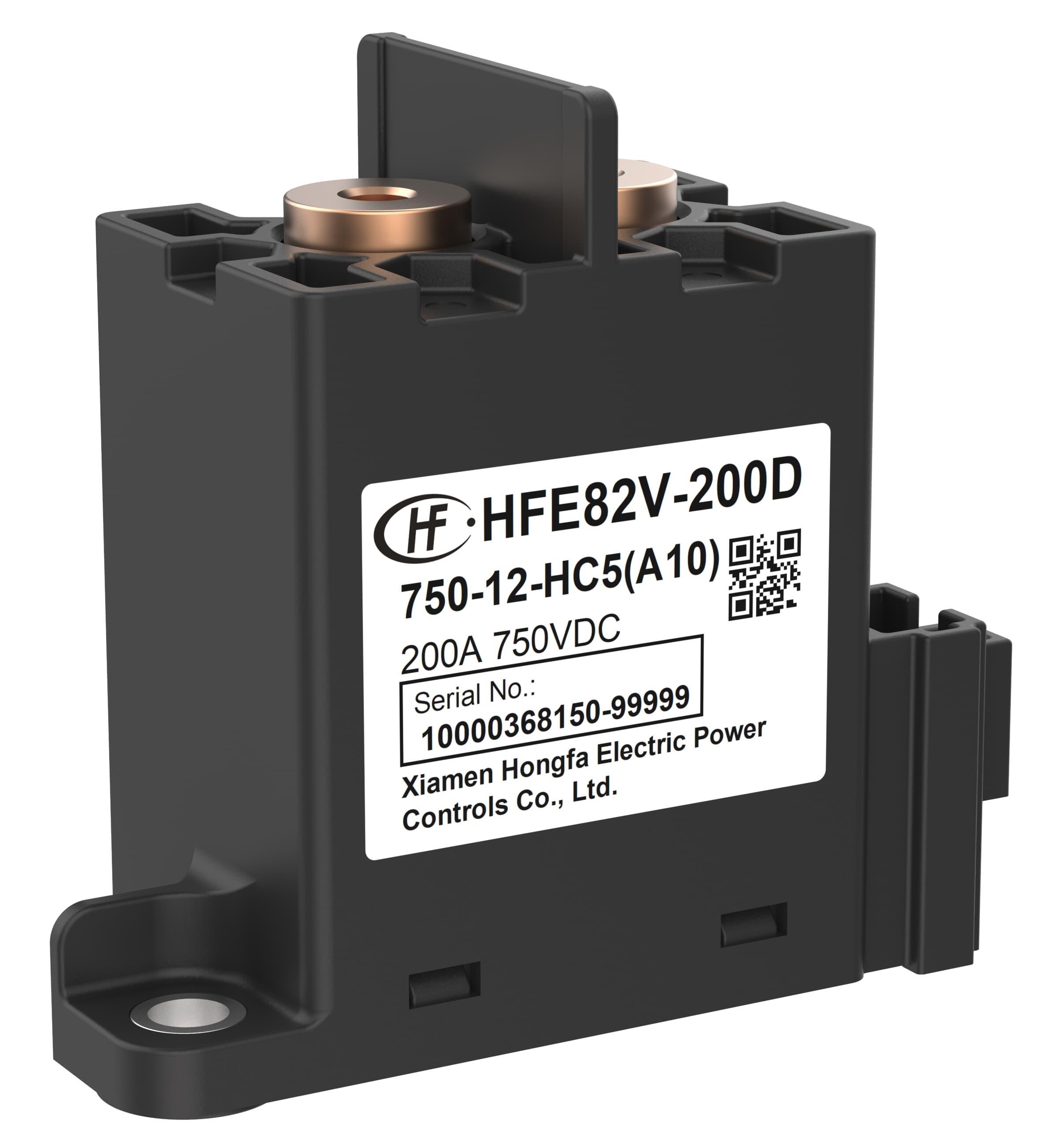

HFE82V-200D(A10) HONGFA High Voltage DC Contactor Relay 1000V Ceramic Brazing Coil DC12V DC24V

No.HFE82V-200D(A10)

HONGFA HFE82V-200D(A10) high voltage DC contactor — 1000VDC / 200A continuous, 300kW switching power, 12VDC or 24VDC coil, hermetically sealed with ceramic brazing and IP67.

Variations

Edit selections

Coil Voltage: DC12V

DC12V

DC24V

Select variations and quantity

Coil Voltage: DC12V

The min. inquiry quantity is 0. Add 0 more to continue.

DC12V

DC24V

Subtotal

GET A QUOTE

Add to Quote List View Quote List

Download

View all downloads

Description

HFE82V-200D(A10) — 1000VDC / 200A High Voltage DC Contactor

✅ 1000VDC · 200A | ✅ 300kW Switching Power | ✅ 12/24VDC Coil

Technical Specifications

Parameter	Value
Model	HFE82V-200D(A10)
Contact Arrangement	1 Form A (SPST-NO)
Contact Rating	200A continuous (at 85°C, ≥60 mm² cable)
Load Voltage	1000VDC
Max. Switching Voltage	1000VDC
Max. Breaking Current	1200A (300VDC, 1 op)
Contact Resistance	≤0.3 mΩ (at 200A)
Coil Voltage	12VDC / 24VDC
Operate / Release Time	≤30ms / ≤10ms (at rated voltage)
Endurance (Mech. / Elec.)	2×10⁵ ops / Switching 200 ops (800VDC, 200A) · Breaking 100 ops (1000VDC, 150A)
Dielectric / Insulation	4000VAC 1min (coil–contacts) · 3000VAC 1min (open contacts) · 1000MΩ (1000VDC)
Sealing / Ambient	Hermetic ceramic brazing, hydrogen-filled, IP67 · -40°C ~ +85°C
Terminal / Dimensions / Weight	M6 screw terminal female · 78.7 × 36.0 × 72.0 mm · Approx. 260 g
Certification	RoHS · IEC 60664-1

Values verified against the official HONGFA HFE82V-200D(A10) datasheet (2024 Rev. 1.00).

Ordering Code — How to Read HFE82V-200D(A10)

Code Segment	Meaning
HFE82V	Series — high voltage DC relay; V = vehicle application
200D	200A contact rating · D design version
/1000	Load voltage 1000VDC (Nil = 450VDC · /750 = 750VDC)
-24	Coil voltage 24VDC (-12 = 12VDC)
-HC5	H = 1 Form A · C = coil connector · 5 = female screw load terminal
(A10)	Standard version — (A10)(XXX) = customer special requirement

Available order codes: HFE82V-200D/12-HC5(A10) · /24-HC5(A10) · /750-12-HC5(A10) · /750-24-HC5(A10) · /1000-12-HC5(A10) · /1000-24-HC5(A10)

Ordering & Factory Info

Item	Detail
Brand / Origin	HONGFA · Xiamen, China
MOQ & Lead Time	1 pc for sample · typically 7–15 days (confirm with sales)
Payment & Warranty	T/T, PayPal, Trade Assurance · 1 year warranty

Need more than a quote? Ask us for full data or a cross-reference for HFE82V-200D(A10).
