| Parameter | Value |
|---|---|
| Model | HFE82V-200B (B series, 200A) |
| Brand | HONGFA |
| Contact Arrangement | 1 Form A (SPST-NO) |
| Contact Rating | 200A continuous (at 85°C) |
| Load Voltage (this type) | 750V DC (order code /750; 450V & 1000V types available) |
| Max Switching Voltage | 1000V DC |
| Max Breaking Current | 1500A (450V DC) 1 op / 1000A (750V DC) 1 op |
| Max Switching Power | 180kW |
| Contact Resistance | ≤0.3 mΩ (at 200A) |
| Current Carrying Capacity | 200A cont. / 250A 15min / 320A 5min / 600A 30s / 900A 10s |
| Short-Circuit Capacity | 8000A (1ms), no fire or explosion |
| Coil Voltage | 12V / 24V DC |
| Coil Power | 6W |
| Pick-Up / Drop-Out Voltage | ≤9V / ≥1V (12V coil); ≤18V / ≥2V (24V coil) |
| Operate / Release Time | ≤30ms / ≤10ms |
| Mechanical Endurance | 2×105 operations |
| Electrical Endurance | 500 ops (450V DC, ±200A) / 200 ops (750V DC, ±200A); making 2×104 ops (37.5V, C=1100μF, inrush 400A) |
| Dielectric Strength | 4000VAC 1min (coil–contacts) / 3000VAC 1min (open contacts) |
| Insulation Resistance | 1000MΩ (1000V DC) |
| Ambient Temperature | -40°C ~ +85°C |
| Polarity | No polarity on load or coil side |
| Sealing | Hermetic ceramic brazing, hydrogen-filled, IP67 |
| Load Terminal | M6 screw terminal (female thread) |

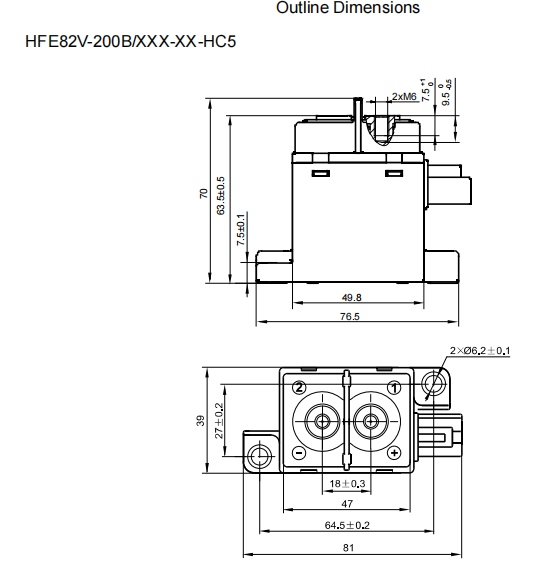

| Outline Dimensions (W / H / D) | 81.0 × 39.0 × 70.0 mm (HC5) |
| Weight | Approx. 330g |
| Place of Origin | China |

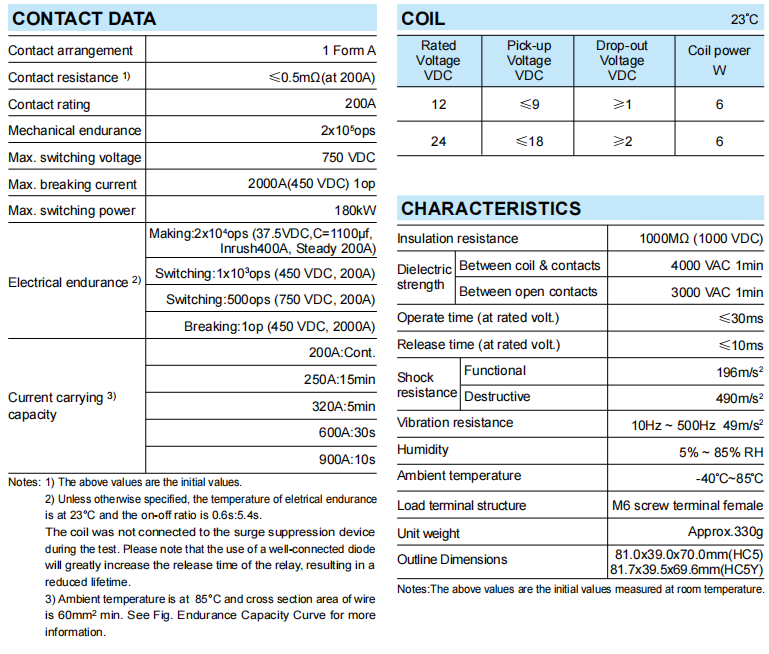

Values verified against the official HONGFA HFE82V-200B(A28) datasheet (2024 Rev.1.00). Load and coil sides are polarity-free; M6 load terminal with female thread.

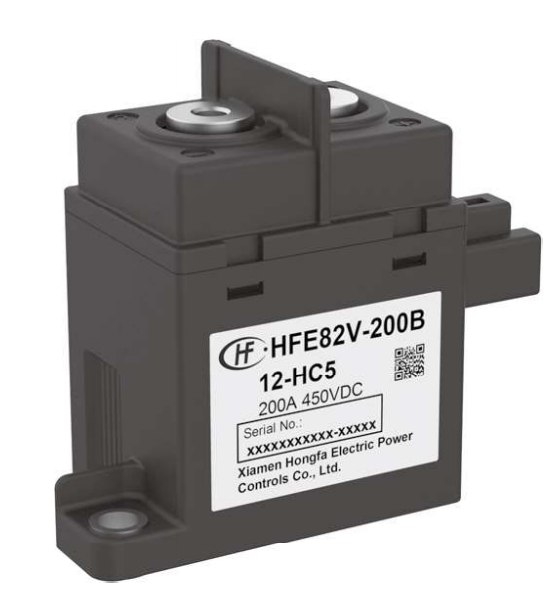

HONGFA HFE82V-200B is a hermetically sealed high-voltage DC contactor rated for 200A continuous current at 750V DC load voltage, with 180kW maximum switching power. Its 1 Form A (SPST-NO) contact, ceramic brazing seal and hydrogen-filled arc chamber meet IP67 protection and IEC 60664-1 insulation requirements. The load and coil sides have no polarity restriction, simplifying busbar and coil wiring in EV battery, energy storage and solar DC-link applications.
Carries 200A continuously at 85°C ambient (wire cross-section ≥60mm²) with overload steps up to 250A/15min, 320A/5min, 600A/30s and 900A/10s for demanding DC-link duty.
Rated for 750V DC load systems with up to 1000V DC max switching voltage and 180kW max switching power — a proven platform for high-voltage EV and stationary battery applications.
Ceramic brazing technology prevents arc leakage, eliminating fire or explosion risk; hydrogen filling protects the contacts from oxidation and burnout with low, stable contact resistance.
No polarity restriction on the load or coil side, giving design flexibility and preventing mis-wiring in bidirectional charge/discharge circuits.
Standard 12V and 24V DC coils with 6W coil power cover common vehicle BMS and control voltages; pickup ≤18V (24V coil) ensures reliable operation across the vehicle voltage range.
Manufactured by Xiamen Hongfa under IATF 16949 / ISO 9001 / ISO 14001 / ISO 45001 quality systems. Factory test reports, RoHS compliance and certificate support available for OEM qualification.
HONGFA HFE82V-200B series is designed and manufactured under international quality and environmental standards. Available certifications and reports include:
RoHS — Restricted hazardous substances compliance.
ISO 9001 / IATF 16949 — Quality management systems aligned with automotive component production (factory level).
ISO 14001 / ISO 45001 / IECQ QC 080000 / ISO 27001 — Factory environmental, occupational health, hazardous-process and information-security management.
IEC 60664-1 — Insulation coordination for equipment within low-voltage supply systems.
Factory Test Reports — Contact resistance, dielectric strength and switching-life test data available on request.
Main positive / negative relay in passenger EV, PHEV and mild-hybrid (48V-HEV) battery packs, precharge and fast-charge circuits.
Battery disconnect and charge/discharge path control in residential and commercial Li-ion storage cabinets and BDU modules.
Output and power-module DC switching in chargers serving up to 750V battery architectures.
DC-side switching in PV inverters, hybrid systems and 750V-class DC distribution for commercial and industrial plants.
It carries 200A continuously at 85°C ambient (min. 60mm² wire cross-section). Overload capability is graded: 250A for 15 minutes, 320A for 5 minutes, 600A for 30 seconds and 900A for 10 seconds.
The official HONGFA datasheet defines HFE82V-200B as a single-pole 1 Form A (SPST-NO) contactor. The "2-phase" wording sometimes seen in marketplace listings is not an official designation. Both the load side and coil side are polarity-free.
Per the official 2024 datasheet: 1500A breaking at 450V DC (1 operation) and 1000A at 750V DC (1 operation), with 8000A (1ms) short-circuit withstand — no fire or explosion. Electrical endurance is 500 operations at 450V DC/±200A and 200 operations at 750V DC/±200A (0.6s on / 5.4s off).
12V and 24V DC coils are standard, both rated at 6W coil power. Pick-up voltage is ≤9V (12V coil) / ≤18V (24V coil); drop-out voltage ≥1V / ≥2V. Coil connections are polarity-free, but adding a flyback diode increases release time and can reduce life.
Contact resistance is ≤0.3mΩ measured at 200A (2024 datasheet value; some earlier listings quote 0.5mΩ). The contactor is hermetically sealed with ceramic brazing and hydrogen-filled, meeting IP67 with no risk of arc leakage.
Yes. We stock HONGFA HFE82V-200B and can provide samples, outline drawings and factory test reports. Contact us for volume pricing, coil/voltage variants (450V / 750V / 1000V) and OEM packaging options.
