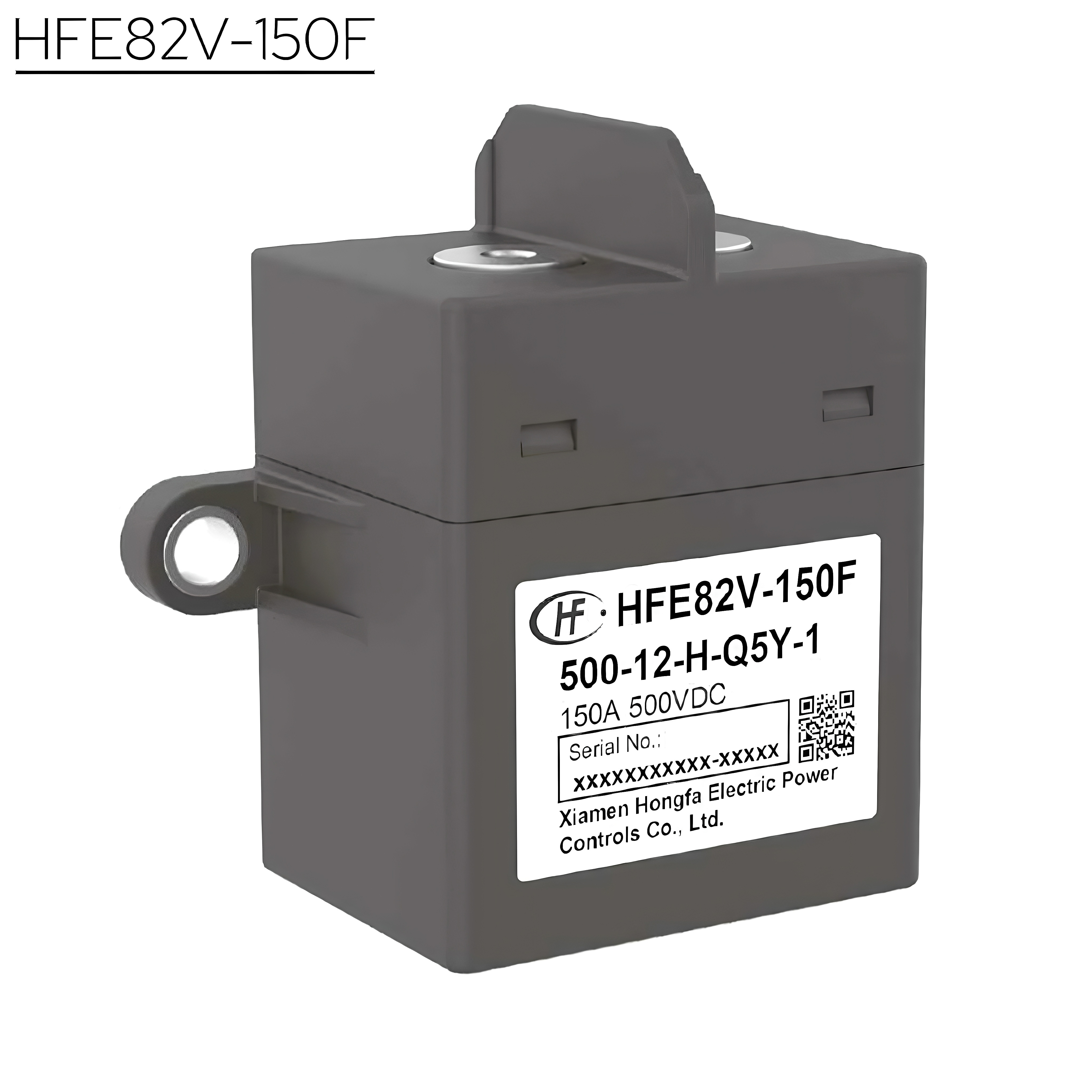

HFE82V-150F HONGFA High Voltage DC Contactor 450V 750V 1000V 150A

 Modle Paramenter name

HFE82V-150F

Rated current

150A

Rated voltage

DC12～1000V

Insulation voltage

1000MΩ DC1000V

Number of poles

Single pole

Type of circuit

DC

Mechanical life

200,000times

Electrical endurance

Making

70000ops
(20VDC,100A)

Switching

1000ops
(450VDC,100A)

Breaking

50000ops
(475VDC,20A)

Maximum breaking current

1300A(400VDC)1op

Operate time (at rated volt.)

≤30ms

Release time (at rated volt.)

≤10ms

Insulation resistance

≥1000MΩ(1000 VDC）

Withstand voltage

Between coil & contacts

4000 VAC 1min

Between open contacts

3000 VAC 1min

Rated control voltage Uc

Rated control voltage：DC12V/24V
Pick-up voltage：≤75% Un

Max. switching power

150kW

Max. switching voltage

750 VDC

Workplace Temperature

（-40ºC ~ 85ºC）

Shock
resistance

Functional

196m/s2

Destructive

490m/s2
