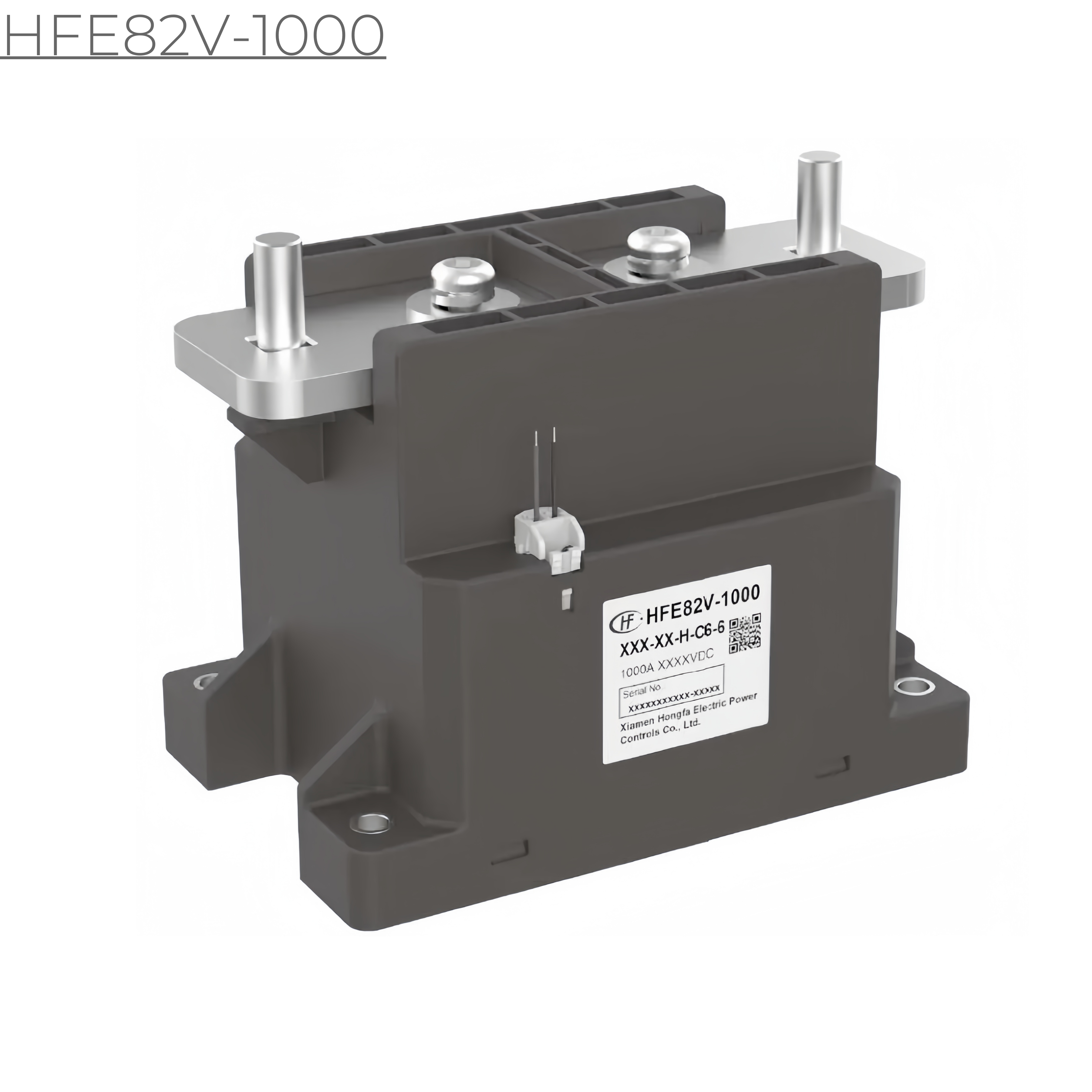

HFE82V-1000D HONGFA 750V 100A DC Contactor

                                     Modle Paramenter name

HFE82V-1000

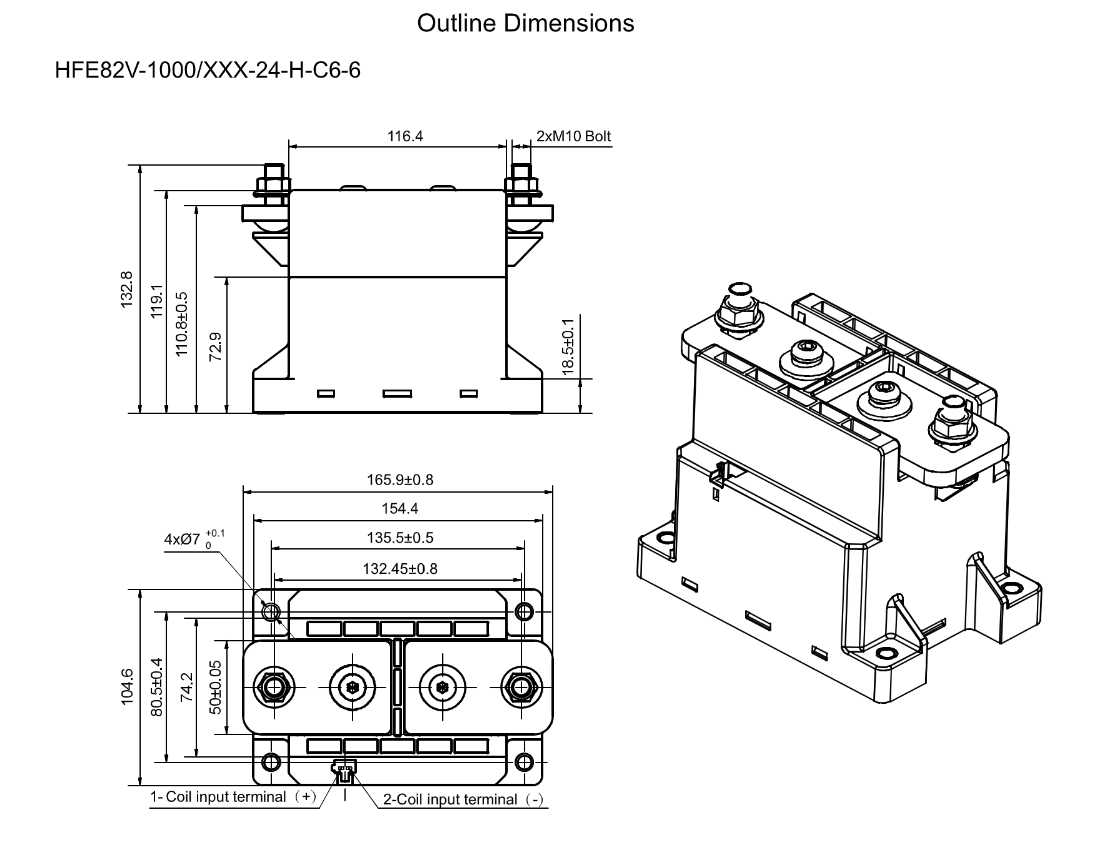

Outline dimensions(mm)

165.9x104.6x132.8mm

Contact arrangement

1 Form A

Contact resistance

≤0.2mΩ(at 1000A)

Pick-up voltage(VDC)

12V  ≤9

 24V  ≤18

Contact rating

600A

Load voltage

1000 VDC

Max. breaking current

2000A(1000 VDC) 1op

Max. switching voltage

1000 VDC

Max. switching power

1500kW

Electrical endurance

Making:20000ops(1000VDC 60A)
Breaking:1 op(1000VDC 2000A)
Breaking:50 ops(1000VDC 1000A)
Breaking:50 ops(1500VDC 800A)
Switching:100 ops(1000VDC 1000A)

Ambient temperature

（-40ºC ~ 85ºC）

Dielectric
strength

Between
coil & contacts

5000 VAC 1min

Between
open contacts

5000 VAC 1min
