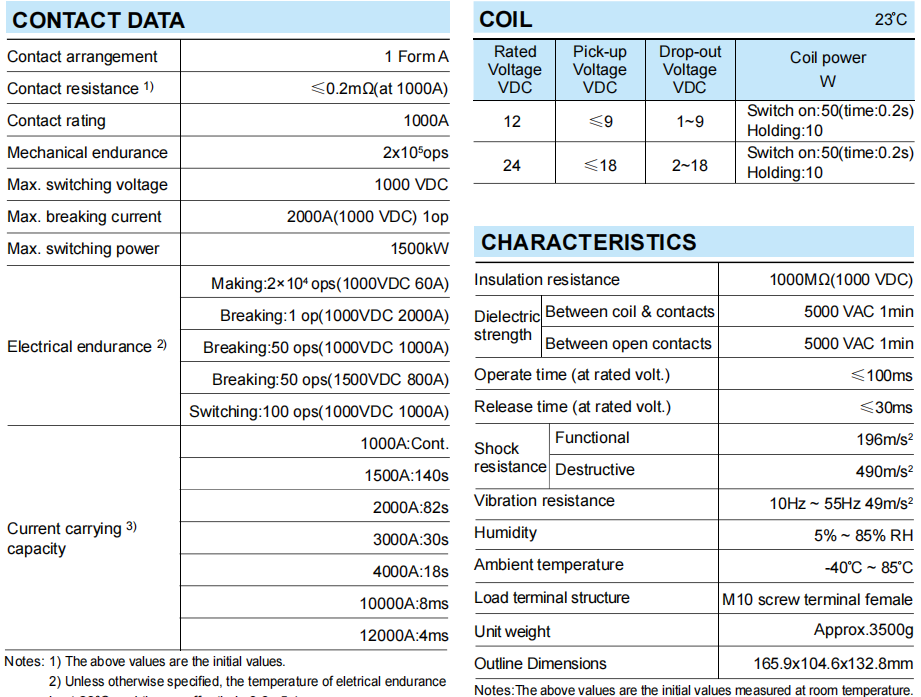

| Parameter | Value |
|---|---|
| Model | HFE82V-1000 (1000A class, HFE82V vehicle series) |
| Brand | HONGFA (Xiamen, Fujian, China) |
| Contact Arrangement | 1 Form A (SPST-NO), single pole |
| Contact Rating | 1000A continuous (at 85°C) |
| Load Voltage (ordering) | 1000V DC / 1200V DC types per ordering code (this listing covers both) |
| Max Switching Voltage | 1200V DC |
| Max Breaking Current | 2000A (1200V DC) 1 operation — 2× rated overcurrent breaking |
| Max Switching Power | 1500kW |
| Contact Resistance | ≤0.1 mΩ (at 1000A) — latest datasheet; 0.2 mΩ per 2021 data (older) |
| Coil Voltage | 12V / 24V DC |
| Coil Type / Termination | Double coil with built-in energy-saving PCBA; connector coil terminal (ordering code position C) |
| Coil Power | Drive 50W for 0.2s, then automatic hold at 10W (energy saving) |
| Pick-Up / Drop-Out Voltage | Pick-up ≤9V (12V coil) / ≤18V (24V coil); drop-out 1~9V / 2~18V |
| Drive Requirement | Built-in PCBA must be driven by a fast rising edge (step power). Do not use slow-rising voltage; repeated on/off within 0.2s may cause failure |
| Load Terminal | M10 screw terminal female + copper bus-bar terminal |
| Polarity | No polarity on load side (bolt/bus-bar load terminals, polarity independent) |
| Operate / Release Time | ≤100ms / ≤30ms |
| Contact Gap | ≥2.35mm |
| Mechanical Endurance | 2×105 operations |
| Electrical Endurance | Making 3×104 ops (1200V DC, 60A); breaking 1 op (1200V DC, 2000A) + 50 ops (1200V DC, 1000A) + 50 ops (1500V DC, 800A); switching 1×104 ops (1200V DC, 60A) |
| Current Carrying (85°C, wire ≥400mm²) | 1000A continuous; 1500A 140s; 2000A 82s; 3000A 30s; 4000A 18s; short-circuit 10000A 8ms / 12000A 4ms (contacts may weld, no fire / no explosion) |
| Dielectric Strength | 5000VAC 1min (coil–contacts) / 5000VAC 1min (open contacts) |
| Insulation Resistance | 1000MΩ (1000V DC); IEC 60664-1 compliant |
| Shock / Vibration | Functional 98 (de-energized) / 196 (energized) m/s²; destructive 490m/s²; vibration 10–500Hz 49m/s² |
| Ambient Temperature / Humidity | -40°C ~ +85°C / 5% ~ 85% RH |
| Sealing | Hermetic ceramic brazing, hydrogen-filled, IP67 (no arc leaking / no fire / no explosion) |

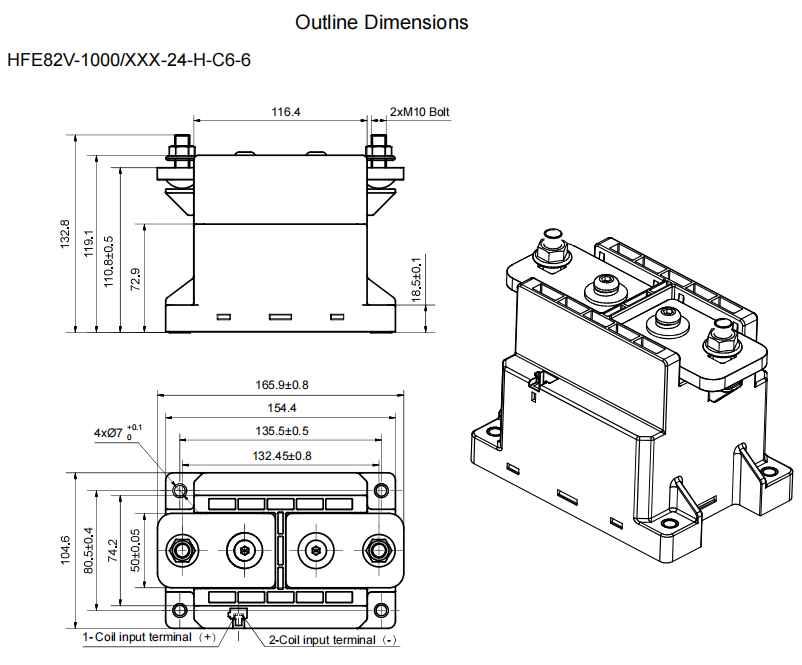

| Outline Dimensions (W / H / D) | 165.9 × 104.6 × 132.8 mm (with mounting flanges) |
| Unit Weight | Approx. 3500 g |

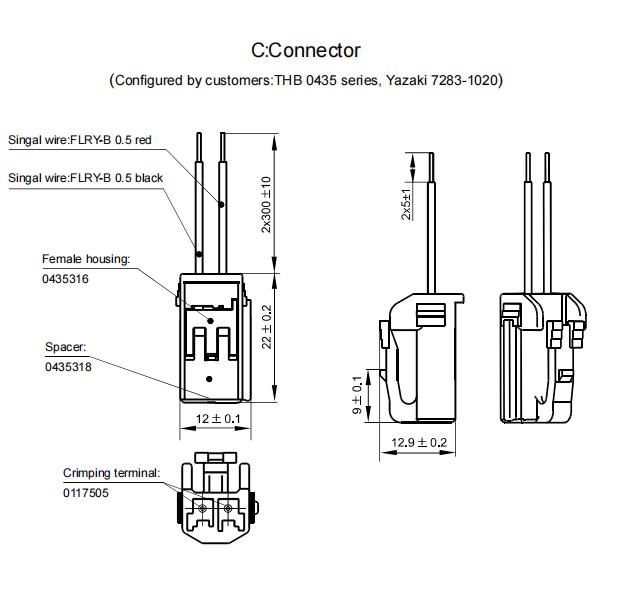

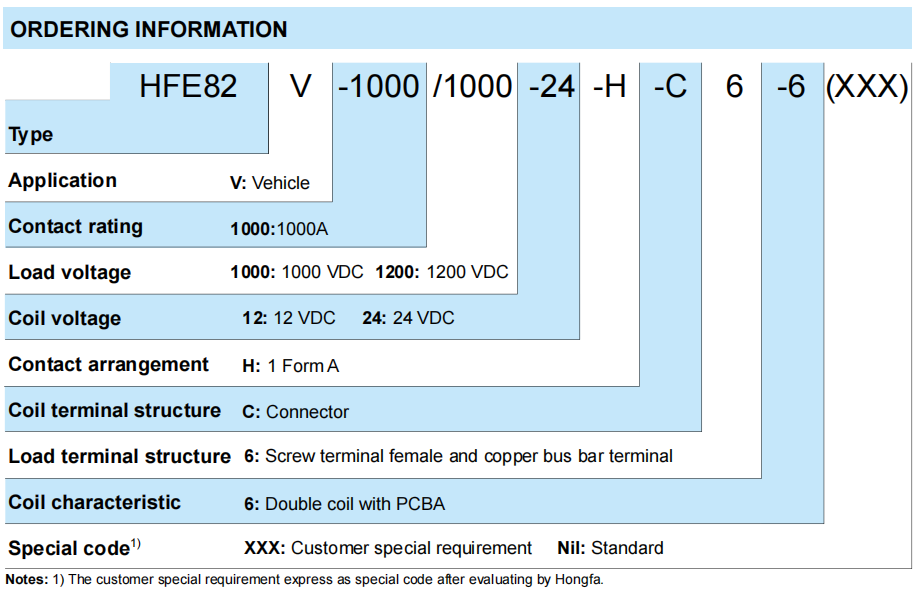

| Ordering Code | HFE82V-1000/1000-24-H-C6-6 (load 1000 / 1200 VDC selectable; coil 12 / 24V; H = 1 Form A; C = connector; 6 = screw female + bus bar; 6 = double coil with PCBA) |
| Place of Origin | Fujian, China |
Verified against the official HONGFA HFE82V-1000 datasheet (latest 2025 update, source.hongfa.com) and the HONGFA mall product page (hongfa.cn).

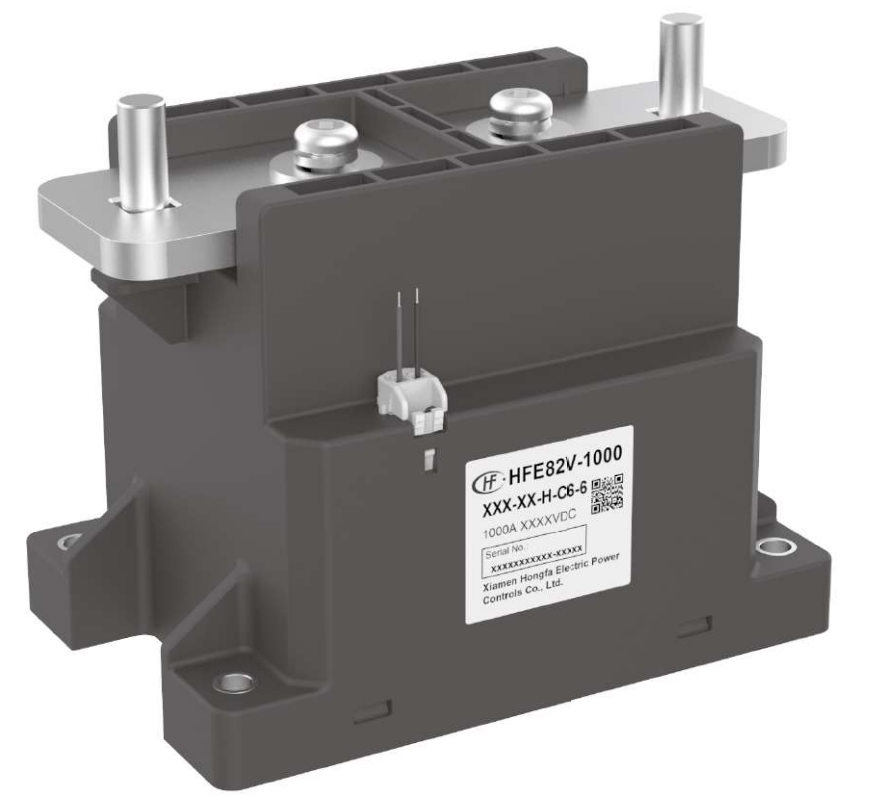

HONGFA HFE82V-1000 is the 1000A-class flagship of the HFE82V ceramic-sealed high-voltage DC contactor platform. It carries 1000A continuously at 85°C, switches up to 1200V DC at 1500kW and breaks 2000A (1200V DC, 1 operation) for overcurrent faults. The heavy-duty design terminates the load on M10 female-thread studs with copper bus-bar terminals and drives the single-pole 1 Form A contact with a built-in energy-saving double coil (50W drive for 0.2s, then 10W holding). Ceramic brazing sealing with hydrogen filling meets IP67 and IEC 60664-1, with no polarity requirement on the load terminals. The HFE82V-1000 targets high-power EV and stationary applications where 1000A-class sealed DC switching is required.
Carries 1000A continuously at 85°C and switches 1200V DC at up to 1500kW — the highest-power member of the HFE82V family.
Breaks 2000A at 1200V DC (1 operation) for fault clearing, with a short-circuit carrying capability of 10000A/8ms and 12000A/4ms — contacts may weld but the relay will not burn or explode.
A built-in PCBA drives the coil at 50W for 0.2s to close, then automatically holds it at only 10W — cutting continuous coil loss by 80% and minimizing heat in sealed enclosures.
M10 female-thread studs with copper bus-bar terminals handle 1000A-class bus work, and the load is polarity independent for simplified wiring.
Ceramic brazing prevents arc leakage; hydrogen filling protects the contacts from oxidation, keeping contact resistance low (≤0.1mΩ at 1000A) and stable over life.
Manufactured by Xiamen Hongfa under ISO 9001 / IATF 16949 / ISO 14001 / ISO 45001 / IECQ QC 080000 / ISO/IEC 27001 quality systems. Factory test reports and RoHS compliance are available for OEM qualification.
HONGFA HFE82V-1000 is designed and manufactured under international quality and environmental standards. Available certifications and reports include:
RoHS — Restricted hazardous substances compliance.
ISO 9001 / IATF 16949 — Quality management systems aligned with automotive component production (factory level).
ISO 14001 / ISO 45001 / IECQ QC 080000 / ISO/IEC 27001 — Factory environmental, occupational health, hazardous-process and information-security management.
IEC 60664-1 — Insulation coordination for equipment within low-voltage supply systems (5kV dielectric strength).
Factory Test Reports — Contact resistance, dielectric strength and switching-life test data available on request.
Main and battery-disconnect duty in high-voltage EV platforms — buses, trucks and heavy vehicles — where 1000A-class sealed DC switching protects the HV battery system.
Charge/discharge path control and battery disconnect in large-format Li-ion storage cabinets, containers and battery disconnect units at 1000-1200V DC levels.
DC bus switching in industrial power supplies, electrolysis, traction and test equipment where polarity-free 1000A-class contactors are required.
DC-side switching in megawatt chargers, battery-swap stations and high-power DC links operating toward the 1200V DC class.
It carries 1000A continuously at 85°C ambient (wire cross-section ≥400mm²). Graded overload capability: 1500A for 140s, 2000A for 82s, 3000A for 30s and 4000A for 18s, plus 10000A/8ms and 12000A/4ms short-circuit carrying (contacts may weld, no fire / no explosion).
No. Official HONGFA data defines HFE82V-1000 as a single-pole 1 Form A (SPST-NO) DC relay. Marketplace "phase: 2" wording is AC-contactor template residue and does not apply to this DC product.
The built-in energy-saving PCBA must be driven with a fast rising edge (step power supply). Do not drive it with a slowly rising voltage or it will not operate, and avoid repeated on/off commands within 0.2s of closing — the coil draws 50W only during the 0.2s drive phase, then drops to 10W holding.
Both load types exist in the HFE82V-1000 ordering code: 1000V DC and 1200V DC. The series maximum switching voltage is 1200V DC (2000A breaking rated at 1200V DC). Please confirm the load-voltage type (1000 / 1200V DC) and coil voltage (12 / 24V) when ordering.
Mechanical endurance is 2×105 operations. Electrical endurance: 3×104 making ops at 1200V DC / 60A, 1 breaking op at 1200V DC / 2000A, 50 breaking ops at 1200V DC / 1000A, 50 breaking ops at 1500V DC / 800A, and 1×104 switching ops at 1200V DC / 60A.
HFE82V-1000 is the 1000A-class flagship: 1200V DC / 1500kW / 2000A breaking, M10 screw-and-bus-bar load terminals, built-in energy-saving double coil and an approx. 3.5kg body measuring 165.9 × 104.6 × 132.8mm. Smaller family members (HFE82V-150D / 150F / 200B / 200W) are 150-200A-class parts in much lighter housings. All share the same ceramic-sealed, polarity-free platform. Ask us for a sizing recommendation for your bus current.
