| Parameter | Value |
|---|

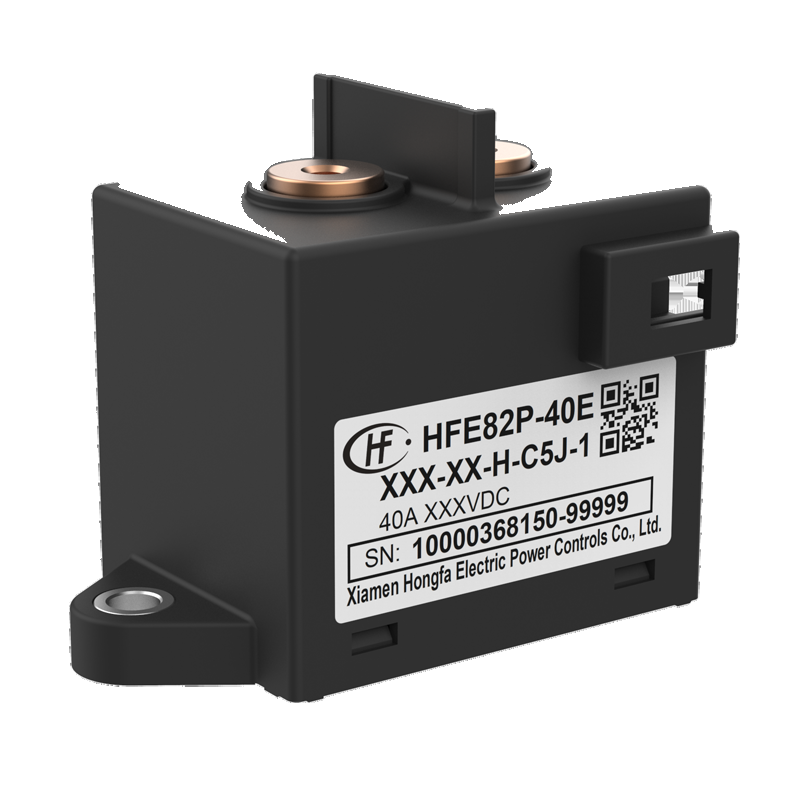

| Model | HFE82P-40E |
| Contact Arrangement | 1 Form A (SPST-NO) |
| Contact Rating | 40A continuous carry at 85°C |
| Load Voltage | ≤1000VDC |
| Max. Switching Voltage | 1000 VDC |
| Max. Breaking Current | 400A (300VDC) 1 op |
| Max. Switching Power | 60kW |
| Contact Resistance | ≤3mΩ (at 40A) |
| Coil Voltage | DC12V / DC24V |
| Operate / Release Time | ≤30ms / ≤10ms (at rated voltage) |
| Endurance (Mech. / Elec.) | 2×105 ops / 500 ops (40A 1000VDC); Making 5×104 ops (40A 1000VDC) |
| Dielectric / Insulation | 1000MΩ (1000VDC) · 4000VAC 1min contact–coil · 3000VAC 1min open contacts |
| Sealing / Ambient | IP67 ceramic hermetic seal, H2-filled · -40°C to +85°C · 5%–85% RH |
| Terminal / Dimensions / Weight | M4 internal thread · 67.0 × 36.2 × 47.0mm · Approx. 140g |
| Certification | UL File No. E133481 · RoHS · IEC 60664-1 |
