| Parameter | Value |
|---|

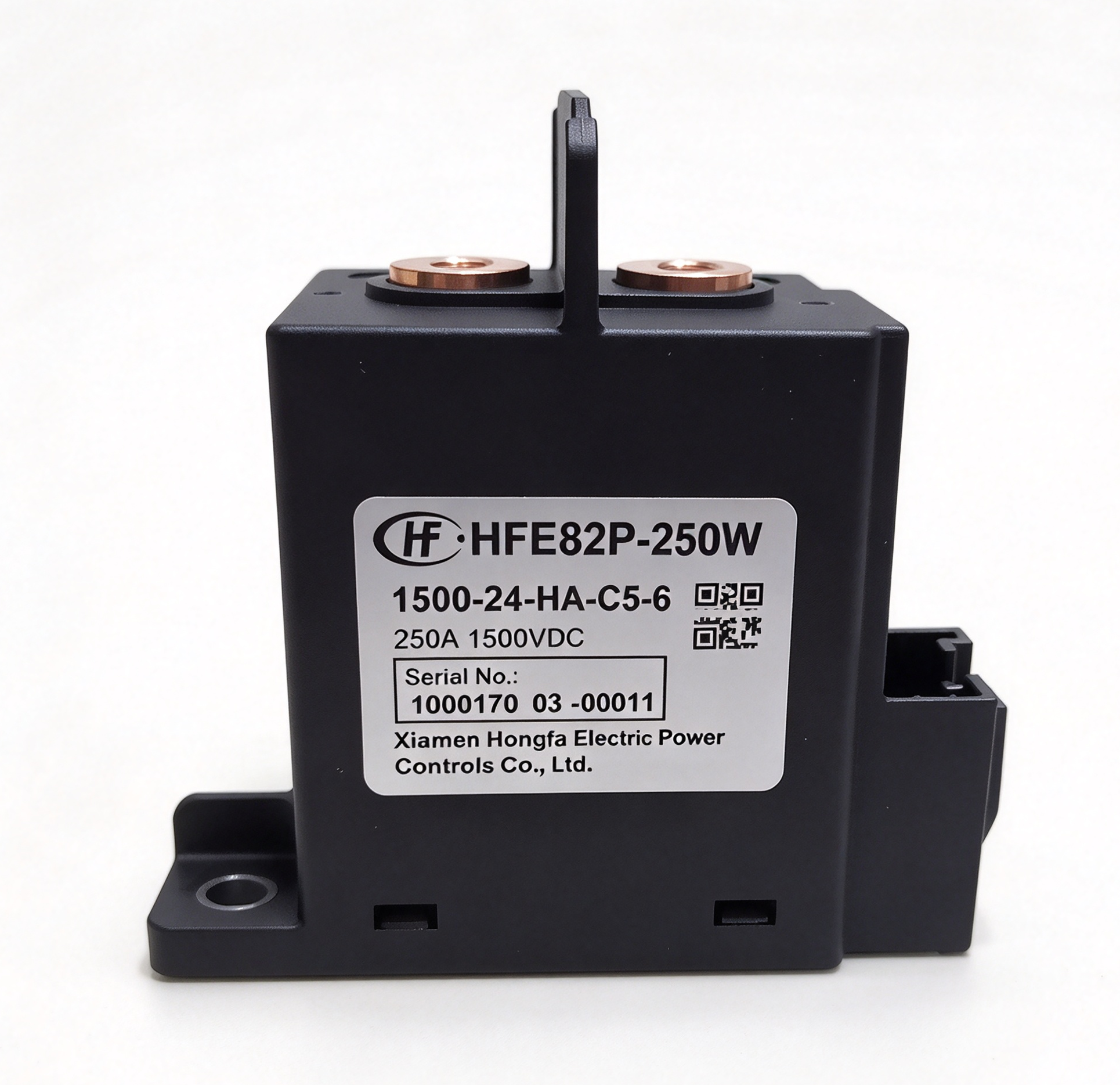

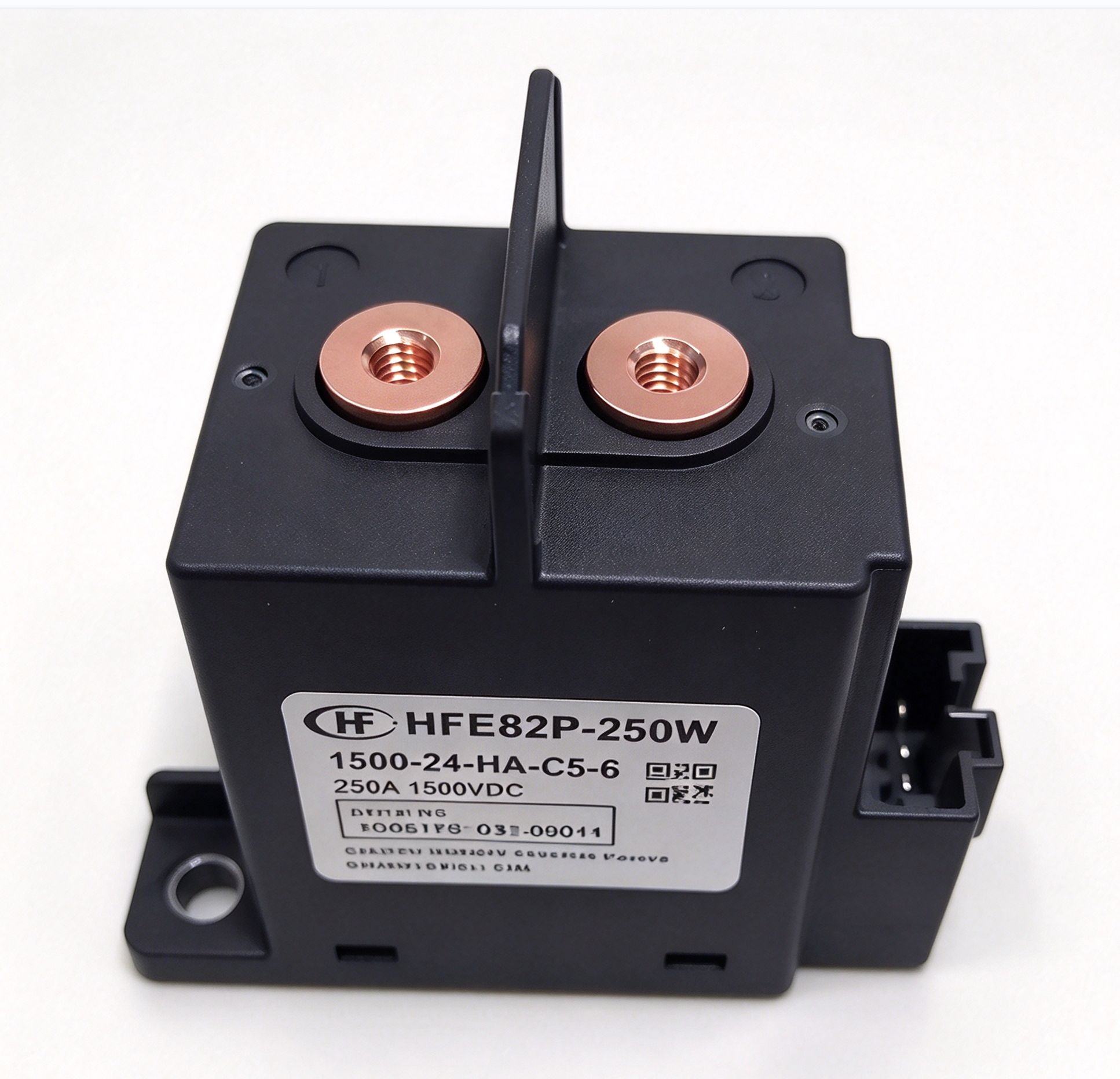

| Model | HFE82P-250W |
| Contact Arrangement | Main 1 Form A · Auxiliary 1 Form A |
| Contact Rating | 250A continuous (at 85°C, ≥80 mm² cable) |
| Load Voltage | 1000VDC / 1500VDC |
| Max. Switching Voltage | 1500VDC |
| Max. Breaking Current | 2000A (1000VDC, 1 op) · Short-circuit 2400A / 30 ms, no fire, explosion or sticking |
| Contact Resistance | Main ≤0.3 mΩ (at 250A) · Aux ≤100 mΩ (at 0.5A) |
| Coil Voltage | 12VDC / 24VDC |
| Operate / Release Time | ≤30ms / ≤10ms (at rated voltage) |
| Endurance (Mech. / Elec.) | Main 2×10⁵ ops · Auxiliary 2×10⁵ ops / Making 1×10⁵ ops (20VDC, 250A inrush, C=1500µF) · Breaking 500 ops (1000VDC, 250A) · Breaking 50 ops (1500VDC, 250A) |
| Dielectric / Insulation | 4000VAC 1min (coil–contacts) · 4000VAC 1min (open contacts) · 1000MΩ (1500VDC) |
| Sealing / Ambient | Gas-filled sealed contact chamber · IP67 · -40°C ~ +85°C |
| Terminal / Dimensions / Weight | M6 female screw terminal (load) · coil connector · 88.8 × 43.0 × 83.3 mm · Approx. 400 g |
| Certification | RoHS |
