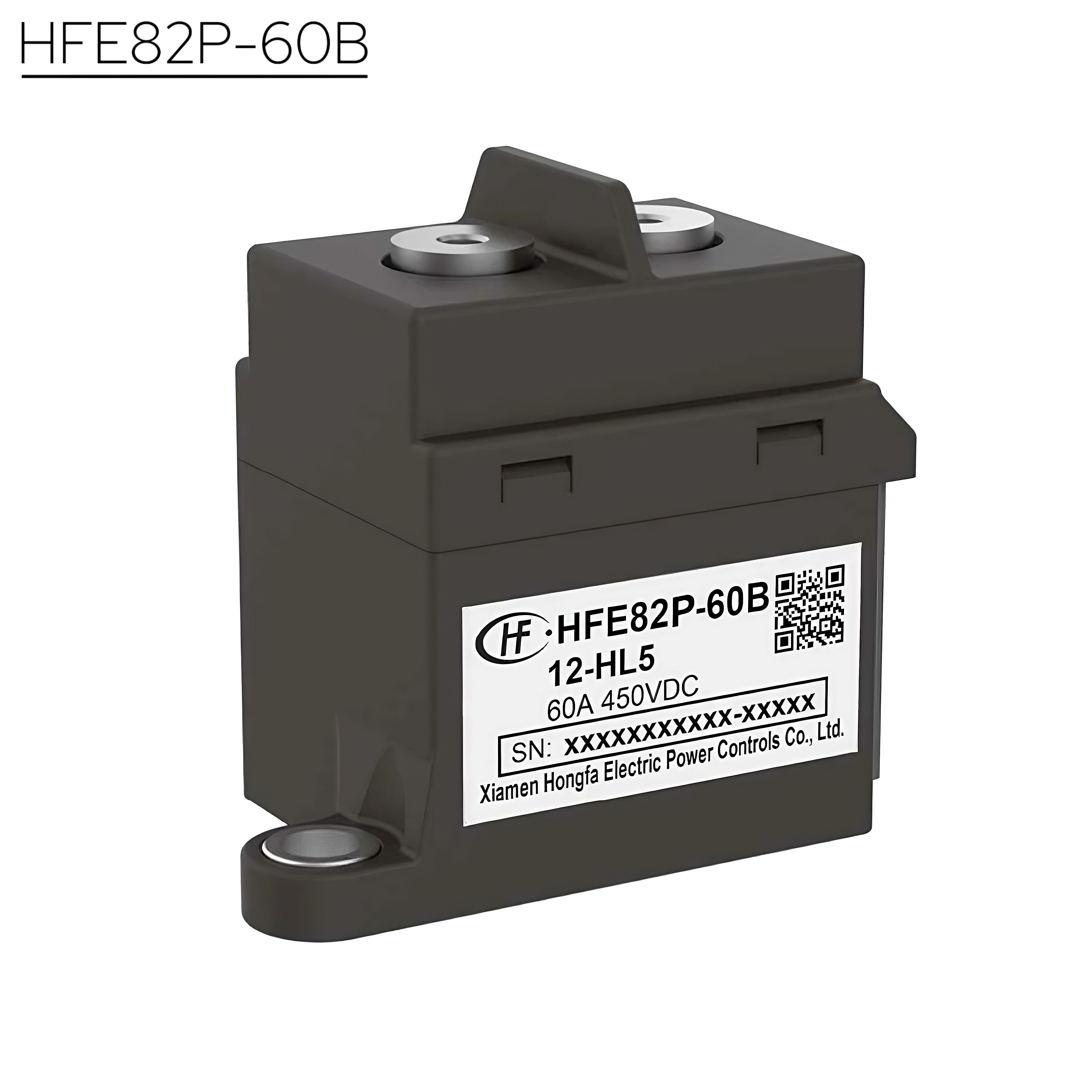

HFE82P-60B HONGFA High Voltage DC Contactor 450V 750V 60A

                                              Modle Paramenter name

HFE82P-60B

Rated current

60A

Rated voltage

DC12～1000V

Insulation voltage

1000MΩ DC1000V

Number of poles

Single pole

Type of circuit

DC

Mechanical life

200,000times

Electrical endurance

Making

15000ops
(1500VDC,40A)

Switching

10000ops
(1000VDC,15A)

15000ops
(1500VDC,40A)

Max. breaking current

200A(1000VDC)1op

Operate time (at rated volt.)

≤30ms

Release time (at rated volt.)

≤10ms

Insulation resistance

≥1000MΩ(1000 VDC）

Withstand voltage

Between
coil & contacts

4000VAC 1min

Between
open contacts

4000VAC 1min

Rated control voltage Uc

Rated control voltage：DC12V/24V
Pick-up voltage：≤75% Un

Max. switching power

1000V 20kW
 1500V 30kW

Max. switching voltage

1000VDC、1500VDC

Workplace Temperature

（-40ºC ~ 85ºC）

Shock
resistance

Functional

196m/s2

Destructive

490m/s2
