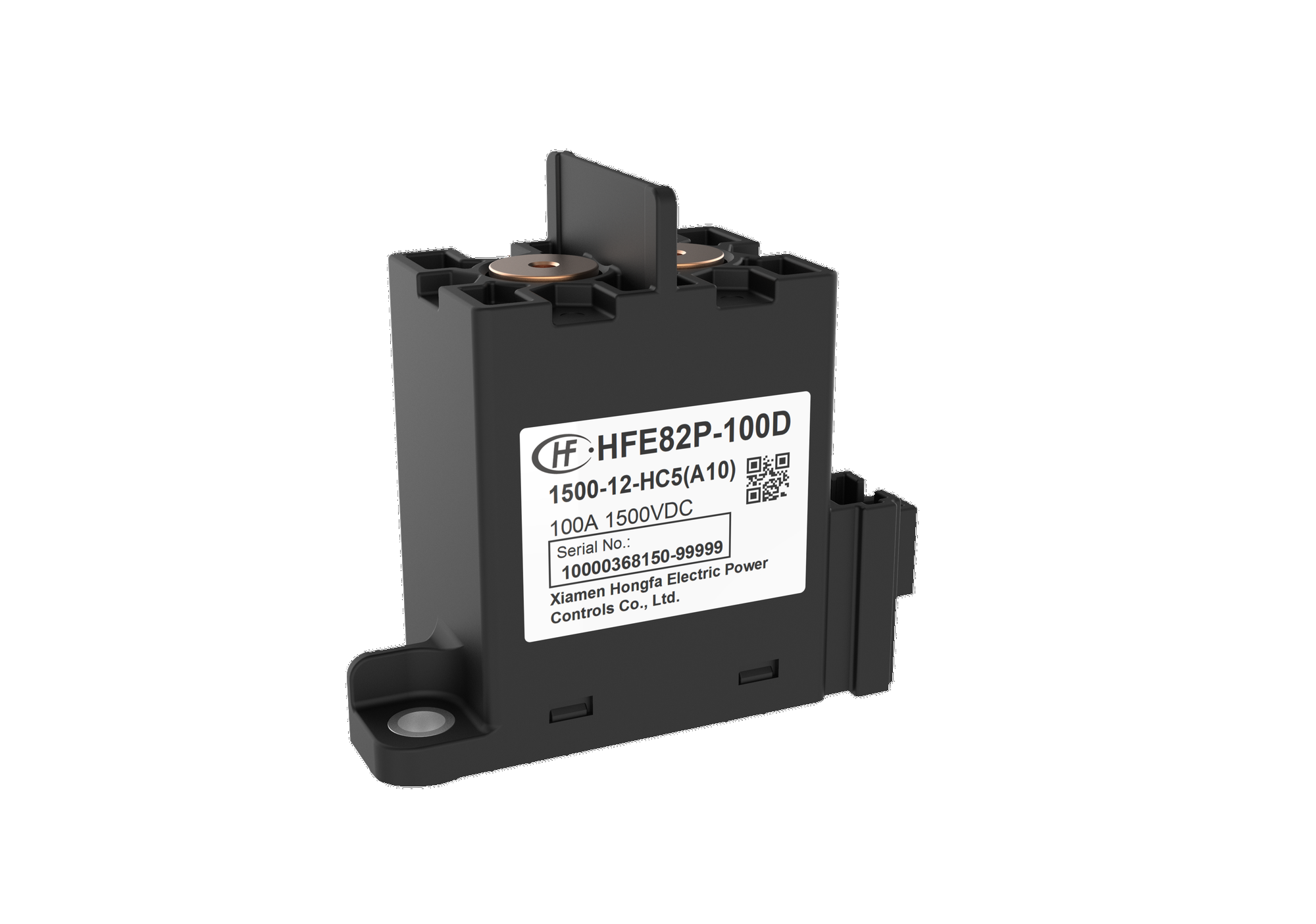

HFE82P-100D HONGFA High Voltage DC Contactor 1000V 100A

No.HFE82P-100D

HFE82P-100D HONGFA high voltage DC contactor, 1000VDC, 100A, 1 Form A, coil dc12v. Suitable for EV, energy storage and DC charging. Datasheet on request.

Variations

Edit selections

Coil Voltage: DC12V

DC12V

Select variations and quantity

Coil Voltage: DC12V

The min. inquiry quantity is 0. Add 0 more to continue.

DC12V

Subtotal

GET A QUOTE

Add to Quote List View Quote List

Download

View all downloads

Description

HFE82P-100D — 1000 VDC / 100A High Voltage DC Contactor

✅ 1000 VDC · 100A | ✅ 600A 1 op Breaking | ✅ DC12V / DC24V Coil

Technical Specifications

Parameter	Value
Model	HFE82P-100D
Contact Arrangement	1 Form A (SPST-NO)
Contact Rating	100A continuous carry at 85°C
Load Voltage	≤1000VDC
Max. Switching Voltage	1000 VDC
Max. Breaking Current	600A (450VDC) 1 op
Max. Switching Power	180kW
Contact Resistance	≤0.4mΩ (at 100A)
Coil Voltage	DC12V / DC24V
Operate / Release Time	≤30ms / ≤10ms (at rated voltage)
Endurance (Mech. / Elec.)	2×10⁵ ops / Breaking 5000 ops (30A 1000VDC); Making 1×10⁴ ops (100A 1000VDC)
Dielectric / Insulation	1000MΩ (1000VDC) · 3000VAC 1min contact–coil · 3000VAC 1min open contacts
Sealing / Ambient	IP67 ceramic hermetic seal, H₂-filled · -40°C to +85°C · 5%–85% RH
Terminal / Dimensions / Weight	M4 internal thread · 64.0 × 33.0 × 54.45mm · Approx. 160±20g
Certification	RoHS · IEC 60664-1

Values taken from the official HONGFA HFE82P-100B datasheet (2026 Rev.1.00), the closest published version to HFE82P-100D. Confirm the -100D specific ratings before ordering.

Ordering & Factory Info

Item	Detail
Brand / Origin	HONGFA · Xiamen, China
MOQ & Lead Time	1 pc for sample · typically 7–15 days (confirm with sales)
Payment & Warranty	T/T, PayPal, Trade Assurance · 1 year warranty

Need more than a quote? Ask us for full data or a cross-reference for HFE82P-100D.
