| Parameter | Value |
|---|

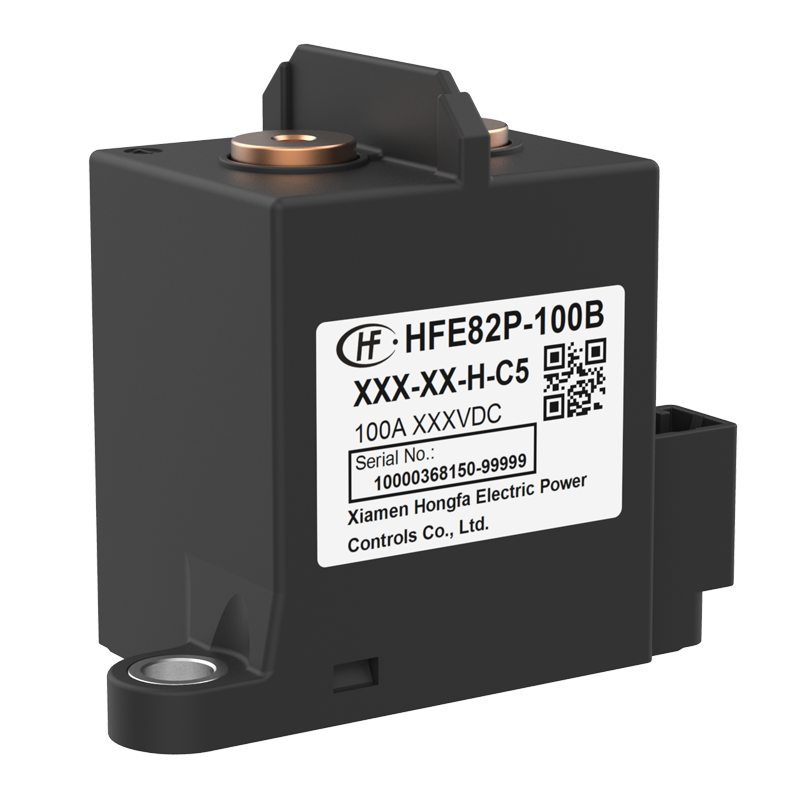

| Model | HFE82P-100B |
| Contact Arrangement | 1 Form A (SPST-NO) |
| Contact Rating | 100A continuous (at 85°C, ≥35 mm² cable) |
| Load Voltage | 1000VDC |
| Max. Switching Voltage | 1000VDC |
| Max. Breaking Current | 600A (450VDC, 1 op) · Short-circuit 4000A / 5 ms, no fire or explosion |
| Contact Resistance | ≤1 mΩ (at 100A) |
| Coil Voltage | 12VDC / 24VDC |
| Operate / Release Time | ≤30ms / ≤10ms (at rated voltage) |
| Endurance (Mech. / Elec.) | 2×10⁵ ops / Making 1×10⁴ ops (1000VDC, 100A) · Switching 5×10³ ops (1000VDC, 30A) · Breaking 50 ops (450VDC, 200A) |
| Dielectric / Insulation | 3000VAC 1min (coil–contacts) · 3000VAC 1min (open contacts) · 1000MΩ (1000VDC) |
| Sealing / Ambient | Gas-filled sealed contact chamber · IP67 · -40°C ~ +85°C |
| Terminal / Dimensions / Weight | M4 female screw terminal (load) · coil connector · 64.0 × 33.0 × 54.45 mm · Approx. 160 g |
| Certification | RoHS |
