| Parameter | Value |
|---|---|

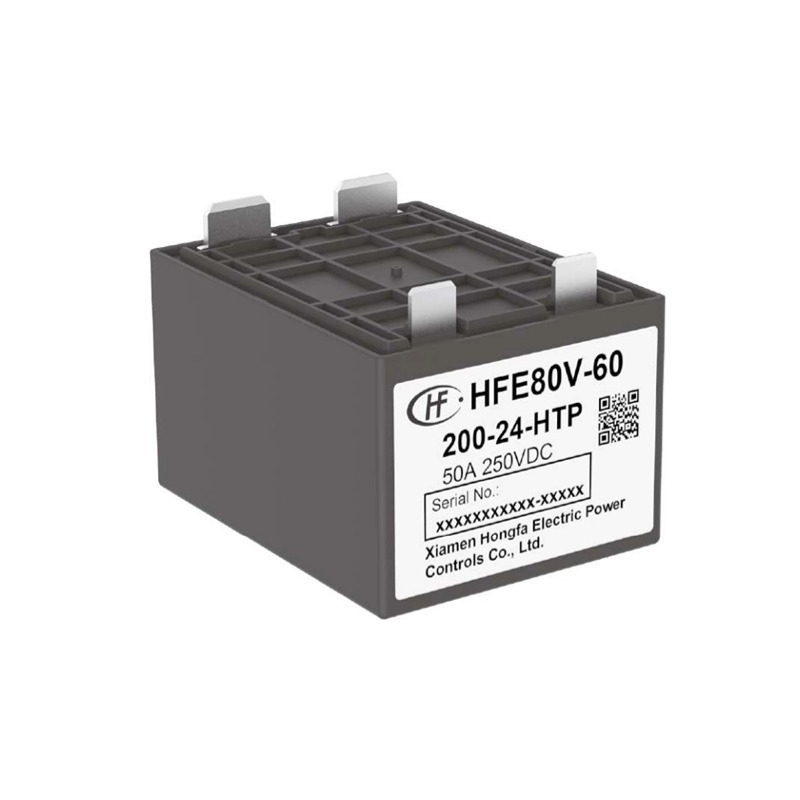

| Model | HFE80V-60 (HONGFA) |
| Designed Application | Vehicle systems (code V) |
| Contact Arrangement | 1 Form A |
| Contact Rating (Ie) | 60A |
| Contact Resistance (initial) | ≤ 1.5 mΩ (at 20A) |
| Max Switching Voltage | 250VDC |
| Max Breaking Current | 100A |
| Max Switching Power | 32kW |
| Electrical Endurance | 100,000 ops (12VDC/60A) · 50,000 (48VDC/60A) · 10,000 (150VDC/60A) · 5,000 (200VDC/60A) |
| Current Carrying Capacity | 60A continuous · 90A/12min · 180A/15s · 600A/1s |
| Mechanical Endurance | 2 × 10⁵ ops |
| Coil Voltage / Power | 12VDC or 24VDC · 3W (pick-up ≤9V / ≤18V, drop-out ≥1V / ≥2V) |
| Insulation / Dielectric | 1000MΩ (500VDC) · 3000VAC 1min (coil–contacts) · 2000VAC 1min (open contacts) |
| Operate / Release Time | ≤ 30ms / ≤ 10ms (at rated voltage) |
| Shock / Vibration Resistance | 196 m/s² functional · 490 m/s² destructive · 10–500Hz 49 m/s² |
| Ambient Conditions | -40°C ~ +85°C · 5%–85% RH |
| Contact Material / Terminal | AgSnO₂ · PCB terminal |

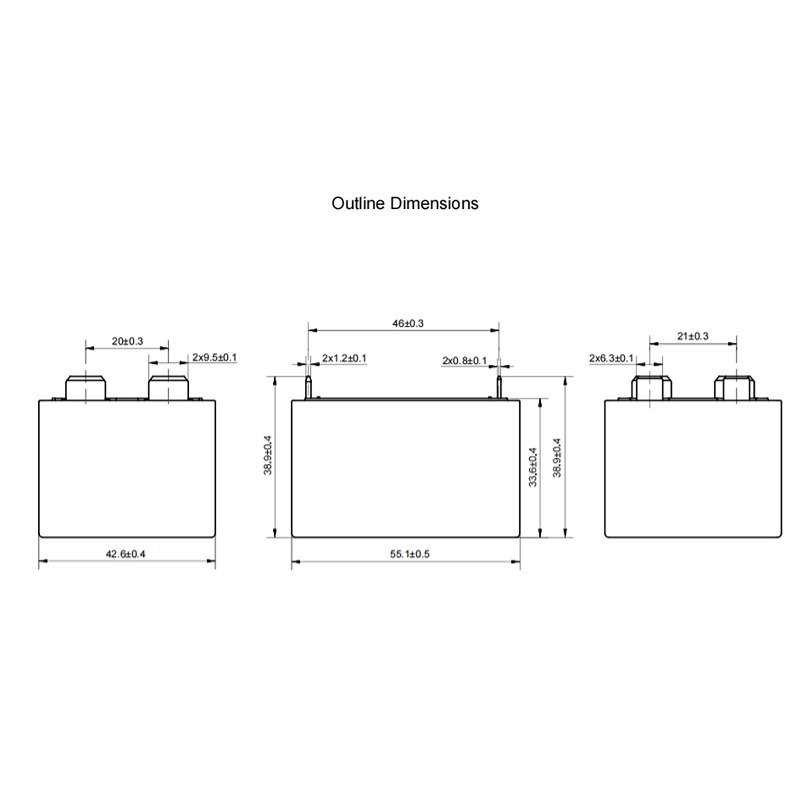

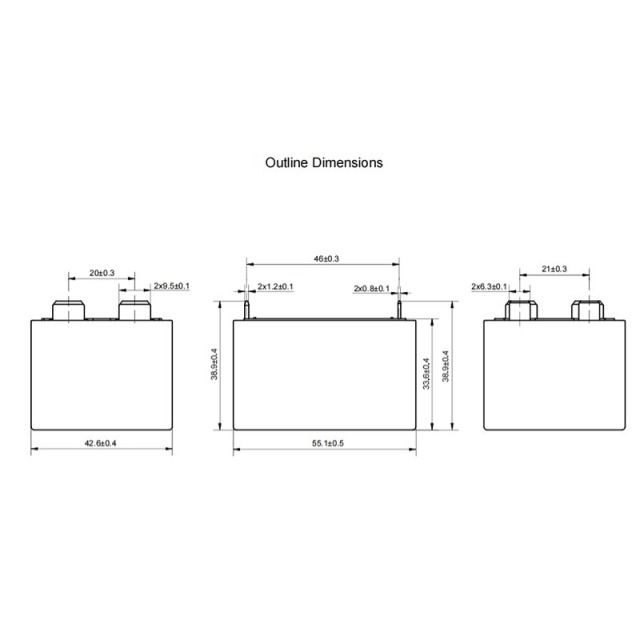

| Dimensions / Weight | 76.6 × 55.1 × 49.6 mm incl. terminals (body 55.1 × 42.6 × 38.9 mm) · approx. 200 g |
| Certification | UL · CUL · VDE · TÜV · CQC |
| Warranty | 1 year |
| Advantage | Benefit for Your Application |
|---|---|
| ✅ 200VDC / 60A Rating | Covers 48V / 72V / 150V / 200V DC bus systems at 60A — a compact step up from 80V-class relays for vehicle and light-traction loads. |
| ✅ Ceramic Brazed Seal | Ceramic–copper–silver hermetic construction with 1000MΩ insulation resistance — stable in dust, moisture and thermal-cycling vehicle environments. |
| ✅ 100A Breaking / 32kW Switching | Handles overload and fault events up to 100A — plus 600A/1s short-time carrying capacity for inrush and fuse-clearing conditions. |
| ✅ Only 3W Coil Power | Low coil consumption (12V or 24V, 3W) — easy on battery-powered systems, no economizer module required; ≤30ms operate time. |
| ✅ Long Electrical Life | Up to 100,000 operations at rated load (12VDC/60A) and 200,000 mechanical operations — low maintenance over vehicle service life. |
| ✅ Vehicle-Grade & Certified | Vehicle-application design (code V) with AgSnO₂ contacts, PCB terminal for direct board mounting, and UL/CUL/VDE/TÜV/CQC certification. |
UL · CUL · VDE · TÜV · CQC (per HONGFA manufacturer specifications) — certification documents and test reports available on request.
 Electric & Industrial Vehicles Forklifts · Pallet trucks · AGV · Golf carts · Light EVs · Battery packs |  DC Charging Equipment Chargers · DC charging piles · Group charging · Charging modules |
 Energy Storage System Utility-scale ESS · C&I storage · Residential storage · Battery cabinets |  Frequency Conversion Equipment Frequency converters · PCS · Rectifier power supplies |
| Item | Detail |
|---|---|
| Brand / Origin | HONGFA (Xiamen Hongfa Electric Power Controls Co., Ltd.) · China |

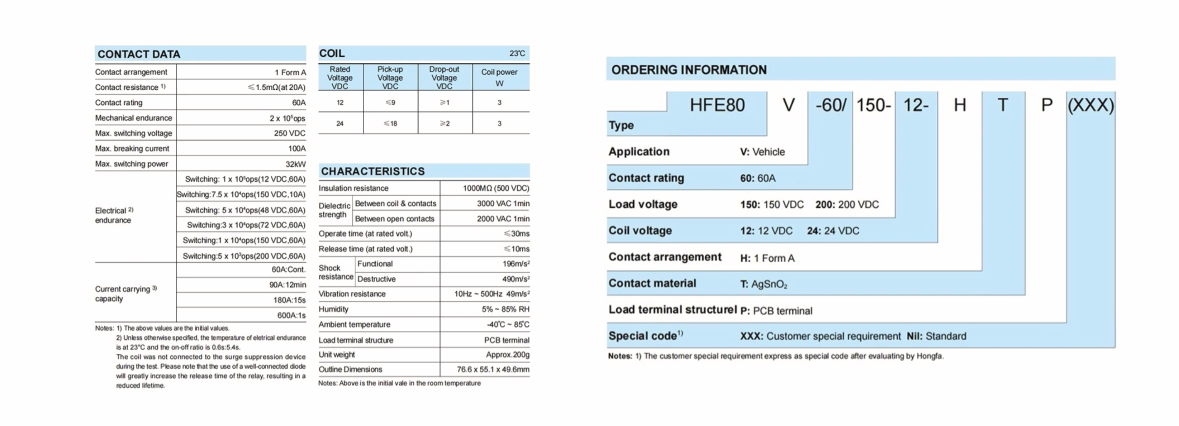

| Ordering Code | HFE80V-60/200-24-HTP (200VDC load · 24VDC coil · 1 Form A · AgSnO₂ contacts · PCB terminal; 12V coil and 150VDC load versions available per ordering rules) |
| MOQ | Flexible — contact sales for sample & volume pricing |
| Lead Time | Typically 7–15 days (confirm with sales) |
| Payment | T/T, Trade Assurance, etc. (confirm with sales) |
| Customization | Load voltage (150/200VDC), coil voltage (12/24VDC), contact arrangement and customer special code (XXX) per HONGFA ordering rules — available on request |
| Warranty | 1 year |
Q1. What is the rated voltage and current?
A: Max switching voltage 250VDC with 60A continuous contact rating and 32kW max switching power — designed for 48V–200V DC circuits in vehicle and industrial systems.
Q2. Which coil voltages are available?
A: 12VDC and 24VDC (pick-up ≤9V / ≤18V), both consuming only 3W — suitable for direct battery-powered control without an economizer.
Q3. Is it hermetically sealed?
A: Yes. Ceramic brazed seal with ceramic–copper–silver construction provides gas-tight sealing, 1000MΩ insulation resistance (500VDC) and 3000VAC dielectric strength between coil and contacts.
Q4. What is the service life?
A: Electrical endurance up to 100,000 operations at 12VDC/60A (5,000 ops at 200VDC/60A); mechanical life 200,000 operations. It withstands 600A for 1s and breaks up to 100A under fault conditions.
Q5. Which certifications does it carry?
A: UL, CUL, VDE, TÜV and CQC per HONGFA specifications. Contact our sales team for the certificate list and latest test reports.
Q6. What are the MOQ, lead time and customization options?
A: MOQ is flexible for samples and trial orders; standard lead time is typically 7–15 days. Load voltage, coil voltage, terminal structure and customer special codes can be customized per the HONGFA ordering code system.
