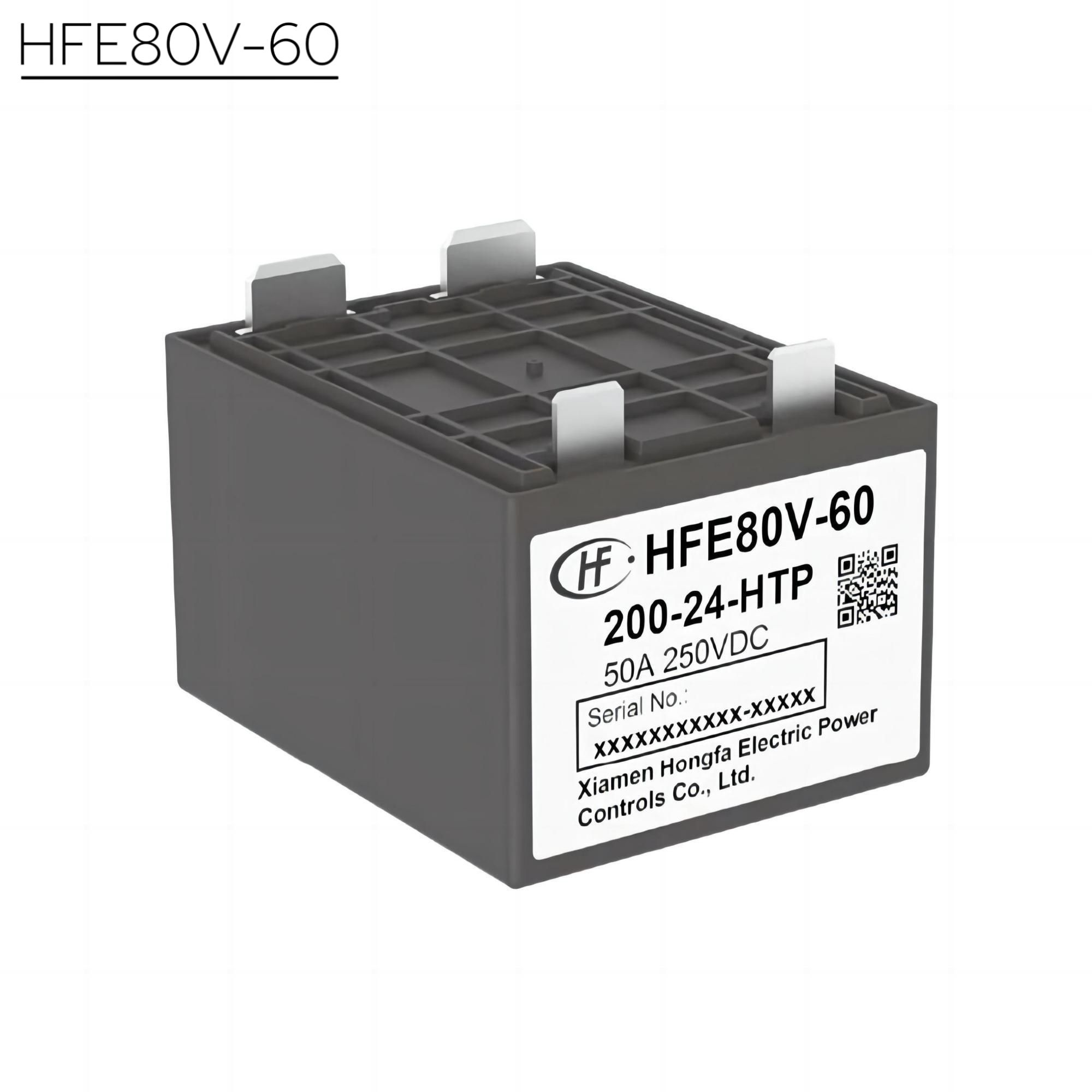

HFE80V-60 HONGFA High voltage DC Contactor 250V 60A
Product Detail Reference
Modle Paramenter name | HFE80V-60 | |
Rated current | 60A | |
Rated voltage | DC12～750V | |
Insulation voltage | ≤0.5mΩ(at 250A) | |
Number of poles | Single pole | |
Type of circuit | DC | |
Mechanical life | 200,000times | |
Electrical endurance | Making | / |
Switching | 100000ops | |
Maximum breaking current | 100SA | |
Operate time (at rated volt.) | ≤30ms | |
Release time (at rated volt.) | ≤10ms | |
Insulation resistance | ≥1000MΩ(1000 VDC） | |
Withstand voltage | Between coil & contacts | 3000 VAC 1min |
Between open contacts | 2000 VAC 1min | |
Rated control voltage Uc | Rated control voltage：DC12V/24V | |
Max. switching power | 32kW | |
Max. switching voltage | 250 VDC | |
Workplace Temperature | （-40ºC ~ 85ºC） | |
Shock | Functional | 196m/s2 |
Destructive | 490m/s2 | |

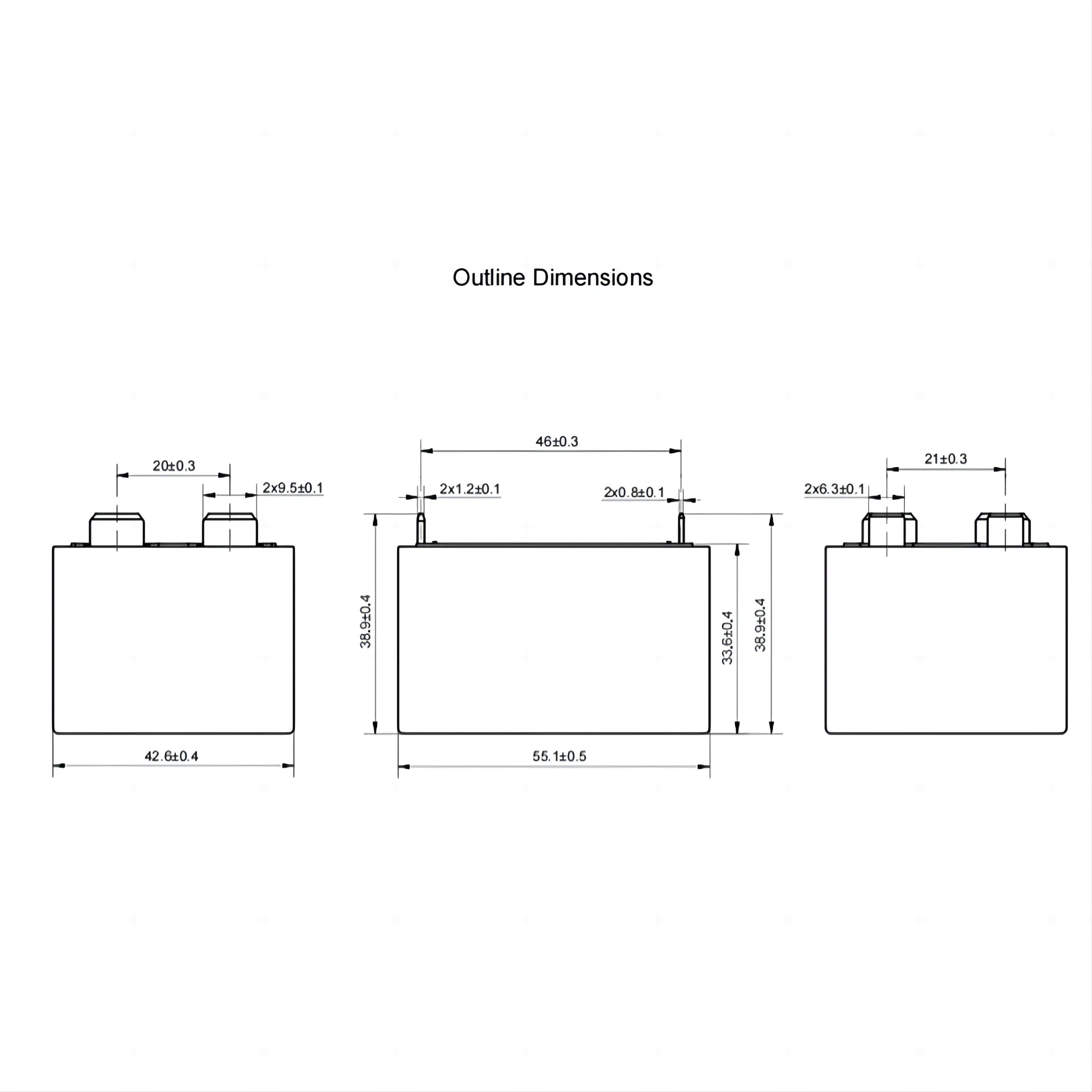

Product Dimension Drawing
