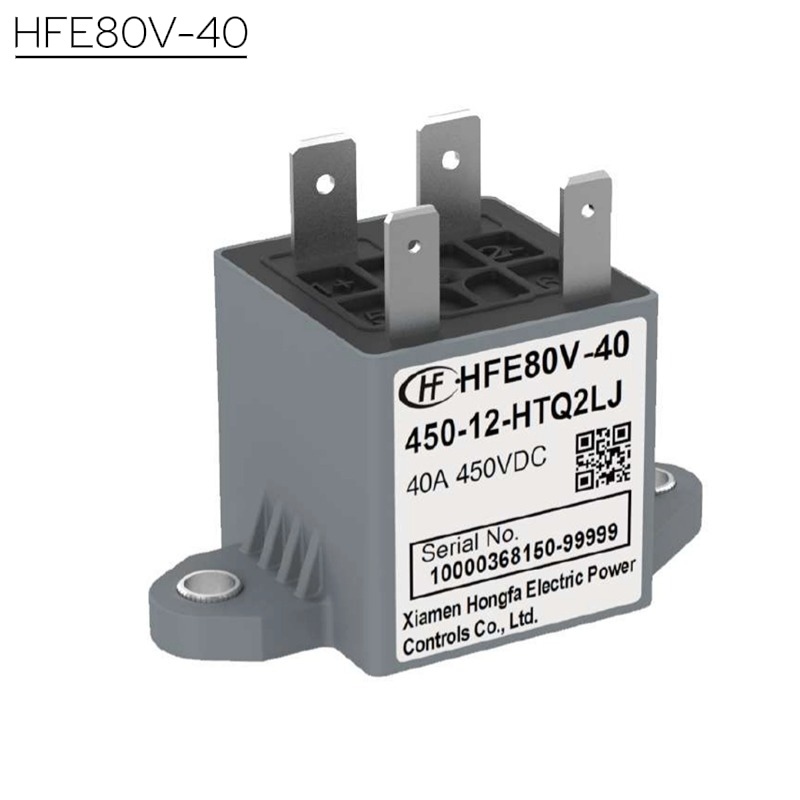

HFE80V-40 HONGFA DC Contactor 750V 40A
Product Detail Reference
Modle Paramenter name | HFE80V-40 | |
Rated current | 40A | |
Rated voltage | DC12～750V | |
Insulation voltage | ≤0.5mΩ(at 250A) | |
Number of poles | Single pole | |
Type of circuit | DC | |
Mechanical life | 200,000times | |
Electrical endurance | Making | / |
Switching | 3000ops | |
Maximum breaking current | 50A | |
Operate time (at rated volt.) | ≤30ms | |
Release time (at rated volt.) | ≤10ms | |
Insulation resistance | ≥1000MΩ(1000 VDC） | |
Withstand voltage | Between coil & contacts | 3000 VAC 1min |
Between open contacts | 2000 VAC 1min | |
Rated control voltage Uc | Rated control voltage：DC12V/24V | |
Max. switching power | 27kW | |
Max. switching voltage | 750 VDC | |
Workplace Temperature | （-40ºC ~ 85ºC） | |
Shock | Functional | 196m/s2 |
Destructive | 490m/s2 | |

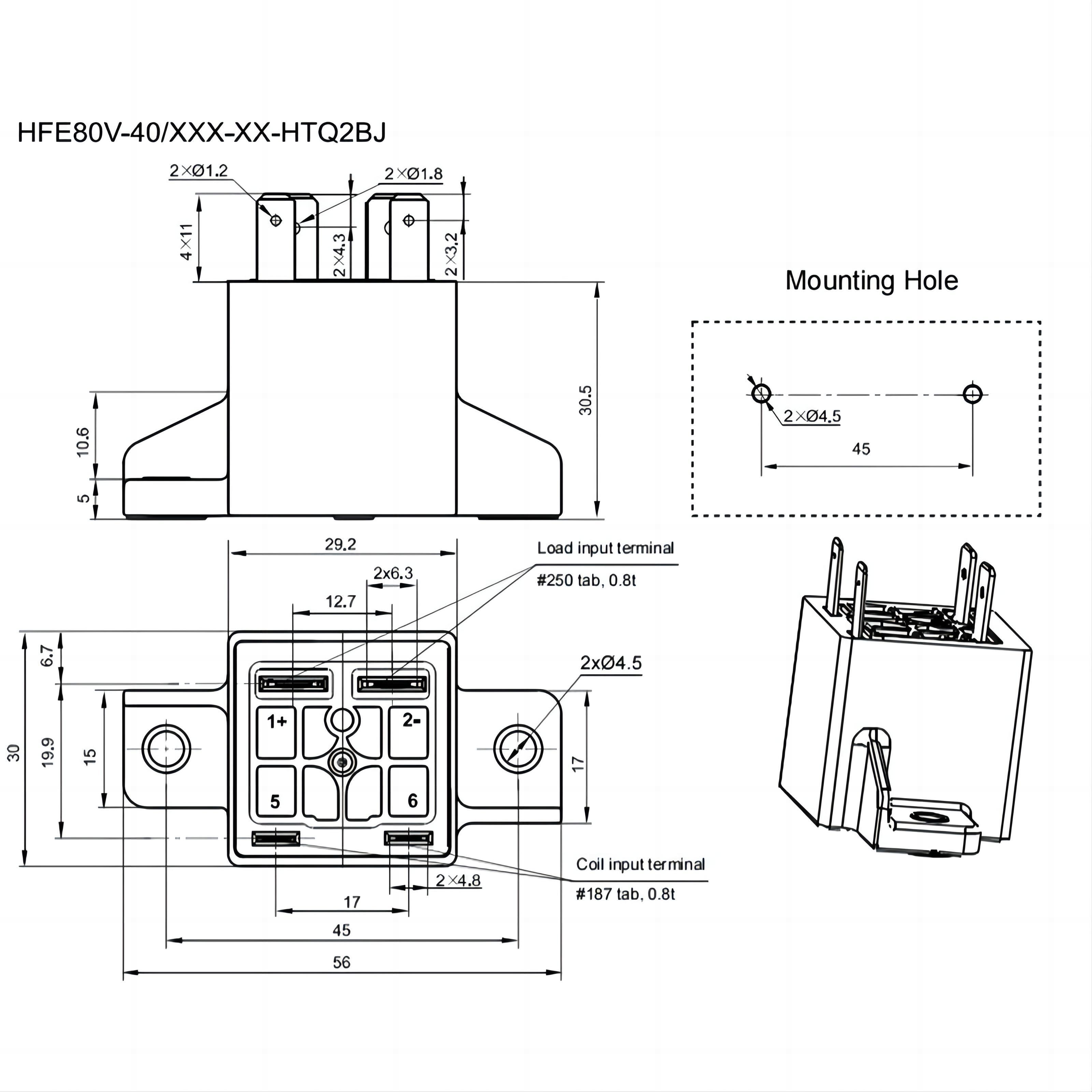

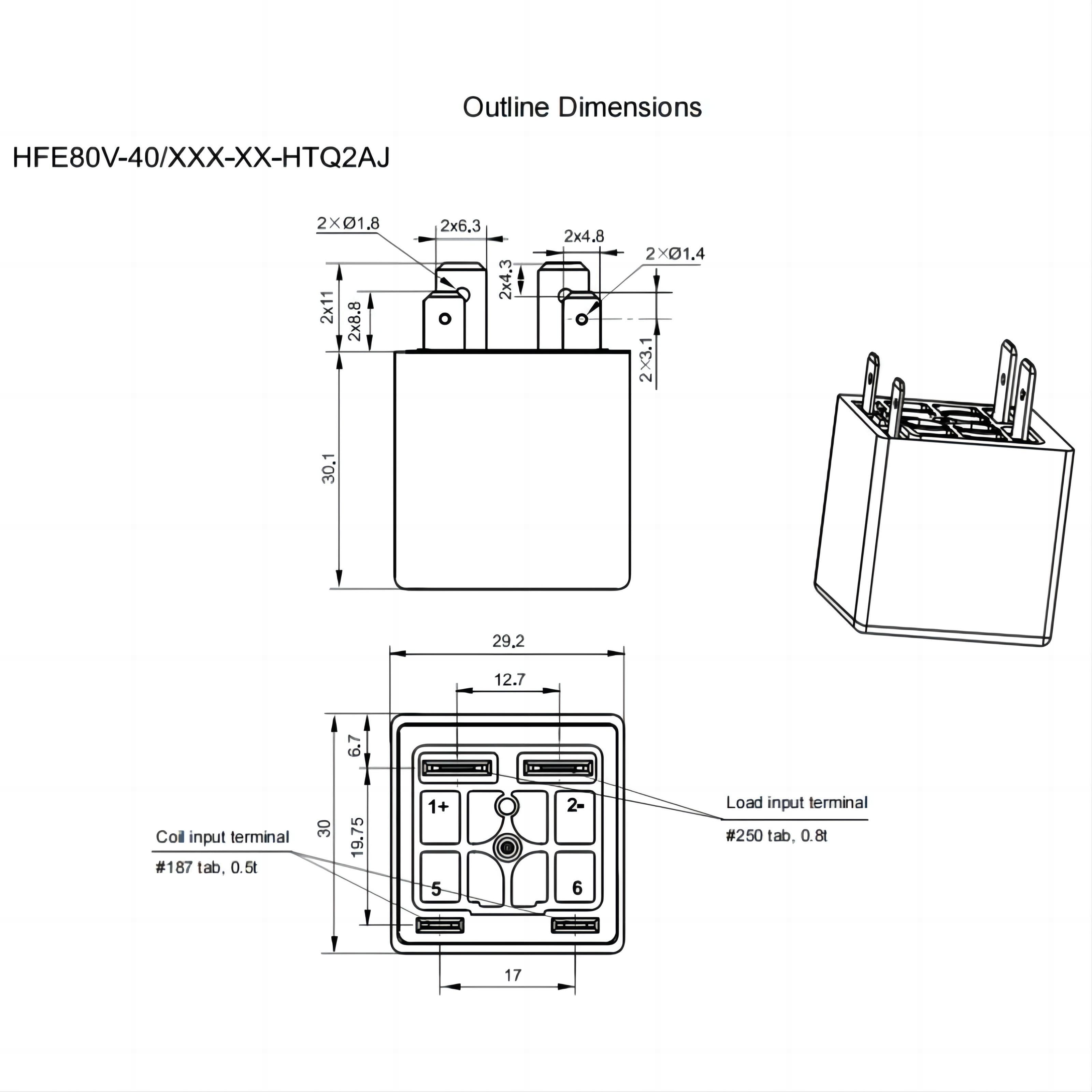

Product Dimension Drawing
