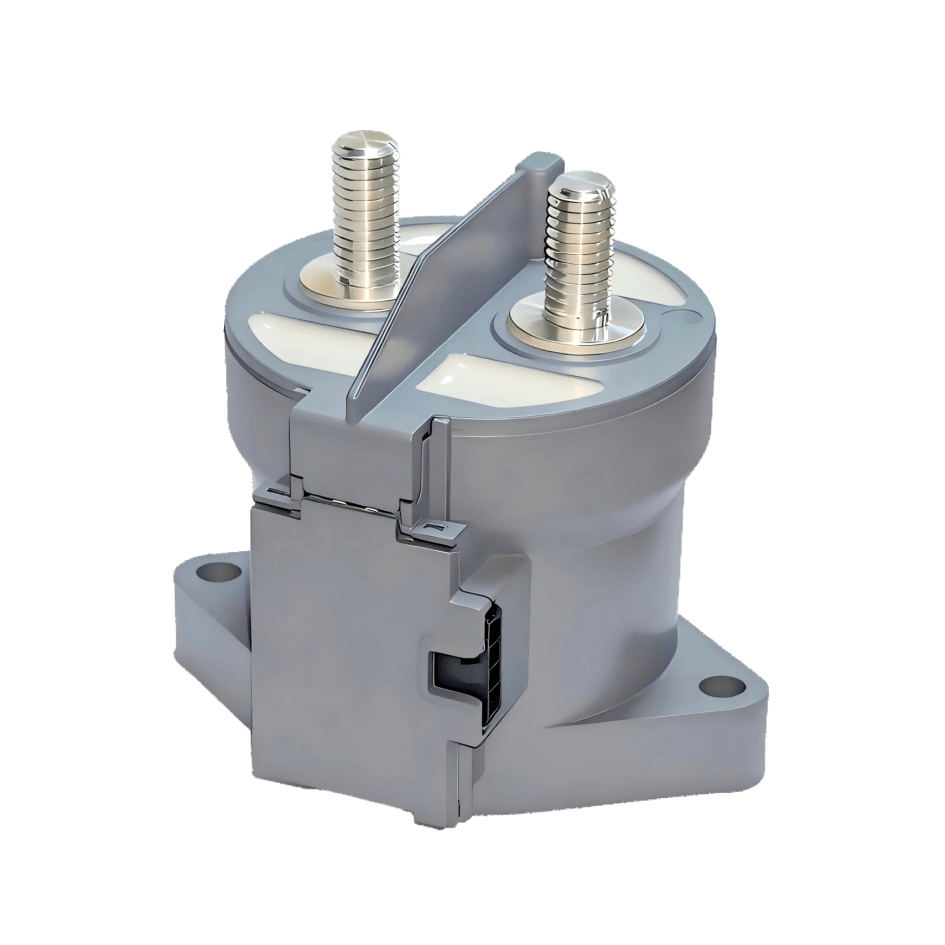

EVQ5K-250 — 1500VDC / 250A High Voltage DC Contactor
✅ 1500VDC · 250A | ✅ SPST-NO-DM Main Contact | ✅ DC12V / DC24V / DC48V Coil
Technical Specifications
| Parameter | Value |
|---|
| Model | EVQ5K-250 |
| Rated Current | 250A |
| Max. Switching Voltage | 1500VDC |
| Coil Voltage Options | DC12V / DC24V / DC48V |
| Power Contact Arrangement | SPST-NO-DM |
| Auxiliary Contact | SPST-NO / SPST-NC / None |
| Coil Characteristic | Single coil, TVS, quick-connect |
| Load Termination | External thread (M8) |
| Mounting Type | Bottom |
| Certification | CCC, CE, TÜV |
Values per ALQ official specifications for EVQ5K-250.
Ordering & Factory Info
| Item | Detail |
|---|
| Brand / Origin | ALQ · China |
| MOQ & Lead Time | 1 pc for sample · typically 7–15 days (confirm with sales) |
| Payment & Warranty | T/T, PayPal, Trade Assurance · 1 year warranty |
Need more than a quote? Ask us for full data or a cross-reference for EVQ5K-250.
