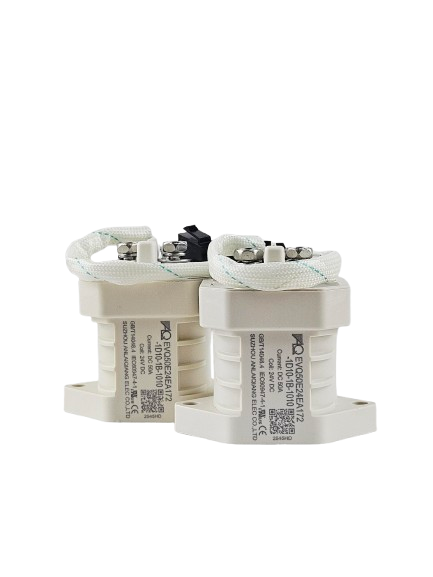

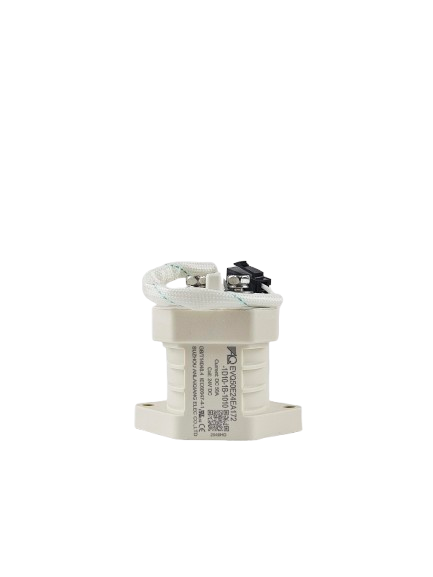

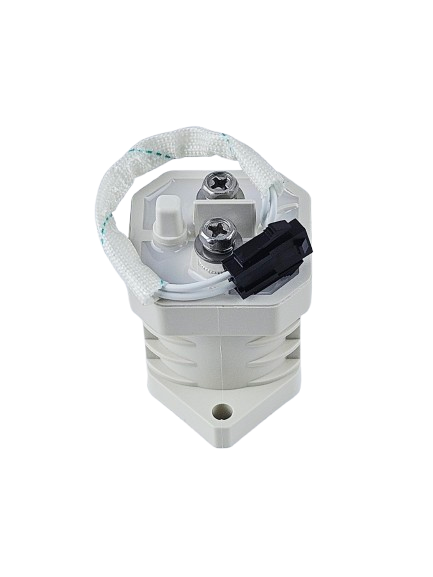

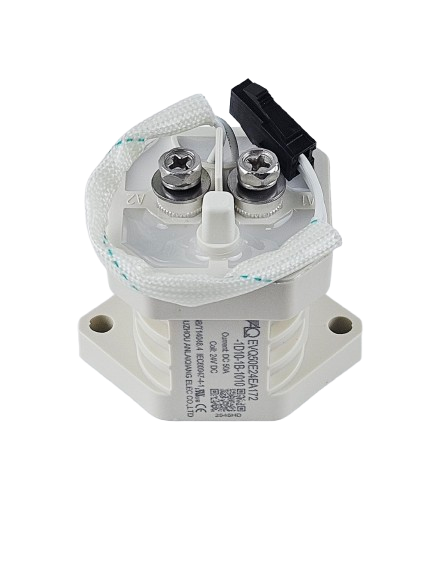

EVQ50 DC Contactor Single Pole 50A ALQ Electrical Accessory for Automatic Car


                                        Modle Paramenter name

EVQ50

Rated current

50A

Rated voltage

DC450V、DC750V

Insulation voltage

≥100MΩ DC1000V

Number of poles

Single pole

Type of circuit

DC

Mechanical life

200,000 times

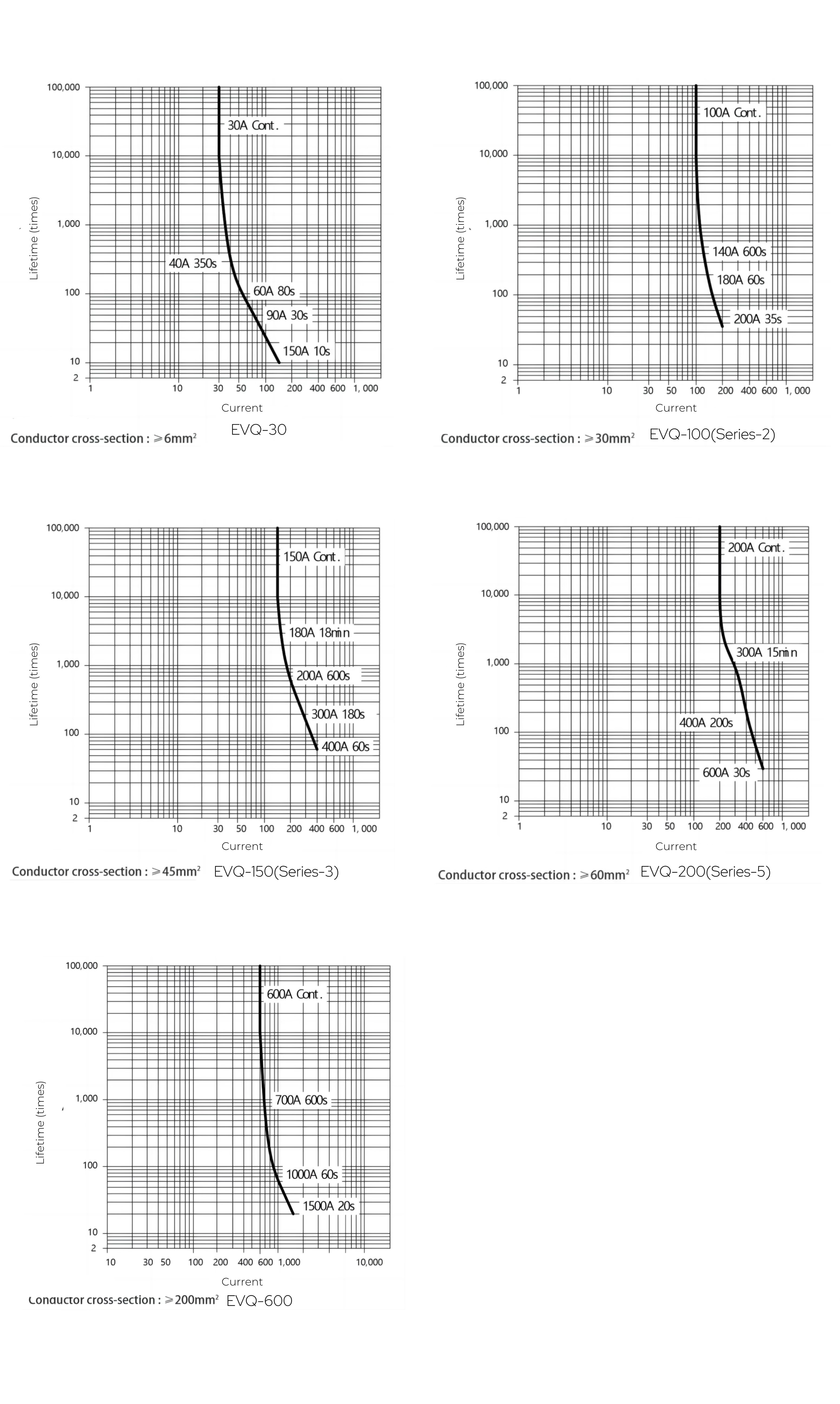

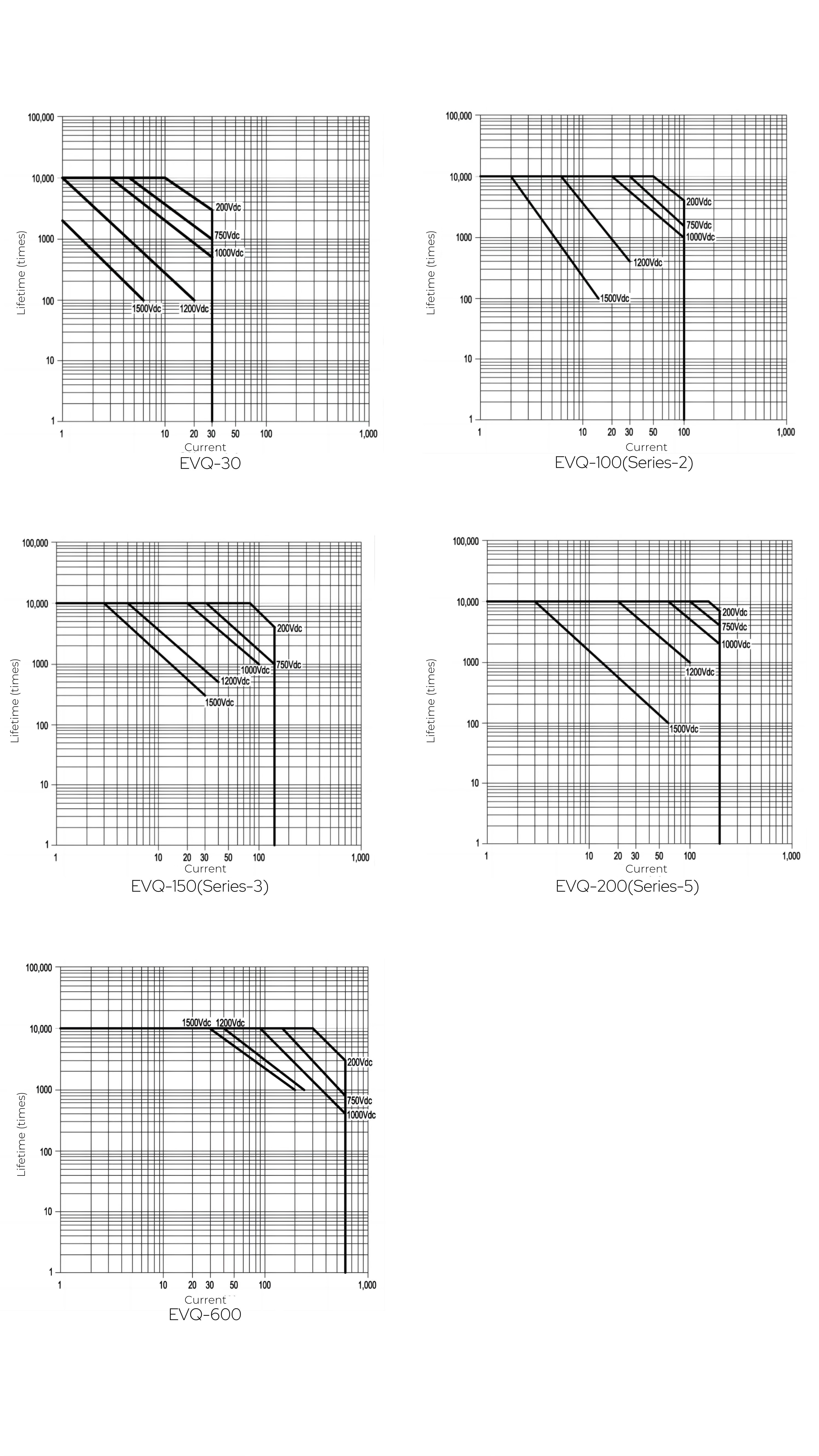

Electrical life(Switching Rating ,ON : OFF=1s:9s)

DV750V

5A,1200times

DV1000V

20A,400times

Maximum breaking current

300A 320Vdc

Shot-circuit withstand current

150A 10sec

Insulation resistance

100MΩ DC1000V

Withstand voltage

AC 3500 Vrms/10mA 60s

Rated control voltage Uc

Rated control voltage：DC12V/DC24V
Holding Voltage：Us85%Min
Drop-out voltage：Us10%Min

Contact Arrangement

（SPST-NO-DM）

Media type when cutting-of

Inactive gas

Auxiliary contact type

Without

Workplace Temperature

（-40℃～+85℃）

Dielectric Strength

Between open contact

AC 3500 Vrms/10mA/1min

Between Contacts and Co
