| Parameter | Value |
|---|

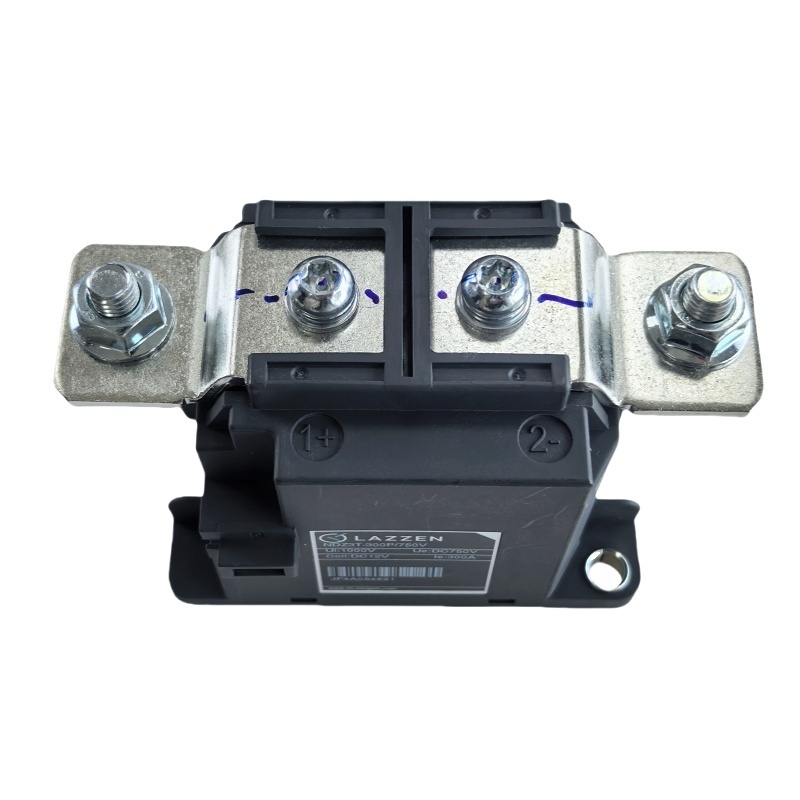

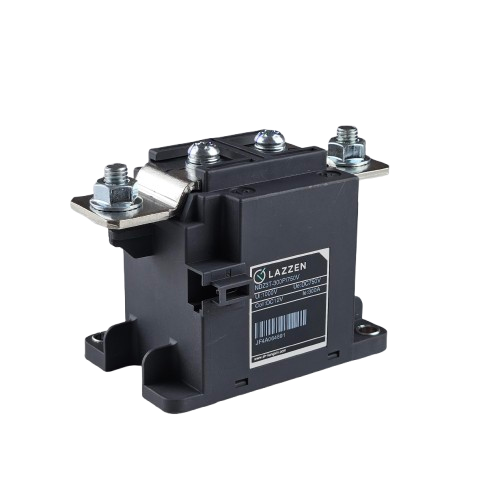

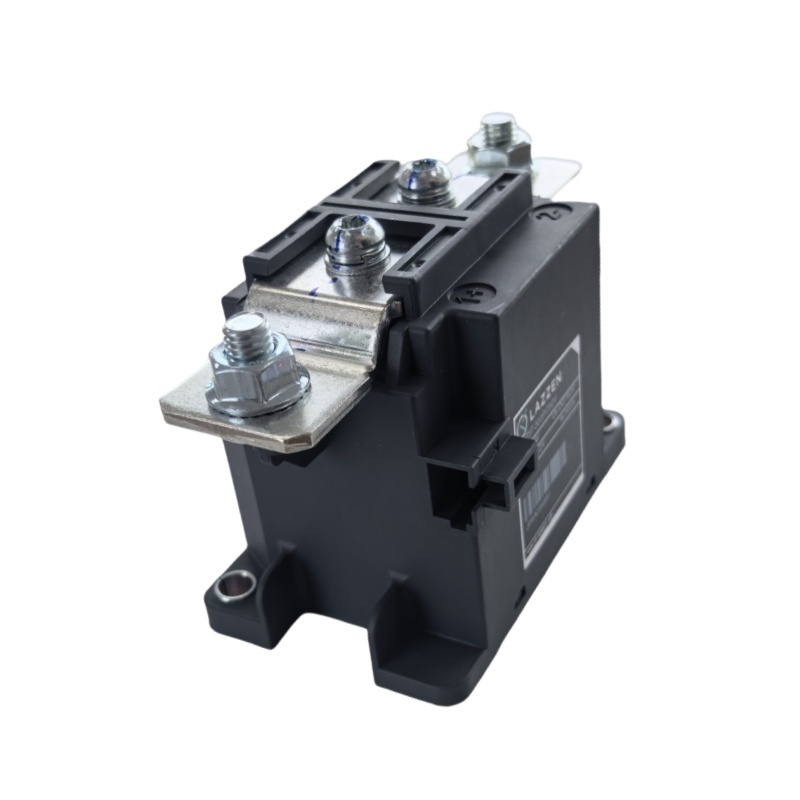

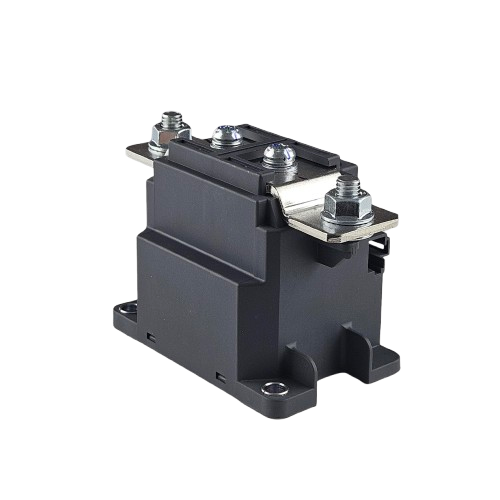

| Model | NDZ3T-300P |
| Contact Arrangement | 1 Form A (1NO) |
| Contact Rating | 300A continuous · 3000A / 600ms short-time withstand |
| Load Voltage | DC12 ~ DC1000V |
| Max. Breaking Current | DC600V 2500A once |
| Contact Resistance | ≤0.2 mΩ (at 300A) |
| Coil Voltage | DC12V / DC24V / DC48V (polarized) |
| Endurance (Mech. / Elec.) | 200,000 ops / 1,000 ops (DC750V, 300A) · 3,000 ops (DC500V, 300A) · 1,000 ops (DC500V, 300A) |
| Dielectric / Insulation | 1000 MΩ DC1000V · AC3000V 1min, leakage ≤1mA |
| Sealing / Ambient | Closing: 20 g, Opening: 10 g · 50 g · 5 g 10 – 500 Hz · 5% – 95% · Epoxy package |
| Terminal / Weight | ≈710 g without terminal block · ≈800 g with terminal block |
