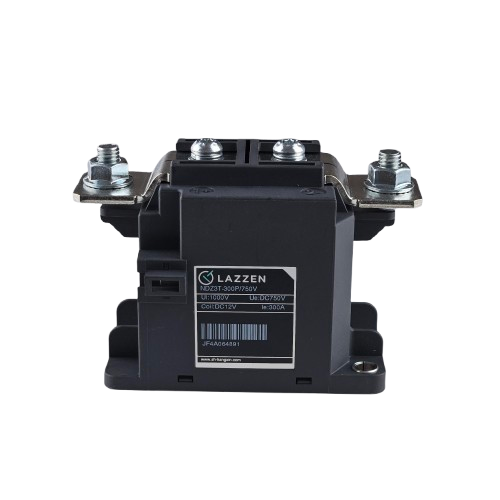

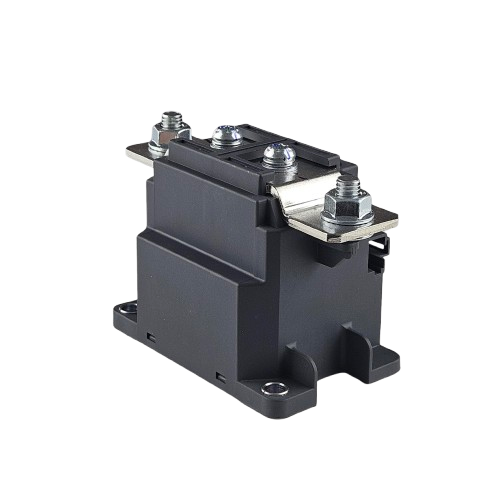

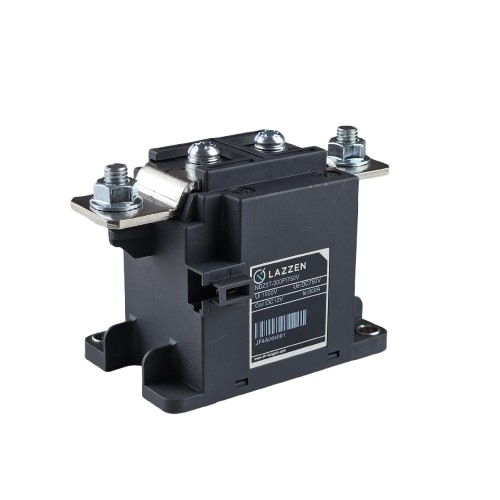

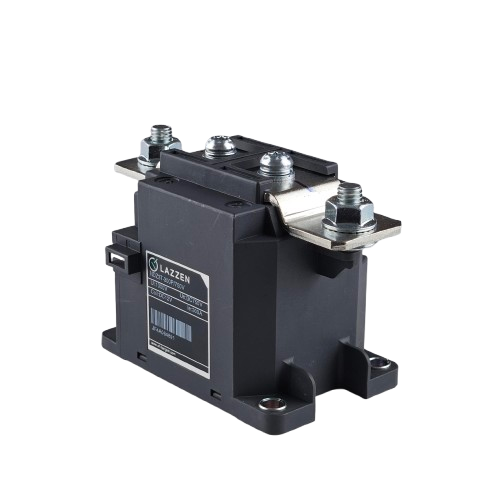

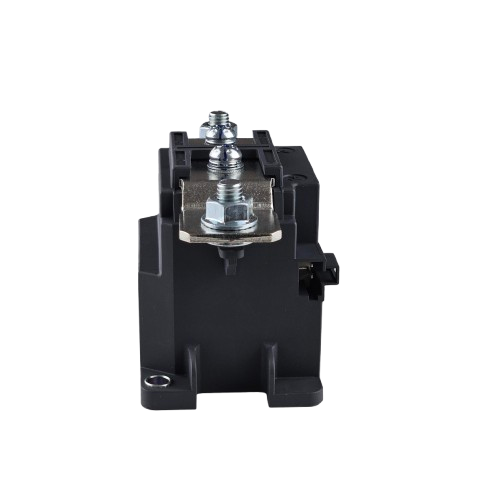

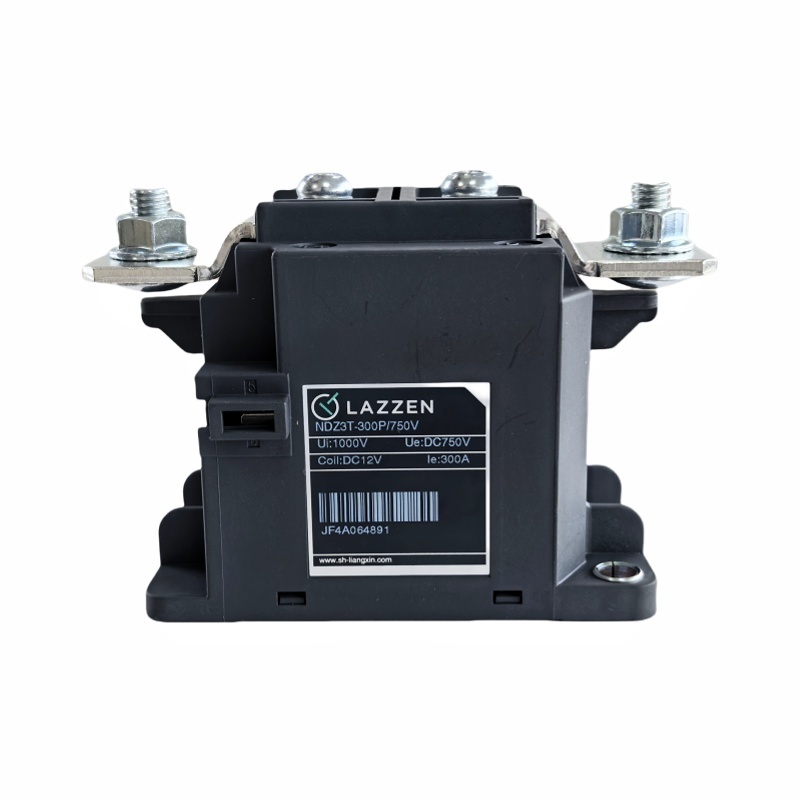

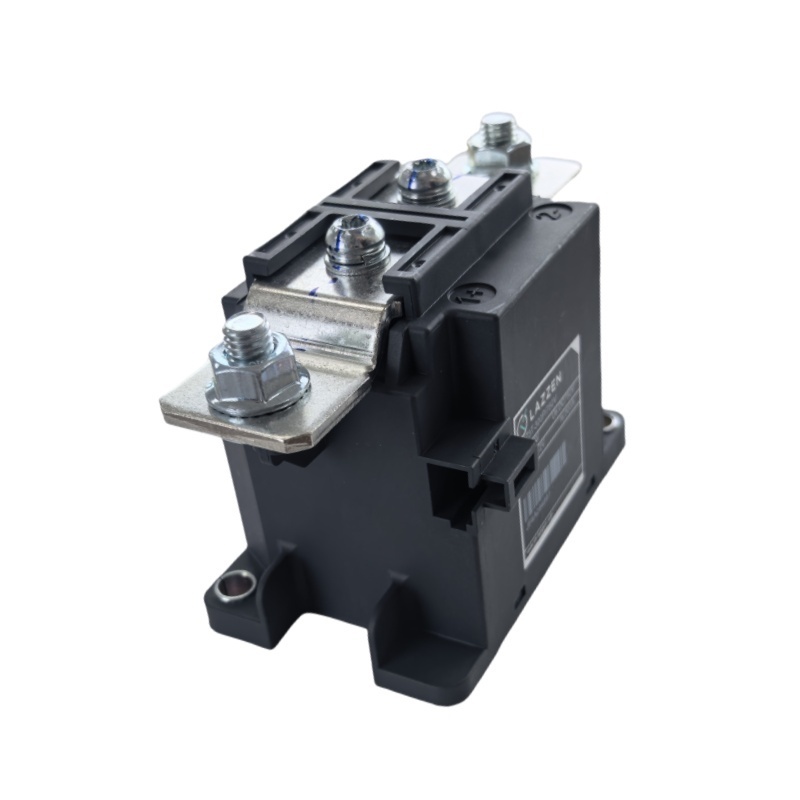

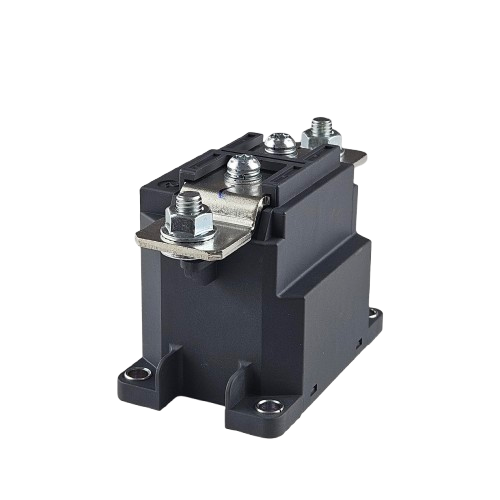

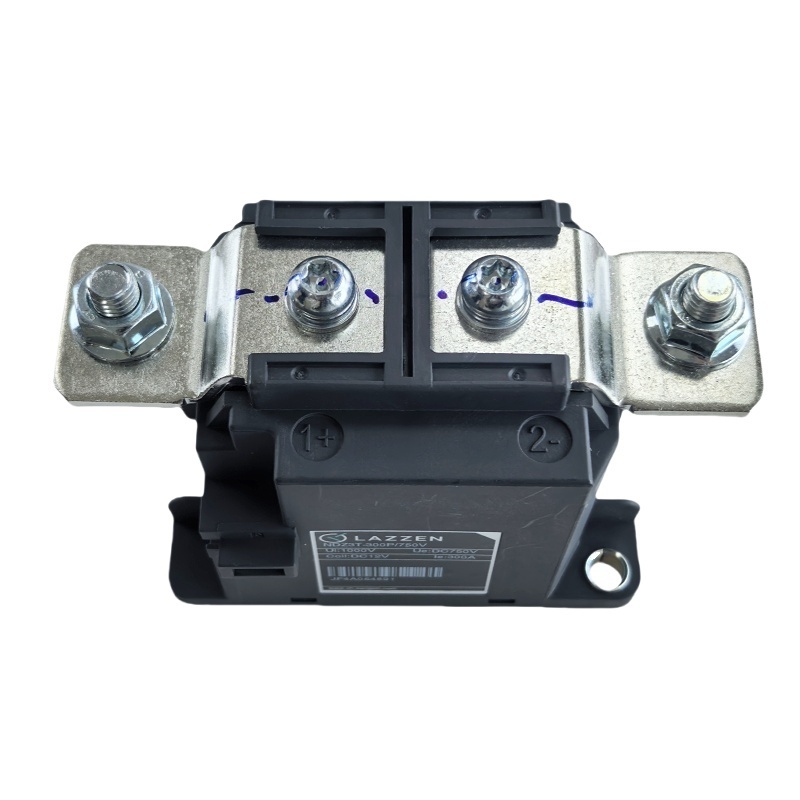

Product Name | NDZ3T-300P |
Main Contact Form | 1NO |
Operating Voltage Range | DC12 - 1000V |
Rated Operating Current | 300A |
Contact Resistance | ≤0.2mΩ (at 300A) |
Short - time Withstand Current | 3000A for 600ms, 300A continuous |
Mechanical Life | 200,000 cycles, 3600 cycles per hour |
Control Coil (20°C)Rated Voltage Uc | DC12V, DC24V, DC48V |
Auxiliary Contacts | Without |
Type | / |
Coil Polarity | Polariz |
Maximum Interrupting Current | DC600V 2500A once |
Insulation Resistance | 1000MΩ DC1000V |
Power - frequency Withstand Voltage | AC3000V for 60s, leakage current ≤1mA |
Electrical Life | DC750V 300A 1000 cycles DC500V 300A 3000 cycles DC500V - 300A 1000 cycles |
Impact Stability | Closing: 20g, Opening: 10g |
Impact Strength | 50g |
Vibration | 5g 10 - 500Hz |
Operating Humidity | 5% - 95% |
Weight | Approximately 800g with terminal block, approximately 710g without |
Certifications | CCC, CB, CE, TUV |
