| Parameter | Value |
|---|---|

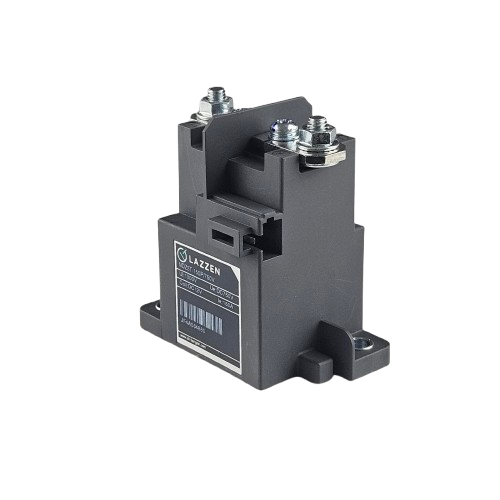

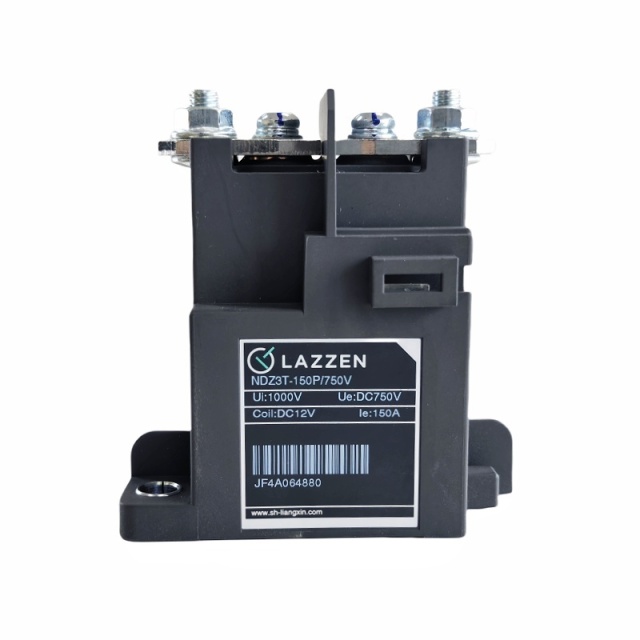

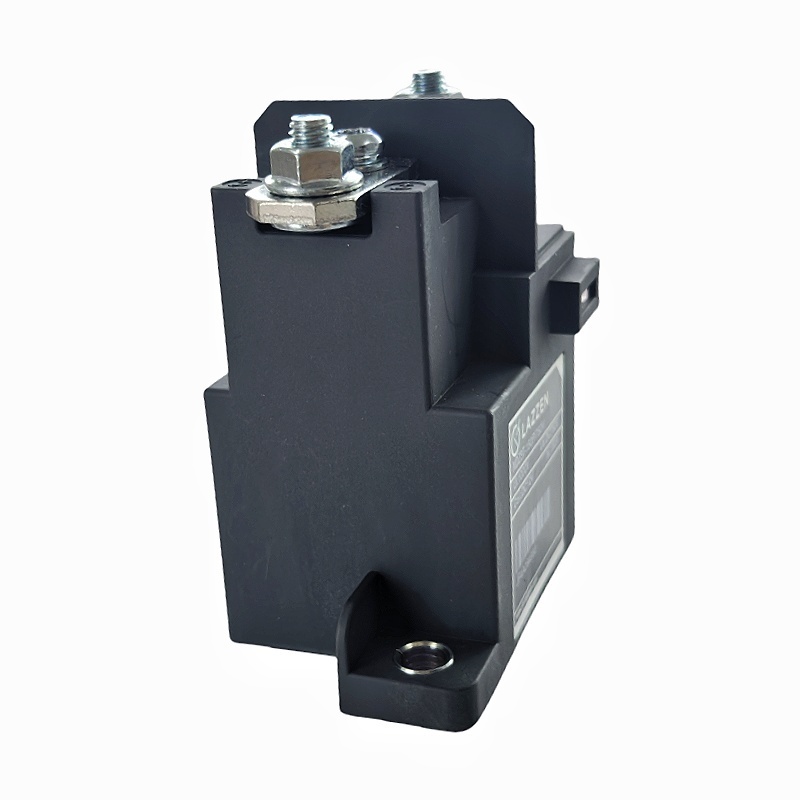

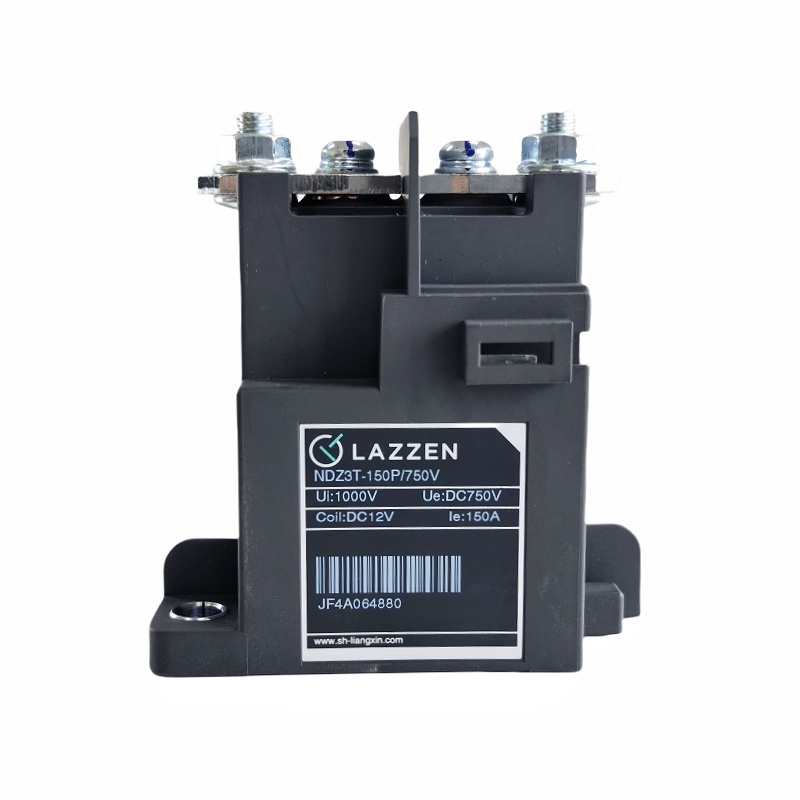

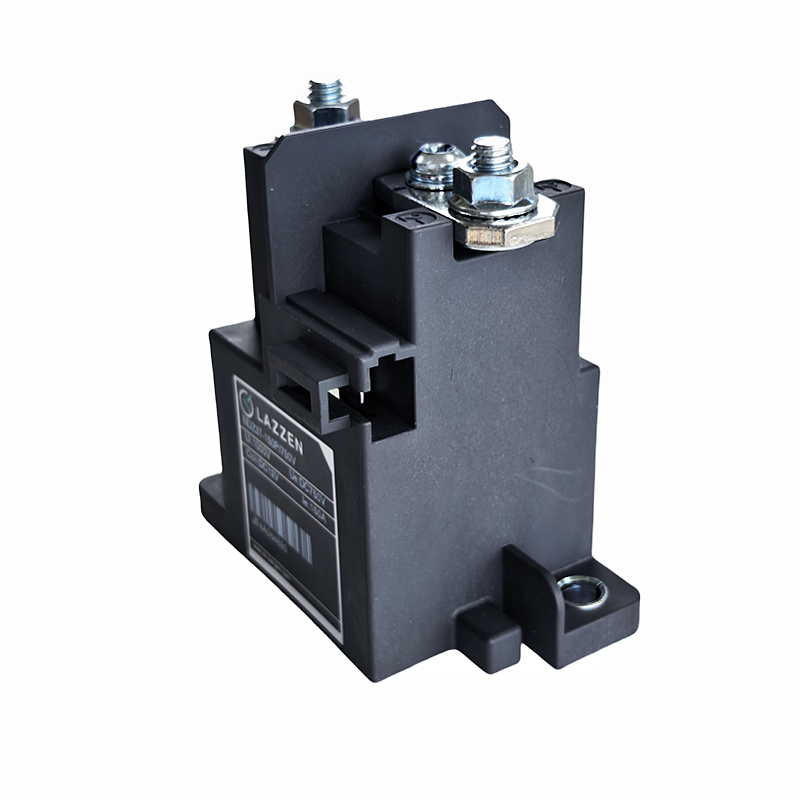

| Model | NDZ3T-150P |
| Contact Arrangement | 1 Form A (1NO) · auxiliary contact options: none / 1NO / 1NC / 1NC + 1NO (2A / DC30V) |
| Contact Rating | 150A continuous · 3750A / 30ms short-time withstand |
| Load Voltage | DC12 ~ DC750V |
| Max. Breaking Current | DC320V 2000A (1 op) |
| Contact Resistance | ≤5 mΩ (at 150A) |
| Coil Voltage | DC12V / DC24V (polarized) · operating range DC9 ~ DC36V |
| Endurance (Mech. / Elec.) | 1,000,000 ops (1,200 cycles/h) / 6,000 ops (DC500V, 300A) · 1,000 ops (DC750V, 150A) · 300 ops (DC1000V, 300A) · 10 ops (DC1000V, 300A) |
| Dielectric / Insulation | 100 MΩ (DC500V) · AC3500V 1min, leakage ≤1mA |
| Sealing / Ambient | shock 30 g closed / 20 g open · 5%~85% RH |
| Terminal / Weight | ≈ 460 g |
| Item | Detail |
|---|---|
| Brand / Origin | LAZZEN (Nader) · Shanghai, China |
| MOQ & Lead Time | 1 pc for sample · typically 7–15 days (confirm with sales) |
| Payment & Warranty | T/T, PayPal, Trade Assurance · 1 year warranty |
