DC Contactor NDZ3T-10 Nader Single pole 10A
Product Detai Reference

Modle Paramenter name		NDZ3T-10	NDZ3T-20	NDZ3T-40	NDZ3T-100	NDZ3T-150	NDZ3T-200	NDZ3T-300	NDZ3T-350	NDZ3T-400




Rated current		10A	20A	40A	100A	150A	200A	300A	350A	400A

Rated voltage		DC12~1000V

Insulation voltage		≥1000MΩ DC1000V

Number of poles		Single pole

Type of circuit		DC

Mechanical life		200000ties requency 3600times/h

Coil valtage		DC12V、DC24V		DC12V、DC24V、DC48V

Electrical life	DC 500V L/R≤1MS		DC450V 20A 100000times	40A 20000times	100A 3000times -100A 1000times	150A 3000times -150A 1000times	200A 3000times -200A 1000times	300A 3000times -300A 1000times	350A 2000times -350A 1000times	400A 2000times -400A 1000times



	DC 750V L/R≤1MS		20A 75000times	40A 1000times	100A 1000times	150A 1000times	200A 1000times	300A 1000times	350A 1000times	400A 1000times



	DC 1000V L/R≤1MS	10A 100000times	20A 30000times



Maximum breaking current		DC1000V 100A 1/once	DC1000V 200A 1/once	DC300V 400A 1/once	DC600V 1000A 1/once	DC300V 1500A 1/once	DC750V 2000A 1/once	DC600V 2500A 1/once	DC750V 3000A 1/once	DC750V 3000A 1/once


Shot-circuit withstand current		100A 600ms	200A 600ms	400A 600m	1000A 600ms	1500A 600ms	2000A 600ms	3000A 600ms	3000A 600ms	3000A 600ms


Insulation resistance		1000MΩ DC1000V

Withstand voltage		Disconnect between contacts: AC3000V 60s Leakage current ≤1mA,Contact and coil :AC4000V 60s Leakage current ≤1mA		AC3000V 60s

Rated control voltage Uc		Rated control voltage：DC12V/DC24V/DC48V Pick-up voltage：DC12V:≤9V、DC24V:≤18V、DC:≤48V Drop-out voltage：DC12V:≥1.2V、DC24V:≥2.4V、DC48V:≥4.8V



Retention power consumption(20℃,Rated voltage control)		2.6W		3.3W	4.5W	6W	Keep4.5W, Start35W	Keep4.5W,Start45W




Auxiliary contact type		Without Auxiliary contact，1NO，1NC，1NC＋1NO

Workplace Temperature		（-40°C～+85°C）

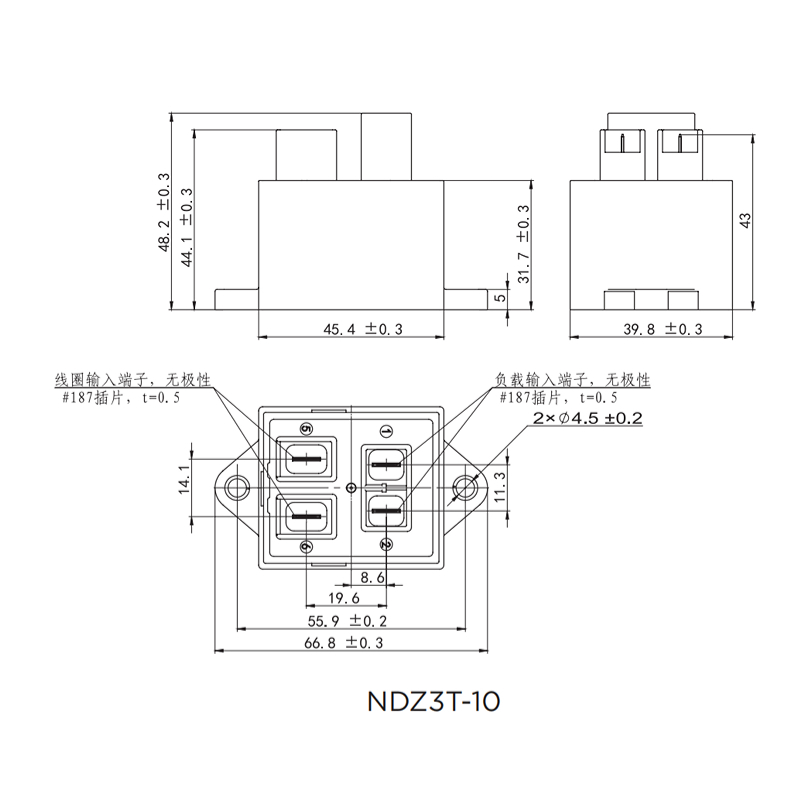

Product picture

DC Contactor NDZ3T-10 Nader Single pole 10A

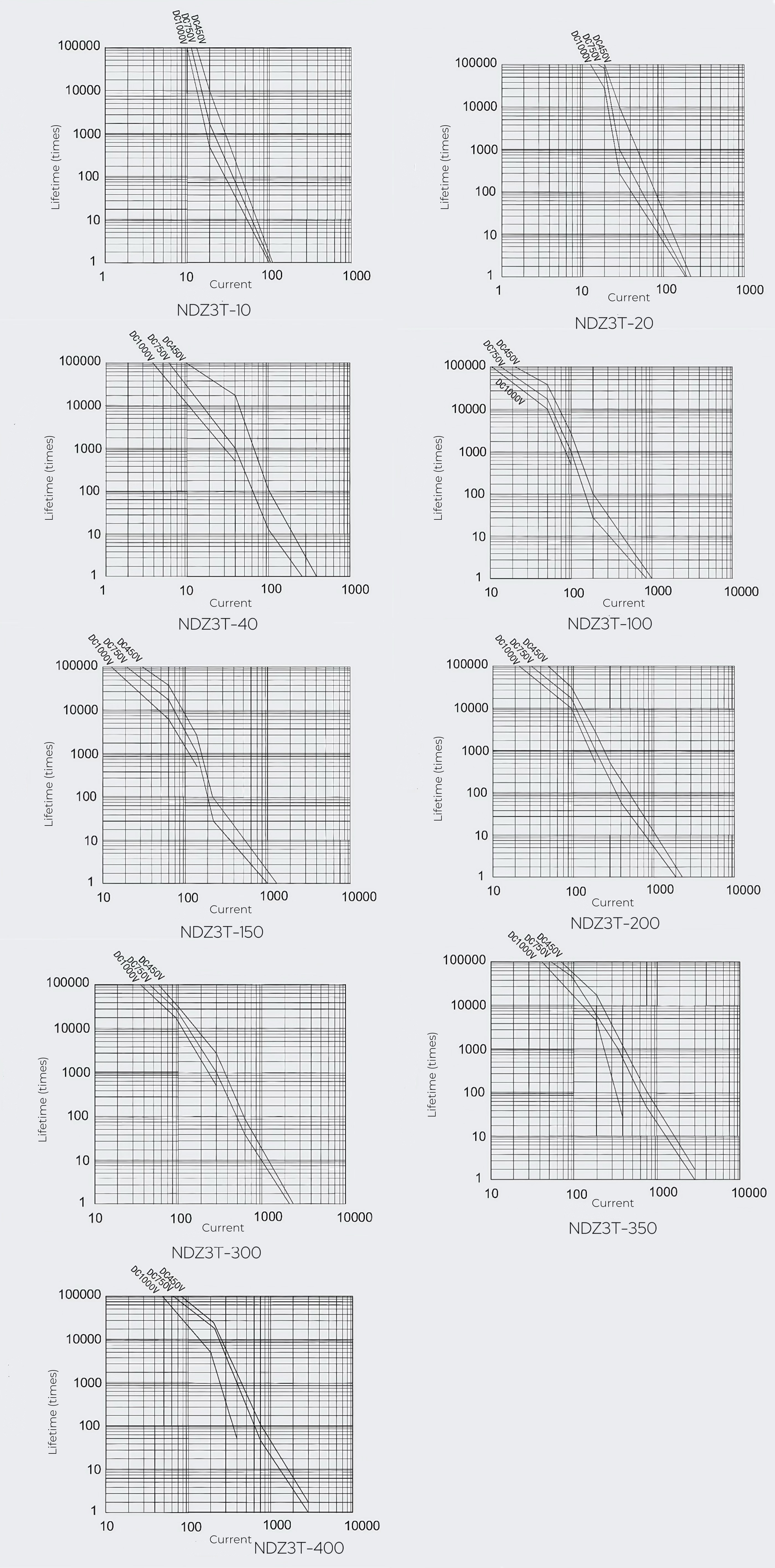

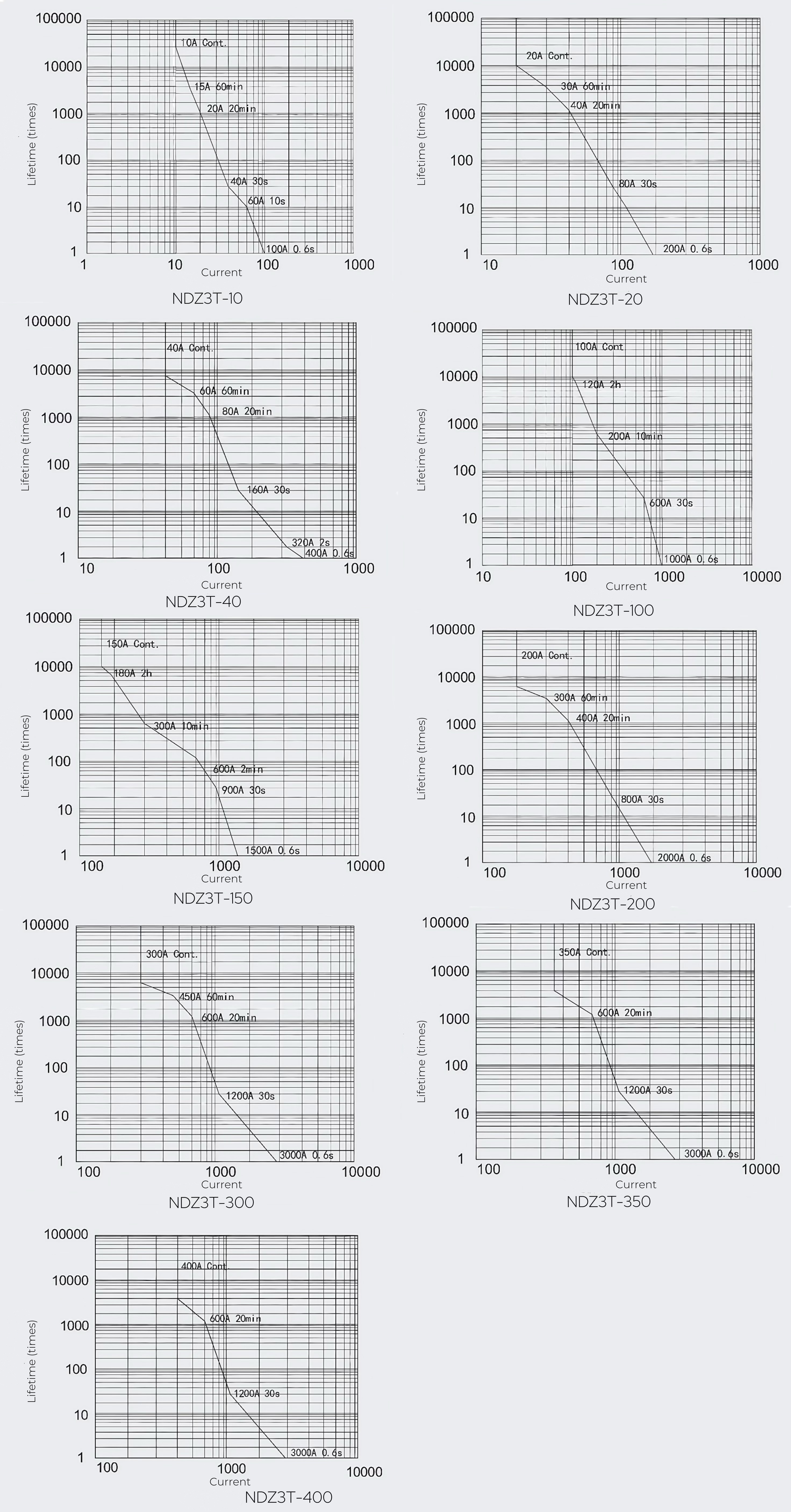

Electrical Life Line Chart Current Time Line Chart

DC Contactor NDZ3T-10 Nader Single pole 10A
