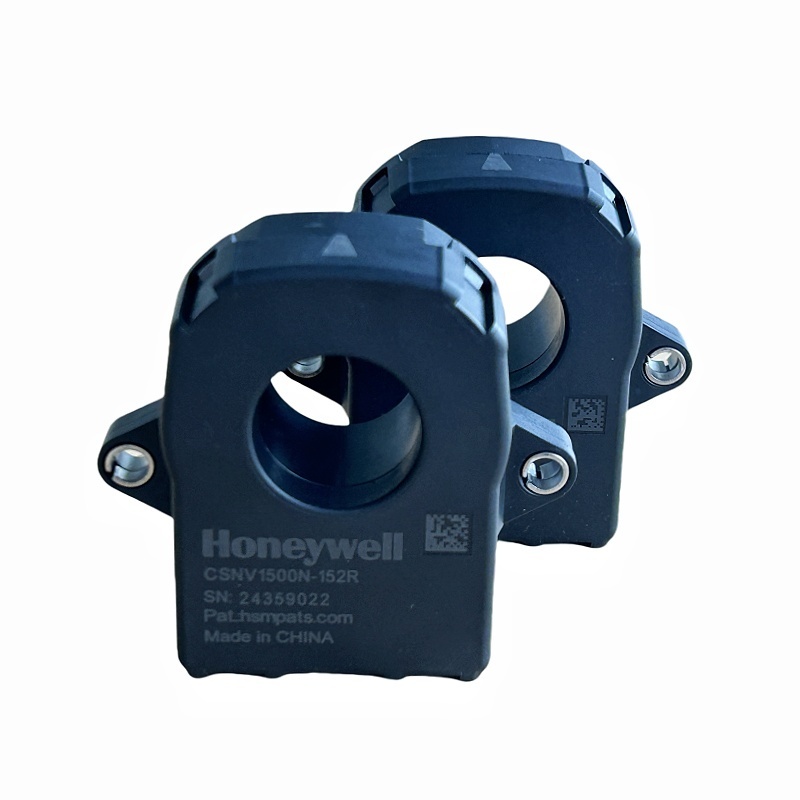

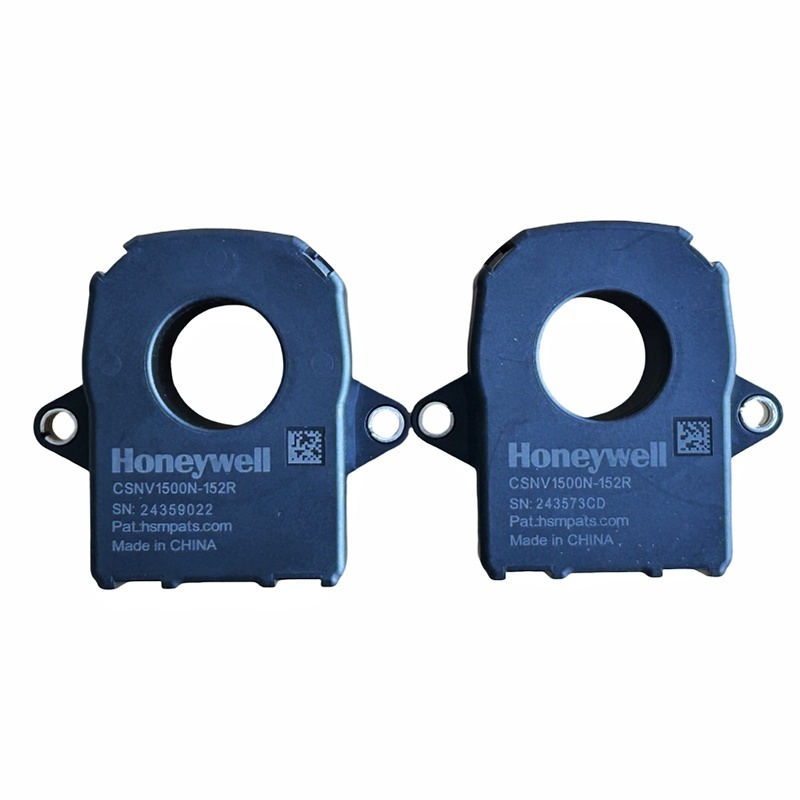

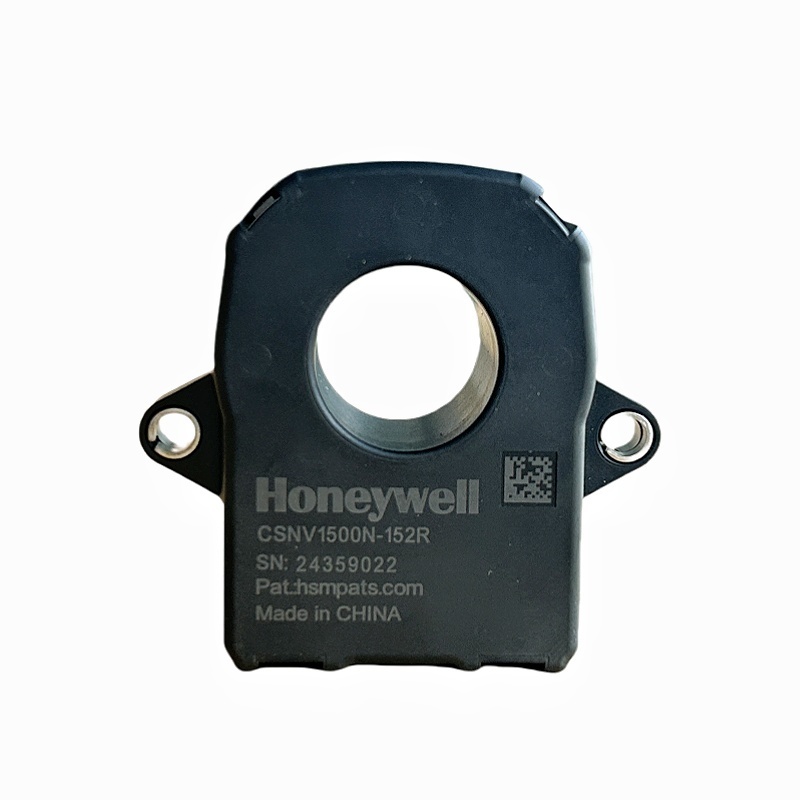

| Parameter | Value |
|---|
| Model | CSNV1500N-152R |
| Sensor Technology | Closed loop Hall-effect, temperature compensated |
| Nominal Current / Measuring Range | 1500 A · ±1500 A (DC) |
| Output Signal | CAN bus (ISO 11898, CAN 2.0A) · 500 kbps · CAN ID 3C2 |
| Supply Voltage | 6–18 V DC single supply (12 V typ.) |
| Current Consumption | 21 mA typ. @ IP = 0 A · 160 mA typ. @ IPM |
| Accuracy | ±0.1 A @ 0–10 A · ±1 % total error @ 10 A < IP ≤ 1500 A (12 V, 25 °C) · ±3σ over −40 °C … +85 °C |
| Response Time | 10 ms |
| Operating Temperature | −40 °C … +85 °C |
| Isolation / Creepage | 2.5 kV AC (50 Hz, 1 min) · 2.5 kV DC (1 min) · creepage 7.5 mm |

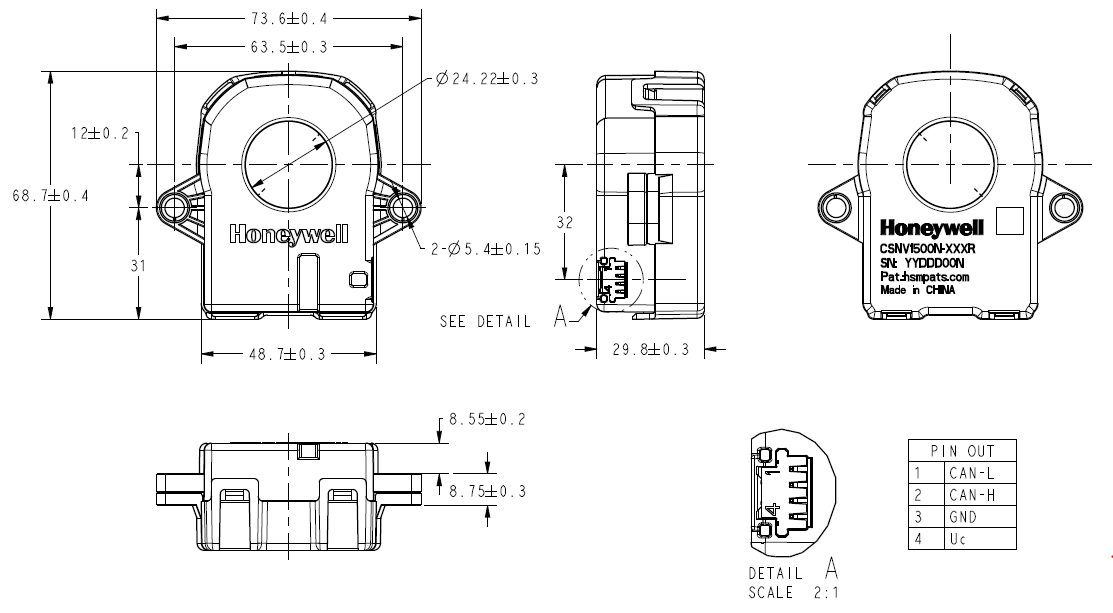

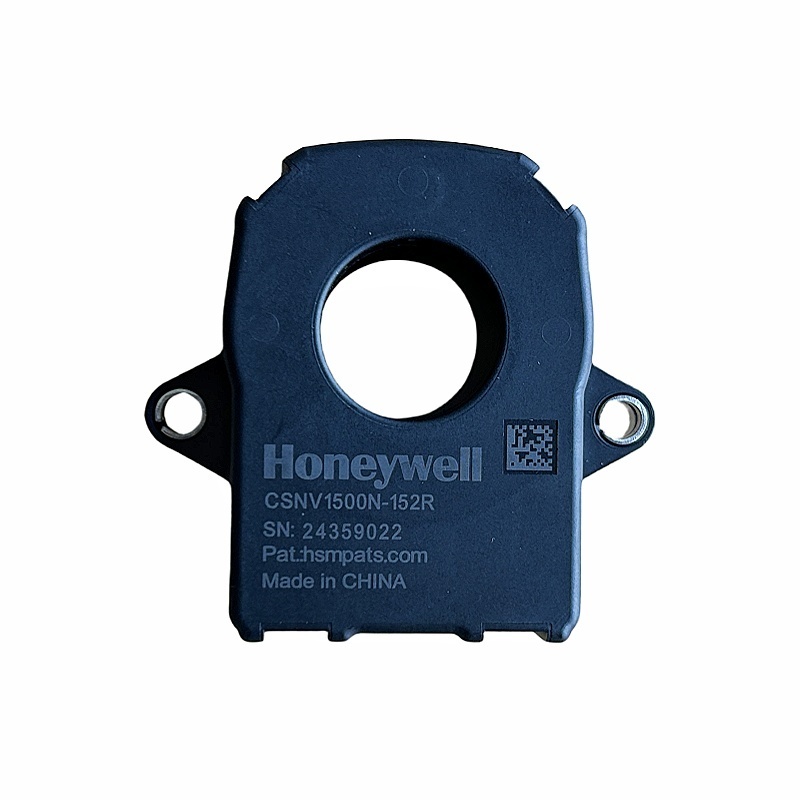

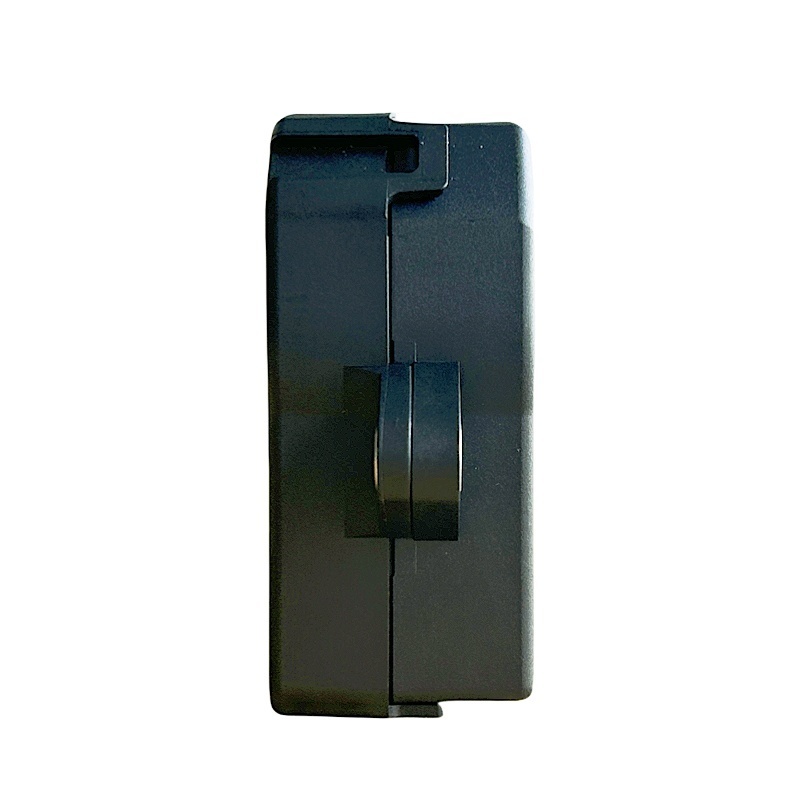

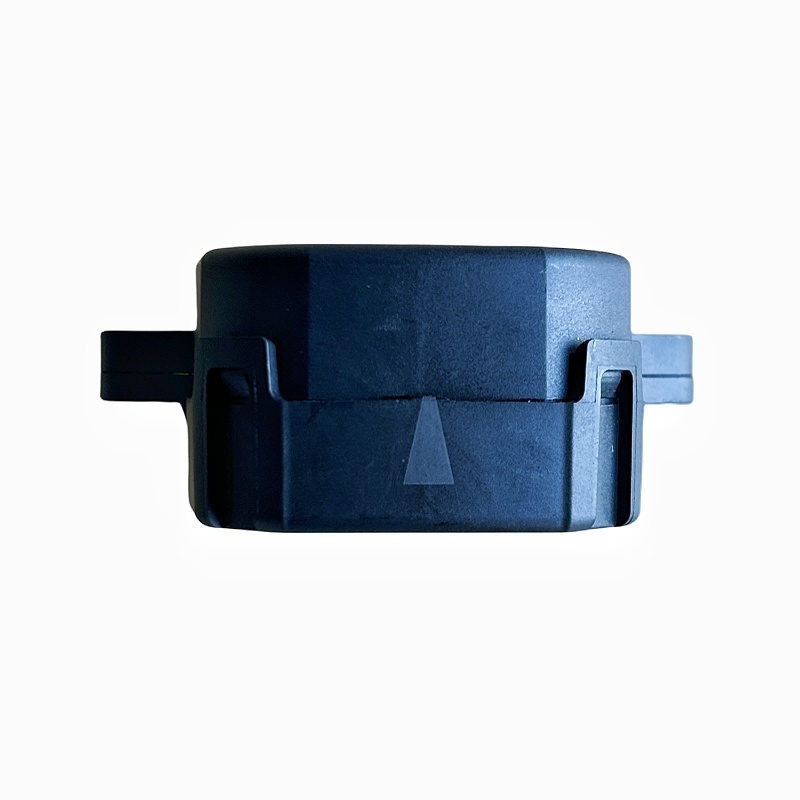

| Mounting / Housing | Through-hole, aperture Ø24.2 mm · 2 × Ø5.4 mm reinforced holes, 63.5 mm pitch |
| Application | EV / HEV / PHEV / BEV battery management, energy storage systems, charging leakage detection |
