| Parameter | Value |
|---|---|
| Model | G300-12 |
| Supported Takeoff Weight | 45~60 kg, suggested values, data for reference only |
| Flight Altitude / Cable Length | 100m, 200m or 300m, with 110m cable |
| Endurance | >24h, continuous power supply from the ground unit |
| Input Voltage (Ground Module) | 380±10%VAC, Three-phase five-wire@50Hz |
| Tether Output Voltage | 800~1000VDC, Factory default 1000VDC |
| Ground Module Output Power | 20kW (rated long-time output), 25kW (peak) |

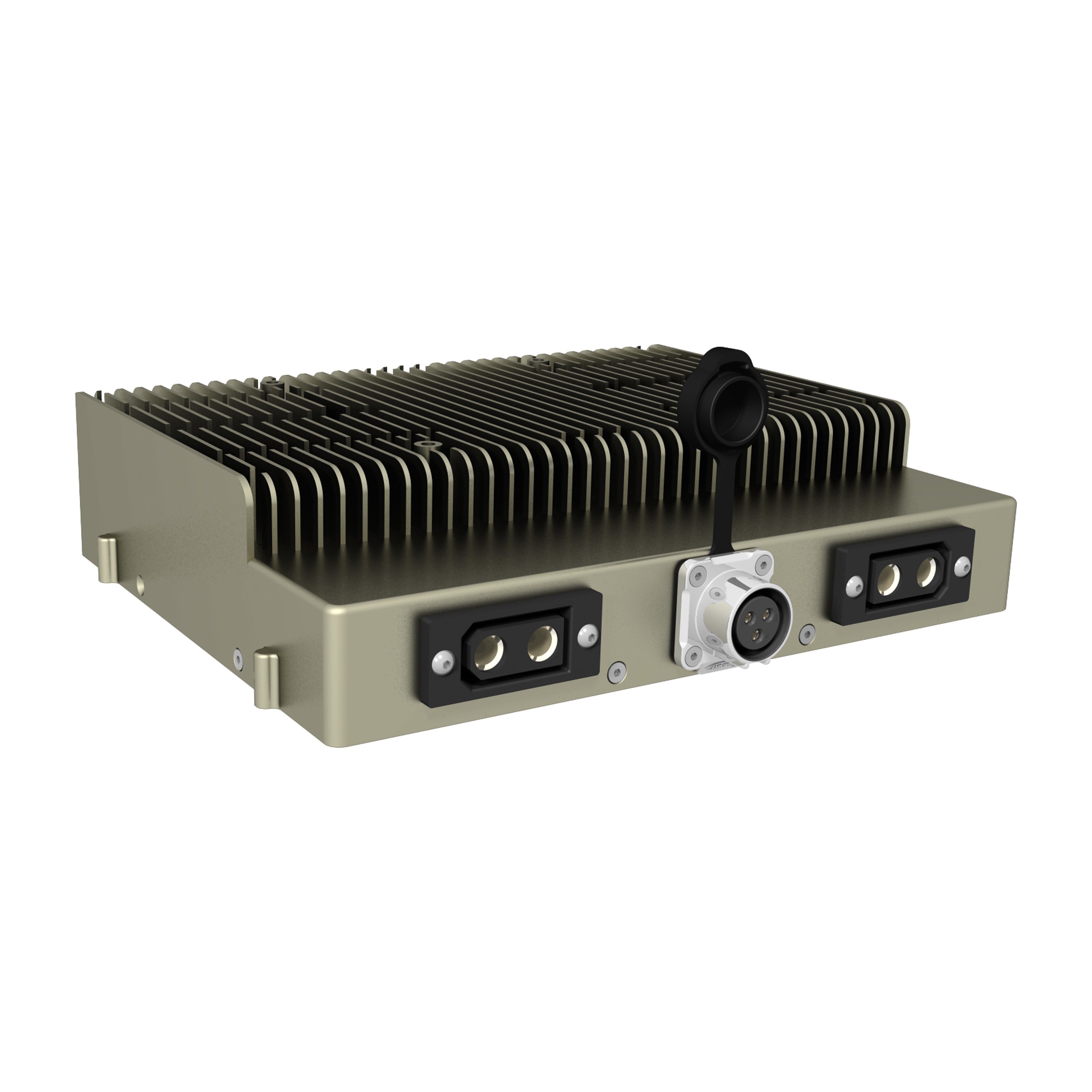

| Air Module Input / Output Voltage | 800~1000VDC / 50VDC |
| Air Module Output Power | 12kW (rated long-time output), 15kW (peak) |
| Cable Reel Speed / Pulling Force | 0~5m/s · 0~30N, intelligent continuous adjustment |
| Control Modes / Data Monitoring | Button · Voltage, current, temperature, power consumption, outlet length, operating tim |
| Protection & Warning | overvoltage · Fault content displayed on screen |
| Cable Material / Interfaces | Silver-plated copper+Teflon insulation+Single-mode Fiber+Sheath film+Kevlar weaving · WS40, LP20, Switch, Bluetooth antenna, Type-C, FC |
| Environment / Protection Class | -20~45℃ working · storage -40~65℃C · air module IP54, ground module IPx4 |
| Packing Case (Size / Weight) | Trolley case, D760×W720×H680mm · 30kg |
Values verified against the official CEEIC G300-12 product page.
| Code Segment | Meaning |
|---|---|
| G | Series prefix — tethered power system (ground module + air module) |
| 300 | Cable class up to 330m (G12 = 55m · G35 = 110m · G70 = 220m · G300 = 330m) |
| 12 | Rated air-module output power 12kW (400 = 400W · 1 = 1kW · 9 = 9kW) |
Available models in this range: G12-400 · G12-1 · G35-2 · G35-3 · G70-3 · G70-6 · G300-9 · G300-12
