| Parameter |
Value |
| Model |

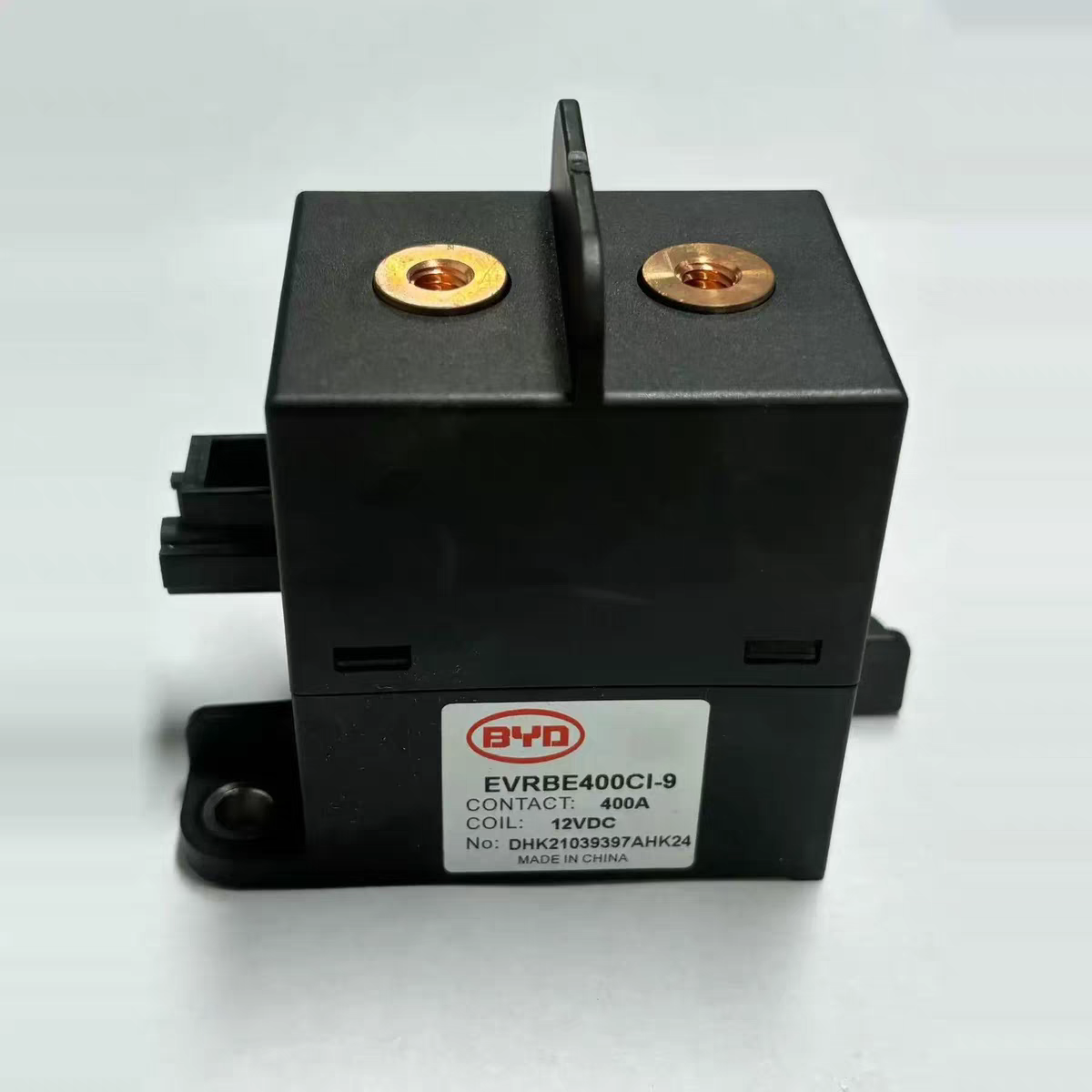

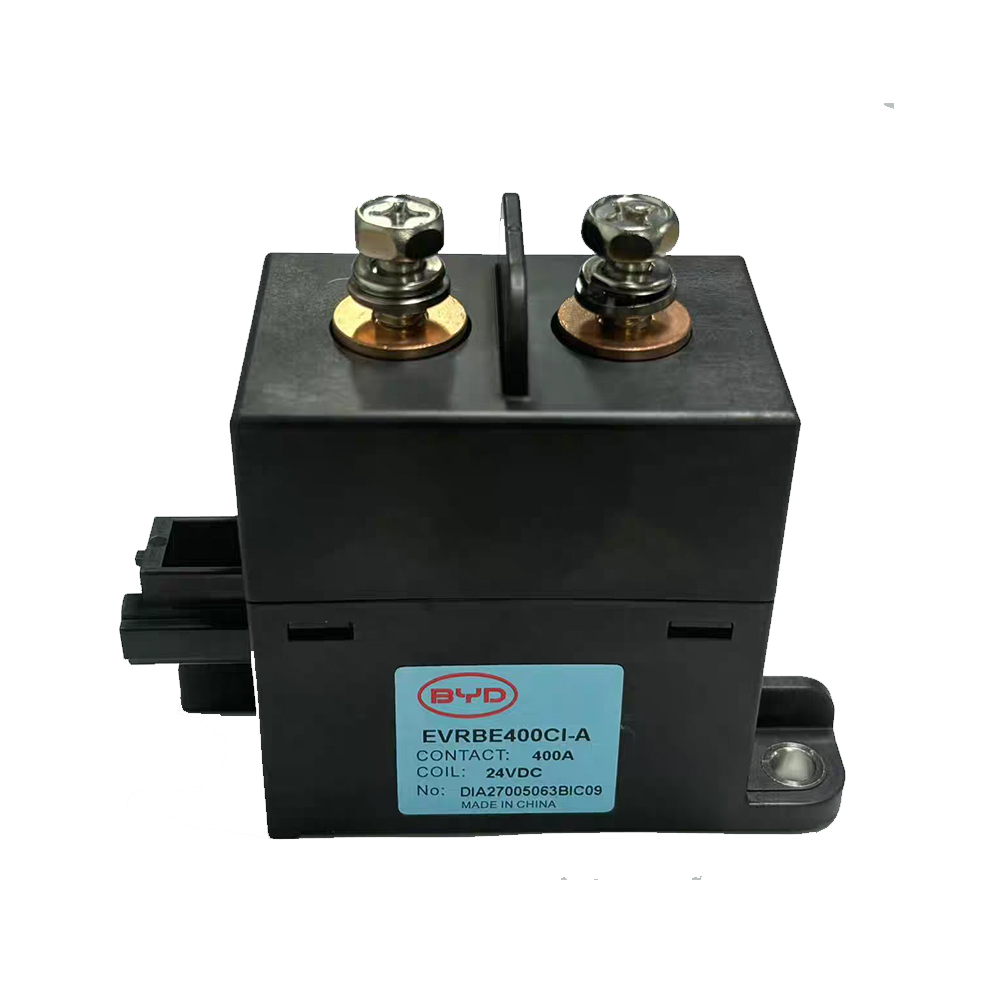

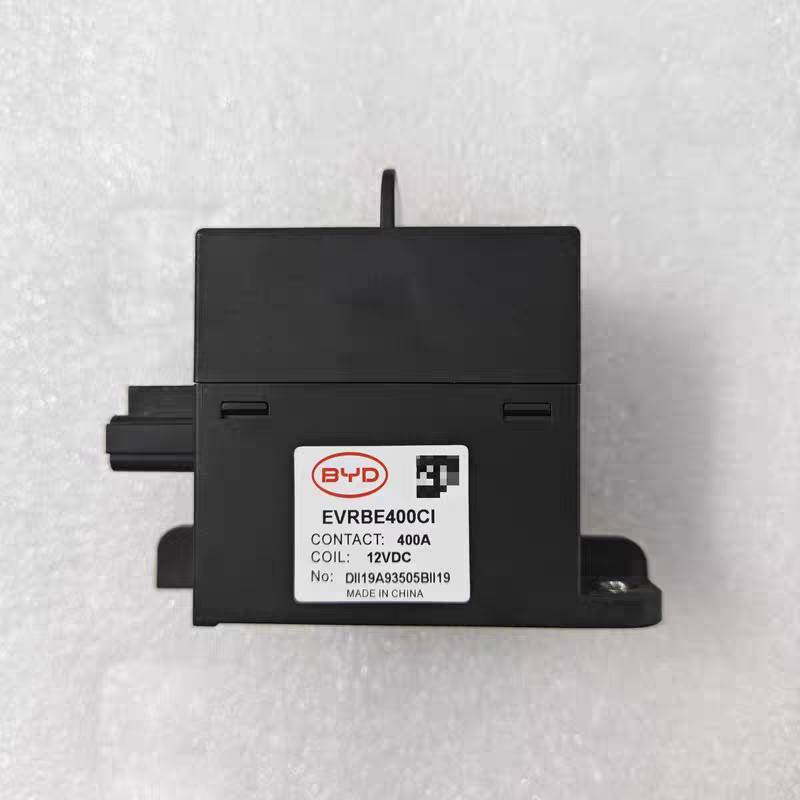

EVRBE400CI (400A type) |
| Contact Arrangement |
1 Form A (SPST-NO), one set of normally open contacts |
| Contact Rating |
400A continuous · 600A / 10 min short-time · min. applicable load 1A 12VDC (resistive) |
| Load Voltage |
DC 12V – 1000V operating range |
| Max. Switching Voltage |
1000 VDC |
| Max. Breaking Current |
400A @ DC450V, ≥1,000 interruptions (forward & reverse −400A) |
| Contact Resistance |
≤0.5 mΩ (initial) · ≤0.2 V voltage drop at 400A |
| Coil Voltage |
DC 12V (pick-up ≤9V · drop-out 1–4.8V · rated current 0.75A · 9W · max. allowable DC16V, at 23°C) |
| Operate / Release Time |
≤30ms / ≤15ms (at 23°C, rated coil voltage; release without diode) |
| Endurance (Mech. / Elec.) |
≥200,000 operations / ≥1,000 interruptions (DC450V, 400A resistive, forward & reverse) |
| Dielectric / Insulation |
AC 3,000V 1min between contacts & contact–coil (leakage ≤3mA) · ≥1,000MΩ (DC1,000V megger, initial) |
| Ambient (Operating / Storage) |
−40°C ~ +85°C / −40°C ~ +95°C · 5%~85% RH (no icing or condensation) |
| Vibration / Mechanical Shock |
27.4 m/s², 5–2000Hz broadband random, 15h per axis (3 axes) · half-sine 11ms, 50g, 20 shocks per axis |
| Terminal / Dimensions / Weight |
M6 internal-thread load terminals (effective depth 9.5mm) · 45.7 × 74.9 × 88.5 mm · approx. 450 g |
| Mounting Torque |
M6 load terminals 6–9 N·m · M5 case fixing feet 3–4 N·m |
| Certification |
TÜV |
